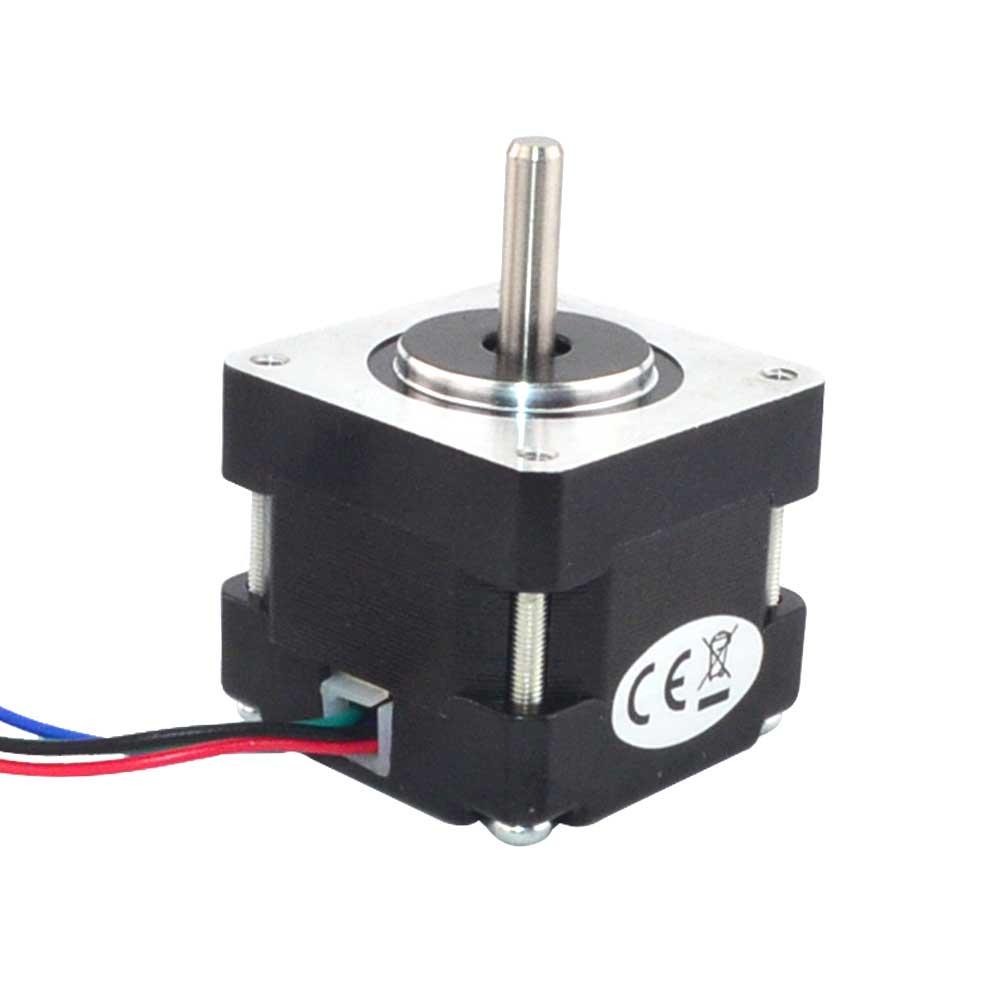

NEMA 16 39HS 1.8° 2-Phase Hybrid Stepper Motor

$6-$8

The NEMA16 1.8° 2-Phase Hybrid Stepper Motor is designed to provide reliable, consistent motion, offering high torque and accuracy. Its low-resistance stator and rotor helps to minimise noise and vibration, making it ideal for use in a range of applications.

Model TypeStepper Motor

Size(mm)86

Step Angle(°)1.8

Max. Radial Force(N)28

Max. Axial Force(N)10

Temperature Rise(℃)80

SPECIFICATIONS

Model No 39HS20-0404A 39HS20-0506A 39HS34-0654A 39HS34-0306A 39HS38-0504A 39HS38-0806A 39HS44-0304A
Step Angle (°) 1.8 1.8 1.8 1.8 1.8 1.8 1.8
Rated Voltage (V) 2.64 6.5 4.55 12 12 6 12
Rated Current(A) 0.4 0.5 0.65 0.3 0.5 0.8 0.3
Phase Resistance (Q) 7.5 7.5 9.3 20 45 6 80
Phase Inductance (mH) 6.6 1.3 7 40 24 7.5 42
Holding Torque (Kg.cm) 0.65 0.8 1.8 1.3 2.9 2 3
Detent Torque (g.cm Max) 50 50 120 120 180 180 250
Rotor Inertia (g.cm²) 11 11 20 20 24 24 40
Motor Length (mm) 20 20 34 34 38 38 44
Lead Wires No. 4 6 4 6 4 6 4
Motor Weight (Kg) 120 120 210 210 250 250 260

Electrical Specification:

  • Manufacturer Part Number: 39HS
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 6.5-30Ncm (9.2-42.6oz.in)
  • Rated Current/phase: 0.3-0.8A
  • Phase Resistance: 6-80Ω
  • Inductance: 9.3mH ± 20%(1KHz)

Physical Specification:

  • Frame Size: 39 x 39mm
  • Body Length: 34mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 120-260g

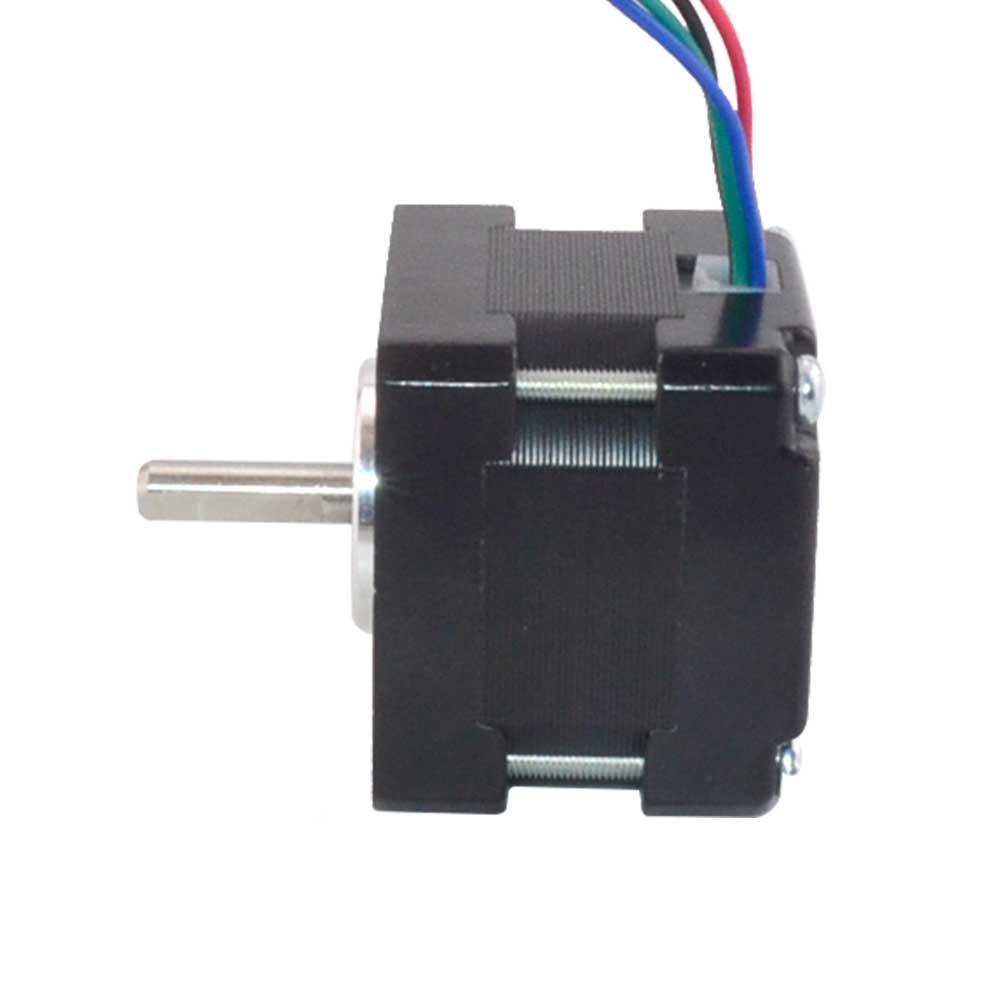

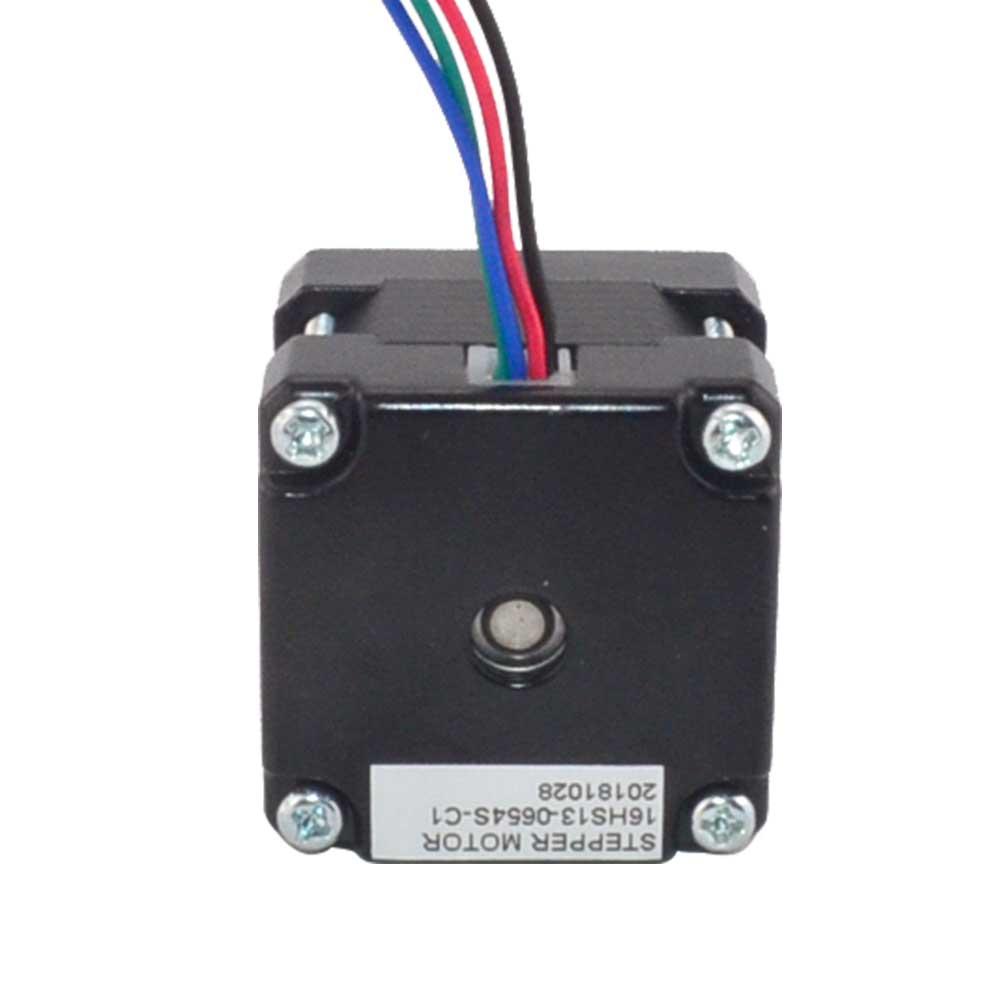

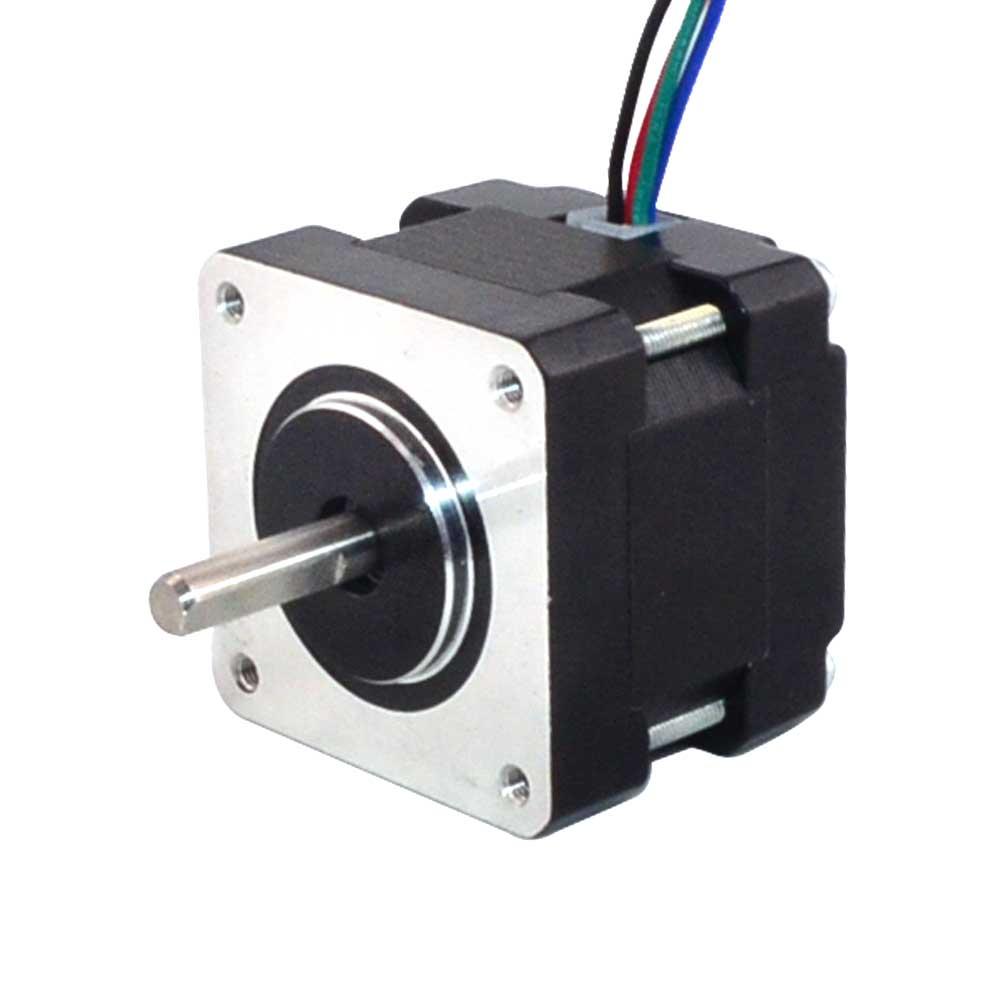

Product Display

stepper motor 1.0 description pic

Product Feature

High Precision

This stepper motor features a 1.8° step angle, providing high precision control for applications requiring accurate positioning.

2-Phase Operation

Utilizes a 2-phase operation, offering smooth and efficient performance with reduced vibration and noise.

Hybrid Design

Combines the best features of both permanent magnet and variable reluctance stepper motors, ensuring high performance and reliability.

Compact Size

The NEMA 16 form factor provides a compact and lightweight solution, suitable for space-constrained applications.

High Torque

Delivers a robust torque output, making it suitable for demanding applications that require consistent power.

Durable Construction

Constructed with high-quality materials, ensuring long-lasting performance in various industrial environments.

Easy Integration

Designed for easy integration into existing systems, simplifying installation and reducing setup time.

stepper motor 1.0 description pic

Product Applications

3D Printers

Ideal for 3D printers, offering precise control for accurate layer deposition and high-quality prints.

Robotics

Suitable for robotic applications, providing accurate and controlled movement for various robotic mechanisms.

CNC Machinery

Perfect for CNC machinery, ensuring reliable and precise control for milling, cutting, and engraving tasks.

Medical Equipment

Applicable in medical equipment, providing precise control and reliable operation in sensitive and critical applications.

Automated Manufacturing

Ideal for automated manufacturing systems, ensuring efficient and reliable performance in production lines.

Textile Machinery

Used in textile machinery, offering high torque and precision control for various textile processing tasks.

Packaging Machines

Suitable for packaging machines, ensuring consistent and controlled movement for packaging operations.

stepper motor 1.0 description pic

Videos

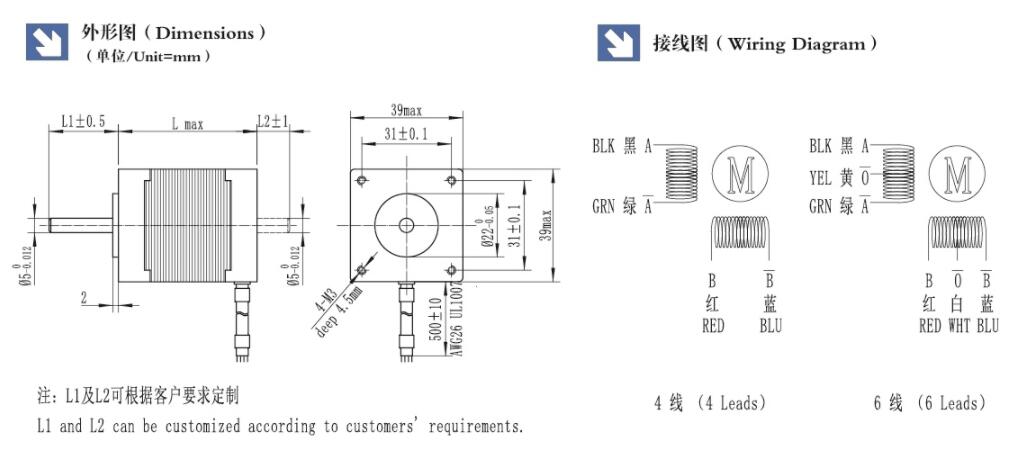

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
