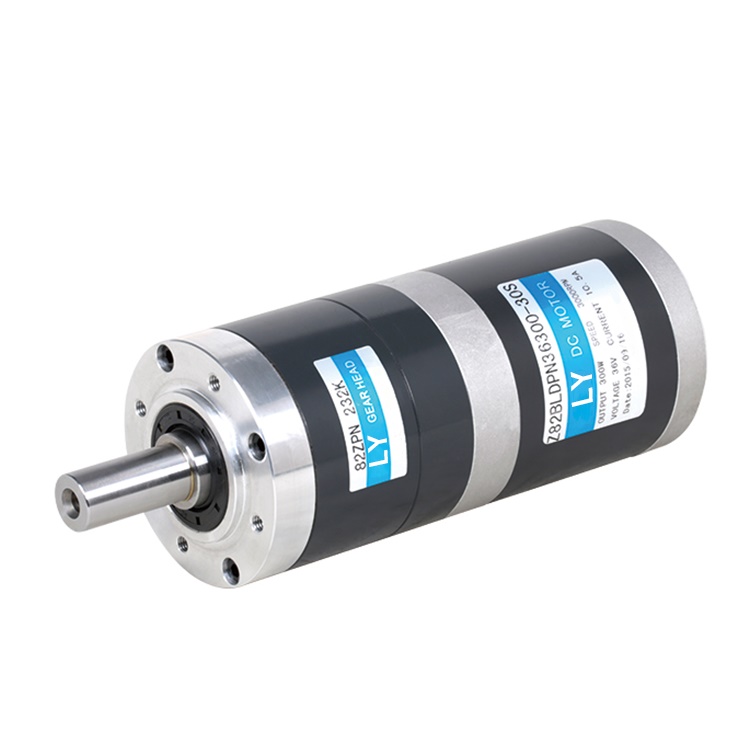

82MM 120/200/300W 3000RPM 24/48V Brushless DC Planetary Geared Motor

$109.5-$142.4

This 82mm Brushless DC Planetary Geared Motor features a powerful design with high torque and speed. The brushless design reduces energy loss for increased efficiency and durability. Enjoy smooth and reliable performance with this high-quality motor.

Model TypeDC Motor

Voltage(V)24/48

Output(W)120/200/300

Size(mm)82

Speed(RPM)3000

SPECIFICATIONS

Model Voltage Power No-Load Current No-Load Speed Rated Current Rated Speed Rated Torque
Z82BLDPN24200-30S 24V 200W 1.2 3500rpm 11A 3000rpm 0.637N.m
Z82BLDPN48300-30S 48V 300W 0.8 3300rpm 8A 3000rpm 0.955N.m
Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 3.14 4.61 5.63 7.42 10.83 14.7 19.3 21.66
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 26.3 34.81 44.87 46.71 56.47 63.44 71.81 82.96
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 232 302 393 -
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6 -
Allowable Torque(N.m) 89.24 101.78 115.03 120 120 120 120 -
Reduction Stage 3 3 3 3 3 3 3 -

Product Feature

High Efficiency

Engineered with a brushless design that minimizes energy loss, resulting in greater efficiency and extended motor life.

Powerful Output

Delivers exceptional torque and speed with output power options of 200W and 300W and a rated speed of 3000rpm.

Low Noise

Incorporates helical gears at the input stage, contributing to a smoother and quieter operation.

Enhanced Torque Transmission

Features a spline connection between the sun wheel and planetary wheel, boosting the gearbox's maximum torque and longevity.

Precision Engineering

Comes with an internal double support structure and precision-ground inner bore of planetary gears for superior performance and durability.

Flexible Design

The motor's modular structure allows for a variety of ratios, enhancing design flexibility and application adaptability.

Product Applications

Automated Machinery

Ideal for use in automation systems that require precise motion control and reliable torque delivery.

Medical Equipment

Suitable for powering sophisticated medical devices that demand smooth and quiet operations.

Robotics

Provides the necessary speed and torque for robotic arms and actuation systems, enabling precise movements and functionality.

Aerospace and Defense

Employs high-precision and durability required for the demanding specifications of aerospace and defense equipment.

Industrial Equipment

Performs efficiently in harsh industrial environments, handing the needs of heavy-duty equipment and machinery.

Videos

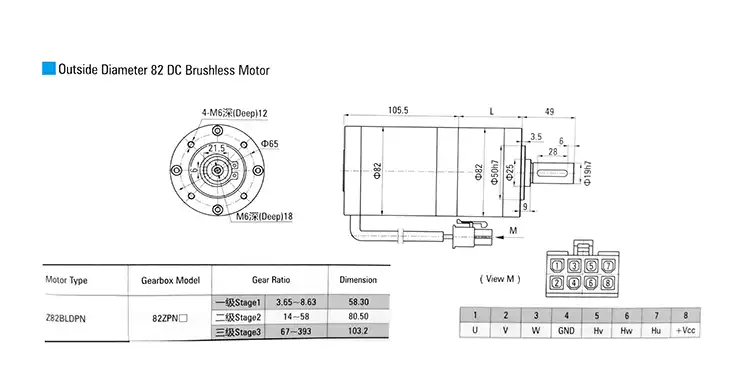

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Z82BLDPN200W-24V-Gear-Ratio-Stage1.STEP381KBDownload
Z82BLDPN200W-24V-Gear-Ratio-Stage2.STEP378KBDownload
Z72BLDPN120W-24V-Gear-Ratio-Stage3.STEP378KBDownload
Z82BLDPN300W-24V-Gear-Ratio-Stage1.STEP381KBDownload
Z82BLDPN300W-24V-Gear-Ratio-Stage2.STEP378KBDownload
Z82BLDPN300W-24V-Gear-Ratio-Stage3.STEP378KB Download
DC-Motor-Catalog.pdf55.7MBDownload
