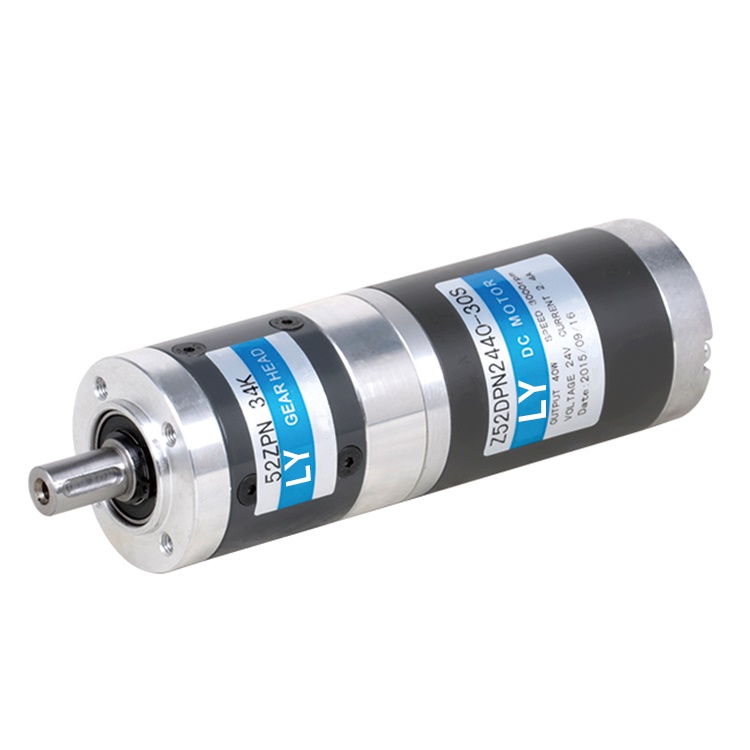

52mm 40/60W Diameter Planetary Brush Geared Motor
52mm 40/60W Diameter Planetary Brush Geared Motor
52mm 40/60W Diameter Planetary Brush Geared Motor
52mm 40/60W Diameter Planetary Brush Geared Motor
right
left
  • 52mm 40/60W Diameter Planetary Brush Geared Motor

  • Motor Type:Brush Planetary Gear Motor
    Output Power (W):40/60
    Voltage (V):24
    Speed with Load (rpm):3000
    Torque with Load (N.m):0.8
    Allowable Torque:0.42-25
    Diameter (mm):52
    Ratio:3.65-393
  • 1 piece

    $75.00 - $89.00
  • Online consultation

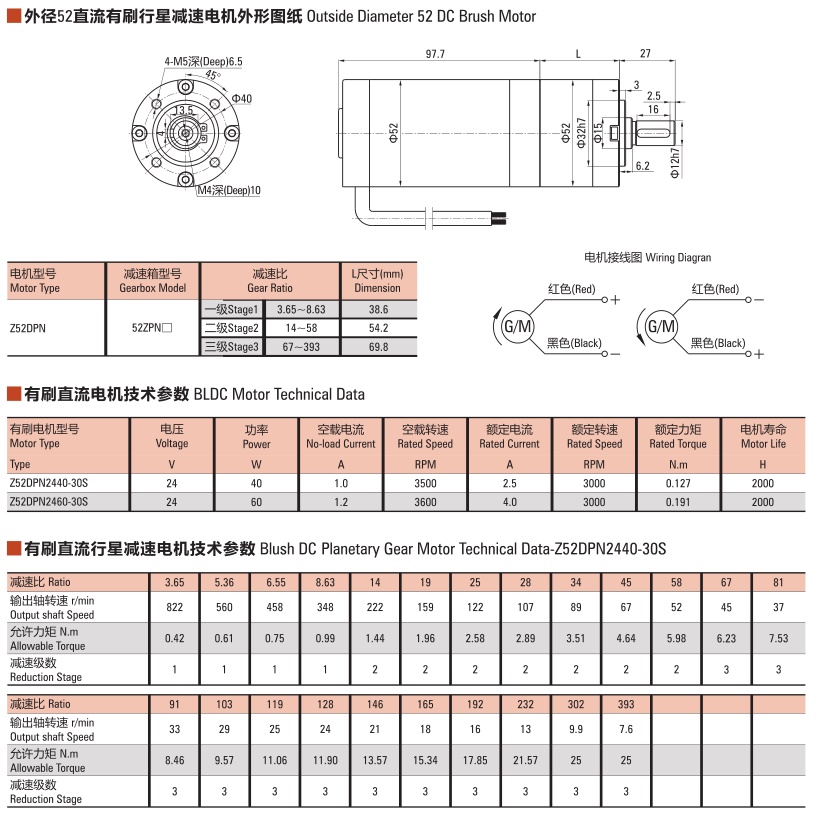

Parameters

Motor Flange Range 52mm
Motor Type brush
Output Power (W) 40/60
Voltage (V) 24
Rated Speed (rpm) 3000;
Torque with Load (N.m) 0.8
Ratio Range 3.65-393
Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 0.42 0.61 0.75 0.99 1.44 1.96 2.58 2.89
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 3.51 4.64 5.98 6.23 7.53 8.46 9.57 11.03
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 132 302 393
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6
Allowable Torque(N.m) 11.9 13.57 15.34 17.85 21.57 25 25
Reduction Stage 3 3 3 3 3 3 3

Introduction

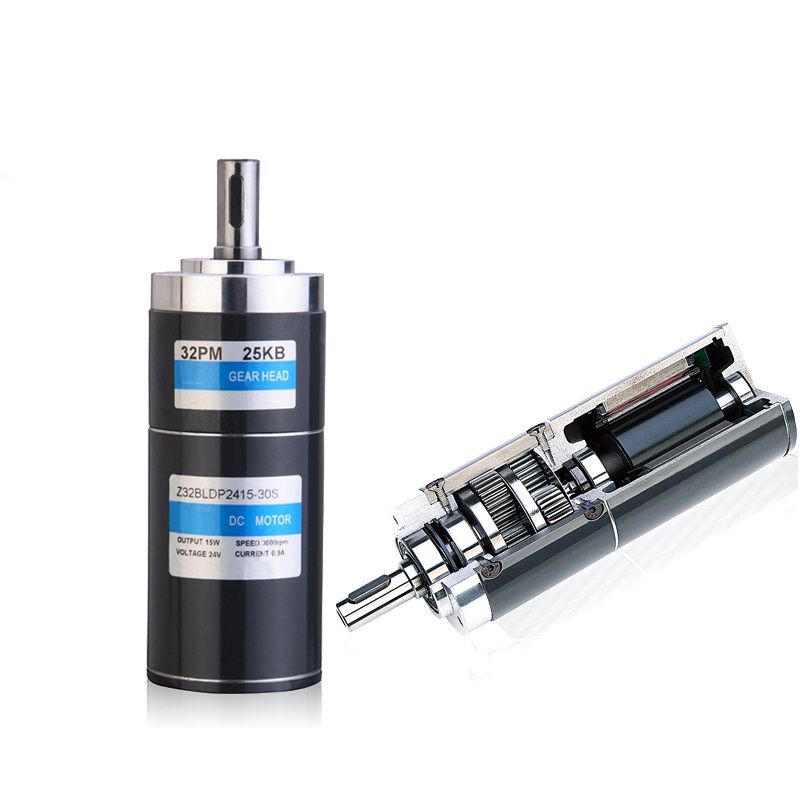

1. Double support structure: Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot

2. Spindle connection: Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life

3. Inner hole: Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead

4. Helical tooth:We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible

52mm 40/60W Diameter Planetary Brush Geared Motor 52mm 40/60W Diameter Planetary Brush Geared Motor

Features

  1. This planetary gear motor is of low noise, small size, light weight
  2. Large output, high efficiency.
  3. Hard mechanical feature and stable electromagnetic performance.

Application

52mm 40/60W Diameter Planetary Brush Geared Motor
