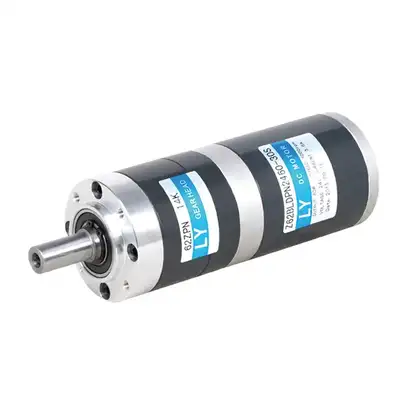

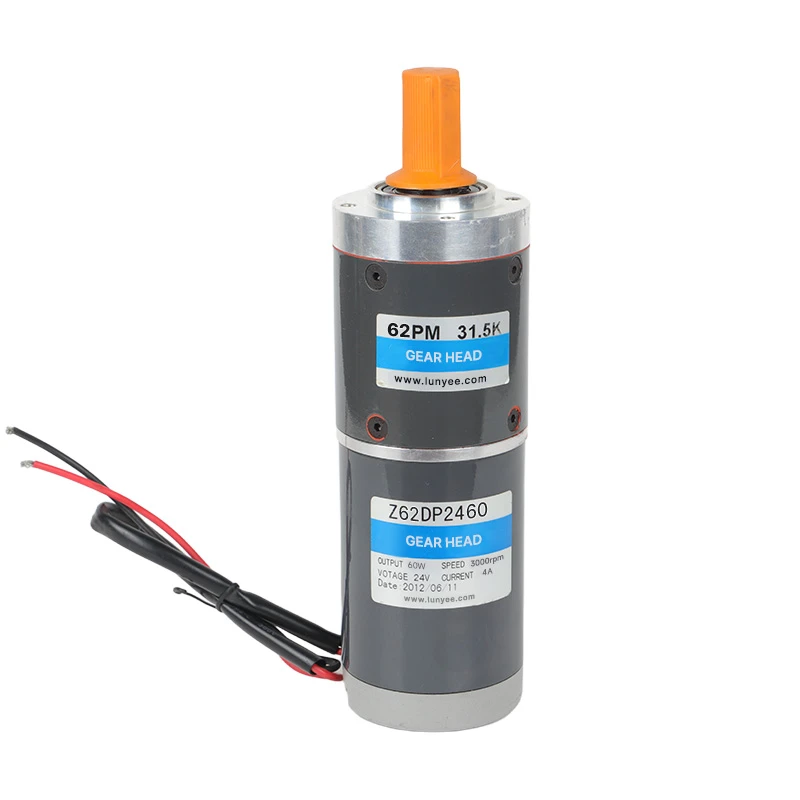

62mm Brushless DC Planetary Geared Motor

$75.00-$89.00

This 62mm Brushless DC Planetary Geared Motor provides high torque and low vibration performance, making it an ideal choice for industrial machinery. Its high-efficiency design ensures a long-lasting motor with a high power density, allowing you to work with greater reliability.

Model TypeDC Motor

Voltage(V)24

Output(W)60/90

Size(mm)62

Speed(RPM)3000

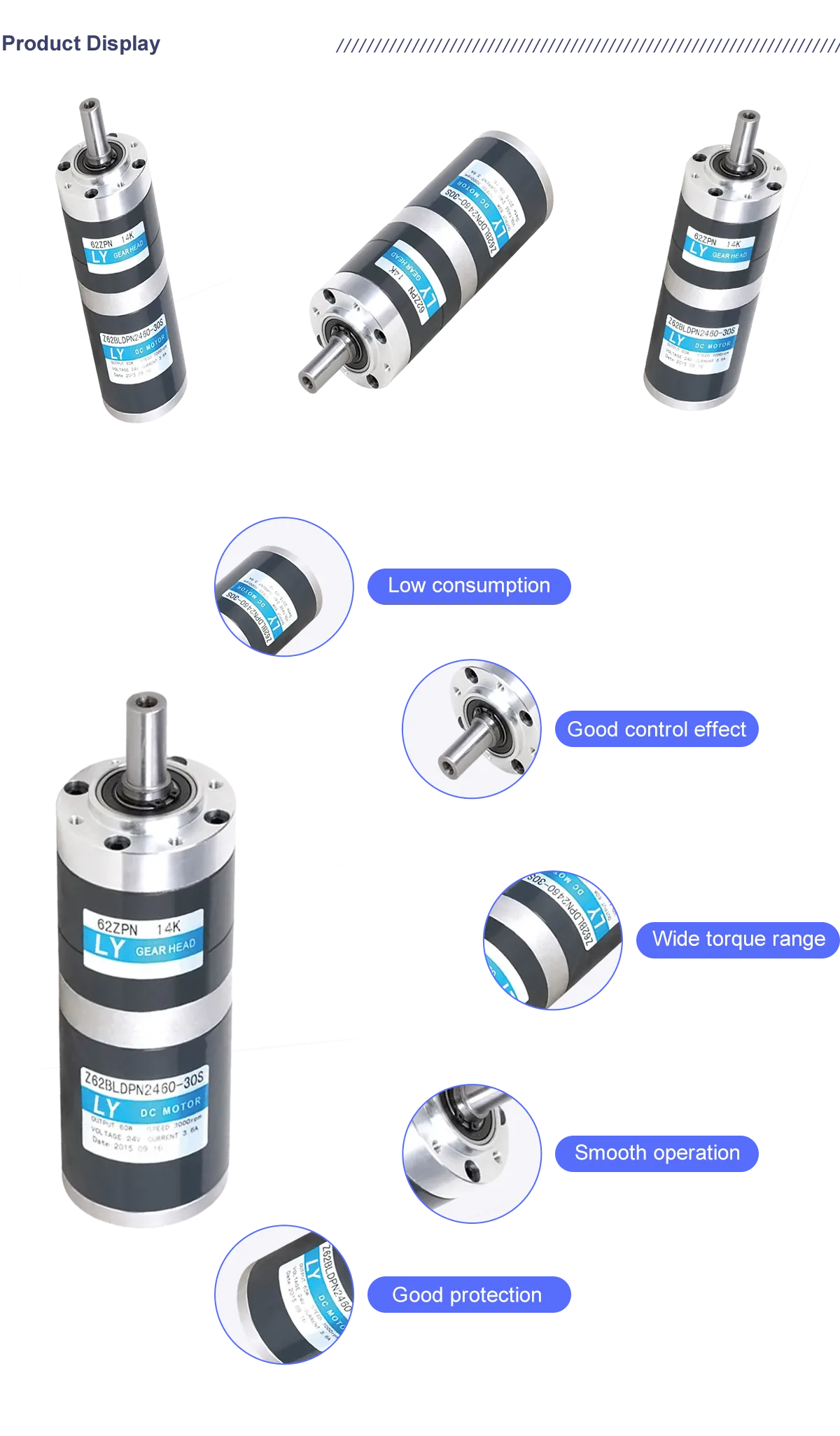

Product Display

1. Double support structure: Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot

2. Spindle connection: Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life

3. Inner hole: Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead

4. Helical tooth:We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible

Product Feature

High Torque and Low Vibration Performance

Our 62mm Brushless DC Planetary Geared Motor provides high torque and minimal vibration. Its efficiency ensures a long-lasting motor with high power density for precise and reliable operation.

Double Support Structure

We use a dual supporting structure for our output shaft, increasing the gearbox's maximum torque.

Efficient Spindle Connections

Sunwheel and planetary wheel are connected via spline, increasing the gearbox's maximum torque, extending operational life and reliability.

Durable Internal Design

The internal grinding on the inner bore of planetary gears ensures less than 0.003mm roundness, leading to a smooth, reliable performance.

Low Noise Helical Tooth

The input stage features a helical gear that runs smoothly even at high speeds, significantly reducing noise levels and contributing to a pleasant user experience.

Product Applications

Industrial Machinery

Our geared motor's high torque and low vibration performance make it a perfect fit for use in various industrial machines that require consistent and reliable operation.

Automation Systems

Due to its precise control and high reliability, it is highly suited for automated systems that require high accuracy and stable performance.

Robotics

The torque and speed performance of our geared motor are suitable for robotics applications, providing the necessary power for complex tasks and movements while maintaining efficiency and durability.

Medical Equipment

Given its precision and reliability, our Brushless DC Planetary Geared Motor is also suited for medical equipment and machinery that require consistent performance for critical operations.

Videos

SPECIFICATIONS

Model Voltage Power No-Load Current No-Load Speed Rated Current Rated Speed Rated Torque
Z62BLDPN2460-30S 24V 60W 0.7 4000rpm 3.5A 3000rpm 0.191N.m
Z62BLDPN2490-30S 24V 90W 1.2 4200rpm 5.5A 3000rpm 0.287N.m
Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 0.63 0.92 1.13 1.48 2.17 2.94 3.87 4.33
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 5.26 6.96 8.97 9.34 11.3 12.69 14.36 16.6
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 232 302 393 -
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6 -
Allowable Torque(N.m) 17.85 20.36 23.01 26.77 32.35 42 45 -
Reduction Stage 3 3 3 3 3 3 3 -

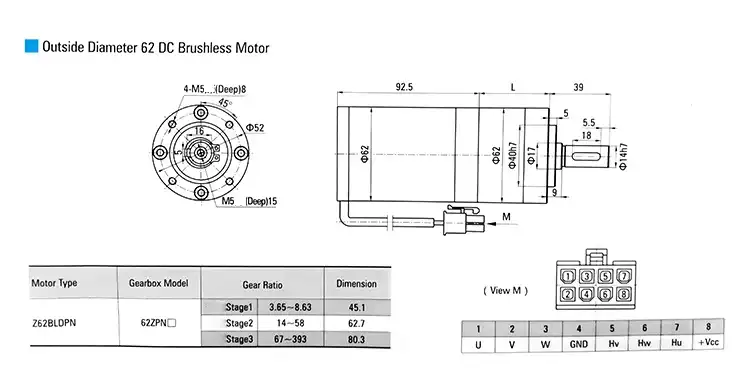

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Z62BLDPN60W-24V-Gear-Ratio-Stage1.STEP389KBDownload
Z62BLDPN60W-24V-Gear-Ratio-Stage2.STEP387KBDownload
Z62BLDPN60W-24V-Gear-Ratio-Stage3.STEP387KBDownload
Z62BLDPN90W-24V-Gear-Ratio-Stage1.STEP389KBDownload
Z62BLDPN90W-24V-Gear-Ratio-Stage2.STEP388KBDownload
Z62BLDPN90W-24V-Gear-Ratio-Stage3.STEP388KB Download
DC-Motor-Catalog.pdf55.7MBDownload
