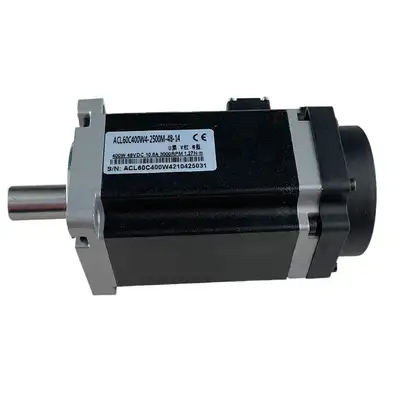

ACL60 400W 48V 3000RPM DC Servo Motor and Drive

$110-$130

This 400W 48V 60mm DC Servo Motor and its accompanying Servo Driver is the perfect combination for mechanical automation systems. With its powerful torque and reliable operation, it will ensure smooth and accurate movement without any interruption.

Model TypeServo Motor

Voltage(V)48

Output(W)400

Size(mm)60

Speed(RPM)3000

SPECIFICATIONS

Rated power(W) 400
Rated voltage(V) DC48
Rated current(A) 10
Rated speed(r/m) 3000
Rated torque(N.m) 1.27
Peak torque(N.m) 3.81
Back EMF(V/1000r/m) 8.4
Torque coefficient(N.m/A) 0.127
Rotor inertia(kg.㎡) 0.53x10-4
Winding (inter-wire) resistance(Ω) 0.36
Winding (inter-wire) inductance(mH) 0.65
Electrical time constant(ms) 1.8
Number of poles() 5

Model Power(W) Volatge(VDC) Current(A) Flange(mm) Shaft Dia.(mm) Rated Speed(RPM) Rated Torque(N·m) Encoder(PPR) Motor Length(mm) Length with Brake(mm) Driver
ACL40100W4- 2500E-24-8 100 24 7.5 40 8 3000 0.32 2500 99 136.3 IDS306
ACL60C200W4-2500M-24-14 200 24 22 60 14 3000 0.64 2500 75.5 199.8 IDS806
ACL1301500W4- 2500M-4 400 48 12.8 14 - 3000 1.27 2500 110 - IDS806

Product Display

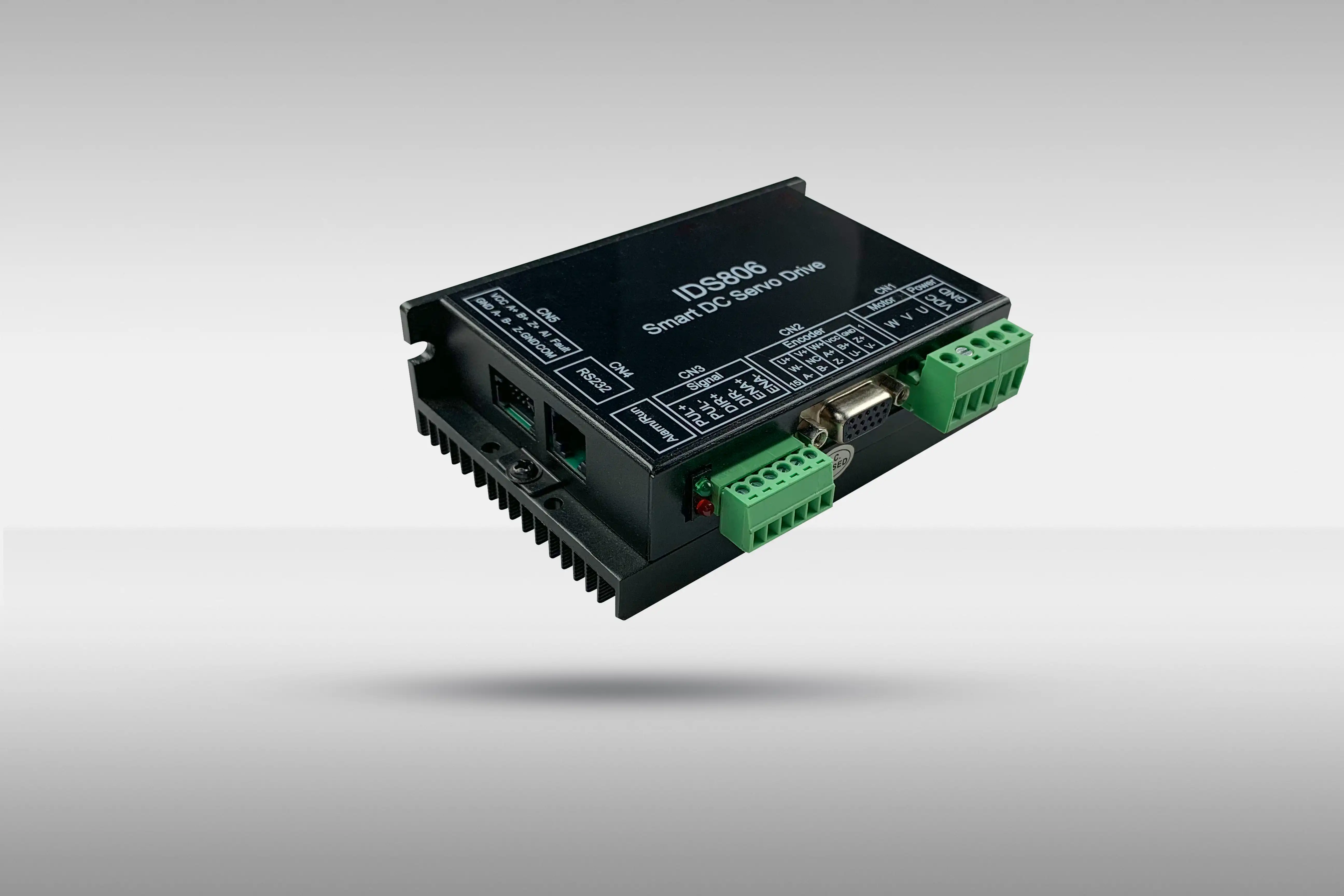

  • Working voltage: 24~60VDC
  • Output current: peak 20A
  • Suitable motor: 5~600W low-voltage DC servo motor, brushless DC motor with encoder or hollow cup motor
  • Control mode: external pulse (single-ended / differential), analog, RS232 communication control, IO control, etc., support position, speed and torque mode
  • Parameter debugging: RS232 communication, PC debugging software or handheld debugger debugging, can backup or import parameters
  • Abnormal protection: with undervoltage, overvoltage, overload, overcurrent, position deviation is too large, encoder abnormality and other alarm functions
  • Tracking error: ±1pulse
  • Speed control accuracy: ±1PRM
  • Maximum received pulse: 1MHZ
  • Minimum speed: 1RPM
  • Maximum no-load acceleration: 200PRM/ms

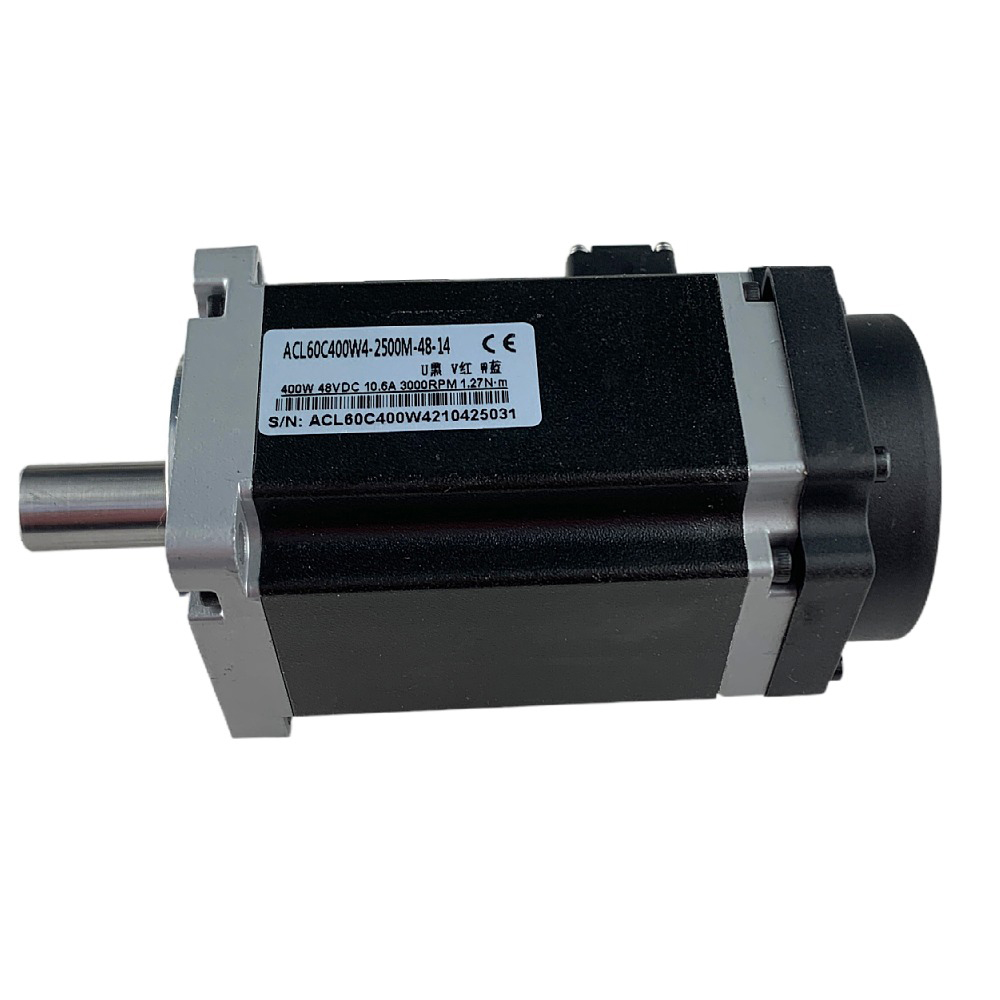

400W 48V 60mm DC Servo Motor And Servo Driver 400W 48V 60mm DC Servo Motor And Servo Driver

Product Feature

Powerful and Efficient

Comes with a power of 400W and operating voltage of 48V, making it a reliable solution for mechanical automation systems.

Standout Torque

The DC servo motor delivers a notable rated torque of 1.27 N·m, ensuring smooth and accurate movements.

Supports Multiple Operation Modes

Accommodates external pulse, analog, RS232 communication control, and IO control, thus supporting position, speed, and torque modes.

High-Speed Performance

Rated speed reaches up to 3000 RPM, offering a fast, efficient performance for your mechanized operations.

Advanced Protection Mechanisms

Equipped with multiple protective measures, including undervoltage, overvoltage, overload, overcurrent, position deviation, and encoder abnormality alarms to increase operational safety.

Superb Speed Control Accuracy

Achieves prestine control accuracy reaching ±1RPM, providing precise speed regulation.

Product Applications

Mechanical Automation Systems

With the high power, reliable operation, and impressive torque, this motor is perfect for various mechanical automation systems.

Applications with Multiple Varieties and Small Quantities

Thanks to the motor's strong customization, it is well suited for applications that require diverse varieties and small quantities.

Customized Project Applications

The strong overload capacity is ideal in implementation of project customizations, providing flexible adaptability to your project needs.

Low-voltage DC Servo Motor Applications

Being suitable for 5~600W low-voltage DC servo motor, this motor-driver pair supports applications involving brushless DC motor with encoder or hollow cup motor.

Speed and Torque Application Systems

With the supported operation modes, the motor and driver can effectively manage applications that require accurate speed and torque controls.

400W 48V 60mm DC Servo Motor And Servo Driver

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
ACL60-400w-48v-3000rpm-dc-servo-motor-dimensions-1.STEP3005KBDownload
ACL60-400w-48v-3000rpm-dc-servo-motor-dimensions-2.STEP2819KBDownload
Servo-Motor-Catalog.pdf26.1MBDownload
