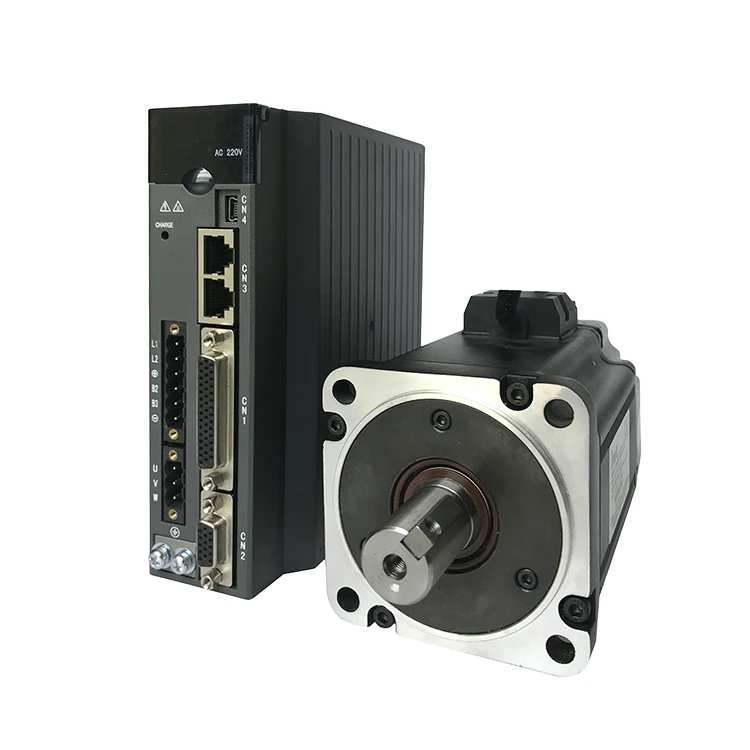

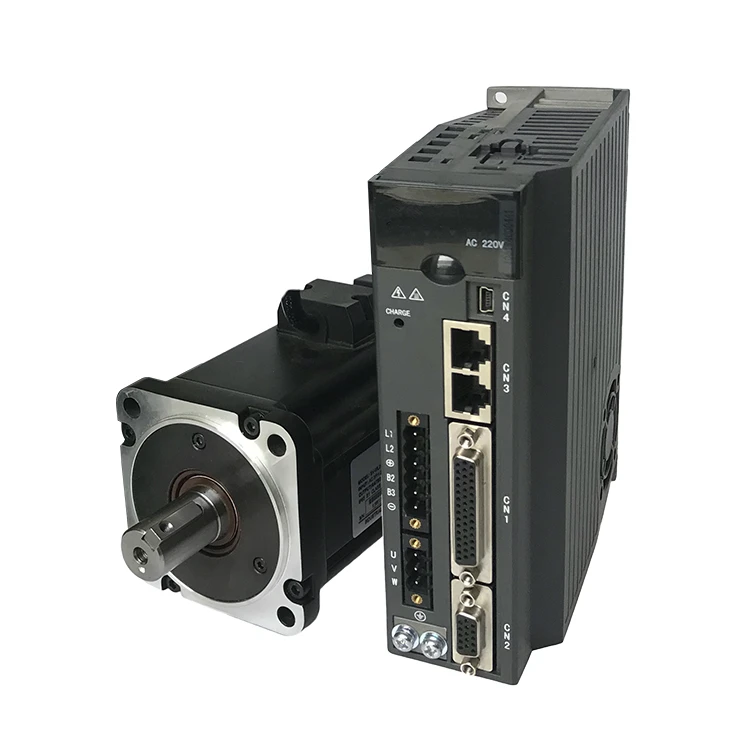

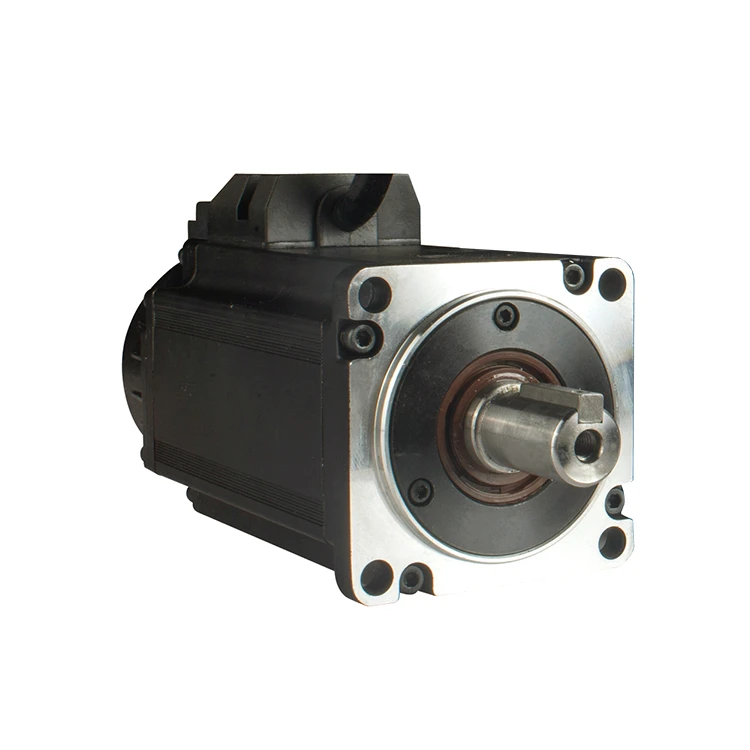

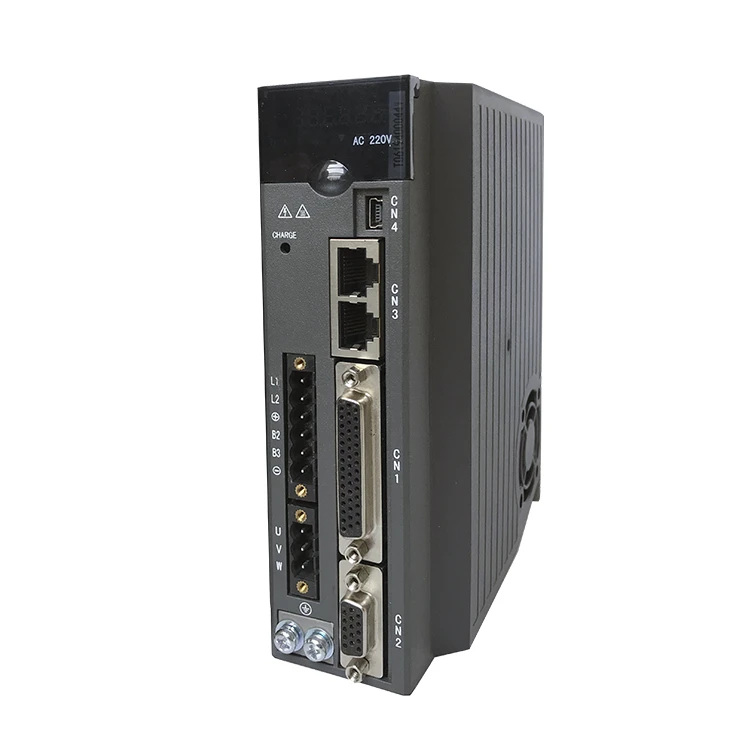

130MM 1500W 220V/380V 2000RPM DA180 Servo Motor And Drive

$244-$299

The 130MM 1500W 220V/380V 2000RPM DA180 Servo Motor and Drive offers high precision control for industrial automation. Ideal for applications in robotics, CNC machining, and packaging, it operates reliably in challenging environments like high humidity and temperature variations, ensuring optimal performance across various sectors.

Model TypeServo Motor

Voltage(V)220/380

Output(W)1500

Size(mm)130

Speed(RPM)2000

SPECIFICATIONS

Rated Voltage 220V/380V AC
Rated Power 1500W
Rated Torque 7.16N.m
Peak Torque 21.4N.m
Rated Current 7.6±10%A/4.5±10%A
Peak Current 22.8±10%A/13.5±10%A
Rated Speed 2000RPM
Maximum Speed 2800RPM/2950RPM
Torque Coefficient 0.94±10%N.m/A & 1.59±10%N.m/A
Back EMF Constant 65.5±10%V/KRPM & 110±10%V/KRPM
Line-to-Line Resistance 0.66±10%Ω/1.99±10%Ω
Line-to-Line Inductance 7.1±20%mH/20.5±20%mH
Rotor Inertia 9.23(11.13)±10%Kg.m2x10‾⁴
Number of Poles 5 Pole pair
Motor Protection Class IP65
Holding Brake Operating Voltage 24V DC
Insulation Class F
Insulation Resistance >10MΩ DC500V
Rotation Direction CCW
Motor Weight 7.1/8.8Kg
Operating Temperature 0℃-40℃
Storage Humidity 20%-80%

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
130mm-1500w-220v-2000rpm-DA180-servo-motor-and-drive-dimensions-3.stp4273KBDownload
Servo-Motor-Catalog.pdf26.1MBDownload
