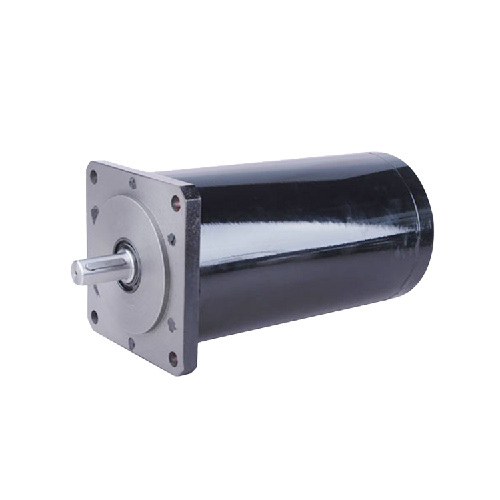

NEMA 52 130HY 1.8° Round Shape Hybrid Stepper Motor

$140-$213

This NEMA52 1.8° 2-Phase Hybrid Stepper Motor provides precise positioning, high torque, and low vibration, making it perfectly suited for applications requiring efficient motion control. Its hybrid design offers efficiency, torque, and precision in a compact size. With low thermal resistance and high torque, it features optimal heat dissipation and long service life.

Model TypeStepper Motor

Size(mm)130

Step Angle(°)1.8

Max. Radial Force(N)220

Max. Axial Force(N)60

Temperature Rise(℃)80

SPECIFICATIONS

Model No 130HY199-6004 130HY226-6004 130HY282-6004
Step Angle (°) 1.8 1.8 1.8
Rated Current (A) 6 6 6
Phase Resistance (Q) 0.75 0.86 0.66
Phase Inductance (mH) 12 12.5 9
Holding Torque (Kg.cm) 25 27 37
Motor Length (mm) 199 226 282
Wiring Five Hole Socket Five Hole Socket Five Hole Socket
Motor Weight (Kg) 16 18 22

Product Display

A Nema 52 stepper motor is a stepper motor with a 5.2 x 5.2 inch (130 x 130 mm) faceplate. STEPPERONLINE's high torque stepper motors employ advanced magnetic technology to provide higher torque levels than standard stepper motors. A variety of windings are available for these motors to meet the requirements of any particular application. These stepper motor series achieve torque levels that make them an economical alternative to servo motors in many applications. These motors can be utilized to replace standard motors to achieve a reduction in system size and cost or to improve system performance without the need for larger size motors or drivers.

NEMA stepper motor sizes depend on the frame size of the stepper motor. NEMA means the standards set by “National Electrical Manufacturers Association”, which is comprised of 560 major electrical manufacturers in the United States, primarily consisting of manufacturers of equipment and devices for power generation, transmission, distribution, and power applications. The purpose of standard setting is to eliminate misunderstandings between electrical product manufacturers and users and to specify the safety of these product applications.

This is the biggest cnc stepper motor we have, it with size 130*130mm. It has 4 wires, each phase draws 6A, allowing for a huge torque up to 37Nm (5239oz.in).

Electrical Specification:

  • Manufacturer Part Number: 130HY
  • Step Angle: 1.8 deg
  • Holding Torque: 37Nm (5239oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.66-0.86Ω
  • Inductance: 9-12.5mH ± 20%(1KHz)

Physical Specification:

  • Frame Size: 130 x 130mm
  • Body Length: 199-282mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 55.37mm
  • Key Way Length: 35mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 16-22kg

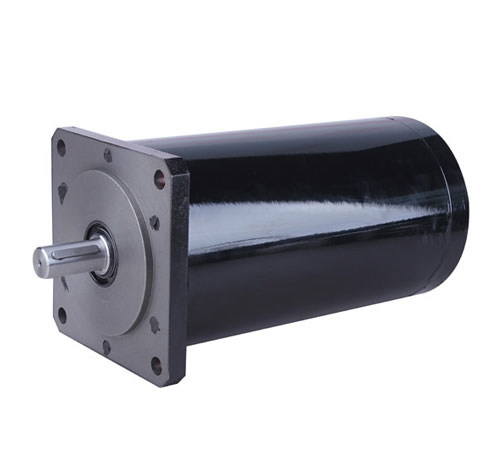

NEMA52 1.8° 2-Phase Hybrid Stepper Motor

Product Feature

High Torque Output

Delivers high torque, making it suitable for demanding applications that require strong and precise motion control.

Accurate Positioning

Provides accurate and repeatable positioning with 1.8° step angle, ensuring precise control in various applications.

Robust Construction

Constructed with high-quality materials, ensuring durability and reliability even in harsh environments.

High Efficiency

Engineered to offer high efficiency, reducing energy consumption and operational costs.

Low Vibration and Noise

Designed to operate with minimal vibration and noise, making it suitable for applications where quiet operation is important.

Easy Integration

Features a standard NEMA52 frame size for easy integration into existing systems and designs.

Wide Compatibility

Compatible with a variety of stepper drivers and controllers, enhancing its versatility in different setups.

Product Applications

CNC Machines

Ideal for use in CNC machines, providing precise control for cutting, milling, and engraving tasks.

3D Printers

Suitable for 3D printers, ensuring accurate layer deposition and high-quality prints.

Robotics

Applicable in robotic systems, offering precise and reliable movement for various robotic applications.

Automated Machinery

Perfect for automated machinery that requires precise and consistent motion control.

Textile Equipment

Used in textile equipment for accurate control of machinery movements, improving efficiency and product quality.

Medical Devices

Suitable for medical devices that require precise and reliable operation.

Packaging Machines

Ideal for packaging machines, providing precise control for wrapping, sealing, and labeling processes.

Videos

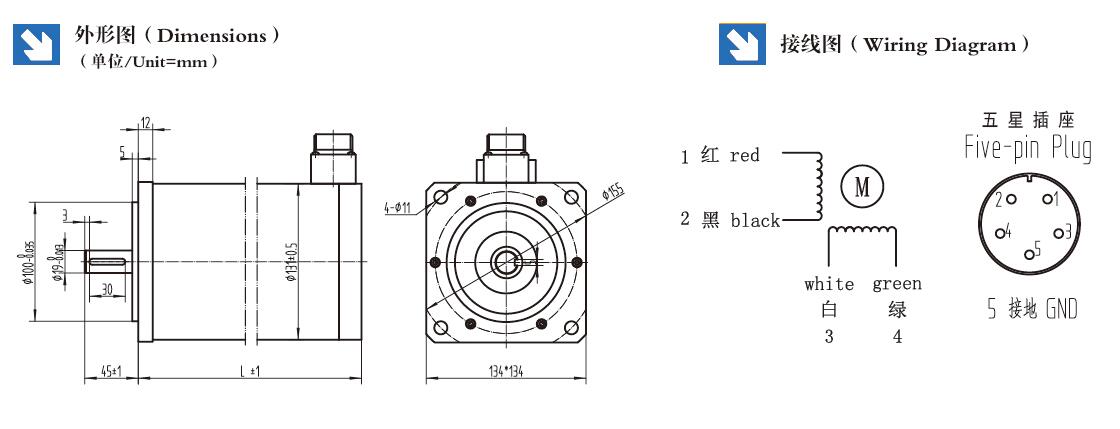

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
