NEMA23 0.9° 2-Phase Hybrid Stepper Motor
This NEMA23 0.9° 2-Phase Hybrid Stepper Motor delivers superior performance with its low-vibration operation. It features a step angle of 0.9°, 2-phases, and optimized torque for high levels of precision and accuracy. This motor provides reliable, smooth operation and is compatible with many applications.

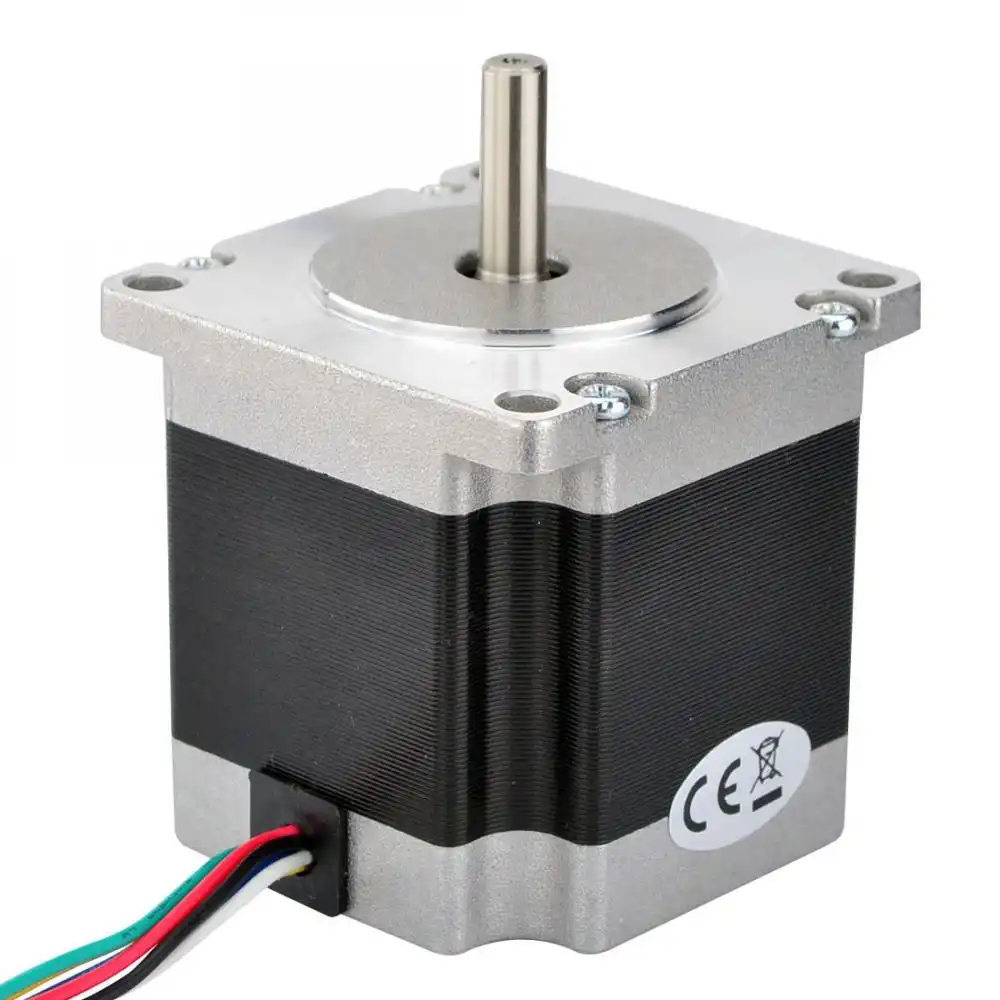

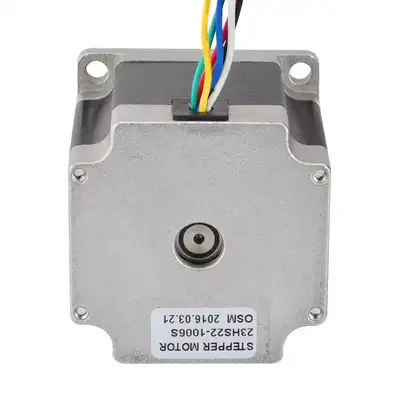

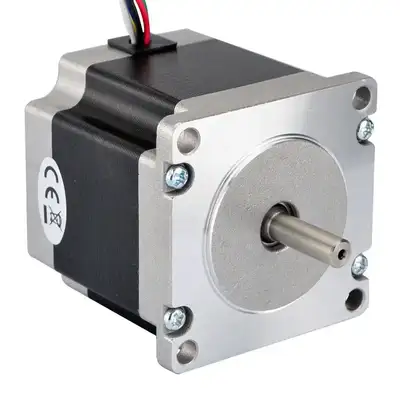

Product Display
This unipolar Nema 23 stepper motor with step angle 0.9deg and size 57x57x56mm. It has 4/6 wires, each phase draws 0.6-4.2A, with holding torque 0.39-1.8Nm (55.3-254.8oz.in).
Electrical Specification:
- Manufacturer Part Number: 57HM
- Motor Type: Unipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 0.39-1.8Nm (55.3-254.8oz.in)
- Rated Current/phase: 0.6-4.2A
- Phase Resistance: 0.4-4.2Ω
- Inductance: 1.5-29.2mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 57 x 57mm
- Body Length: 41-76mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4/6
- Lead Length: 500mm
- Weight: 0.45-1.05Kg

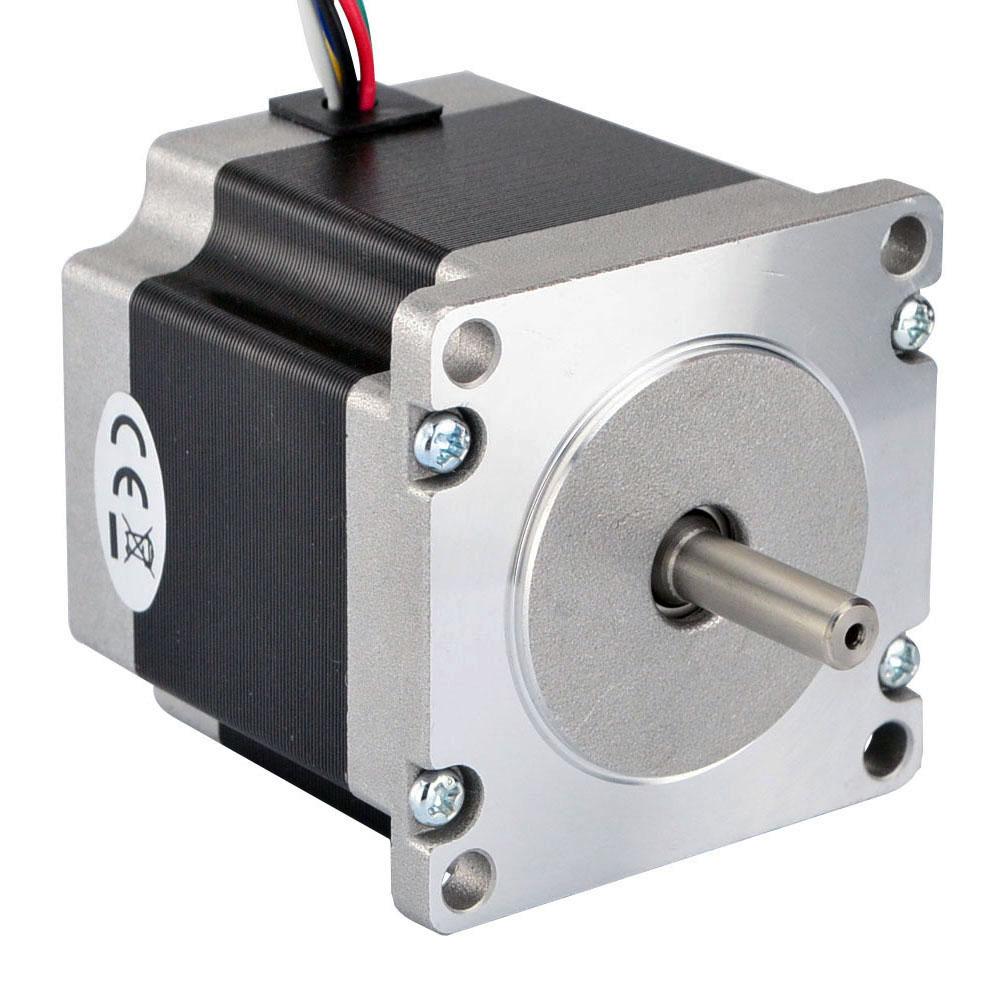

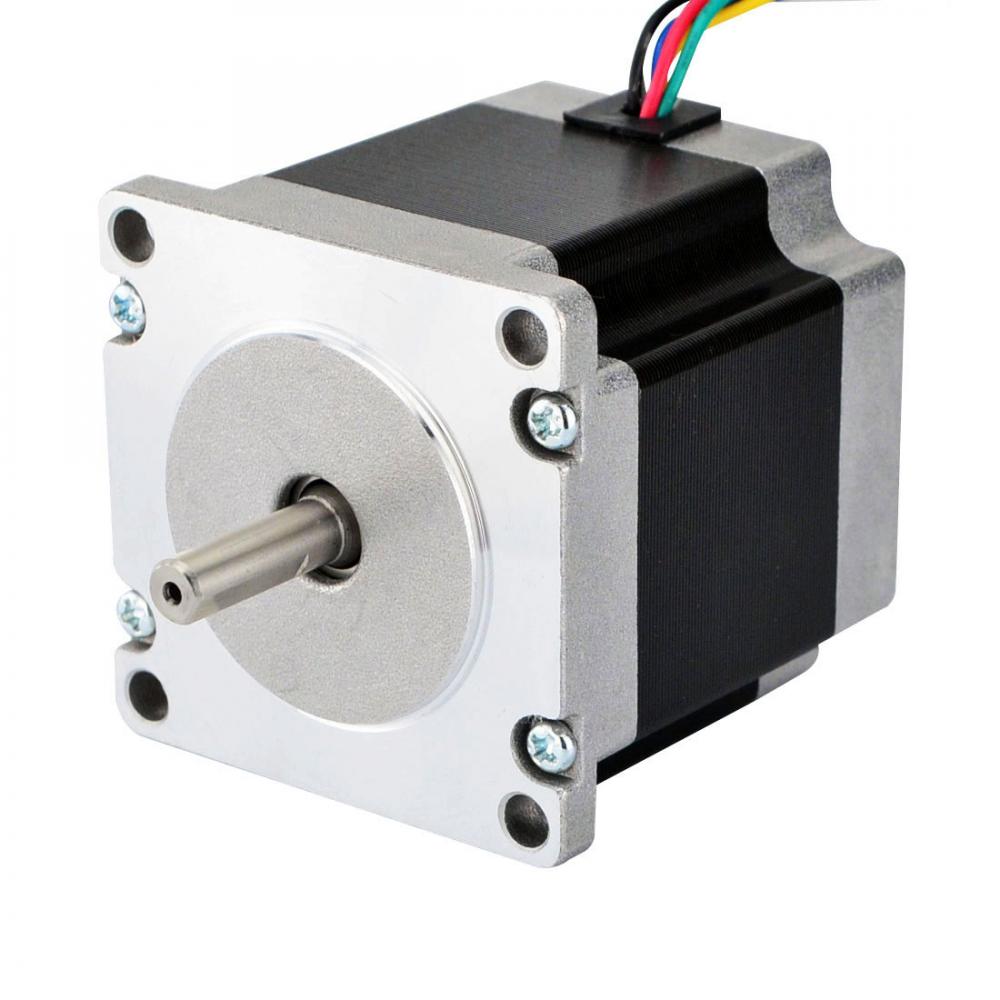

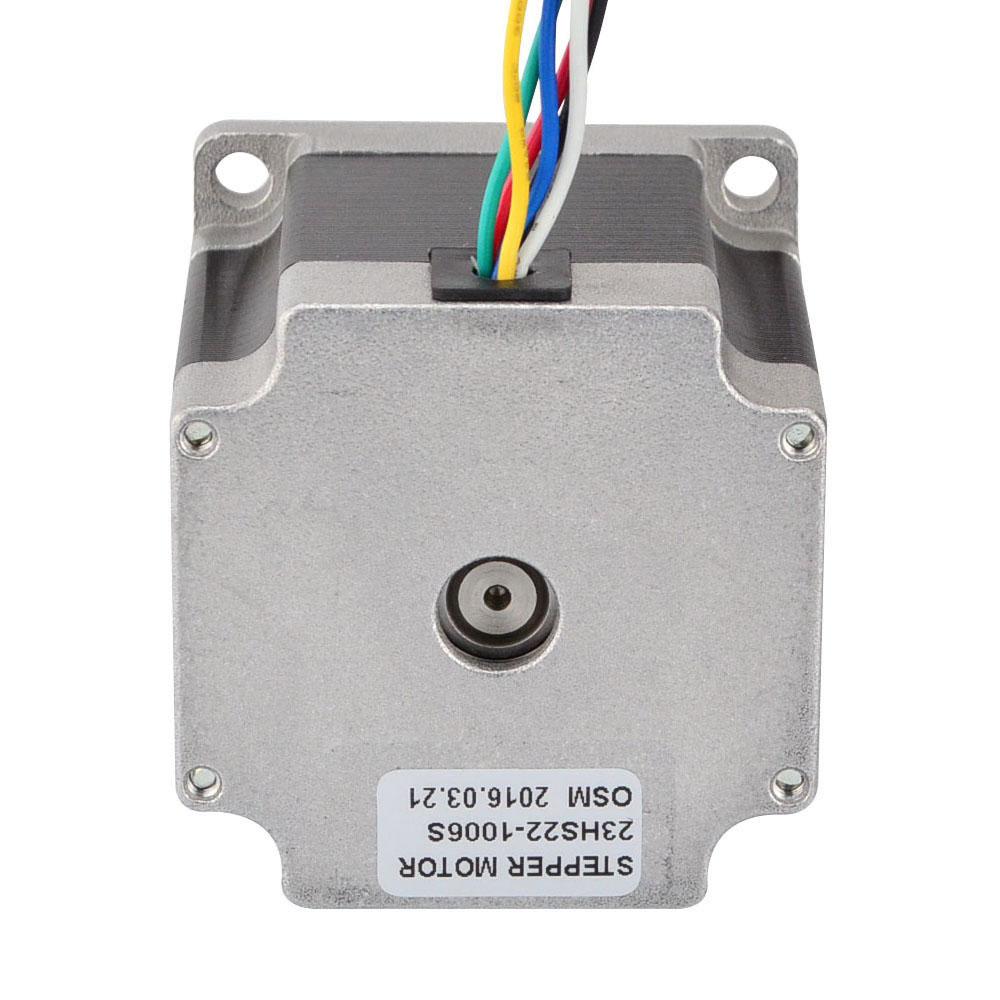

![NEMA23 0.9° 2-Phase Hybrid Stepper Motor](/d/file/p/2022/08-02/51f56a8ed1e8368909d702e85e493feb.jpg)
Related Products
Videos
SPECIFICATIONS
Model No | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
(Ω) | |||||||||||
57HM41-1006 | 0.9 | 4.2 | 1 | 4.2 | 6 | 3.9 | 210 | 120 | 41 | 6 | 0.45 |
57HM41-2006 | 0.9 | 2.4 | 2 | 1.2 | 2.1 | 3.9 | 210 | 120 | 41 | 6 | 0.45 |
57HM51-0604 | 0.9 | 6.6 | 0.6 | 11 | 33 | 8 | 260 | 240 | 51 | 4 | 0.56 |
57HM51-1704 | 0.9 | 6.8 | 1.7 | 4 | 14 | 7.5 | 260 | 240 | 51 | 4 | 0.56 |
57HM56-2006 | 0.9 | 3.3 | 2 | 1.65 | 4.5 | 10 | 400 | 300 | 56 | 6 | 0.7 |
57HM56-3004 | 0.9 | 2.7 | 3 | 0.9 | 3.5 | 10 | 400 | 300 | 56 | 4 | 0.7 |
57HM56-4204 | 0.9 | 1.7 | 4.2 | 0.4 | 1.5 | 10.5 | 400 | 300 | 56 | 4 | 0.7 |
57HM64-1004 | 0.9 | 7.8 | 1 | 7.8 | 29.2 | 12 | 500 | 380 | 64 | 4 | 0.85 |
57HM64-4204 | 0.9 | 1.8 | 4.2 | 0.43 | 1.6 | 13 | 500 | 380 | 64 | 4 | 0.85 |
57HM76-1006 | 0.9 | 8.6 | 1 | 8.6 | 23.2 | 13.5 | 680 | 440 | 76 | 6 | 1.05 |
57HM76-3004 | 0.9 | 3.6 | 3 | 1.2 | 4.5 | 15 | 680 | 440 | 76 | 4 | 1.05 |
57HM76-4204 | 0.9 | 2.1 | 4.2 | 0.51 | 2.4 | 18 | 680 | 440 | 76 | 4 | 1.05 |
