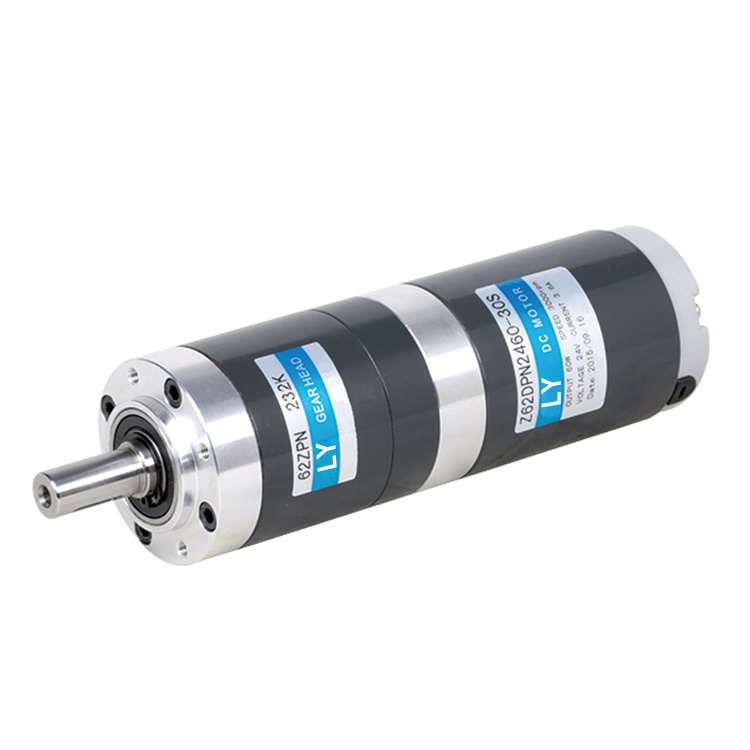

62mm 60-90W 3000RPM 24V Planetary Brush Geared Motor

$56.2-$71.7

The 62mm 60-90W Diameter Planetary Brush Geared Motor from Lunyee is a high-performance motor designed to meet the needs of various industrial and commercial applications. This motor combines a compact form factor with robust power and efficiency, making it ideal for demanding environments. With its planetary gearing system, it ensures smooth and reliable operation, perfect for tasks requiring precision and high torque.

Model TypeDC Motor

Voltage(V)24

Output(W)60/90

Size(mm)62

Speed(RPM)3000

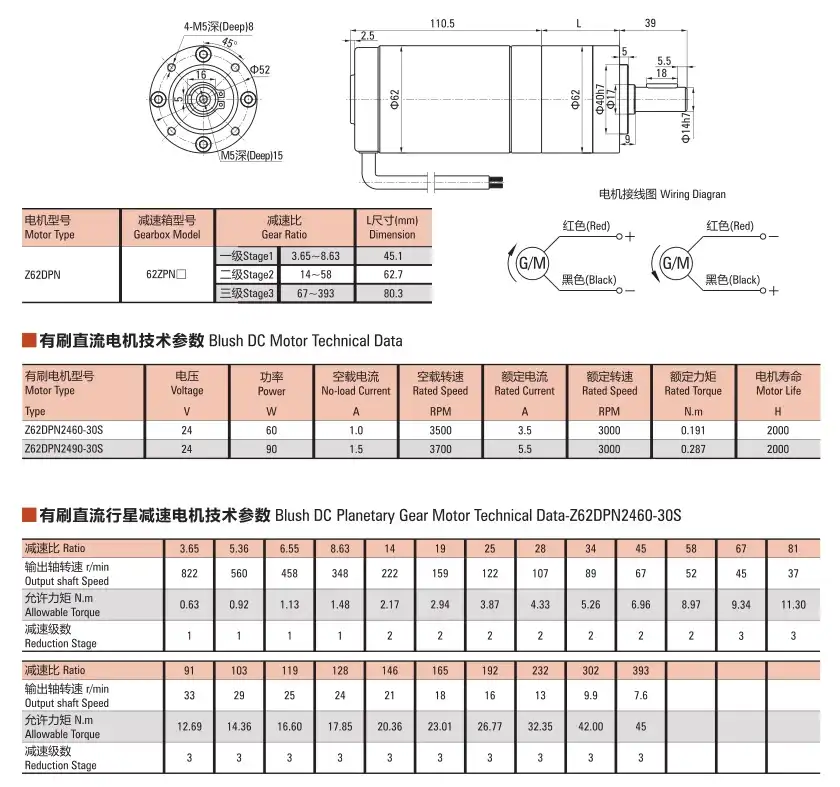

SPECIFICATIONS

Model Voltage Power No-Load Current No-Load Speed Rated Current Rated Speed Rated Torque
Z62BLDPN2460-30S 24V 60W 0.7A 4000rpm 3.5A 3000rpm 0.191N.m
Z62BLDPN2490-30S 24V 90W 1.2A 4200rpm 5.5A 3000rpm 0.287N.m
Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 0.63 0.92 1.13 1.48 2.17 2.94 3.87 4.33
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 5.26 6.96 8.97 9.34 11.3 12.69 14.36 16.6
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 232 302 393 -
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6 -
Allowable Torque(N.m) 17.85 20.36 23.01 26.77 32.35 42 45 -
Reduction Stage 3 3 3 3 3 3 3 -

Product Feature

High Efficiency

This planetary brush geared motor delivers high efficiency, ensuring optimal performance with minimal energy loss.

Compact Design

The 62mm diameter design allows for installation in space-constrained environments without sacrificing performance.

Low Noise Operation

Engineered for low noise, this motor ensures a quiet working environment, ideal for noise-sensitive applications.

Durable Construction

Constructed with high-quality materials, this motor guarantees durability and long-term reliability even under heavy use.

High Torque Output

Provides significant torque, making it suitable for applications requiring substantial rotational force and precision.

Precision Speed Control

Offers precise speed control, making it ideal for applications that demand accurate and variable speed adjustments.

Thermal Protection

Incorporates thermal protection features to prevent overheating, ensuring safe and consistent operation.

Easy Installation

Designed for straightforward installation, reducing setup time and simplifying integration into your systems.

Product Applications

Automated Machinery

Perfect for automated machinery, providing precise and reliable motion control to enhance productivity and efficiency.

Conveyor Systems

Ideal for conveyor systems, ensuring efficient and consistent material handling and movement.

Robotics

Dependable performance for robotics, including robotic arms, mobile robots, and other automated systems.

Medical Equipment

Reliable motion control for medical devices, supporting diagnostic and therapeutic applications with accuracy.

Packaging Machinery

Enhances packaging machinery performance, ensuring efficient and precise packaging operations.

Textile Machinery

Suitable for textile machinery, providing reliable control for weaving, knitting, and other textile processes.

Renewable Energy Systems

Supports renewable energy systems such as solar trackers and wind turbines with dependable performance.

Automotive Systems

Efficient and reliable for automotive applications, including electric vehicles and other automotive systems.

HVAC Systems

Ensures quiet and efficient operation in heating, ventilation, and air conditioning systems.

Videos

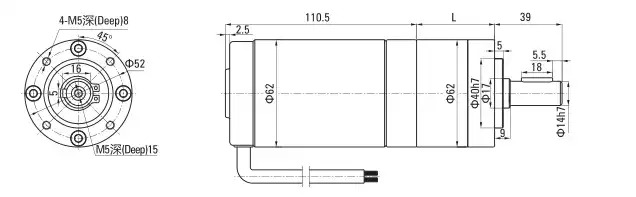

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Z62DPN60W-24V-Gear-Ratio-Level1.STEP635KBDownload
Z62DPN60W-24V-Gear-Ratio-Level2.STEP646KBDownload
Z62DPN60W-24V-Gear-Ratio-Level3.STEP646KBDownload
Z62DPN90W-24V-Gear-Ratio-Level1.STEP635KBDownload
Z62DPN90W-24V-Gear-Ratio-Level2.STEP646KBDownload
Z62DPN90W-24V-Gear-Ratio-Level3.STEP646KBDownload
DC-Motor-Catalog.pdf55.7MBDownload
