Home / 52mm Brushless DC Planetary Geared Motor

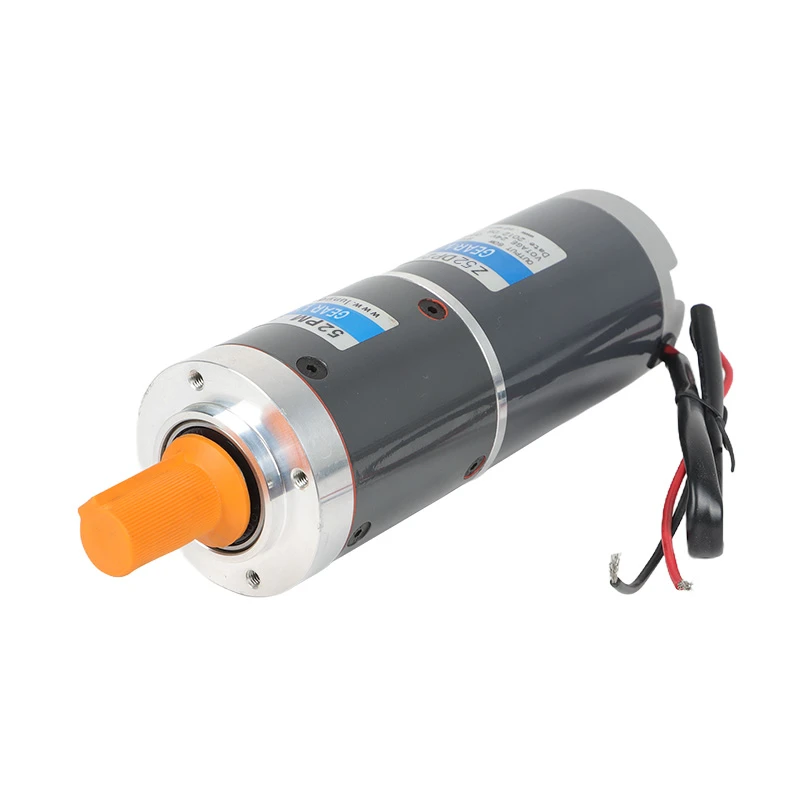

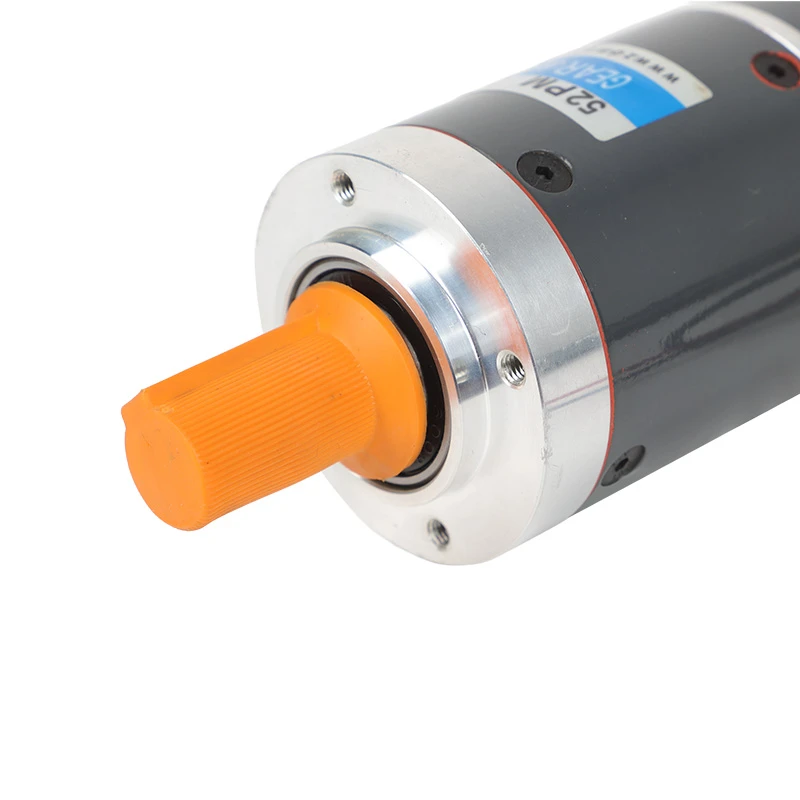

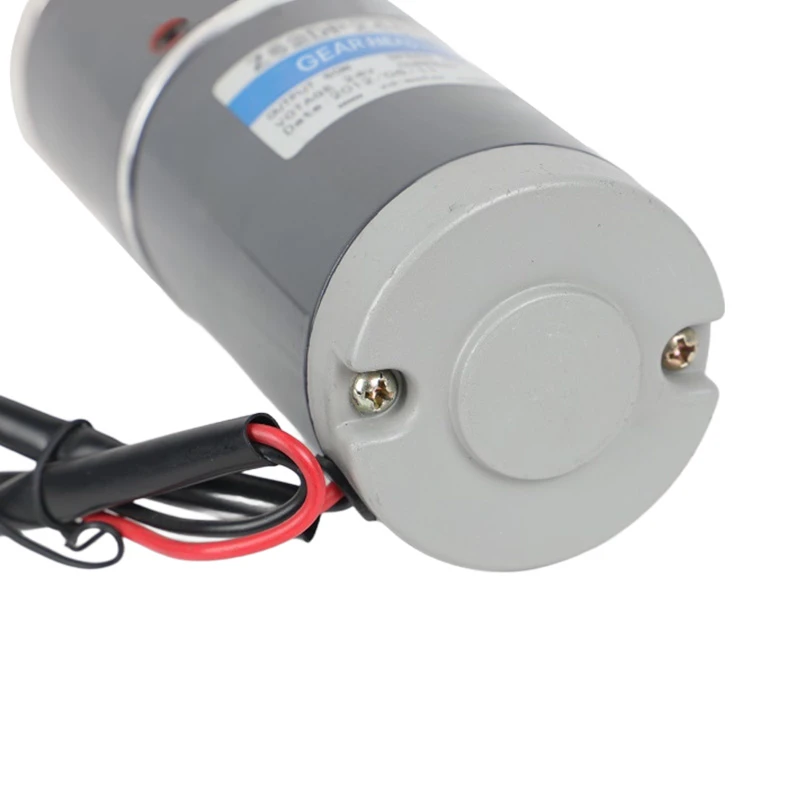

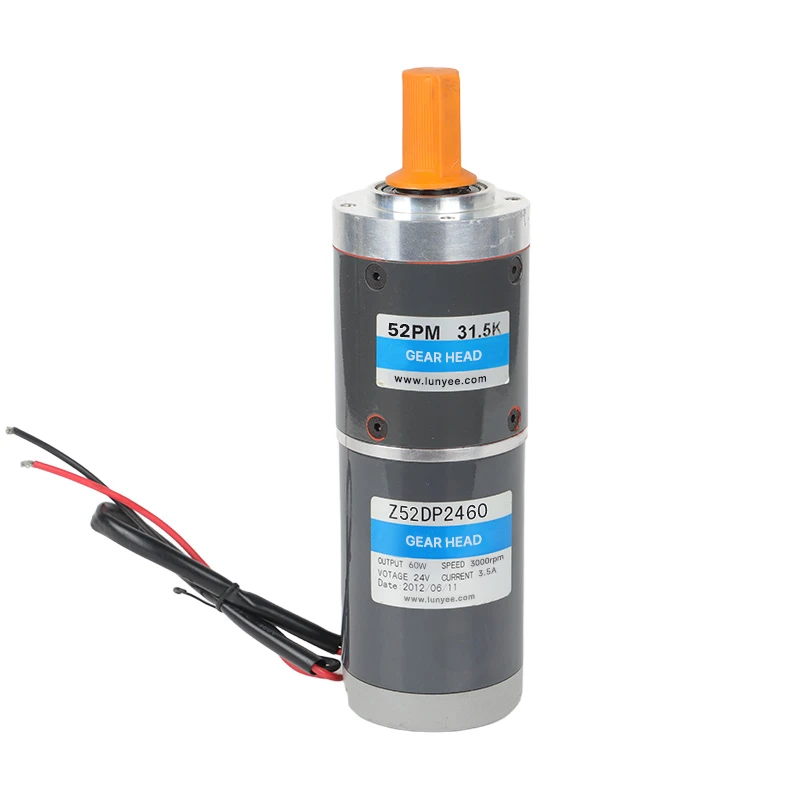

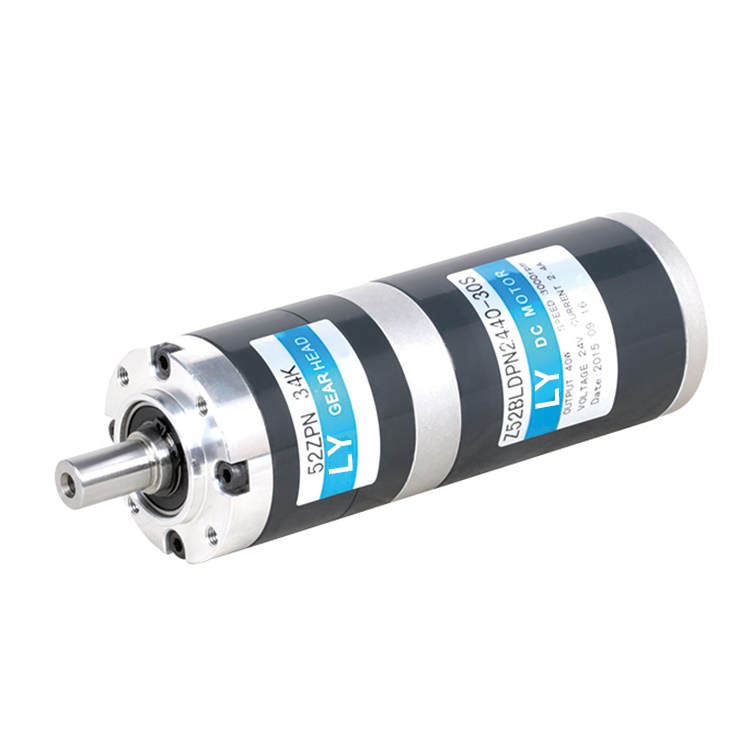

52mm Brushless DC Planetary Geared Motor

$54.9-$70.8

This 52mm Brushless DC Planetary Geared Motor provides reliable performance and quiet operation. With its high torque-to-inertia ratio, this motor is ideal for applications with high power density and continuous operation. The brushless motor has greater efficiency than brushed motors and enjoys a longer life.

Model TypeDC Motor

Voltage(V)24

Output(W)40

Size(mm)52

Speed(RPM)3000

Product Feature

Efficient and Durable

This brushless DC motor with a planetary gearbox operates more efficiently and has a longer lifespan than conventional brushed motors.

High Torque-to-Inertia Ratio

Due to its high torque-to-inertia ratio, it excels in applications requiring high power density and delivers consistent performance under continuous operations.

Versatile Power Options

Available in both 40W and 60W power outputs, accommodating a range of power requirements for diverse applications.

Variable Speed and High Load Capacity

With a rated speed of 3000rpm under load and various torque outputs depending on the gear ratio, this motor satisfies different operational tempos and load needs.

Advanced Gear Design

Features a double support structure for increased maximum gearbox torque and helical tooth input stage for low noise and smooth high-speed operation.

Product Applications

Precision Instrumentation

The motor's precise control and quiet operation make it suitable for sensitive instrumentation and laboratory equipment.

Automated Equipment

With its reliable and efficient performance, this gear motor is ideal for robotics and automated machinery where smooth and controlled motion is required.

Medical Devices

The motor's quiet operation and high torque make it perfect for medical devices that need to run silently and continuously.

Vehicular Automation

Its robust design and power density fit perfectly into automotive automation technology, such as electric vehicles' auxiliary systems.

Custom Engineering Projects

Engineers and project designers can utilize the motor for custom applications where compact size, high efficiency, and variable speed are paramount.

Videos

SPECIFICATIONS

Model Voltage Power No-Load Current No-Load Speed Rated Current Rated Speed Rated Torque
Z52BLDPN2440-30S 24V 40W 0.8 4000rpm 2.5A 3000rpm 0.127N.m
Z52BLDPN2460-30S 24V 60W 1 4200rpm 4A 3000rpm 0.191N.m

Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 0.42 0.61 0.75 0.99 1.44 1.96 2.58 2.89
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 3.51 4.64 5.98 6.23 7.53 8.46 9.57 11.03
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 132 302 393 -
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6 -
Allowable Torque(N.m) 11.9 13.57 15.34 17.85 21.57 25 25 -
Reduction Stage 3 3 3 3 3 3 3 -

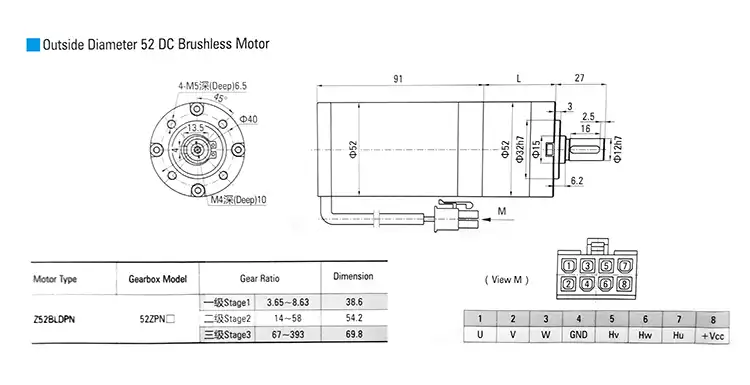

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Z52BLDPN40W-24V-Gear-Ratio-Stage1.STEP404KBDownload
Z52BLDPN40W-24V-Gear-Ratio-Level2.STEP404KBDownload
Z52BLDPN40W-24V-Gear-Ratio-Level3.STEP404KBDownload
Z52BLDPN60W-24V-Gear-Ratio-Stage1.STEP404KBDownload
Z52BLDPN60W-24V-Gear-Ratio-Level2.STEP404KBDownload
Z52BLDPN60W-24V-Gear-Ratio-Level3.STEP404KBDownload
DC-Motor-Catalog.pdf55.7MBDownload
