42mm 25w/30w Diameter Planetary Brush Geared Motor

Home > 42mm 25w/30w Diameter Planetary Brush Geared Motor

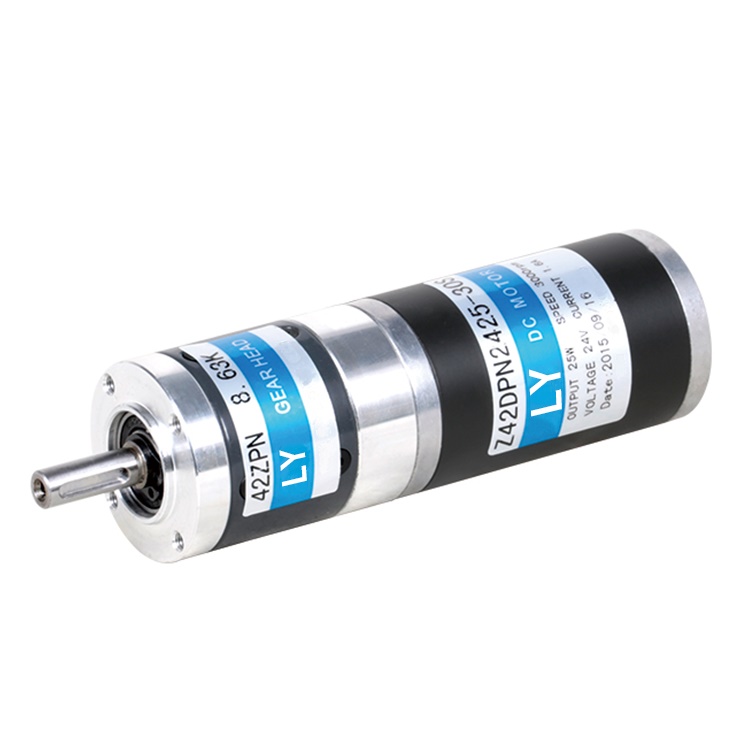

42mm 25w/30w Diameter Planetary Brush Geared Motor

$36.80 - $262.00

Power your robotics projects with this planetary brush geared motor, featuring a 42mm diameter and 25w/30w wattage. This motor is suitable for many applications, giving you reliable and consistent performance. Enjoy long-term durability and high torque for smooth operation.

Motor TypeBrush Planetary Gear Motor

Output Power (W)25/30

Voltage (V)24

Speed with Load (rpm)3000


Motor Flange Range 42mm
Motor Type brush
Output Power (W) 25/30
Voltage (V) 24
Rated Speed (rpm) 3000;
Torque with Load (N.m) 0.8
Ratio Range 3.65-393
Levels of protection IP65

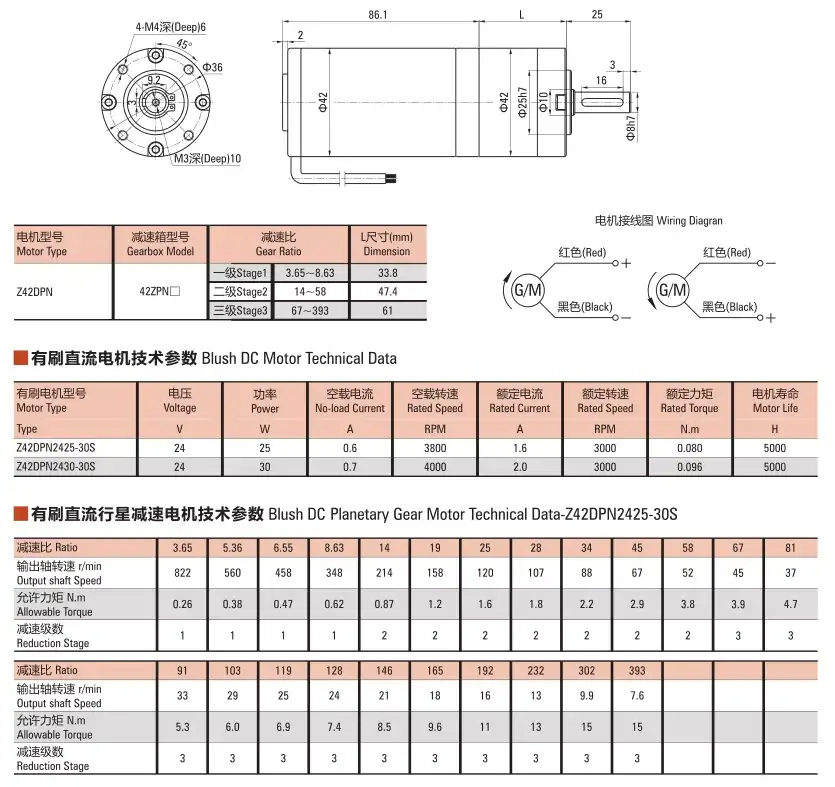

Ratio 3.65 5.36 6.55 8.63 14 19 25 28
Out-put Speed(rpm) 822 560 458 348 222 159 122 107
Allowable Torque(N.m) 0.42 0.61 0.75 0.99 1.44 1.96 2.58 2.89
Reduction Stage 1 1 1 1 2 2 2 2
Ratio 34 45 58 67 81 91 103 119
Out-put Speed(rpm) 89 67 52 45 37 33 29 25
Allowable Torque(N.m) 3.51 4.64 5.98 6.23 7.53 8.46 9.57 11.03
Reduction Stage 2 2 2 3 3 3 3 3
Ratio 128 146 165 192 132 302 393 /
Out-put Speed(rpm) 24 21 18 16 13 9.9 7.6 /
Allowable Torque(N.m) 11.9 13.57 15.34 17.85 21.57 25 25 /
Reduction Stage 3 3 3 3 3 3 3 /

Overview

1.Double support structure: Adopt dual supporting structure for output shaft so max torque of gearbox is increased a lot

2.Spindle connection: Sun wheel and planetary wheel are connected by spline which increase the max torque of greabox and lengthen the life

3.Inner hole: Double supporting structure;Internal grinding on inner bore of planetary gears making the inner bore of planetary gears making the inner bore roundness less than 0.003mm running by rolling instead

4.Helical tooth: We use helical gear at input stage which make the noise low and run smoothly in high speed.The inner gear ring is separated so that we can make more ratio and the design is flexible

42mm 25w/30w Diameter Planetary Brush Geared Motor 42mm 25w/30w Diameter Planetary Brush Geared Motor
  • 1. Adopt straight tooth gear transmission, through carburizing and quenching treatment, tooth profile modification treatment, ensure smooth operation, low noise.
  • 2. Simple structure, mass production, and fast delivery time and high cost performance.
  • 3. Reducer has a complete range, which can meet the needs of most reducer in the market.
Application Image
