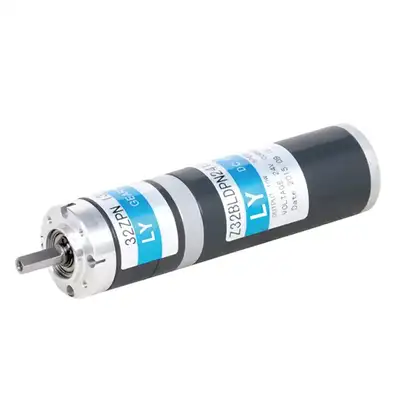

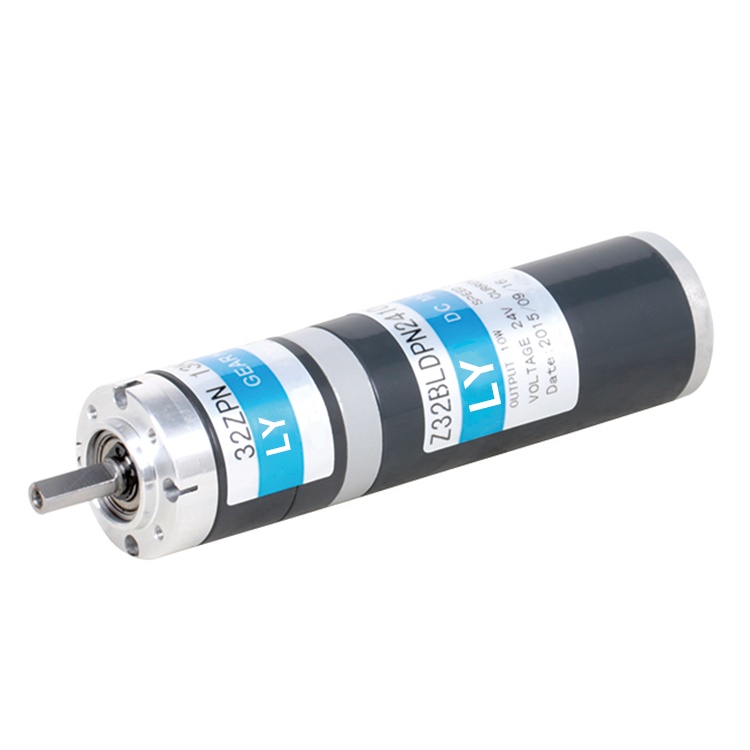

32mm 20W 4000RPM 24V Brushless DC Planetary Geared Motor

$34.8-$46.5

This motor is perfect for robotics and automation applications due to its 32mm brushless DC Planetary Geared design. Its superior power-to-weight ratio makes it an ideal choice for high-precision and high-torque applications. The motor offers excellent torque stability, low noise, and high efficiency.

Model TypeDC Motor

Voltage(V)24

Output(W)20

Size(mm)32

Speed(RPM)4000

SPECIFICATIONS

Model Voltage Power Rated Current Rated Speed Rated Torque
Z32BLDPN2410-40S 24V 10W 0.7A 4000rpm 0.024N.m
Z32BLDPN2415-50S 24V 15W 1.1A 5000rpm 0.029N.m
Z32BLDPN2420-40S 24V 20W 1.3A 4000rpm 0.078N.m
Ratio 3.7 4.29 5.18 6.75 14 19 25 29 35
Output shaft speed r/min 1351 1166 965 740 257 263 200 172 143
Allowable torque N.m 0.095 0.111 0.134 0.124 0.325 0.441 0.58 0.673 0.812
Reduction stage 1 1 1 1 2 2 2 2 2
Ratio 46 51 68 79 93 100 115 130 150
Output shaft speed r/min 108 98 73 63 54 50 43 38 33
Allowable torque N.m 1.067 1.067 1.422 1.652 1.945 2.091 2.405 2.719 3.137
Reduction stage 2 3 3 3 3 3 3 3 3

Product Feature

Brushless DC Planetary Geared design

This motor has a 32mm brushless DC Planetary Geared design, perfect for robotics and automation applications. It offers excellent torque stability, low noise, and high efficiency due to superior power-to-weight ratio.

Output Power and Voltage

The motor operates at a voltage of 24V and offers output power options of 10W/15W.

Speed with Load

Experience the optimum performance with the device's speed with load, which can reach 4000/5000 rpm.

Specific Motor Models

We offer specific motor models with varying voltage, power, current, speed, and torque ratings. Refer to the product listing for a detailed specification of each model.

Engineered for High Rigidity and Torque

Equipped with a double support structure for output shaft and spindle connection, this unit increases the gearbox's max torque and extends its lifespan. It also uses a helical gear at the input stage for low noise and smooth running in high speed.



Product Applications

Robotics and Automation

Its 32mm brushless DC planetary geared design makes it ideal for high precision and high-torque applications in robotics and automation.

High-Speed Operations

With speeds reaching up to 5000 rpm, this motor is well suited for applications that require high-speed operations.

High Torque Applications

This motor, with its dual-support structure, offers an increased gearbox torque, making it ideal for high torque applications.

Videos

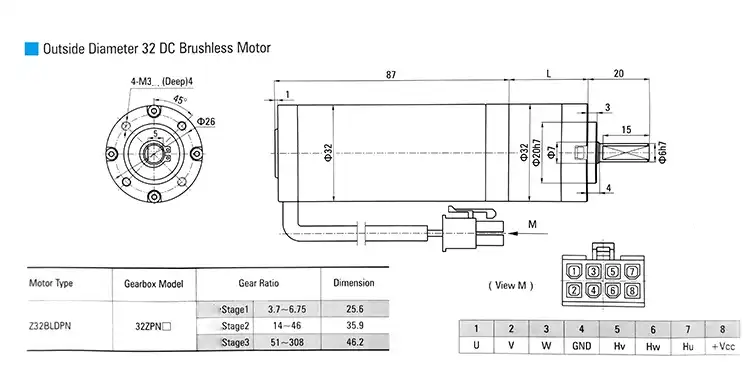

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Z32BLDPN-Gear-Ratio-Level1.dwg114KBDownload
Z32BLDPN-Gear-Ratio-Level2.dwg111KBDownload
Z32BLDPN-Gear-Ratio-Level3.dwg111KBDownload
Z32BLDPN20W-24V-Gear-Ratio-Level1.STEP106KBDownload
Z32BLDPN20W-24V-Gear-Ratio-Level2.STEP139KBDownload
Z32BLDPN20W-24V-Gear-Ratio-Level3.STEP113KBDownload
DC-Motor-Catalog.pdf55.7MBDownload
