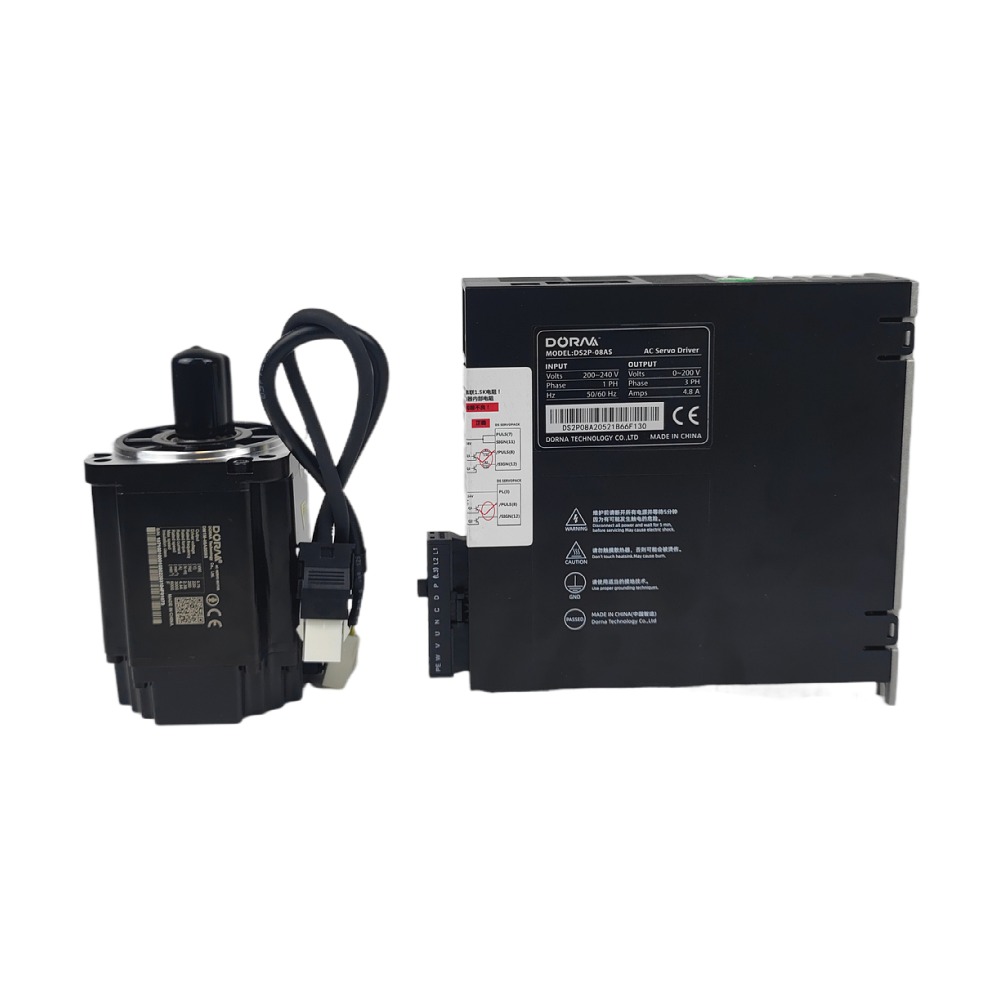

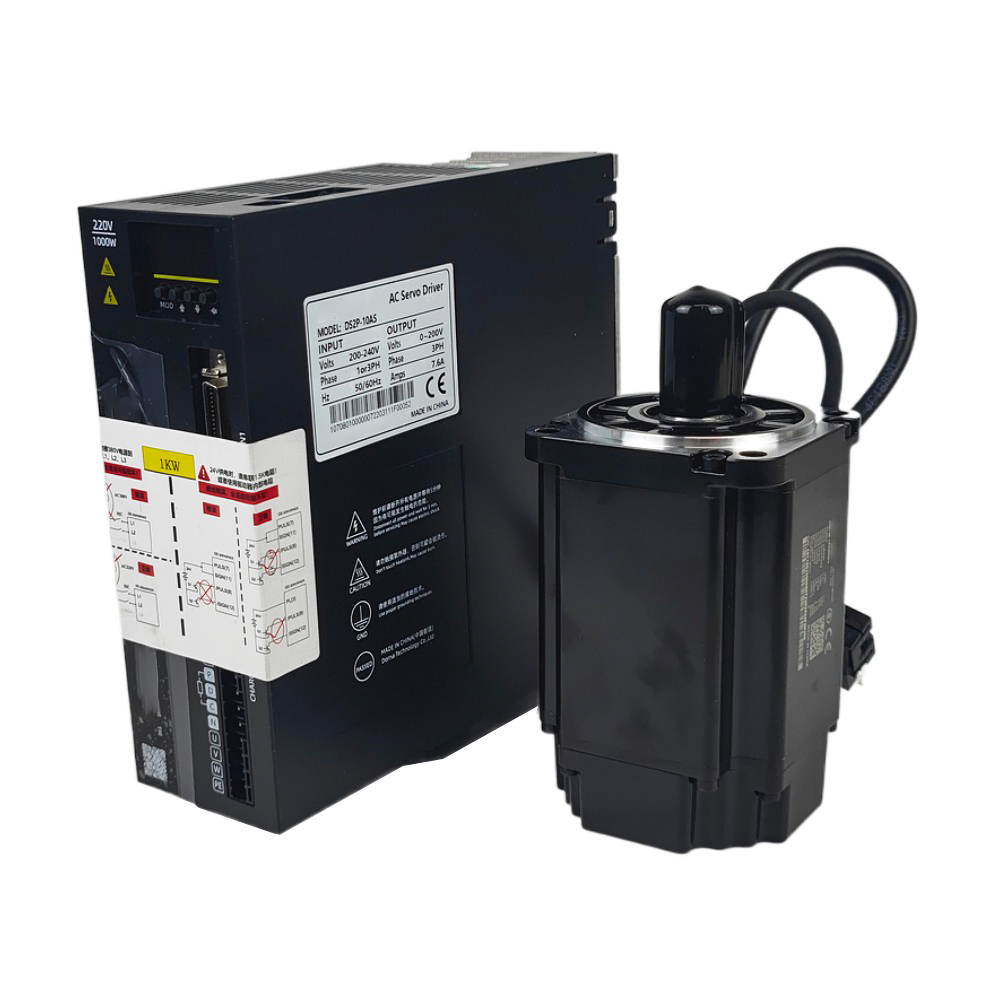

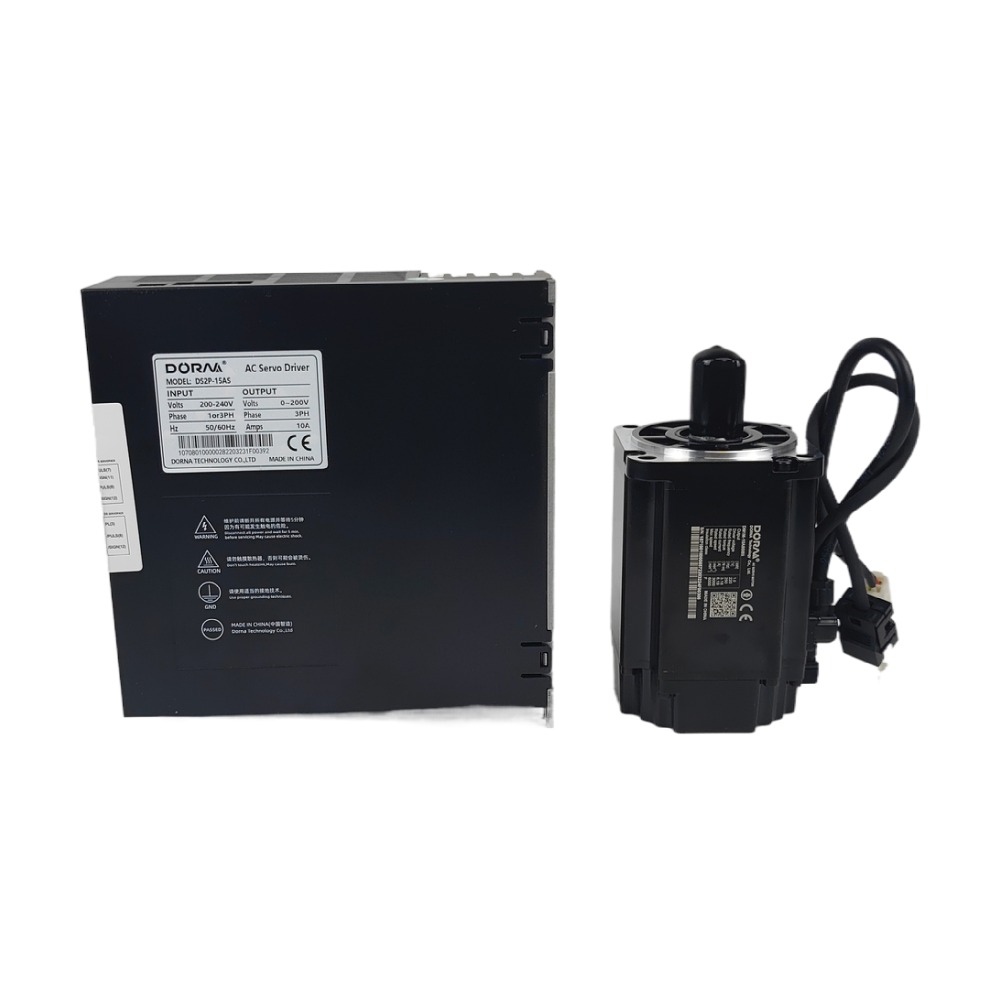

60MM 400W 220V 3000RPM DS2 Servo Motor and Drive
$154-$204
This powerful 400W 60mm DS2 servo motor and servo driver is ideal for industrial applications requiring precise control. With its high torque and outstanding accuracy, this motor and driver combo offers smooth and reliable operation at a wide range of speeds.
SPECIFICATIONS
| Rated power [kW] | 0.4 |
| Rated voltage [V] | 220 |
| Rated torque [Nm] | 1.27 |
| Maximum torque [Nm] | 4.5 |
| Rated current [A] | 2.89 |
| Maximum current [A] | 10.1 |
| Rated speed [rpm] | 3000 |
| Maximum speed [rpm] | 6000 |
| Rotor inertia [10-⁴kg.m²] | 0.38 |
| Brake rated power [W] | 7.3 |
| Brake rated voltage [V] | 24 |
| Brake holding torque [Nm] | 1.27 |
| Voltage (V) | Power | Driver Model | Flange(mm) | Motor Model | Rated Speed (rpm) | Rated torque(N*m) |
| 220V | 100W | DS2P-01AS | 40 | DM1M-01A40I8S | 3000 | 0.32 |
| 200W | DS2P-02AS | 60 | DM1M-02A60I8S | 3000 | 0.64 | |
| 400W | DS2P-04AS | 60 | DM1M-04A60I8S | 3000 | 1.27 | |
| 750W | DS2P-08AS | 80 | DM1M-08A80I8S | 3000 | 2.39 | |
| 1KW | DS2P-10AS | 80 | DM1M-10A80I8S | 3000 | 3.18 | |
| 1KW | DS2P—10AS | 130 | DMIS-10A13018S | 2000 | 4.77 | |
| 1.5KW | DS2P—15AS | 130 | DMIS-15A13018s | 2000 | 7.16 | |
| 2KW | DS2P—20AS | 130 | DMIS-20A13018S | 2000 | 9.55 |
Product Display
The 60MM 400W 220V 3000RPM Servo Motor represents a cutting-edge solution in the realm of AC synchronous servo motors, which are renowned for their precision and reliability. These motors utilize electromagnetic fields to generate torque, enabling them to rotate a shaft at a consistently precise speed, making them ideal for applications demanding high accuracy.
Key Features of the Servo Motor
High Efficiency:The DS2 servo motor is designed for optimal energy use, contributing to lower operational costs and reduced environmental impact. This efficiency is particularly beneficial in applications such as robotics, CNC machines, and medical equipment where energy consumption is a critical factor.
Robust Construction:Built to withstand rigorous industrial environments, the DS2 motor features durable components that require minimal maintenance. This robustness ensures longevity and reliability in demanding applications.
Precision Control:With its feedback mechanisms, including encoders, the DS2 servo motor provides exceptional control over speed and position. This capability allows for smooth and accurate motion, essential in high-performance settings.
Versatile Applications:The versatility of the DS2 motor makes it suitable for a wide range of uses, from automated manufacturing processes to intricate robotics tasks. Its ability to deliver high torque at low speeds enhances its effectiveness in various industrial scenarios.
Advantages of AC Synchronous Servo Motors
Constant Speed Operation: The DS2 motor operates at a fixed speed synchronized with the frequency of the power supply, ensuring consistent performance even under varying load conditions.
High Torque Density:Compared to traditional induction motors, synchronous motors like the DS2 offer significantly higher torque density, allowing for smaller and lighter designs without compromising power.
Dynamic Response:The low inertia of the DS2 servo motor enables rapid acceleration and deceleration, making it ideal for applications that require quick changes in motion or precise positioning.
Environmentally Friendly:By efficiently converting electrical energy into mechanical power, the DS2 motor supports sustainable practices in industrial operations.
In summary, the 60MM 400W 220V 3000RPM DS2 Servo Motor and Drive integrates advanced technology with robust design principles to meet the demands of modern automation systems. Its efficient performance and high precision make it an essential component for industries seeking reliable solutions for complex motion control tasks.
Product Feature
High Power Density
Delivers 400W of power in a compact 60mm frame, perfect for applications where space is limited.
High Precision
Offers precise control and accurate positioning with advanced servo technology.
Energy Efficient
Designed for maximum energy efficiency, helping to reduce operational costs and energy consumption.
Durable Construction
Built with robust materials to withstand harsh industrial environments and ensure long-term reliability.
Easy Integration
Compact and lightweight design facilitates easy integration into various systems and applications.
Optical encoder can work in vibrations up 50 5g.
Product Applications
Factory Automation
Optimizes performance in automated assembly lines and robotic systems, enhancing productivity.
Material Handling
Efficiently drives conveyors, lifts, and other material handling equipment with precision and reliability.
Medical Devices
Provides precise control for medical equipment such as diagnostic machines and robotic surgery tools.
Packaging Machinery
Ensures accurate and consistent movement for various packaging applications, improving efficiency.
Textile Machinery
Enhances control and reliability in textile manufacturing processes, ensuring high-quality output.
