ZPT Series Reducer

Our ZPT Series Reducers are reliable and durable thanks to their high-quality materials and exact gear cutting technology. With an efficient transmission ratio, they are ideal for a variety of industrial applications.

Get a QuoteLeave a Message

Model TypeZPT Series

Product Display

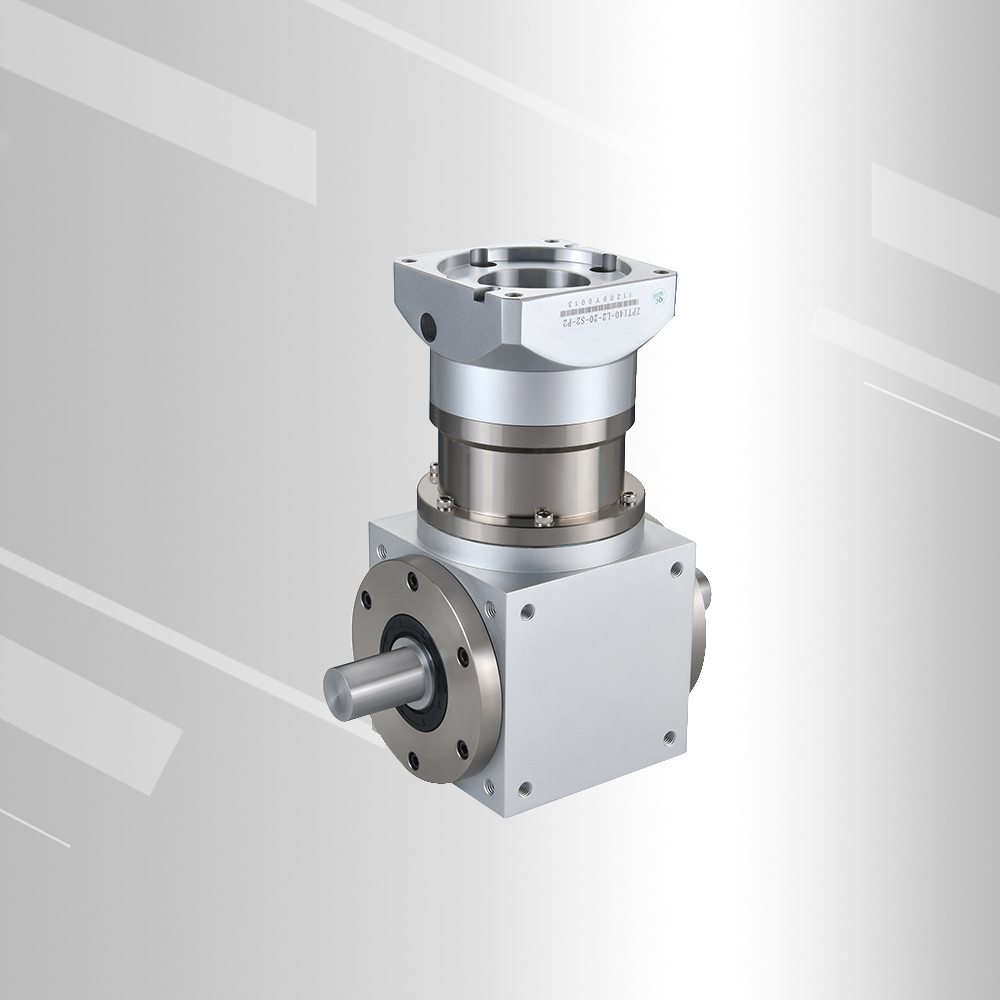

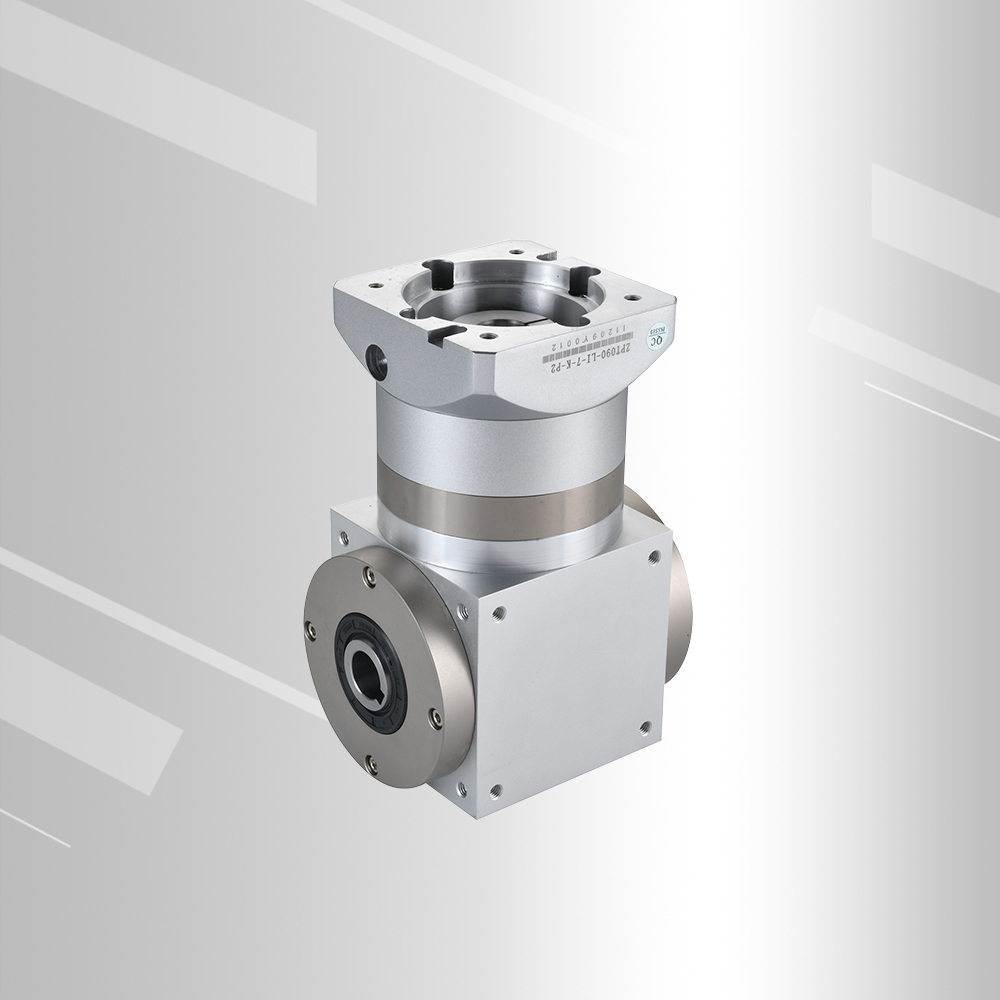

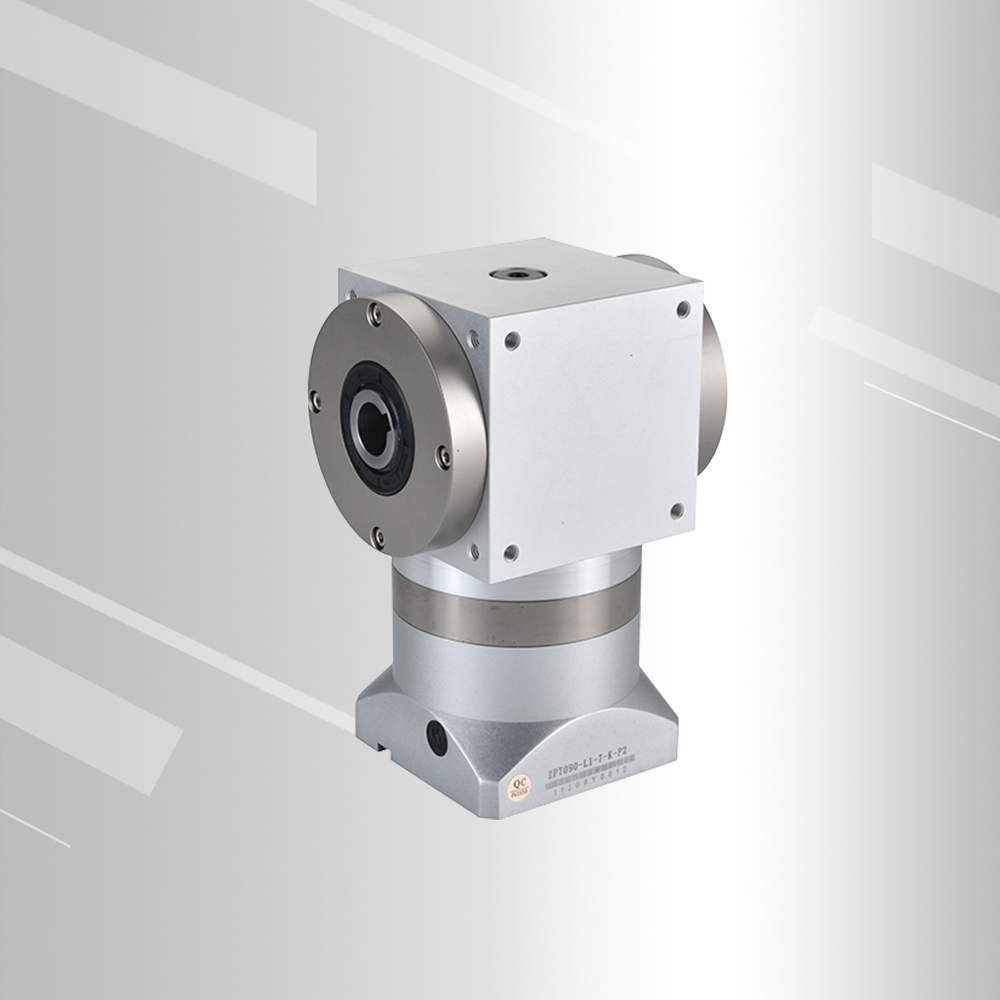

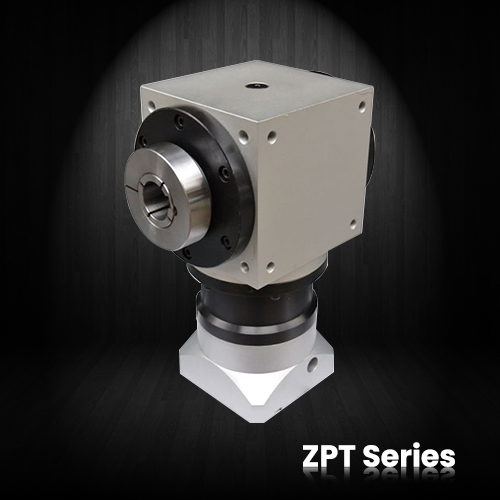

ZPT Series Reducer ZPT Series Reducer ZPT Series Reducer ZPT Series Reducer

Product Feature

  • 1. Adopt straight tooth gear transmission, through carburizing and quenching treatment, tooth profile modification treatment, ensure smooth operation, low noise.
  • 2. Simple structure, mass production, and fast delivery time and high cost performance.
  • 3. Reducer has a complete range, which can meet the needs of most reducer in the market.

Videos

SPECIFICATIONS

Model Unit ZPT070 ZPT090 ZPT110 ZPT140 Ratio Stage
Rated output torque N.m - 45 80 170 1 1
35 - - - 2
- 45 80 170 3
- 45 80 170 4
- 45 80 170 5
- 45 80 170 7
35 - - - 8
35 45 80 170 10
- 45 80 170 12 2
35 - - - 14 1
- 45 80 170 15 2
- 45 80 170 16
35 45 80 170 20 1
- 45 80 170 25 2
- 45 80 170 28
35 - - - 32 2
- 45 80 170 35 2
35 45 80 170 40
35 45 80 170 50
35 - - - 56 2
35 45 80 170 70
- 45 80 170 64 3
35 45 80 170 80
35 45 80 170 100
- 45 80 170 125
35 45 80 170 140
- 45 80 170 175
- 45 80 170 200
- 45 80 170 250
- 45 80 170 280
- 45 80 170 350
Emergency stop torque N.m 2 times Rated output torque
Norminal input speed rmp 3000 2500 2000 2000
Maximum input speed rmp 4000 3500 3000 3000
Maximum radial force N 950 1450 2100 2700
Maximum axial force N 425 725 1050 1350
Efficiency % Single [97%] Double [95%]
Average lifetime h 20000
Weight kg 4.2 6.8 11.6 19.8 1
4.6 7.4 13.8 23.9 2
- 8.0 16.0 28.0 3
Moment of inertia kgcm2 - 0.4 0.4 1.65 3 1
- 0.309 0.309 1.22 4
- 0.291 0.291 1.15 5
- 0.285 0.285 170 7
0.094 - - - 8
0.092 0.283 0.283 1.13 10
- 0.4 0.4 1.65 12 2
0.092 - - - 14 1
- 0.309 0.309 1.22 15 2
- 0.291 0.291 1.22 16
0.091 0.291 0.291 1.15 20 1
- 0.291 0.291 1.15 25 2
- 0.285 0.285 1.13 28
0.094 - - - 32 2
- 0.285 0.285 1.13 35 2
0.092 0.283 0.283 1.11 40
0.092 0.285 0.285 1.11 50
0.091 - - - 56 2
0.091 0.285 0.285 1.11 70
- 0.291 0.291 1.15 64 3
0.091 0.291 0.291 1.15 80
0.091 0.291 0.291 1.15 100
- 0.291 0.291 1.15 125
0.091 0.285 0.285 1.13 140
- 0.285 0.285 1.13 175
- 0.283 0.283 1.11 200
- 0.283 0.283 1.11 250
- 0.283 0.283 1.11 280
- 0.283 0.283 170 350
Noise dB 70 70 70 70 70
Lubricating   Synthetic grease lubrication
levels of protection   IP65

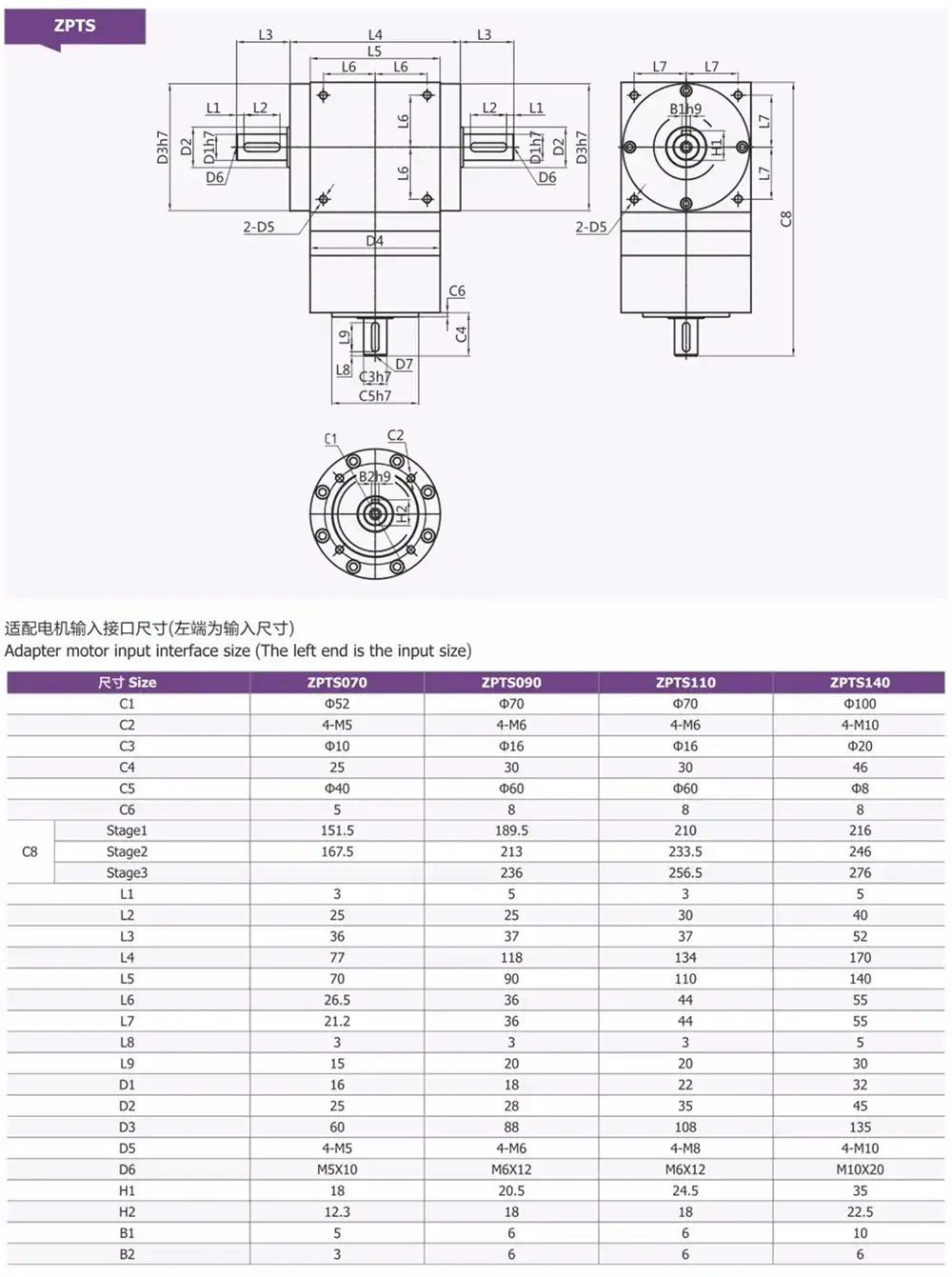

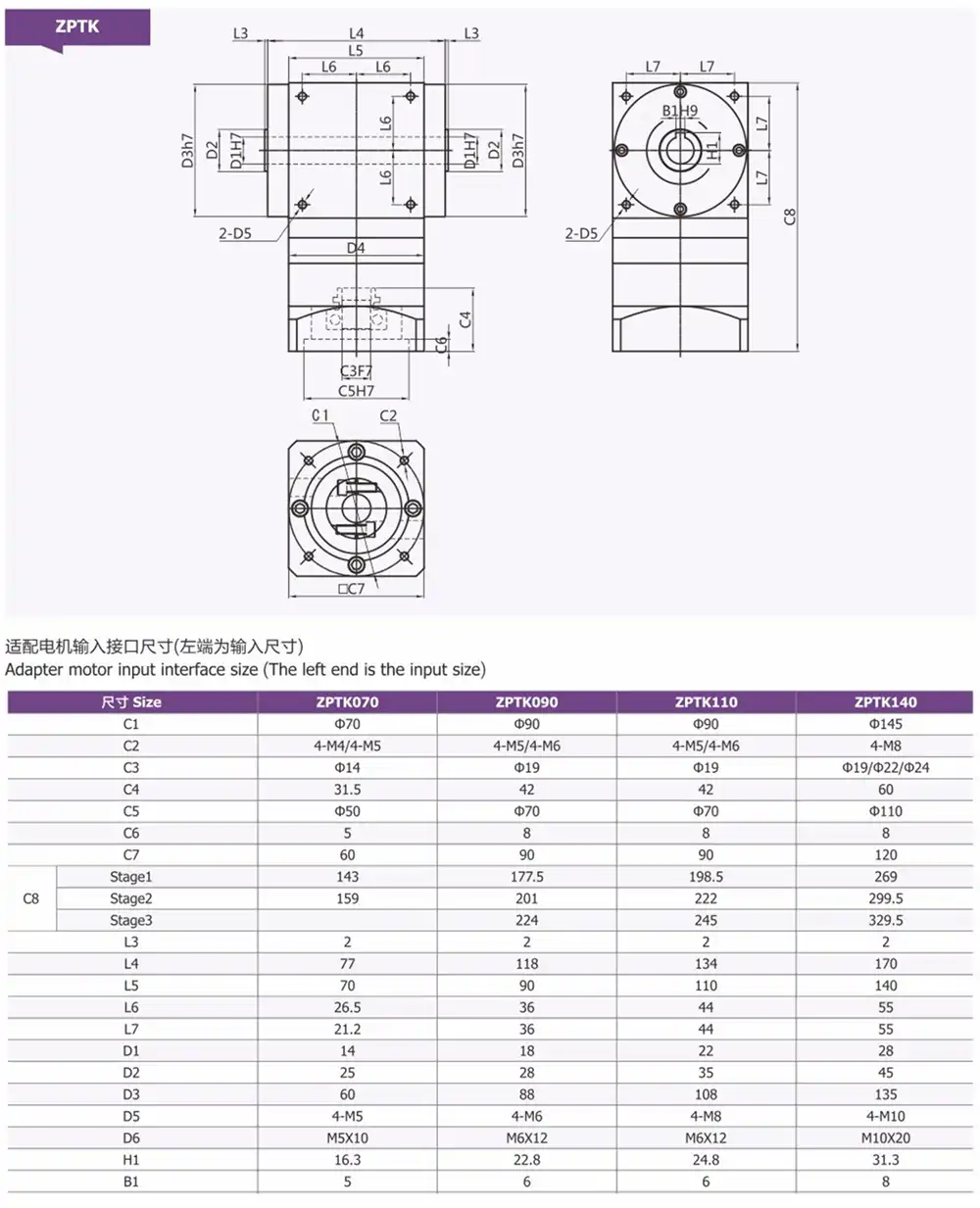

DIMENSIONS
