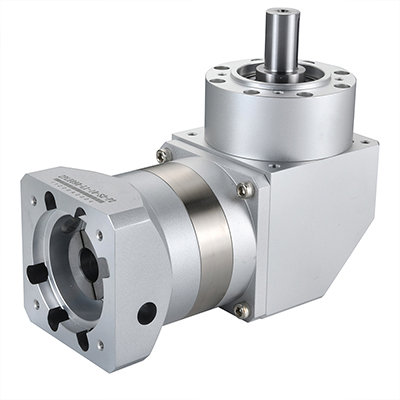

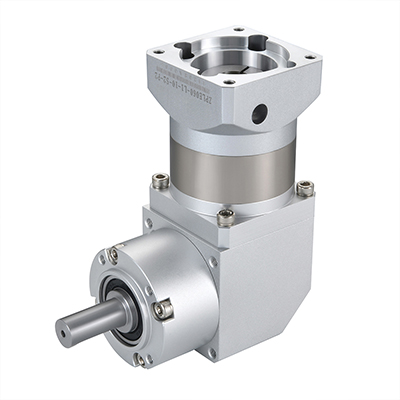

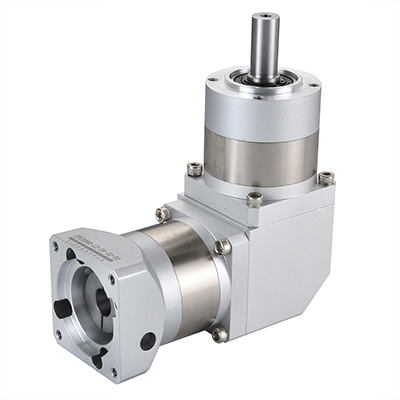

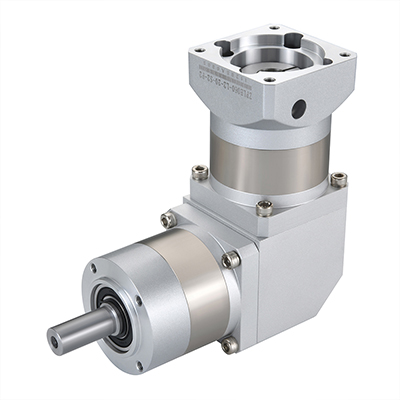

ZPLE Series Reducer

The ZPLE Series Reducer is an efficient and reliable electric gear motor. It features a helical gear structure, powerful magnet, and low noise performance. This reducer provides excellent torque output and long-lasting durability.

ModelZPLE Series

Levels of protectionIP65

LubricatingSynthetic grease lubrication

Noise60~68dm

Description

Enquiry

Model	Unit	ZPLE060	ZPLE090	ZPLE120	Ratio	Stage
Rated output torque	N.m	16.5	60	148	3	1
		27	86	222	4
		27	94.5	235	5
		19.5	64	158	7
		8.5	39.5	93	10
			96	250	12	2
			96	250	15
		30	96	250	16
		30	96	250	20
		33	105.5	264	25
		30	96	250	28
		33	105.5	264	35
		30	96	250	40
		33	105.5	264	50
		21.5	71.5	177	70
		37.5	120	310	64	3
		37.5	120	310	80
		37.5	120	310	100
		41.0	132.5	329	125
		37.5	120	310	140
		41.0	132.5	329	175
		37.5	120	310	200
		41.0	132.5	329	250
		37.5	120	310	280
		41.0	132.5	329	350
Emergency stop torque	N.m	2 times Rated output torque
Norminal input speed	rmp	3000	3000	2000
Maximum input speed	rmp	6000	6000	3500
Maximum radial force	N	170	1020	2230
Maximum axial force	N	120	850	1550
Efficiency	%	Single [97%]		Double [95%]
Average lifetime	h	20000
Weight	kg	2.2	4.7	11.5	1
		2.5	5.3	13.5	2
		2.8	5.9	15.7	3
Moment of inertia	kgcm2	0.107	0.4	1.65	3	1
		0.094	0.309	1.22	4
		0.092	0.291	1.15	5
		0.091	0.285	1.13	7
		0.091	0.283	1.11	10
		/	0.4	1.65	12	2
		/	0.309	1.65	15
		0.094	0.291	1.22	16
		0.092	0.291	1.15	20
		0.092	0.291	1.15	25
		0.091	0.285	1.13	28
		0.091	0.285	1.13	35
		0.091	0.2835	1.11	40
		0.091	0.283	1.11	50
		0.091	0.283	1.11	70
		0.092	0.291	1.15	64	3
		0.092	0.291	1.15	80
		0.092	0.291	1.15	100
		0.092	0.291	1.15	125
		0.091	0.291	1.13	140
		0.091	0.291	1.13	175
		0.091	0.283	1.11	200
		0.091	0.283	1.11	250
		0.091	0.283	1.11	280
		0.091	0.283	1.11	350
Noise	dB	60	65	68
Lubricating	Synthetic grease lubrication
levels of protection	IP65

Overview

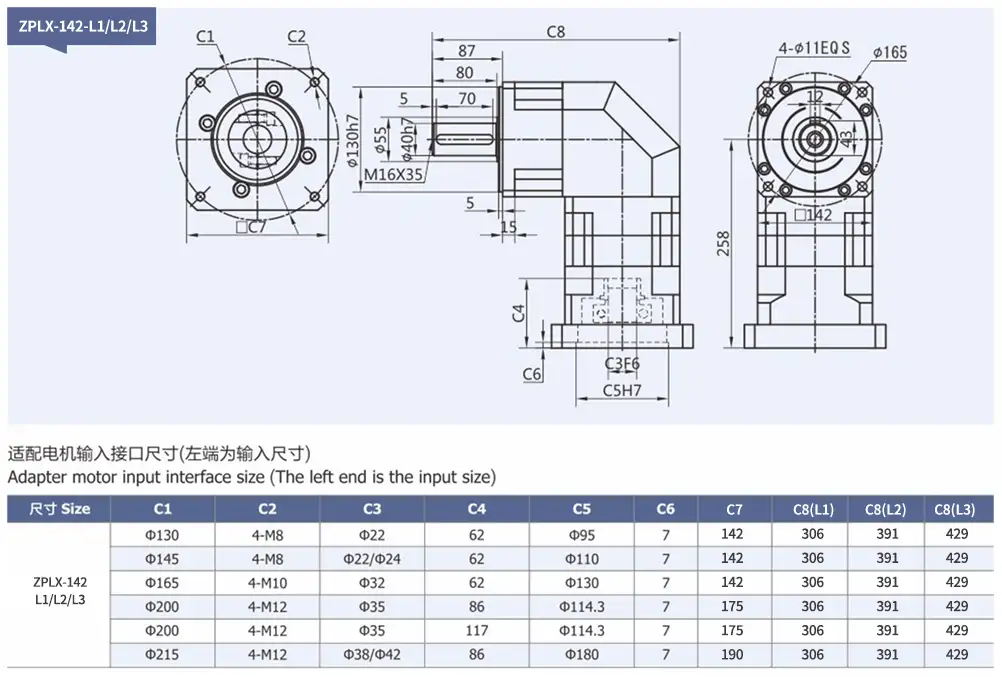

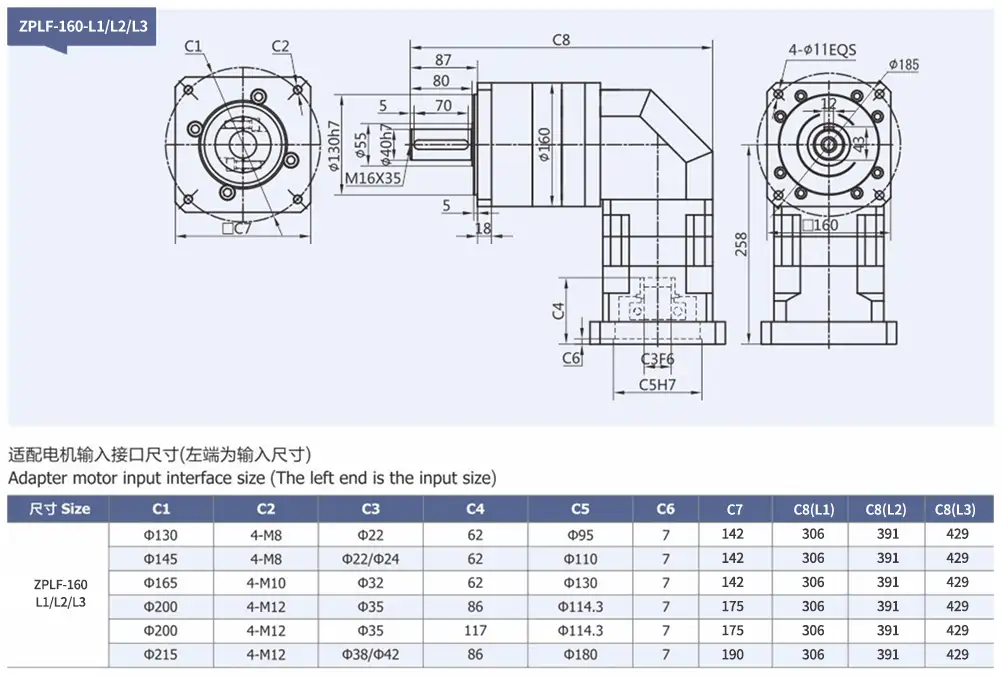

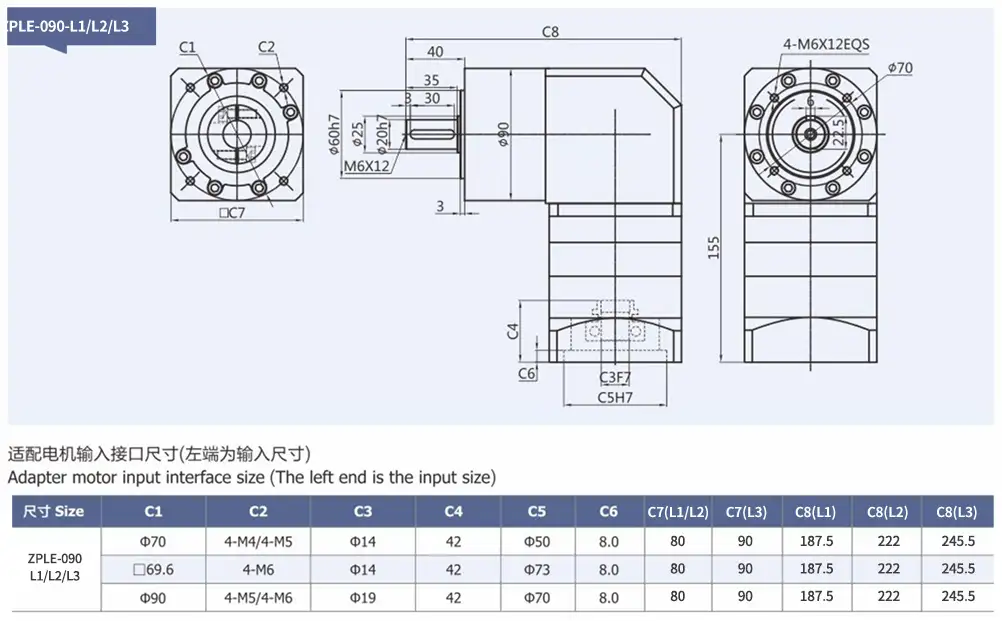

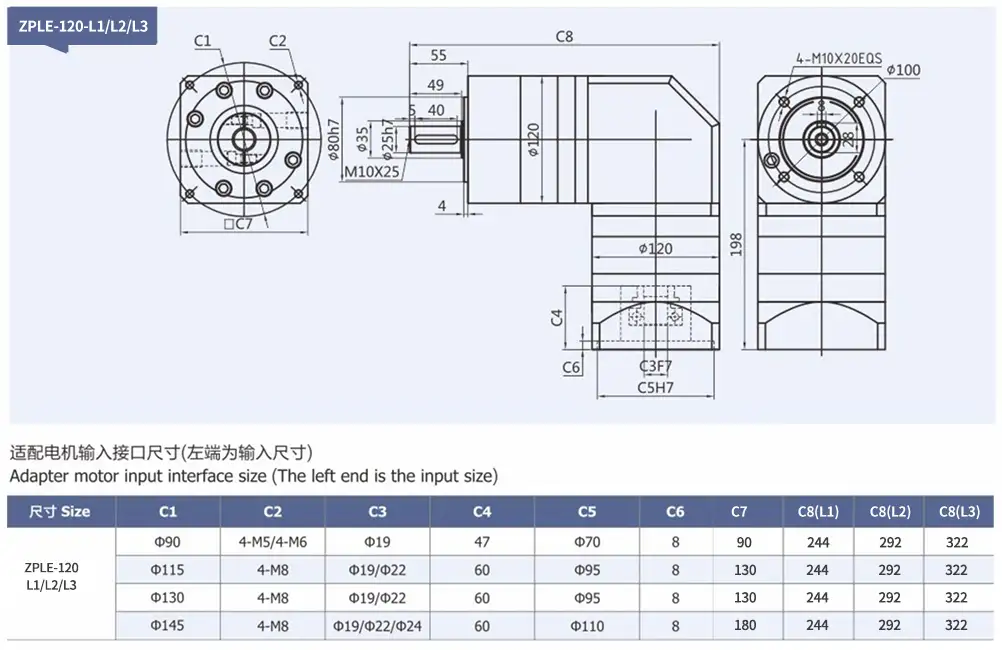

Outline dimensional
