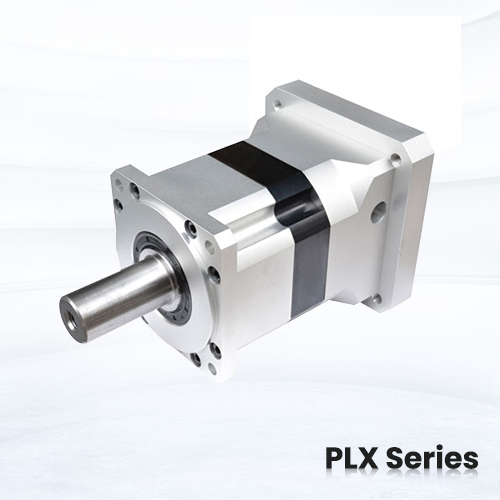

PLX Series Reducer

The PLX Series Reducer offers superior performance with a maximum torque of up to 98 Nm, making it perfect for applications that require high torque transmission. It's light weight and compact size make it easy to install in tight spaces, and its low backlash makes it ideal for more precise applications.

ModelPLX Series

Description

Enquiry

Model	Unit	PLX042	PLX142	PLX190	Ratio	Stage
Rated output torque	N.m	8	310	—	3	1
		9	605	1780	4
		9	420	1345	5
		7	270	745	8
			680	2035	12	2
		12	680	2035	16
		12	680	2035	20
		10.5	460	1485	25
		12	680	2035	32
		10.5	460	1485	40
		8	310	840	64
		15.5	900	2035	64	3
		15.5	900	2590	80
		15.5	900	2590	100
		15.5	580	1855	125
		15.5	580	2590	160
		13.5	580	1855	200
		15.5	900	2590	256
		13.5	580	1855	320
		9.5	400	1070	512
Emergency stop torque	N.m	2 times Rated output torque
Norminal input speed	rmp	3000	2000	1500
Maximum input speed	rmp	6000	3500	2500
Maximum radial force	N	185	3200	13000
Maximum axial force	N	150	3000	20000
Efficiency	%	Single [97%]			Double [95%]
Average lifetime	h	20000
Weight	kg	0.5	17	42	1
		0.6	23	50	2
		0.7	29	58	3

Model	Unit	PLX242	PLX285	PLX330	Ratio	Stage
Rated output torque	N.m	3200	5800	10190	4	1
		2500	4400	7180	5
		1360	2595	4080	8
		3390	6400	10800	16	2
		3390	6400	10800	20
		2650	4710	7550	25
		3390	6400	10800	32
		2650	4710	7550	40
		1450	4710	4430	64
		3390	8130	13700	64	3
		4420	8130	13700	80
		3420	9130	13700	100
		3420	6030	9800	125
		4420	8130	13700	160
		3420	6030	9800	200
		4420	6030	9800	256
		3420	6030	9800	320
		1840	3560	8450	512
Emergency stop torque	N.m	2 times Rated output torque
Norminal input speed	rmp	1000	1000	1000
Maximum input speed	rmp	1500	1500	1500
Maximum radial force	N	12000	15000	17000
Maximum axial force	N	6400	12000	15000
Efficiency	%	Single [97%]			Double [95%]
Average lifetime	h	20000
Weight	kg	71	113	245	1
		75	136	290	2
		92	140	326	3
Moment of inertia	kgcm'	34.6	34.5	65.4	4	1
		34.6	34.5	65.4	5
		34.6	34.5	65.4	8
		15.6	38.5	68.5	16
		15.6	38.5	68.5	20
		15.6	38.5	68.5	25
		15.6	38.5	68.5	32
		15.6	38.5	68.5	40
		15.6	38.5	68.5	64
		15.6	38.5	73.4	64	3
		15.6	38.5	73.4	80
		15.6	38.5	73.4	100
		15.6	38.5	73.4	125
		15.6	38.5	73.4	160
		15.6	38.5	73.4	200
		15.6	38.5	73.4	256
		15.6	38.5	73.4	320
		15.6	38.5	73.4	512
Noise	dB	70	70	70	-
Lubricating		Synthetic grease lubrication
evels of protection		IP65

Overview

1. Adopt straight tooth gear transmission, through carburizing and quenching treatment, tooth profile modification treatment, ensure smooth operation, low noise.
2. Simple structure, mass production, and fast delivery time and high cost performance.
3. Reducer has a complete range, which can meet the needs of most reducer in the market.
