Product Feature
High Precision
The PLF Series Reducer offers high precision with minimal backlash, ensuring accurate positioning and motion control in demanding applications.
Compact Design
Designed to be compact and lightweight, the PLF Series Reducer is suitable for installations where space is at a premium.
High Efficiency
With optimized gear design, the reducer provides high efficiency, minimizing energy loss and maximizing performance.
Durable Construction
Built with high-quality materials, this reducer ensures durability and long-lasting performance in various industrial environments.
Low Noise Operation
The advanced gear design and construction techniques ensure quiet operation, making it suitable for noise-sensitive applications.
Easy Installation
The PLF Series Reducer is designed for easy integration into existing systems, reducing setup time and complexity.
Versatile Mounting Options
Offers versatile mounting options to accommodate different installation requirements, enhancing its adaptability.

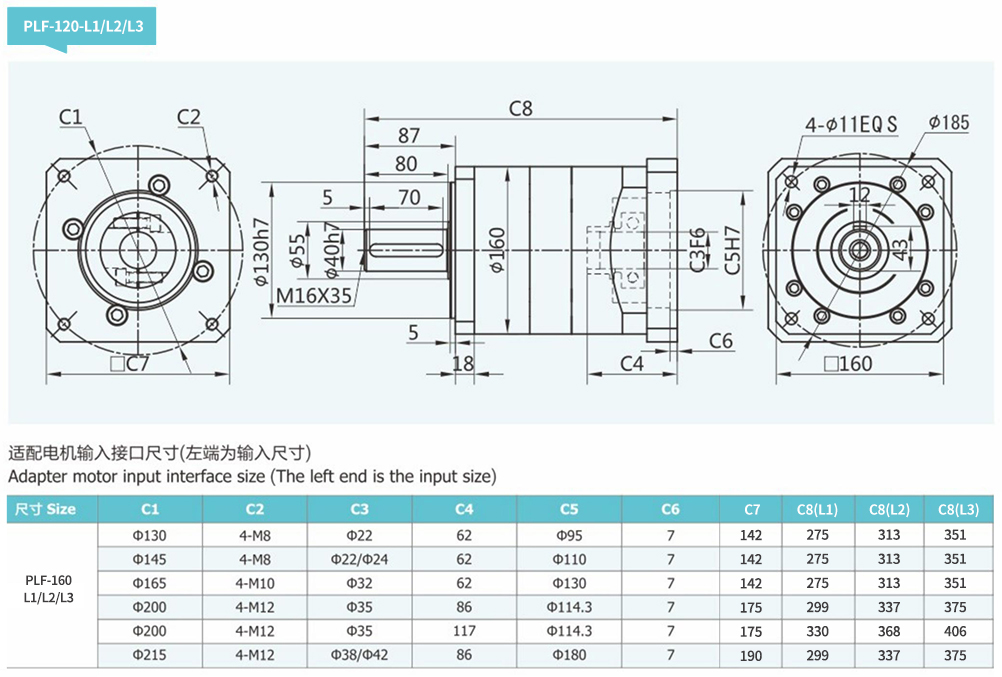

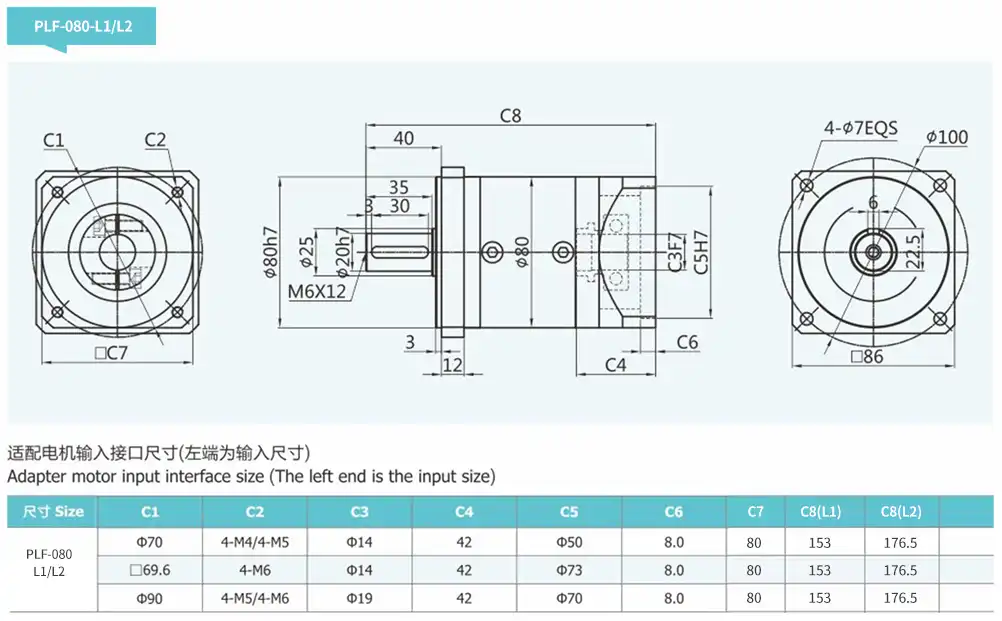

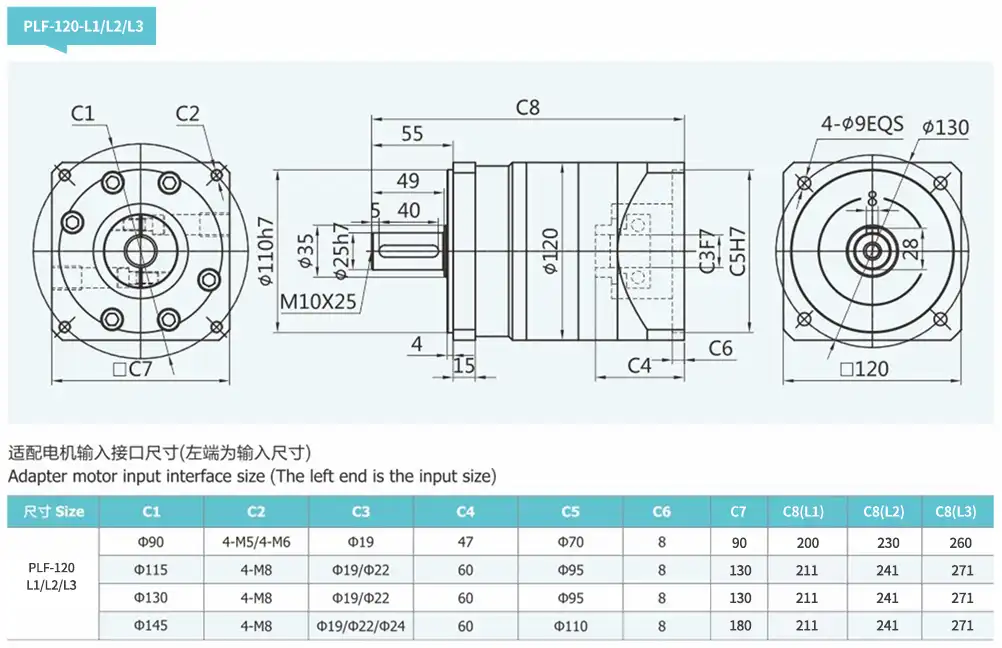

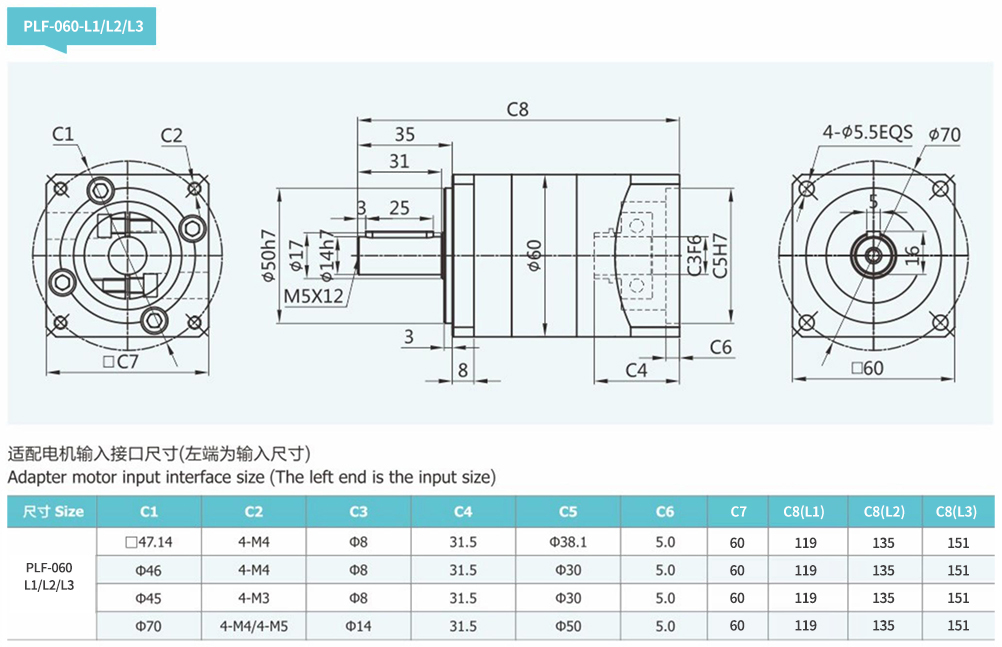

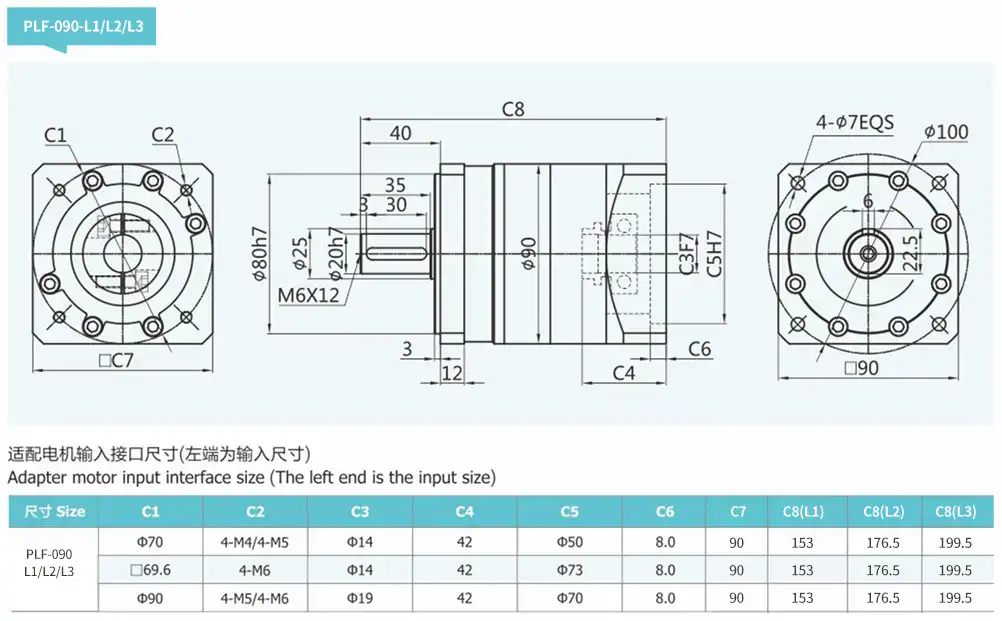

Outline dimensional
Product Applications
Robotics
Ideal for robotics applications, providing precise and reliable motion control for robotic arms, AGVs, and other robotic systems.
Automated Machinery
Suitable for automated machinery, ensuring accurate and efficient operation in manufacturing and assembly lines.
CNC Machines
Perfect for CNC machines, delivering high precision and durability for milling, cutting, and engraving tasks.
Packaging Equipment
Used in packaging equipment, offering reliable and precise control for packaging operations, improving efficiency and throughput.
Printing Machinery
Applicable in printing machinery, providing consistent and accurate motion control for high-quality printing results.
Medical Devices
Ideal for medical devices, ensuring precise and reliable operation in various medical and laboratory equipment.
Semiconductor Equipment
Suitable for semiconductor manufacturing equipment, offering high precision and reliability for the demanding semiconductor industry.
Related Products
Videos
SPECIFICATIONS
| Model | Unit | PLF060 | PLF080 | PLF090 | PLF120 | PLF160 | Ratio | Stage | ||||||
| Rated output torque | N.m | 16.5 | 60 | 60 | 148 | 310 | 3 | 1 | ||||||
| 27 | 86 | 86 | 222 | 605 | 4 | |||||||||
| 27 | 94.5 | 94.5 | 235 | 420 | 5 | |||||||||
| 19.5 | 64 | 64 | 158 | (270) | 7(8) | |||||||||
| 8.5 | 39.5 | 39.5 | 93 | - | 10 | |||||||||
| 96 | 96 | 250 | 680 | 12 | 2 | |||||||||
| 96 | 96 | 250 | - | 15 | ||||||||||
| 30 | 96 | 96 | 250 | 680 | 16 | |||||||||
| 30 | 96 | 96 | 250 | 680 | 20 | |||||||||
| 33 | 105.5 | 105.5 | 264 | 460 | 25 | |||||||||
| 30 | 96 | 96 | 250 | (680) | 28(32) | |||||||||
| 33 | 105.5 | 105.5 | 264 | 35 | ||||||||||
| 30 | 96 | 96 | 250 | 460 | 40 | |||||||||
| 33 | 105.5 | 105.5 | 264 | (310) | 50(64) | |||||||||
| 21.5 | 71.5 | 71.5 | 177 | . | 70 | |||||||||
| 37.5 | 120 | 120 | 310 | 900 | 64 | 3 | ||||||||
| 37.5 | 120 | 120 | 310 | 900 | 80 | |||||||||
| 37.5 | 120 | 120 | 310 | 900 | 100 | |||||||||
| 41.0 | 132.5 | 132.5 | 329 | 580 | 125 | |||||||||
| 37.5 | 120 | 120 | 310 | (580) | 140(160) | |||||||||
| 41.0 | 132.5 | 132.5 | 329 | - | 175 | |||||||||
| 37.5 | 120 | 120 | 310 | 580 | 200 | |||||||||
| 41.0 | 132.5 | 132.5 | 329 | (900) | 250(256) | |||||||||
| 37.5 | 120 | 120 | 310 | (580) | 280(320) | |||||||||
| 41.0 | 132.5 | 132.5 | 329 | (400) | 350(512) | |||||||||
| Emergency stop torque | N.m2 times Rated output torque | |||||||||||||
| Norminal input speed | rmp | 3000 | 3000 | 3000 | 2000 | 2000 | ||||||||
| Maximum input speed | rmp | 6000 | 6000 | 6000 | 3500 | 3500 | ||||||||
| Maximum radial force | N | 170 | 1020 | 1020 | 2230 | 3200 | ||||||||
| Maximum axial force | N | 120 | 850 | 850 | 1550 | 3000 | ||||||||
| Efficiency | % | Single [97%] | Double [95%] | |||||||||||
| Average lifetime | h | 20000 | ||||||||||||
| Weight | kg | 1.4 | 3.7 | 4.7 | 6.9 | 19 | 1 | |||||||
| 1.6 | 4.2 | 5.3 | 8.9 | 25 | 2 | |||||||||
| 1.8 | 4.7 | 5.9 | 11.2 | 31 | 3 | |||||||||
| Moment of inertia | kgcm² | 0.107 | 0.4 | 0.4 | 1.65 | 4.31 | 3 | 1 | ||||||
| 0.094 | 0.309 | 0.309 | 1.22 | 5.15 | 4 | |||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 5 | |||||||||
| 0.091 | 0.285 | 0.285 | 1.13 | (4.84) | 7(8) | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | - | 10 | |||||||||
| 0.4 | 0.4 | 1.65 | 6.31 | 12 | 2 | |||||||||
| 0.309 | 0.309 | 1.65 | - | 15 | ||||||||||
| 0.094 | 0.291 | 0.291 | 1.22 | 5.15 | 16 | |||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 20 | |||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 25 | |||||||||
| 0.091 | 0.285 | 0.285 | 1.13 | (4.84) | 28(32) | |||||||||
| 0.091 | 0.285 | 0.285 | 1.13 | - | 35 | |||||||||
| 0.091 | 0.2835 | 0.2835 | 1.11 | 4.84 | 40 | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 50(64) | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | - | 70 | 3 | ||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 64 | |||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 80 | |||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 100 | |||||||||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.84 | 125 | |||||||||
| 0.091 | 0.291 | 0.291 | 1.13 | (4-84) | 140(160) | |||||||||
| 0.091 | 0.291 | 0.291 | 1.13 | - | 175 | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | 4.84 | 200 | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 250(256) | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 280(320) | |||||||||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 350(512) | |||||||||
| Noise | dB | 60 | 65 | 65 | 68 | 70 | / | |||||||
| Lubricating | Synthetic grease lubrication | |||||||||||||
| levels of protection | IP65 | |||||||||||||
DIMENSIONS
