SPECIFICATIONS
Model | Unit | PLEK060 | PLEK090 | PLEK120 | Ratio | Stage |
Rated output torque | N.m | 16.5 | 60 | 148 | 3 | 1 |
27 | 86 | 222 | 4 | |||
27 | 94.5 | 235 | 5 | |||
19.5 | 64 | 158 | 7 | |||
8.5 | 39.5 | 93 | 10 | |||
- | 96 | 250 | 12 | 2 | ||
- | 96 | 250 | 15 | |||
30 | 96 | 250 | 16 | |||
30 | 96 | 250 | 20 | |||
33 | 105.5 | 264 | 25 | |||
30 | 96 | 250 | 28 | |||
33 | 105.5 | 264 | 35 | |||
30 | 96 | 250 | 40 | |||
33 | 105.5 | 264 | 50 | |||
21.5 | 71.5 | 177 | 70 | |||
37.5 | 120 | 310 | 64 | 3 | ||
37.5 | 120 | 310 | 80 | |||
37.5 | 120 | 310 | 100 | |||
41.0 | 132.5 | 329 | 125 | |||
37.5 | 120 | 310 | 140 | |||
41.0 | 132.5 | 329 | 175 | |||
37.5 | 120 | 310 | 200 | |||
41.0 | 132.5 | 329 | 250 | |||
37.5 | 120 | 310 | 280 | |||
41.0 | 132.5 | 329 | 350 | |||
Emergency stop torque | N.m | 2 times Rated output torque | ||||
Norminal input speed | rmp | 3000 | 3000 | 2000 | ||
Maximum input speed | rmp | 6000 | 6000 | 3500 | ||
Maximum radial force | N | 170 | 1020 | 2230 | ||
Maximum axial force | N | 120 | 850 | 1550 | ||
Efficiency | % | Single [97%] | Double [95%] | |||
Average lifetime | h | 20000 | ||||
Weight | kg | 1.4 | 4.7 | 6.9 | 1 | |
1.6 | 5.3 | 8.9 | 2 | |||
1.8 | 5.9 | 11.2 | 3 |

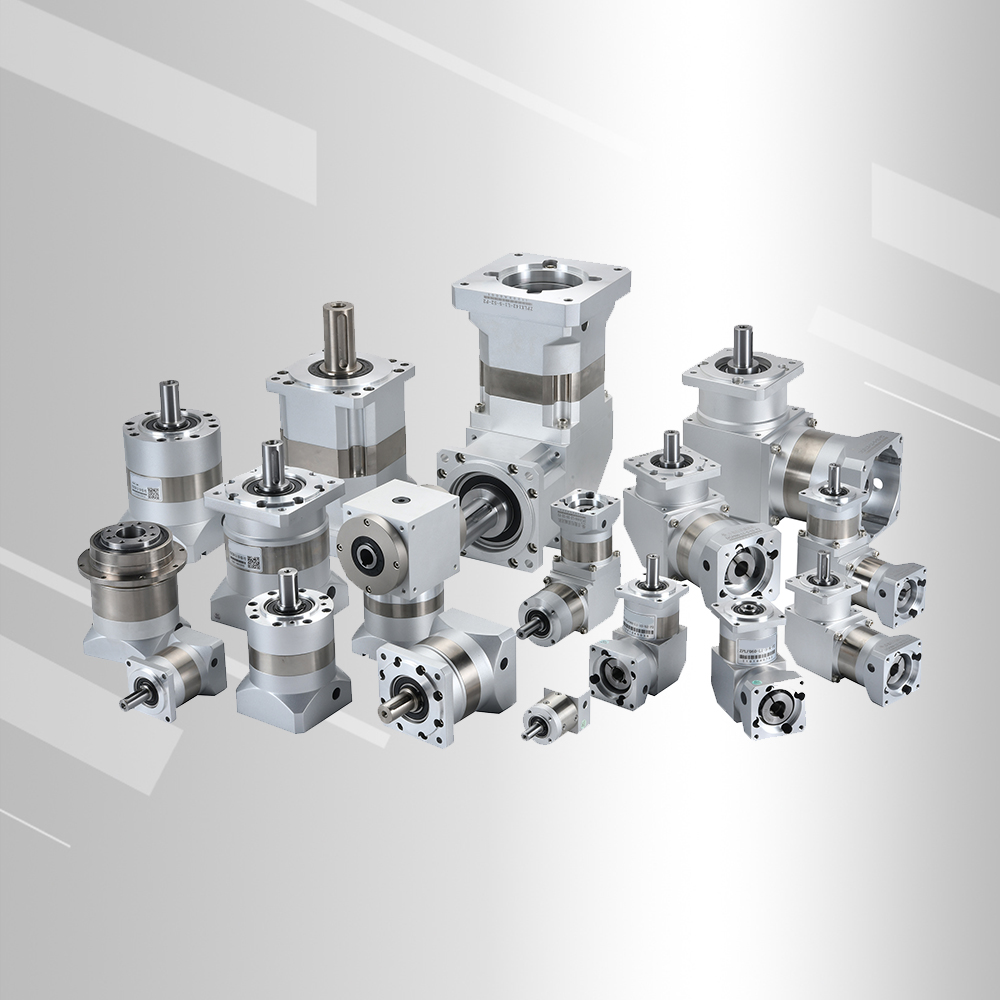

Product Display
Product Feature
Increased Torque
Gearboxes increase the torque output of a motor or engine by reducing the motor's rotational speed while increasing the torque at the output shaft.
Speed Reduction
Gearboxes can reduce the speed of a motor or engine, which is useful in applications where high speeds are not necessary.
Versatility
Gearboxes are versatile and can be used in a wide range of applications, including high and low-power applications.
Precision and Accuracy
Gearboxes can help stepper motors move in precise and well-defined steps, allowing for precise positioning and control.
Noise Reduction
Gearboxes can help mitigate backlash, which is the play or clearance in the mechanical system, resulting in reduced noise during operation.
Improved Fuel Efficiency
Gearboxes allow the driver to manually change the gear ratio as per the speed and road conditions, which transfers the required amount of power from the engine to the wheels at different speeds. This helps improve fuel efficiency by optimizing power delivery.
Product Applications
Wind Turbine Industry
Gearboxes are essential components in wind turbines, transferring and multiplying the low-speed rotation from the turbine blades to the higher speeds required by the generator.
Mining and Mineral Processing
Gearboxes are used in various equipment in the mining and mineral processing industries, such as conveyor systems, crushers, and material handling systems, to provide the necessary torque and speed reduction.
Marine and Offshore Applications
Gearboxes are widely used in marine and offshore applications, including ship propulsion systems, deck machinery, and offshore oil and gas platforms, where they are designed to withstand harsh environments.
Aerospace Industry
Gearboxes are crucial in the aerospace industry for applications such as aircraft transmissions, actuators, and control surface mechanisms, providing precise motion control and speed reduction.
Automotive Industry
Gearboxes are used in transmissions, transfer cases, and differential systems in the automotive industry, enabling efficient power transfer and speed/torque conversion for vehicle drivetrains.
Construction and Heavy Machinery
Gearboxes are essential components in construction and heavy machinery, such as cranes, excavators, and mining equipment, providing the necessary torque and speed reduction for efficient operation.
Steel and Metal Processing
In the steel and metal processing industries, gearboxes are used in equipment like rolling mills, shears, and bending machines, allowing for precise control and power transmission during metal forming processes.
Food and Beverage Processing
Gearboxes are utilized in the food and beverage processing industry in equipment such as mixers, conveyors, and packaging machines, ensuring efficient and reliable operation.
Pulp and Paper Industry
Gearboxes are employed in the pulp and paper industry for applications such as paper machine drives, roll handling systems, and material handling equipment, providing the necessary speed reduction and torque transmission.
Related Products
Videos

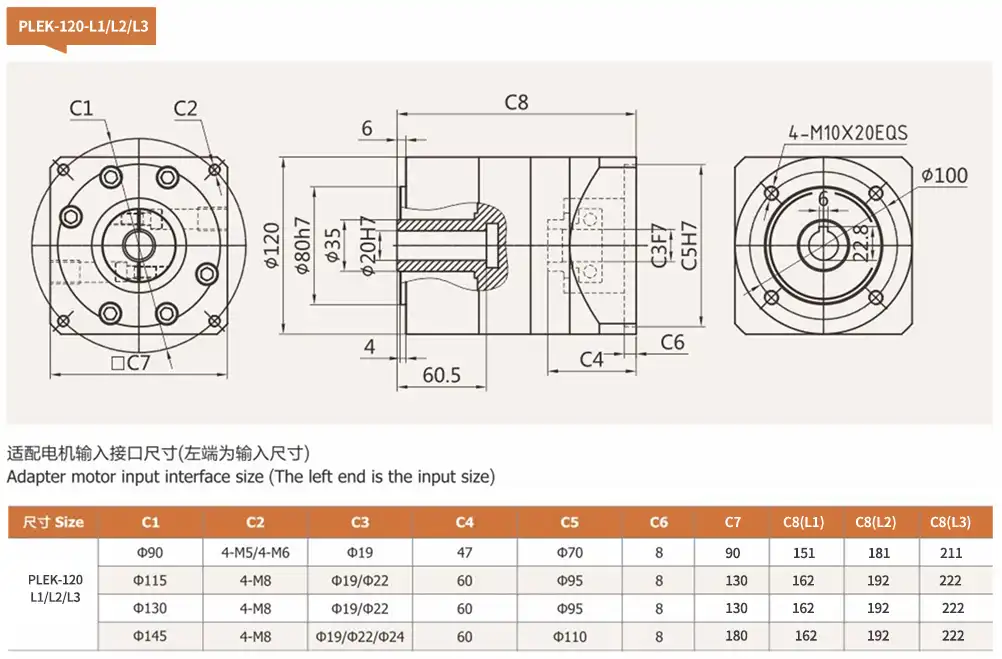

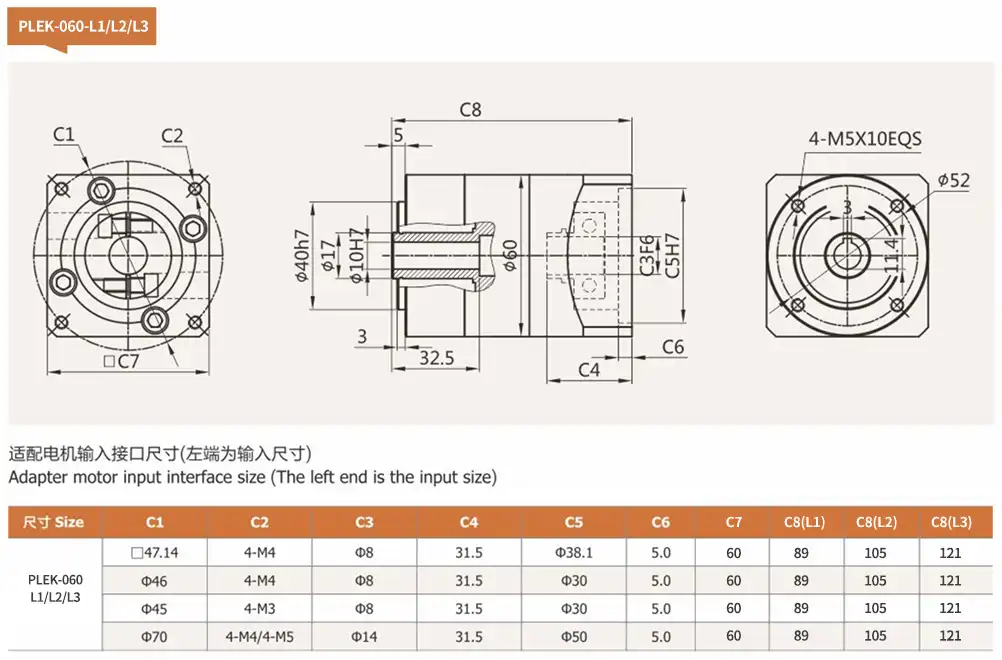

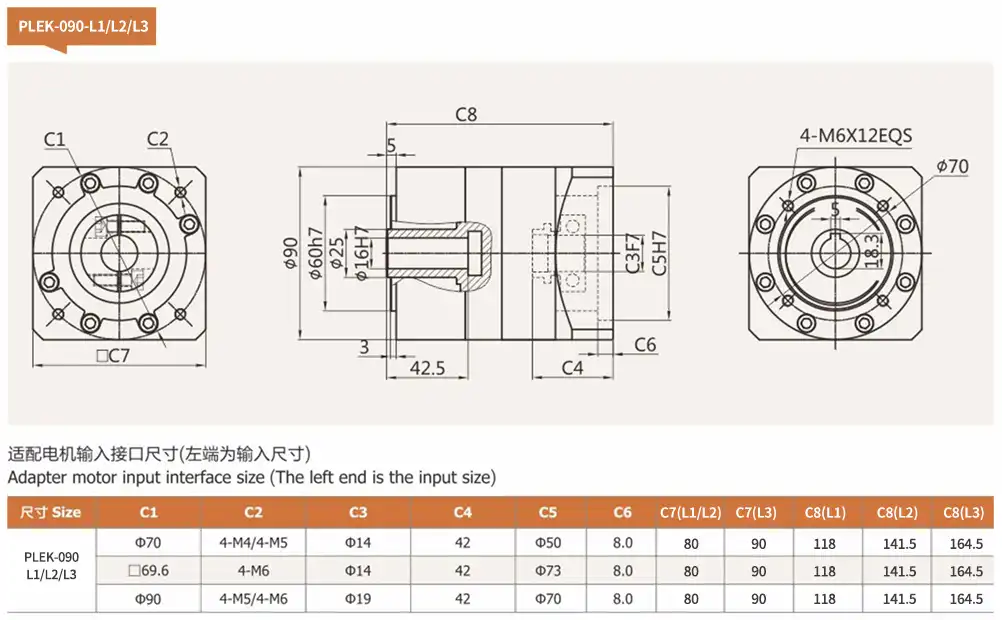

DIMENSIONS
Technical Documents Downloads
File Name | Size | Download |
