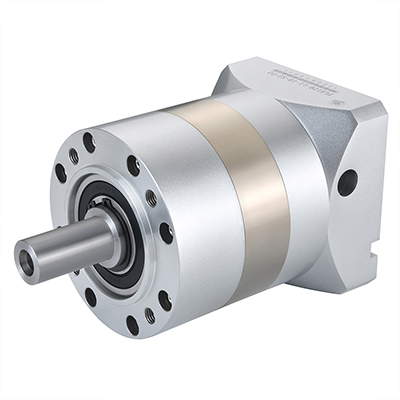

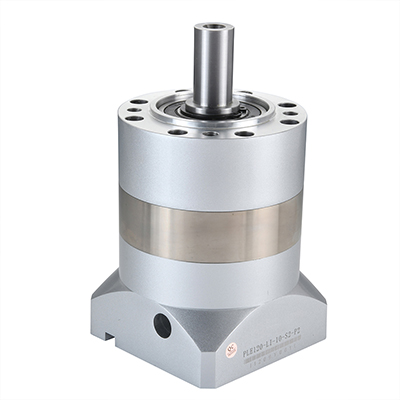

PLE Series Reducer

The PLE Series Reducer is engineered for powerful torque conversion, with a maximum torque of 14Nm and an input speed of 1400Rev/Min. Its durable construction is designed to withstand moderate shock loads and provide reliable performance every time.

ModelPLE Series

Description

Enquiry

Model	Unit	PLE060	PLE080	PLE090	PLE120	PLE160	Ratio	Stage
Rated output torque	N.m	16.5	60	60	148	310	3	1
		27	86	86	222	605	4
		27	94.5	94.5	235	420	5
		19.5	64	64	158	(270)	7(8)
		8.5	39.5	39.5	93	-	10
			96	96	250	680	12	2
			96	96	250	-	15
		30	96	96	250	680	16
		30	96	96	250	680	20
		33	105.5	105.5	264	460	25
		30	96	96	250	(680)	28(32)
		33	105.5	105.5	264	-	35
		30	96	96	250	460	40
		33	105.5	105.5	264	(310)	50(64)
		21.5	71.5	71.5	177	-	70
		37.5	120	120	310	900	64	3
		37.5	120	120	310	900	80
		37.5	120	120	310	900	100
		41.0	132.5	132.5	329	580	125
		37.5	120	120	310	(580)	140(160)
		41.0	132.5	132.5	329	-	175
		37.5	120	120	310	580	200
		41.0	132.5	132.5	329	(900)	250(256)
		37.5	120	120	310	(580)	280(320)
		41.0	132.5	132.5	329	(400)	350(512)
Emergency stop torque	N.m	2 times Rated output torque
Norminal input speed	rmp	3000	3000	3000	2000	2000
Maximum input speed	rmp	6000	6000	6000	3500	3500
Maximum radial force	N	170	1020	1020	2230	3200
Maximum axial force	N	120	850	850	1550	3000
Efficiency	%	Single [97%]			Double [95%]
Average lifetime	h	20000
Weight	kg	1.4	3.7	4.7	6.9	19	1
		1.6	4.2	5.3	8.9	25	2
		1.8	4.7	5.9	11.2	31	3
Moment of inertia	kgcm²	0.107	0.4	0.4	1.65	4.13	3	1
		0.094	0.309	0.309	1.22	5.15	4
		0.092	0.291	0.291	1.15	4.93	5
		0.091	0.285	0.285	1.13	(4.84)	7(8)
		0.091	0.283	0.283	1.11	-	10
			0.4	0.4	1.65	6.13	12	2
			0.309	0.309	1.65	-	15
		0.094	0.291	0.291	1.22	5.15	16
		0.092	0.291	0.291	1.15	4.93	20
		0.092	0.291	0.291	1.15	4.93	25
		0.091	0.285	0.285	1.13	(4.84)	28(32)
		0.091	0.285	0.285	1.13	-	35
		0.091	0.2835	0.2835	1.11	4.84	40
		0.091	0.283	0.283	1.11	-	50
		0.091	0.283	0.283	1.11	(4.84)	70(64)
		0.092	0.291	0.291	1.15	4.93	64	3
		0.092	0.291	0.291	1.15	4.93	80
		0.092	0.291	0.291	1.15	4.93	100
		0.092	0.291	0.291	1.15	4.84	125
		0.091	0.291	0.291	1.13	(4.84)	140(160)
		0.091	0.291	0.291	1.13	-	175
		0.091	0.283	0.283	1.11	4.84	200
		0.091	0.283	0.283	1.11	(4-84)	250(256)
		0.091	0.283	0.283	1.11	(4.84)	280(320)
		0.091	0.283	0.283	1.11	(4.84)	350(512)
Noise	dB	60	65	65	68	70
Lubricating		Synthetic grease lubrication
levels of protection		IP65

Overview

1. Adopt straight tooth gear transmission, through carburizing and quenching treatment, tooth profile modification treatment, ensure smooth operation, low noise.
2. Simple structure, mass production, and fast delivery time and high cost performance.
3. Reducer has a complete range, which can meet the needs of most reducer in the market.
