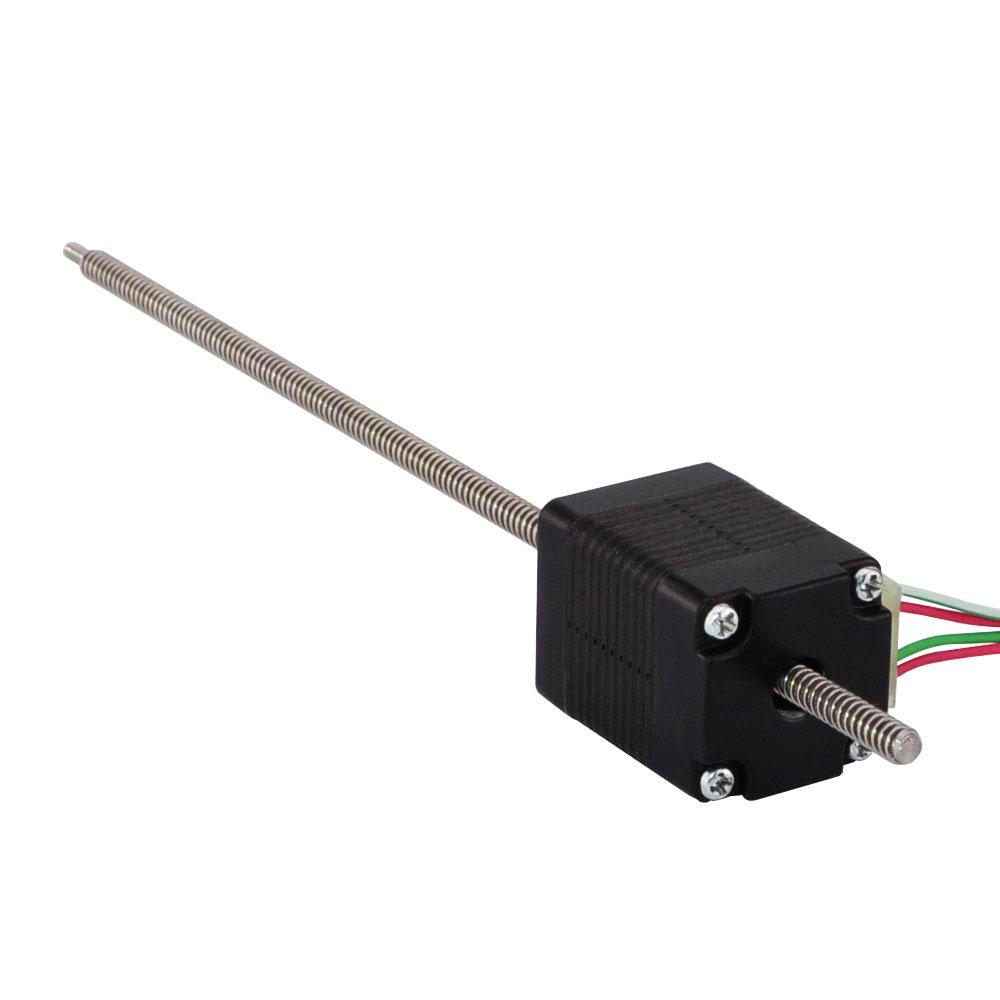

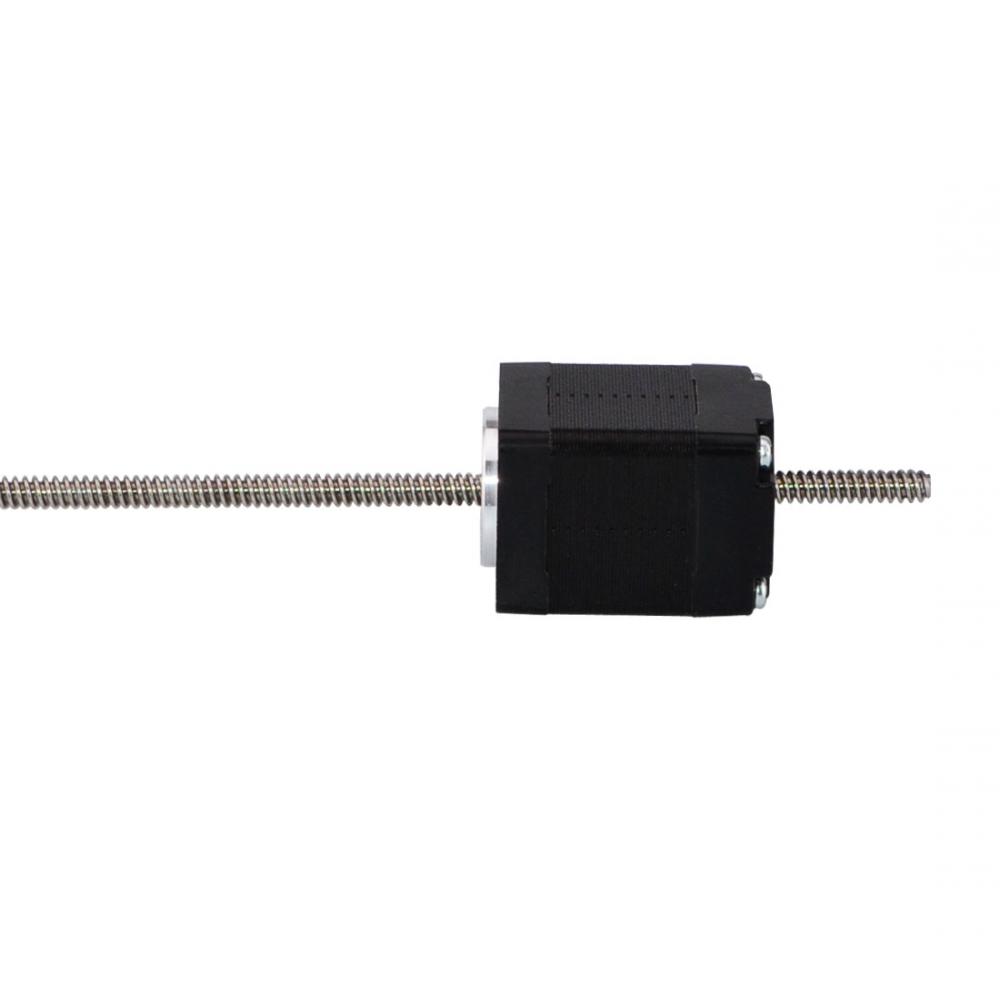

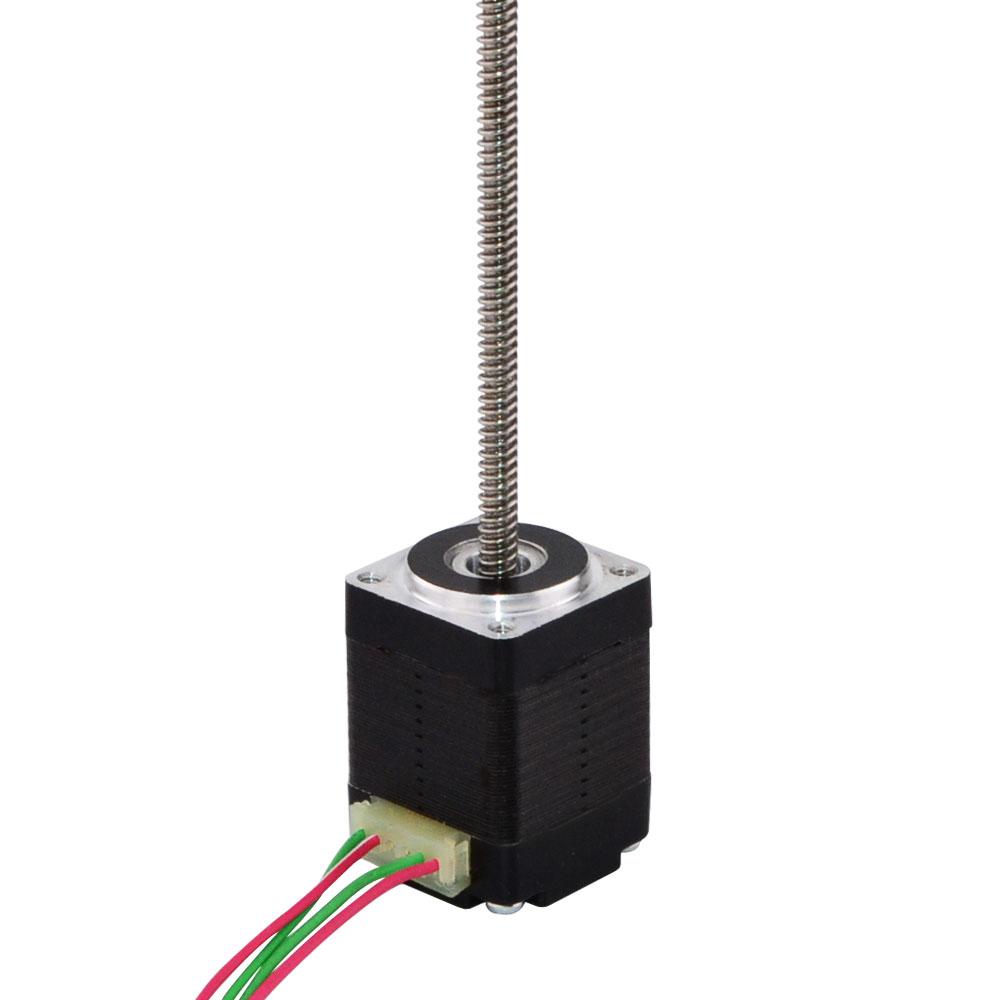

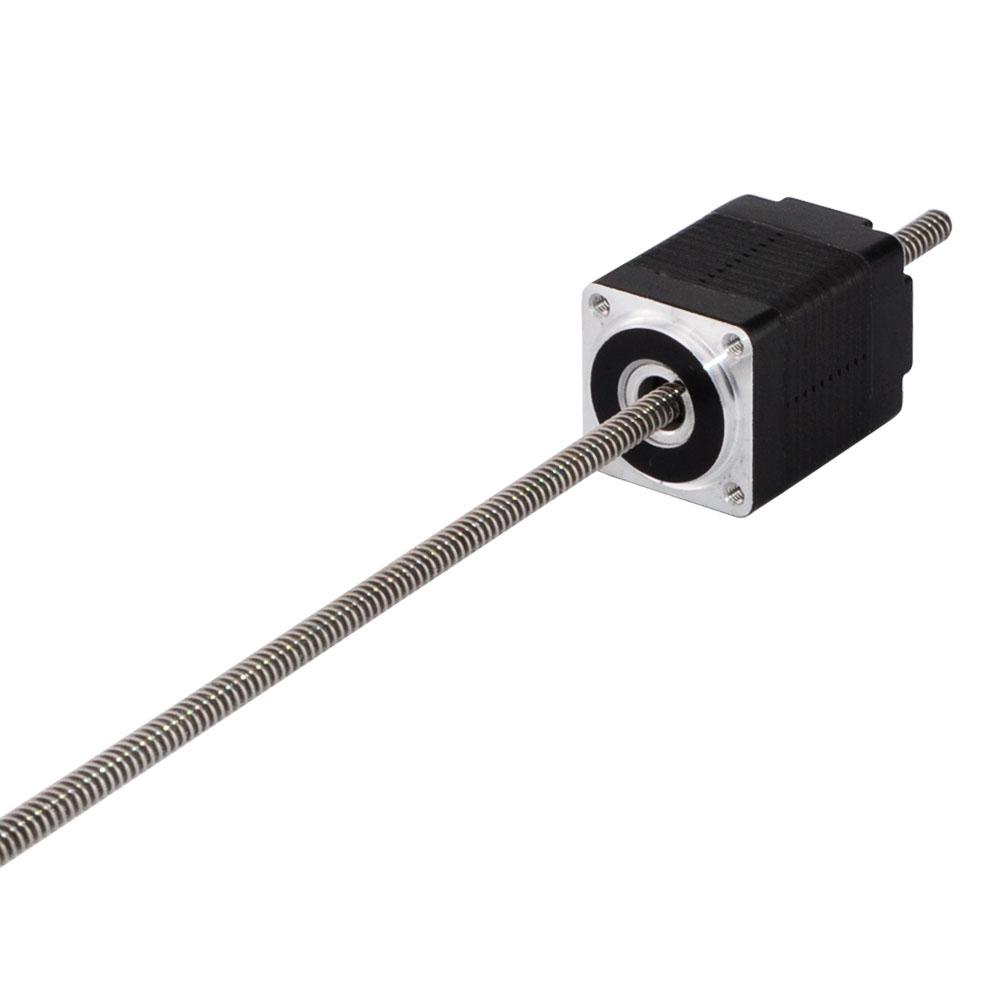

NEMA8 20HSL Linear Stepper Motor

Enjoy smooth, precise motion with this NEMA8 20HSL Linear Stepper Motor. This motor is designed to move a 3mm lead screw at up to 1.2 meters/minute, making it perfect for 3D printers and other industrial machinery. Its low self-inductance and high torque output make for superior performance.

Step Angle1.8°

Temperature Rise80℃ Max

Ambient Temperature-20℃ Max~+50℃

Description

Enquiry

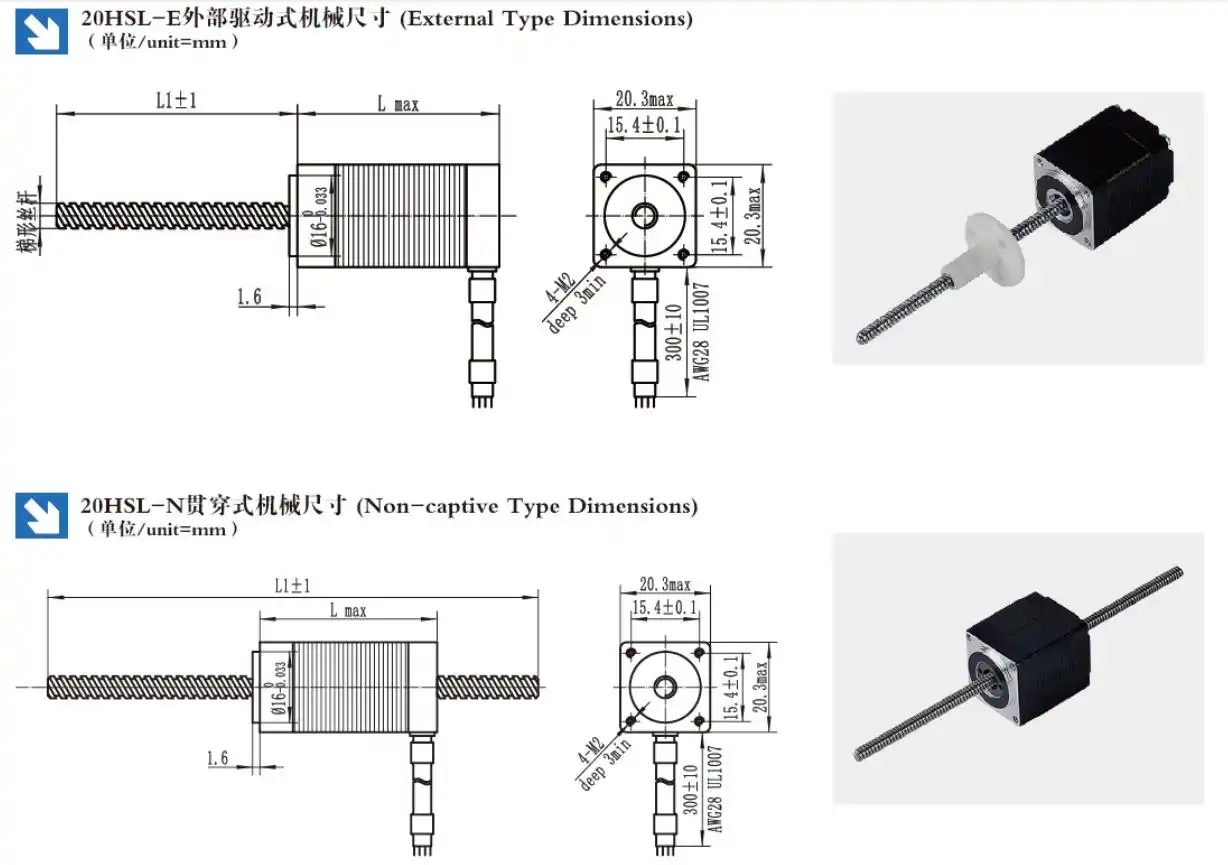

Diameter	Lead Distance(mm)	Start	Step Length(mm)	Aplicable Motor
M5	1.6	2	0.008	20HSL-E
Tr3.5	0.61	1	0.00305	20HSL-N
Tr5	2	2	0.01	20HSL-E
Tr6.5	3	2	0.015	20HSL-E
