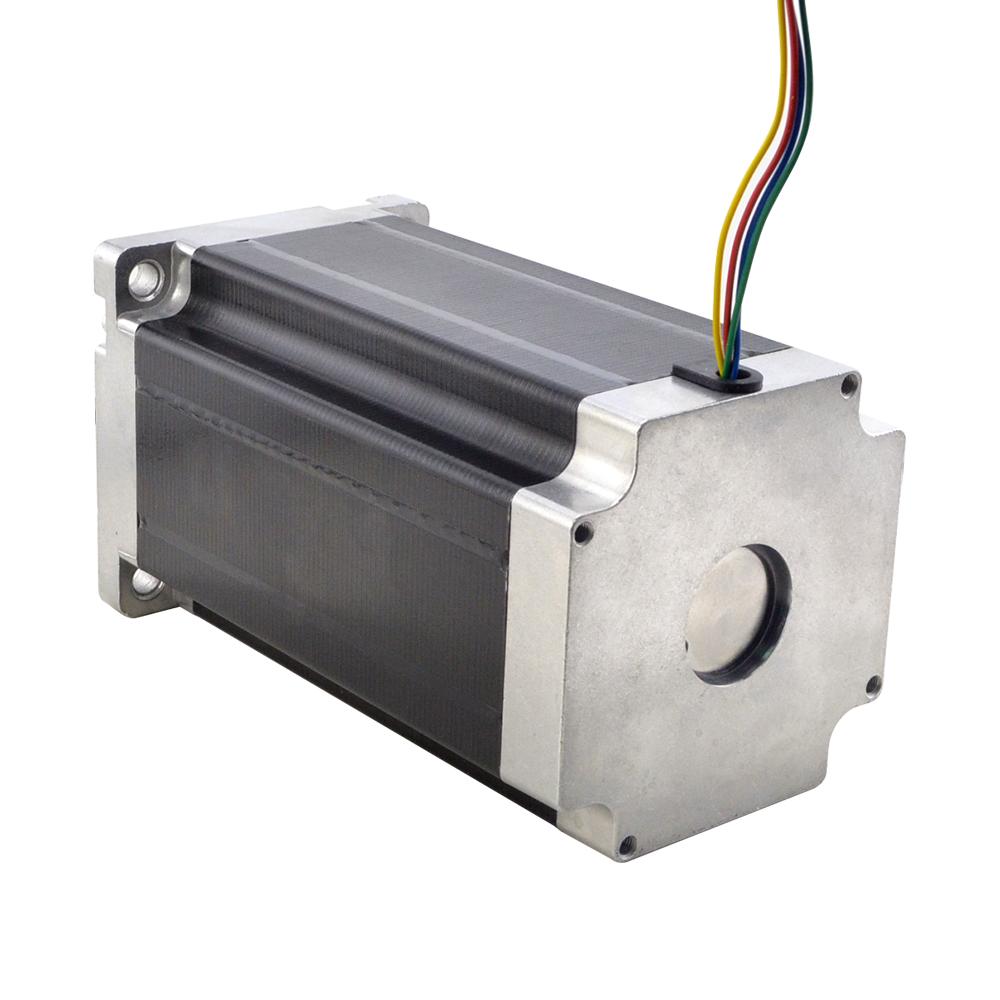

NEMA42 1.8° 2-Phase Hybrid Stepper Motor

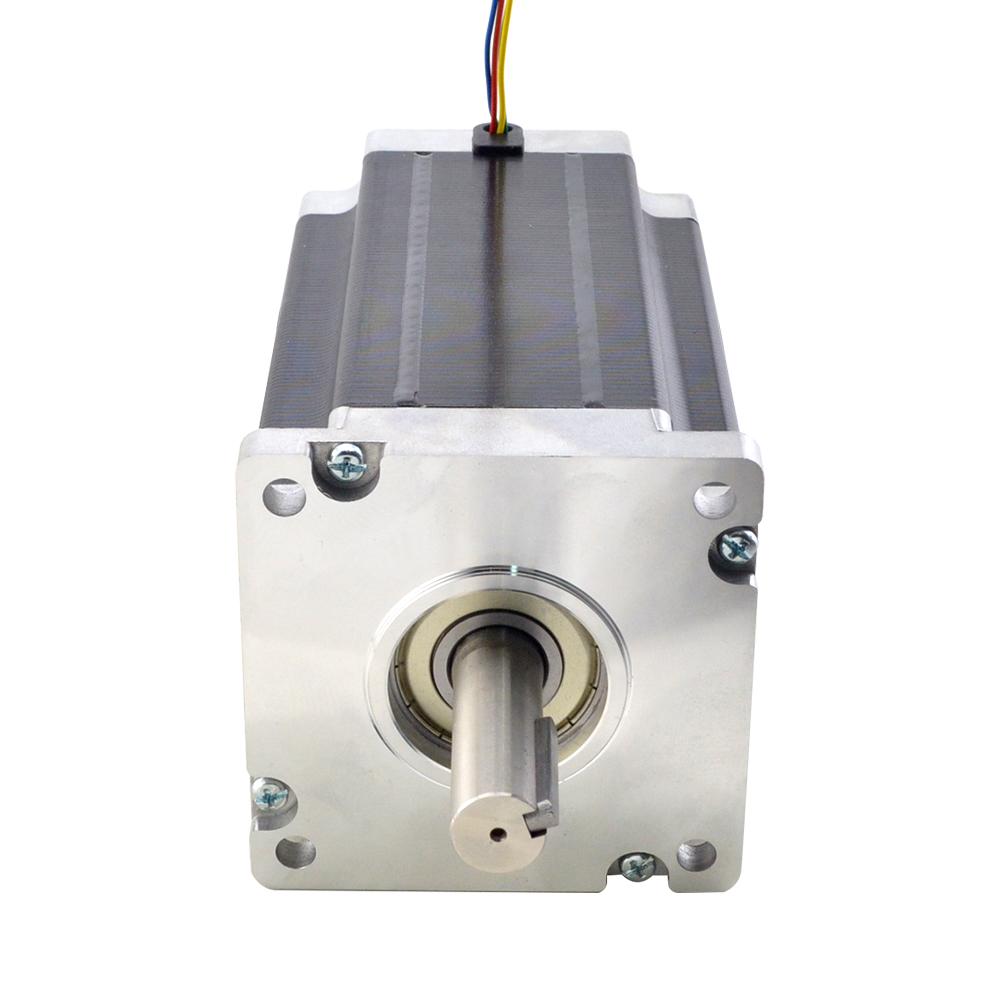

NEMA42 1.8° 2-Phase Hybrid Stepper Motor

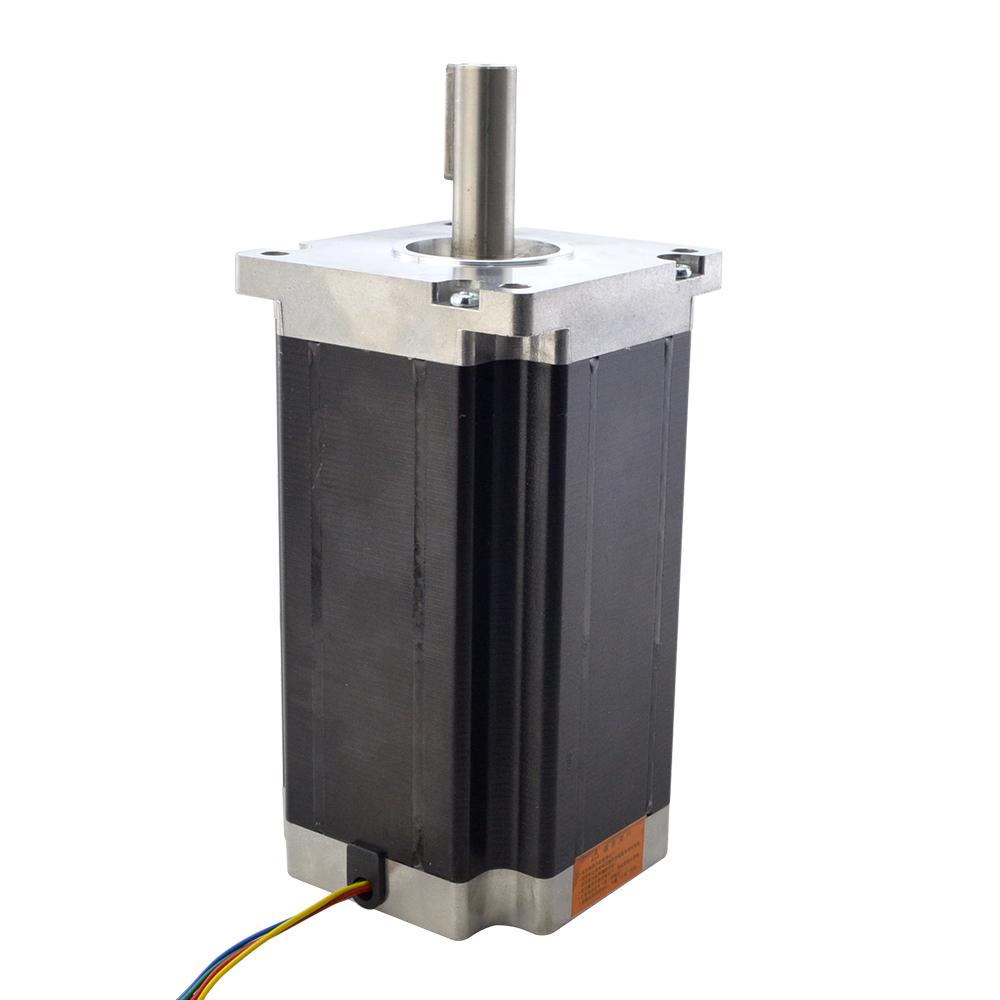

NEMA42 1.8° 2-Phase Hybrid Stepper Motor
NEMA42 1.8° 2-Phase Hybrid Stepper Motor
right
left
  • NEMA42 1.8° 2-Phase Hybrid Stepper Motor

  • Step Angle:1.8°
    Temperature Rise:80℃ Max
    Ambient Temperature:-20℃Max~+50℃
    Insulation Resistacne:100M ΩMin.,500VDC
    Dielectric Strength:500VAC for 1 minute
    Shaft Radial Play:0.02Max(450g-load)
    Shaft Axial Play:0.08Max(450g-load)
    Max.Radial Force:220N(20mm from th flange)
    Max.Axial Force:60N
  • 1 piece

  • Online consultation

Parameters

Model No      Step Angle(°) Rated Current (A) Phase Resistance Phase Inductance   (mH) Holding Torque (N.M) Rotor Inertia (Kg.cm²) Motor Length  (mm) Leads  No. Motor Weight
(Kg)
(Ω)
110HS99-5504 1.8 5.5 0.72 10.9 11 108 99 4 5
110HS115-6004 1.8 6 0.44 7.17 12 132 115 4 6.2
110HS150-6504 1.8 6.5 0.72 12.8 20 210 150 4 8.4
110HS168-6004 1.8 6 0.9 16 24 240 168 4 9.8
110HS201-8004 1.8 8 0.71 15.38 33 330 201 4 11.7

Introduction

A Nema 42 stepper motor is a stepper motor with a 4.2 x 4.2 inch (110 x 110mm) faceplate. Nema 42 high torque stepper motors deliver great value with no quality sacrifice. These motors are engineered to provide the highest possible torque but minimize vibration and audible noise. A wide range of motor windings and stack lengths are readily available, or the motors can be customized to meet your machine requirements. We have 8-wire motors that can be connected in all possible configurations: series, unipolar or parallel to maximize flexibility for your application. We can also customize the windings to perfectly match your voltage, current and maximum torque at operating speed.

NEMA stepper motor sizes depend on the frame size of the stepper motor. NEMA means the standards set by “National Electrical Manufacturers Association”, which is comprised of 560 major electrical manufacturers in the United States, primarily consisting of manufacturers of equipment and devices for power generation, transmission, distribution, and power applications. The purpose of standard setting is to eliminate misunderstandings between electrical product manufacturers and users and to specify the safety of these product applications.

This is the biggest cnc stepper motor we have, it with size 110x110x201mm. It has 4 wires, each phase draws 5.5-8A, allowing for a huge torque up to 33Nm (4672.8oz.in).

Electrical Specification:

  • Manufacturer Part Number: 110HS
  • Step Angle: 1.8 deg
  • Holding Torque: 11-33Nm(4248oz.in)
  • Rated Current/phase: 5.5-8A
  • Phase Resistance: 0.44-0.9Ω
  • Inductance: 7.17-15.38mH ± 20%(1KHz)

Physical Specification:

  • Frame Size: 110 x 110mm
  • Body Length: 99-201mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 55.37mm
  • Key Way Length: 35mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 5-11.7kg
NEMA42 1.8° 2-Phase Hybrid Stepper Motor
