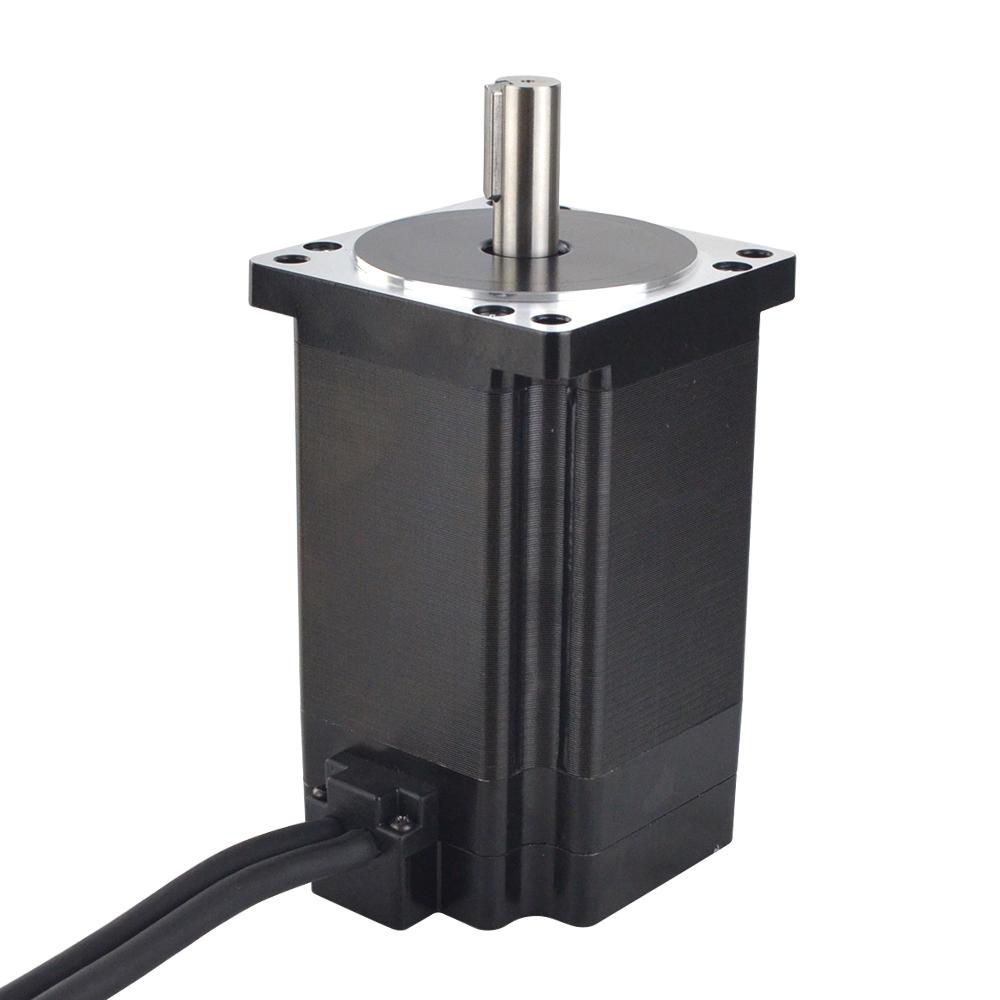

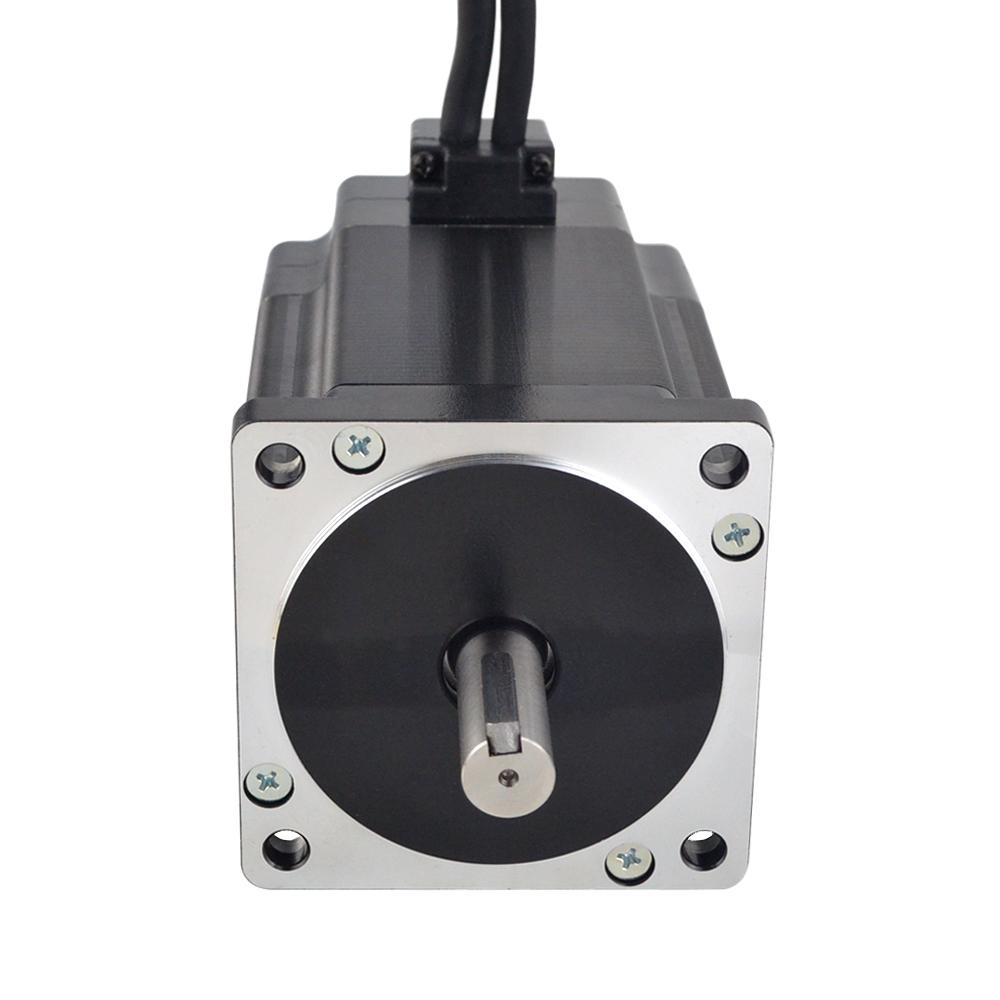

NEMA34 Easy Servo Closed Loop Series Motor

The NEMA34 Easy Servo Closed Loop Series Motor is an efficient and powerful machine, providing up to 200% starting torque with a maximum speed of 2000 RPM. This motor is ideal for applications requiring precise motion control and accuracy.

Model86HSE

Step Angle1.8°

Current (A)6

Resistance (Ω±10%)0.44~0.45

Description

Enquiry

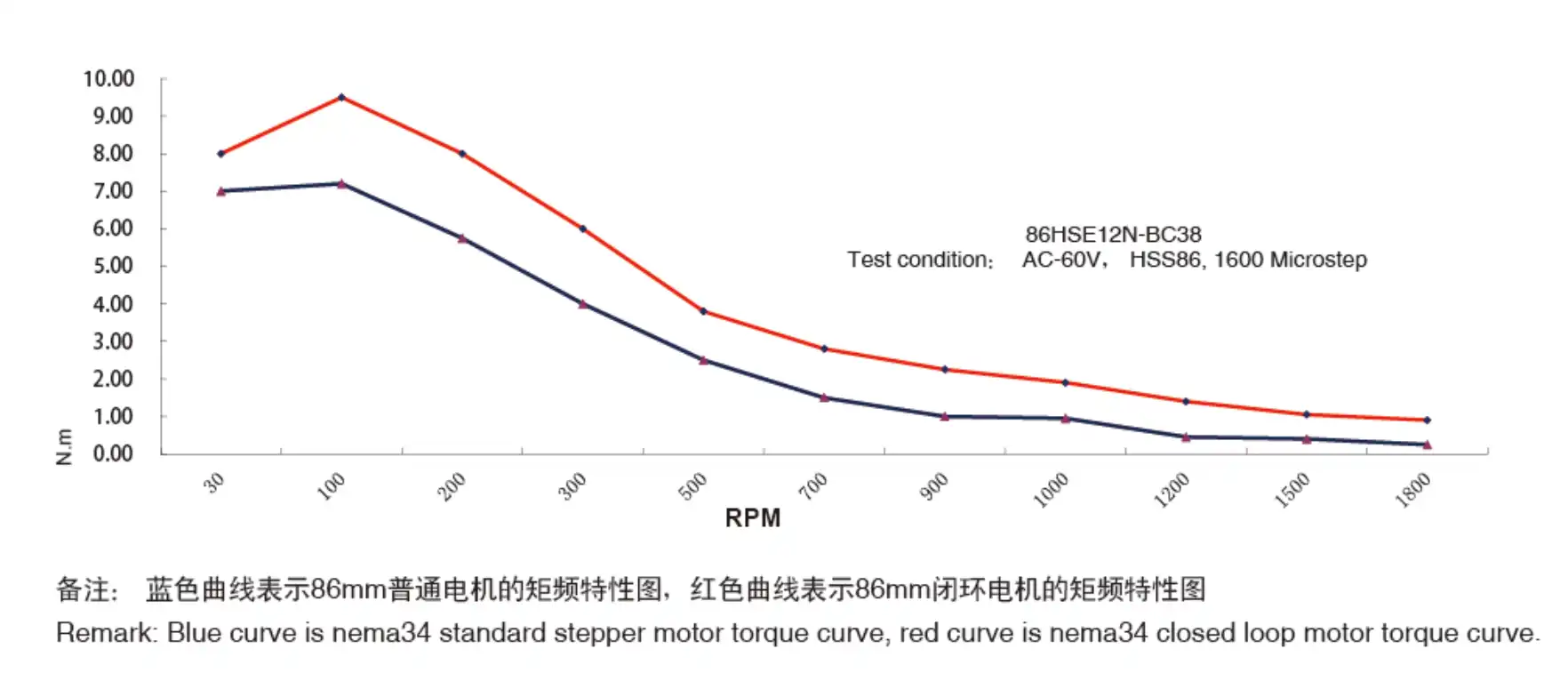

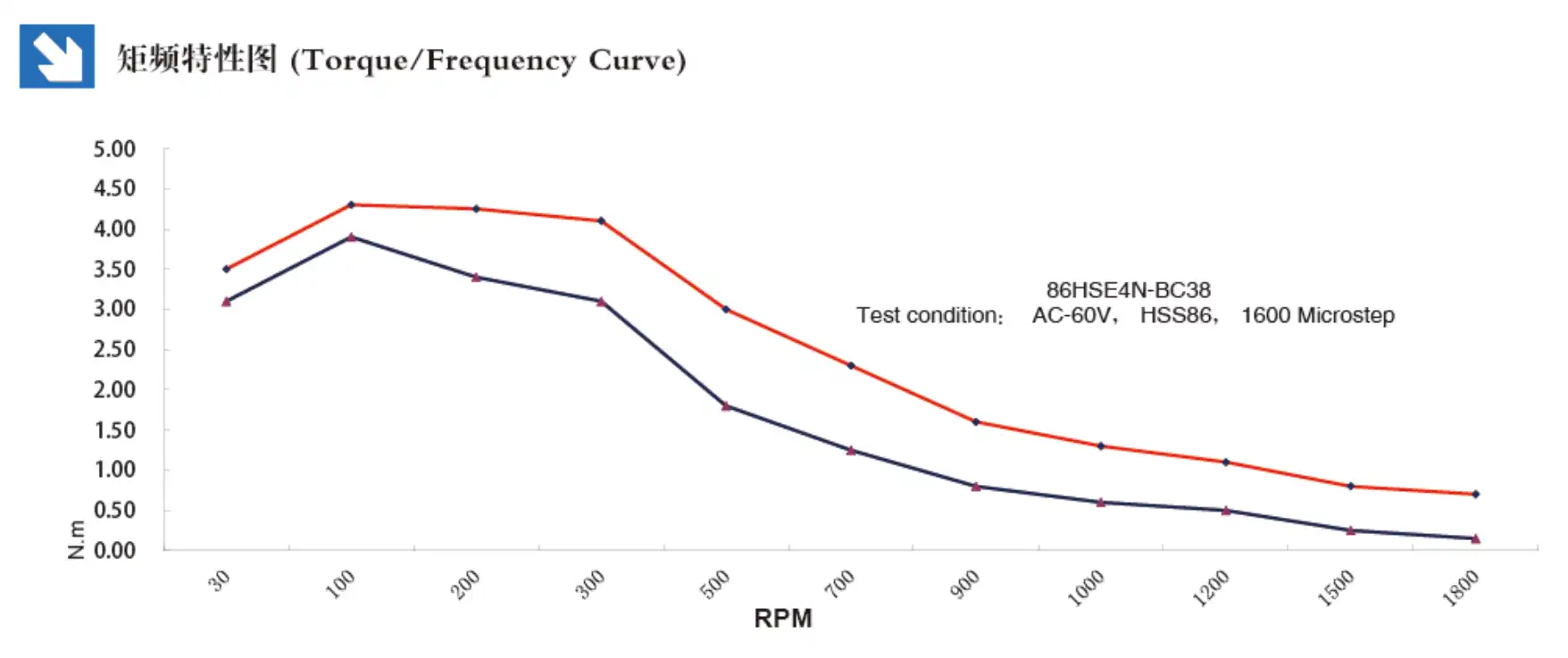

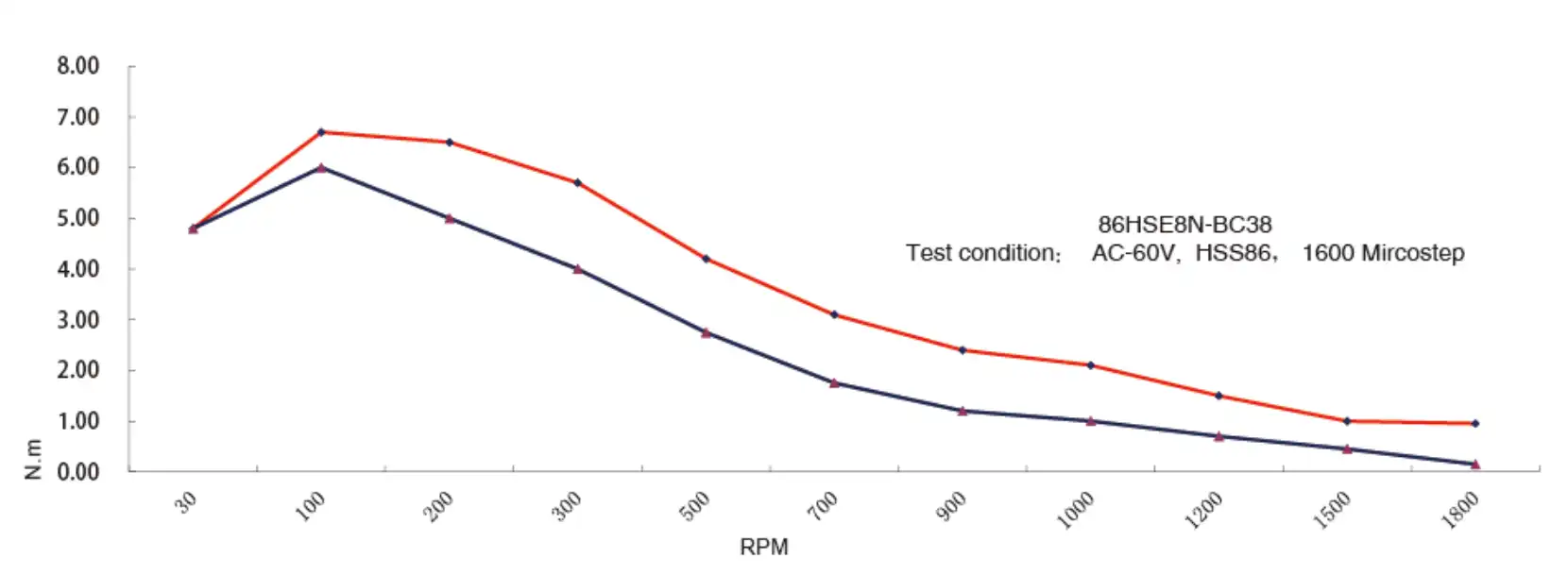

Model No.	Step Angle	Current (A)	Resistance (Ω±10%)	Inductance (mH±20%)	Holding Torque (N.m)	Motor Length (mm)	Encoder Resolution (PPR)	Weight (Kg)
86HSE4N-BC38	1.8°	6	0.45	3.7	4.5	82	1000	2.65
86HSE8N-BC38	1.8°	6	0.44	3.7	8.0	118	1000	4
86HSE12N-BC38	1.8°	6	0.45	5.2	12.0	156	1000	5.65

Overview

Electrical Specification

Manufacturer Part Number: 86HSE
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 4.5~12.0 Nm(637.39~1699.72oz.in)
Rated Current/phase: 6.0 A
Resistance: 0.44~0.45 ohms± 10%
Inductance: 3.7~5.2 mH ± 20%(1KHz)

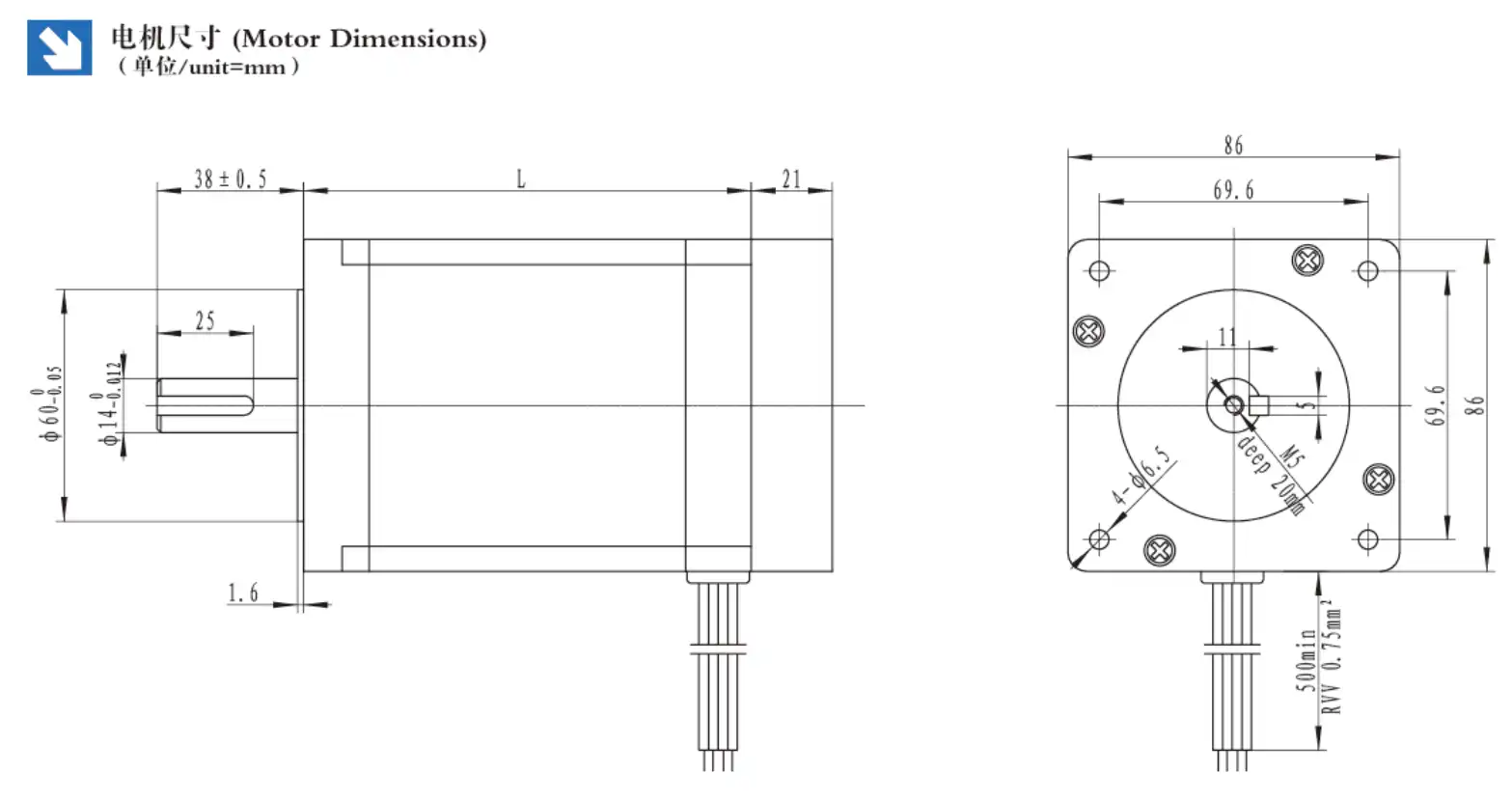

Physical Specification

Frame Size: 86 x 86 mm
Body Length: 134.5 mm
Shaft Diameter: Φ14 mm
Shaft Length: 37 mm
Keyway Shaft Length: 25 mm
Lead Length: 300 mm
Weight: 2.65~5.65 kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ
