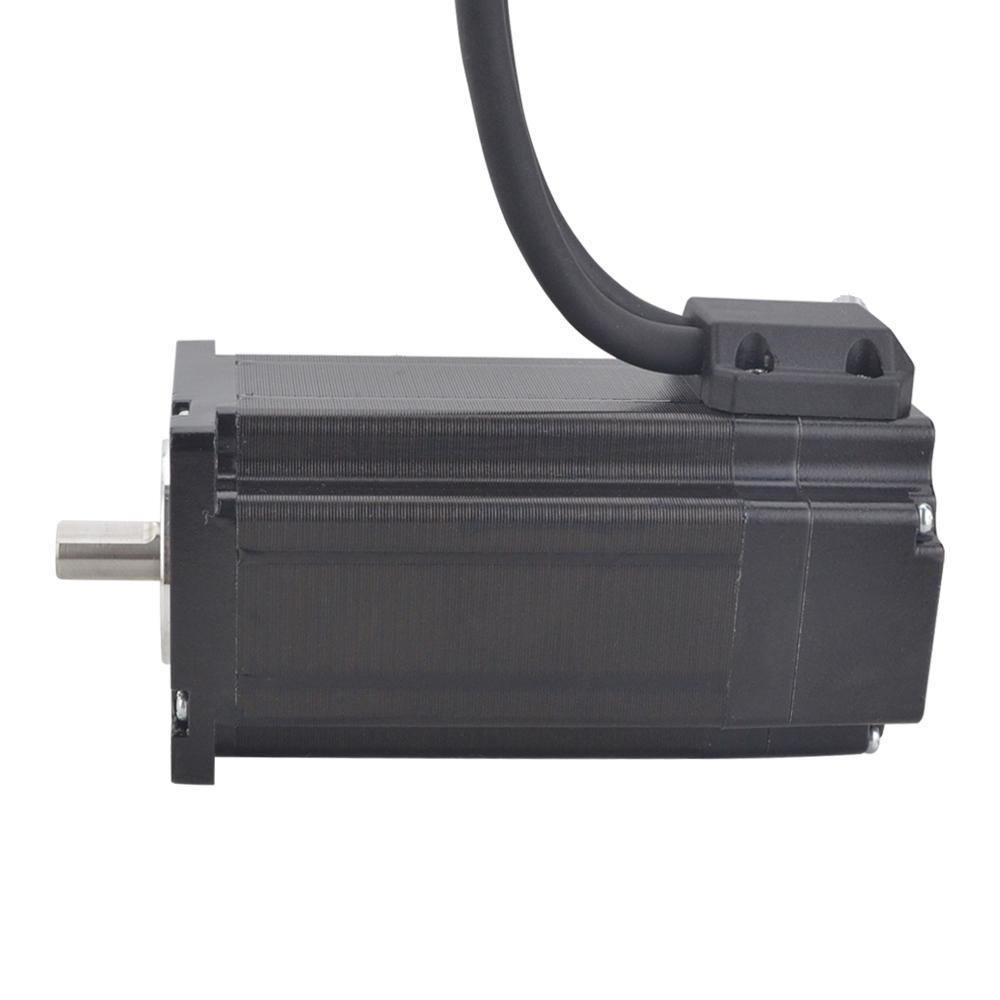

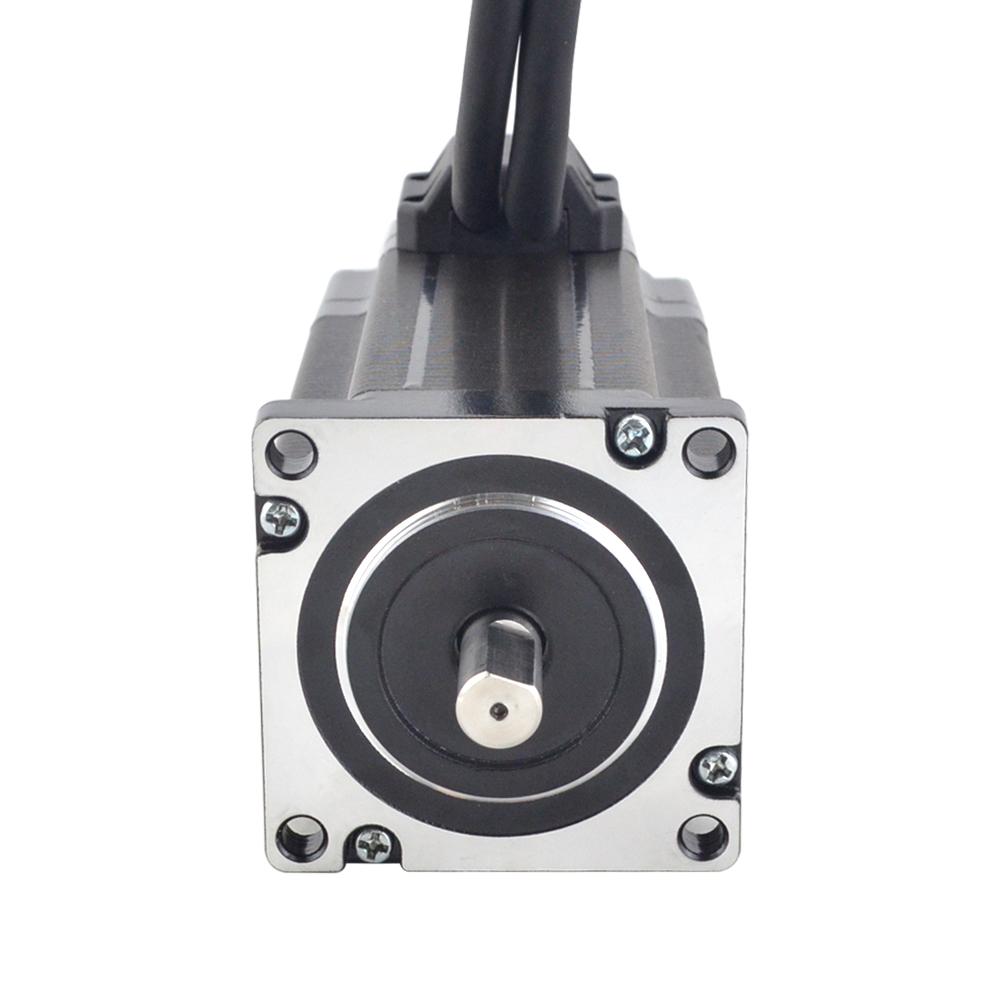

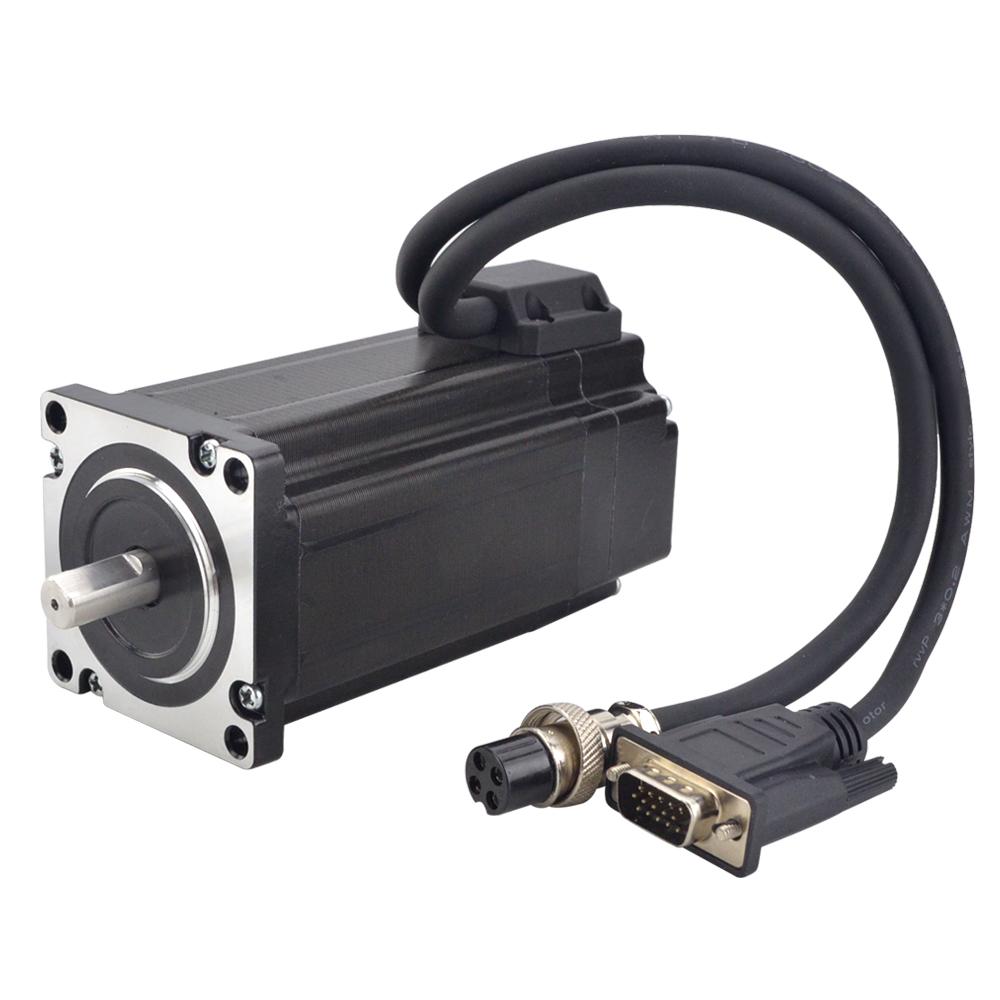

NEMA24 Easy Servo Closed Loop Series Motor

The NEMA24 Easy Servo Closed Loop Series Motor offers reliable and precise motion ideal for applications that require reliable accuracy and torque. Its high torque and long service life make it ideal for powering demanding precision applications.

Model60HSE

Step Angle1.8°

Current (A)5

Resistance (Ω±10%)0.45

Description

Enquiry

Model No.	Step Angle	Current (A)	Resistance (Ω±10%)	Inductance (mH±20%)	Holding Torque (N.m)	Motor Length (mm)	Encoder Resolution (PPR)	Weight (Kg)
60HSE3N-D25	1.8°	5	0.45	1.8	3.0	88	1000	1.15

Overview

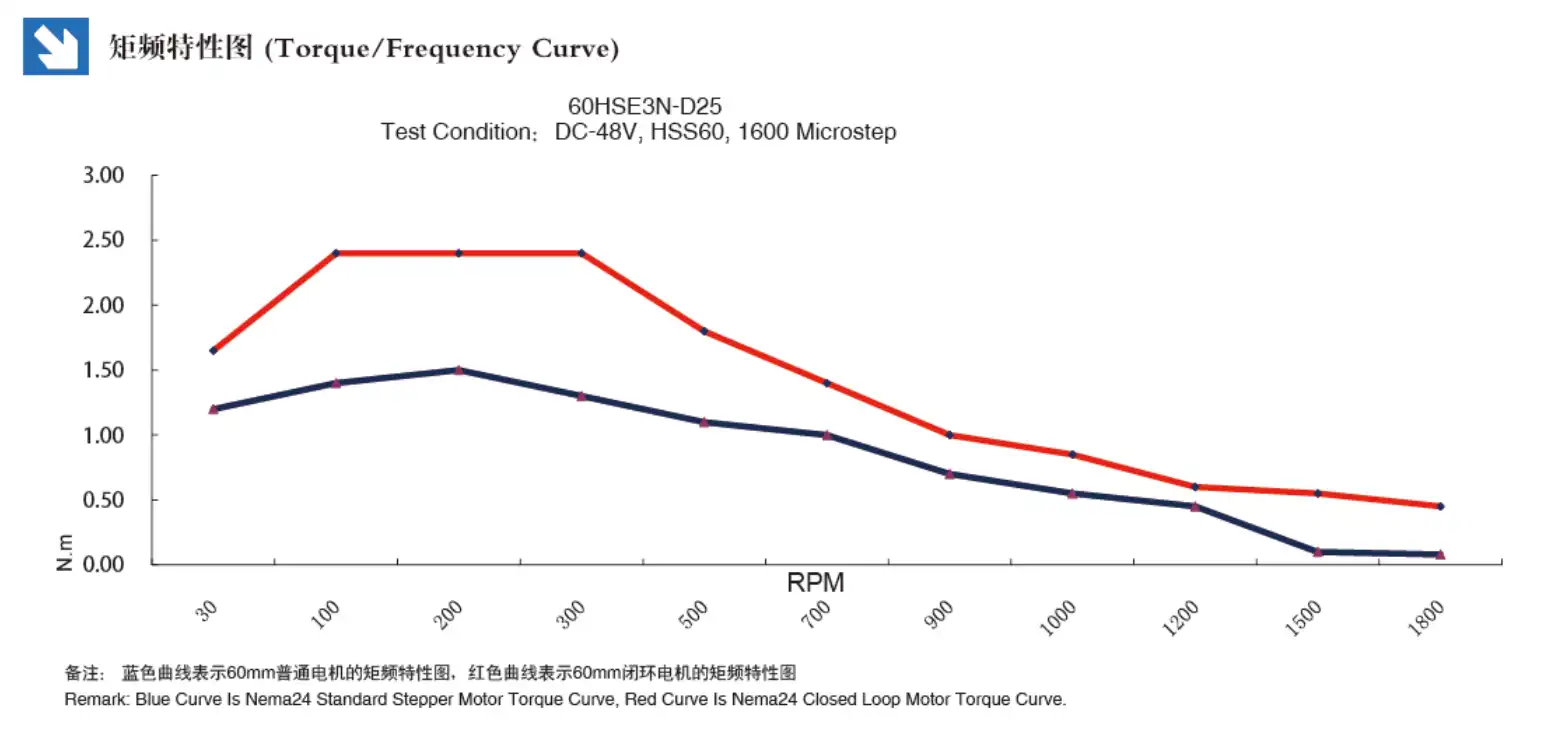

Electrical Specification

Manufacturer Part Number: 60HSE
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 3.0 Nm(424.93oz.in)
Rated Current/phase: 5.0 A
Inductance: 1.8 mH ± 20%(1KHz)

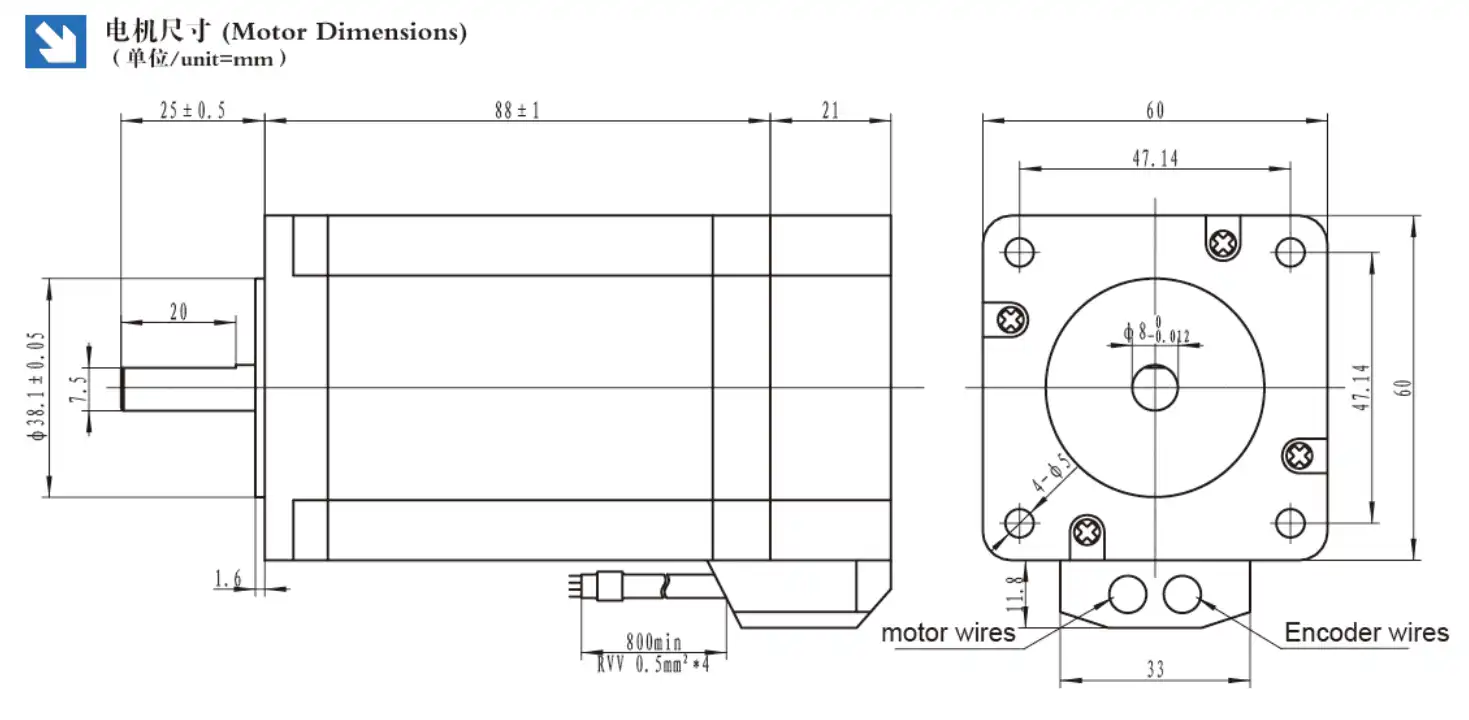

Physical Specification

Frame Size: 60 x 60 mm
Body Length: 125 mm
Shaft Diameter: Φ10 mm
Shaft Length: 21 mm
Keyway Shaft Length: 15 mm
Lead Length: 300 mm
Weight: 1.55 kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ
