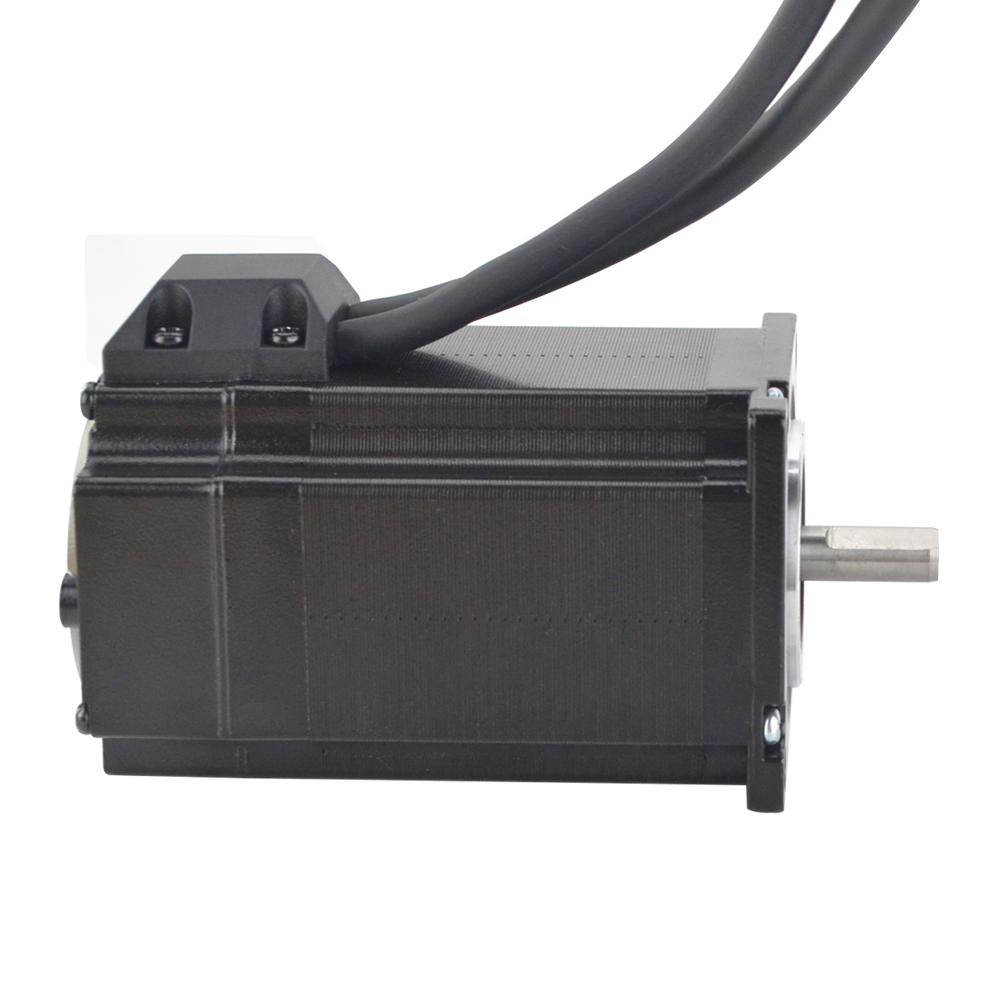

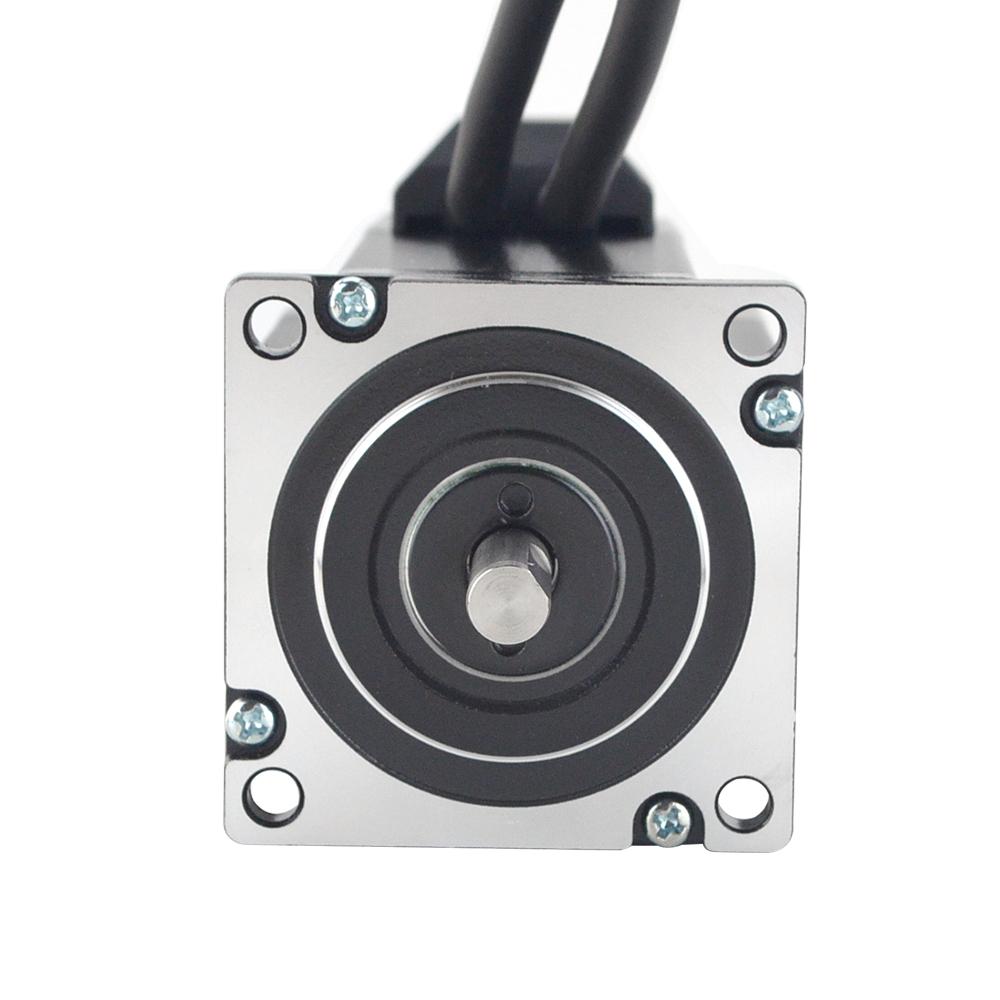

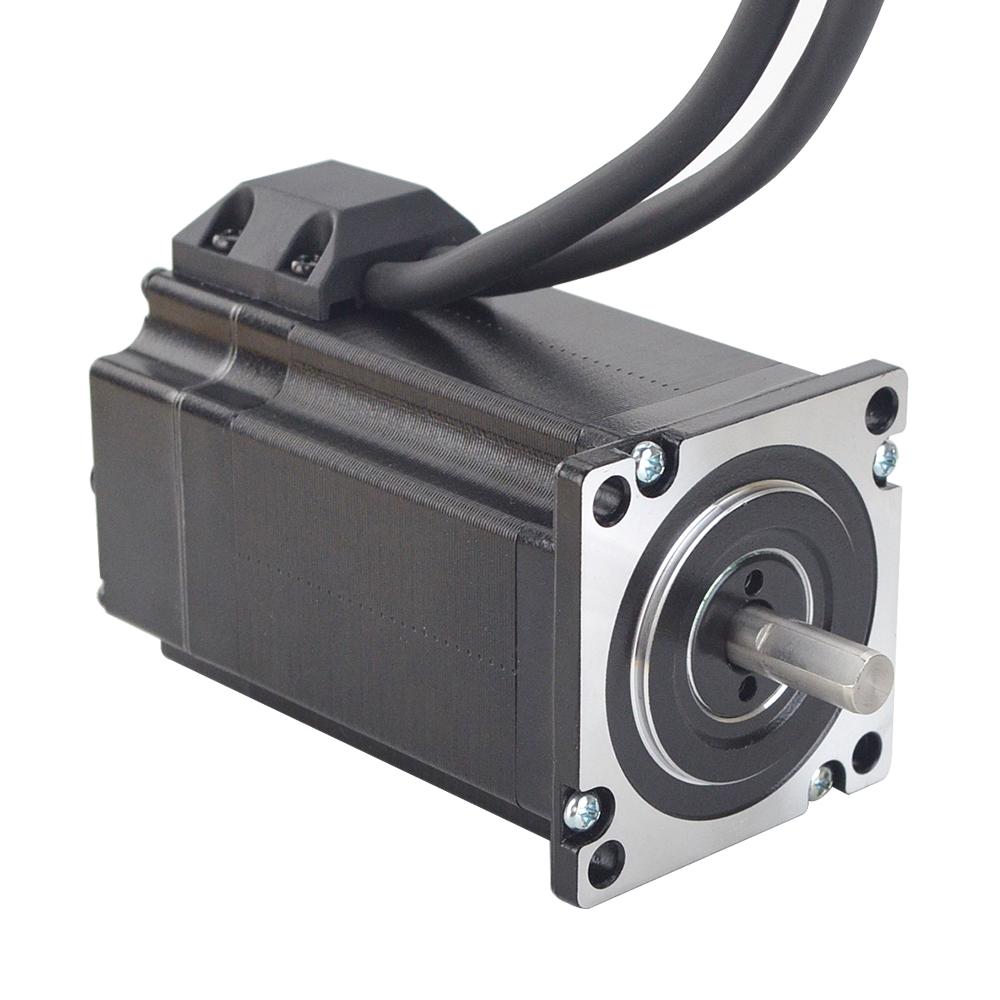

NEMA23 Easy Servo Closed Loop Series Motor

This NEMA23 Easy Servo Closed Loop Series Motor offers great control and efficiency thanks to its closed loop technology. It delivers superior torque up to 175 oz-in, with a low noise rating of 59 dBA and a high speed up to 4000 rpm. Perfect for a range of light industrial applications.

Model57HSE

Step Angle1.8°

Current (A)4.2

Resistance (Ω±10%)0.5

Description

Enquiry

Model No.	Step Angle	Current (A)	Resistance (Ω±10%)	Inductance (mH±20%)	Holding Torque (N.m)	Motor Length (mm)	Encoder Resolution (PPR)	Weight (Kg)
57HSE2N-D25	1.8°	4.2	0.5	1.8	2.0	76	1000	1.15

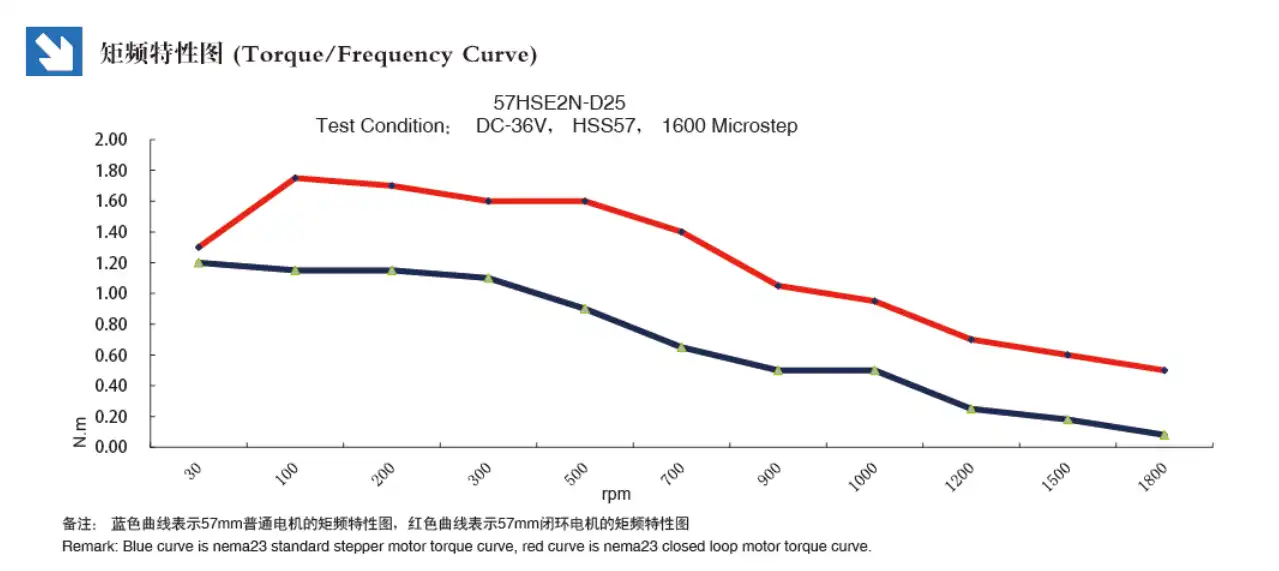

Overview

Electrical Specification

Manufacturer Part Number: 57HSE
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 2 Nm(283.28 oz.in)
Rated Current/phase: 4.2 A
Resistance (Ω±10%): 0.5
Inductance: 1.8 mH ± 20%(1KHz)

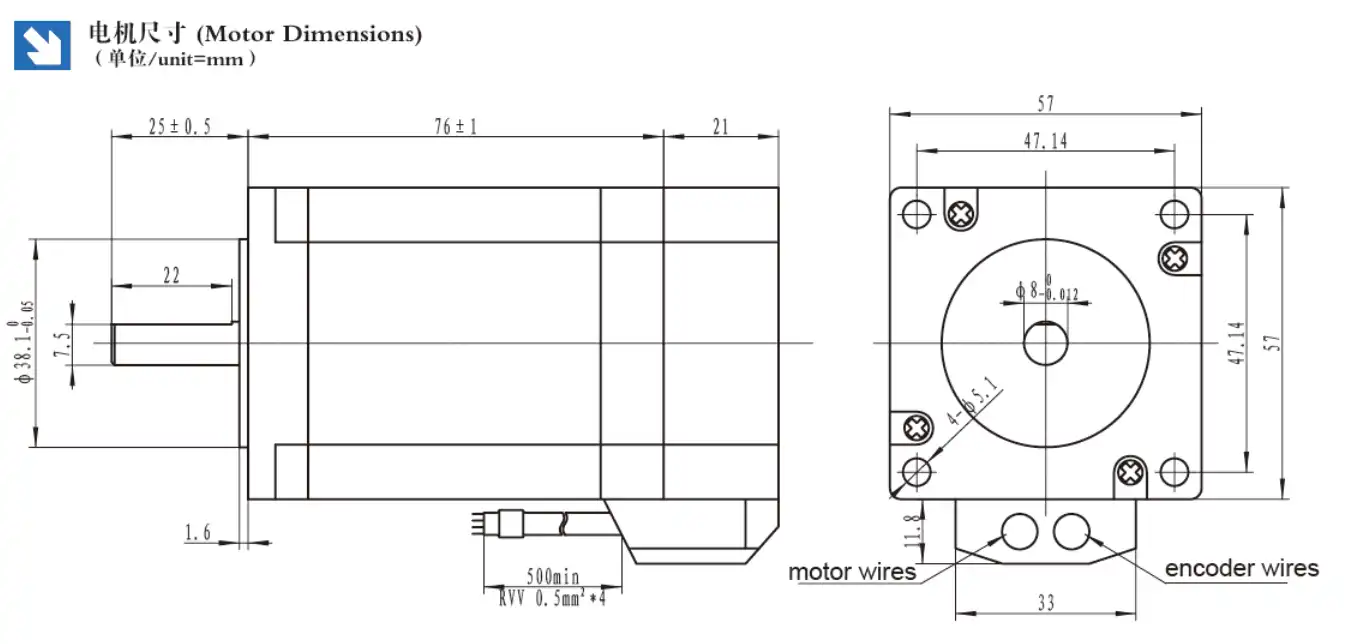

Physical Specification

Frame Size: 57 x 57 mm
Body Length: 98.3 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 270 mm
Weight: 1.15 kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Output Signal Channels: 2 channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V
