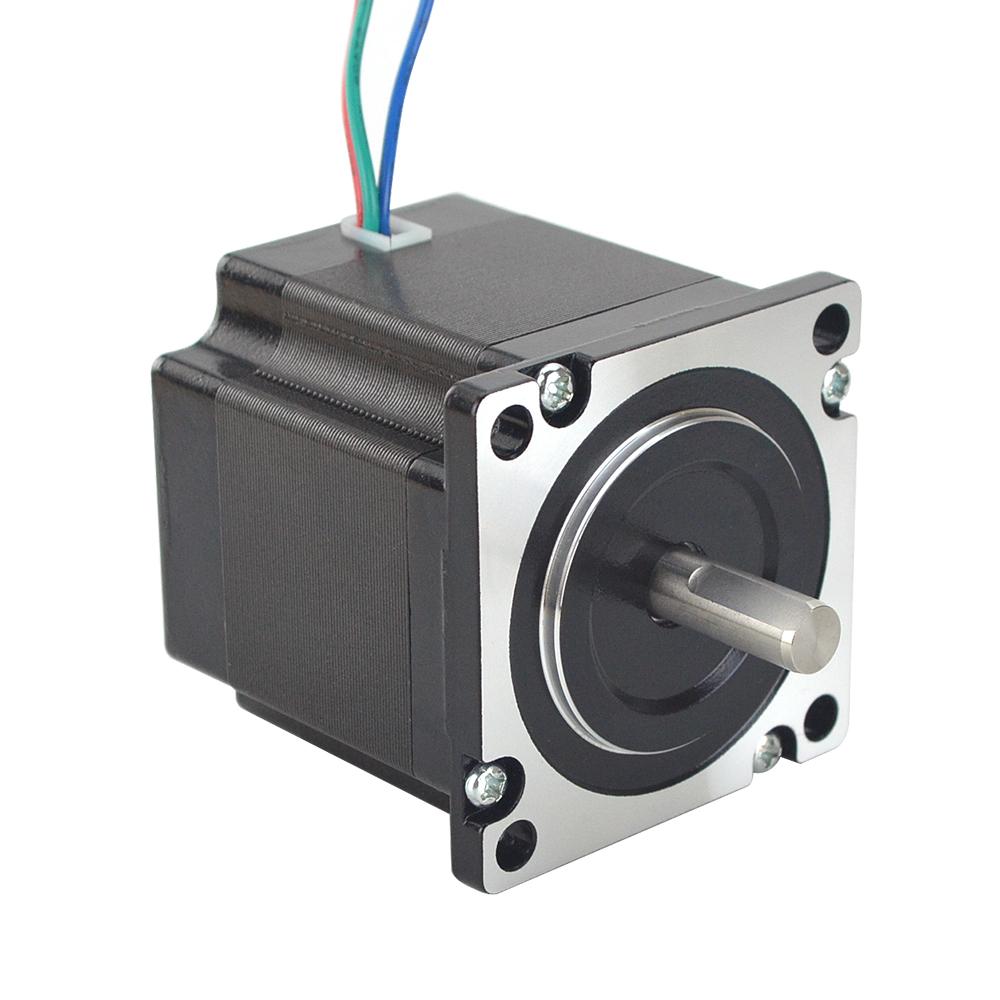

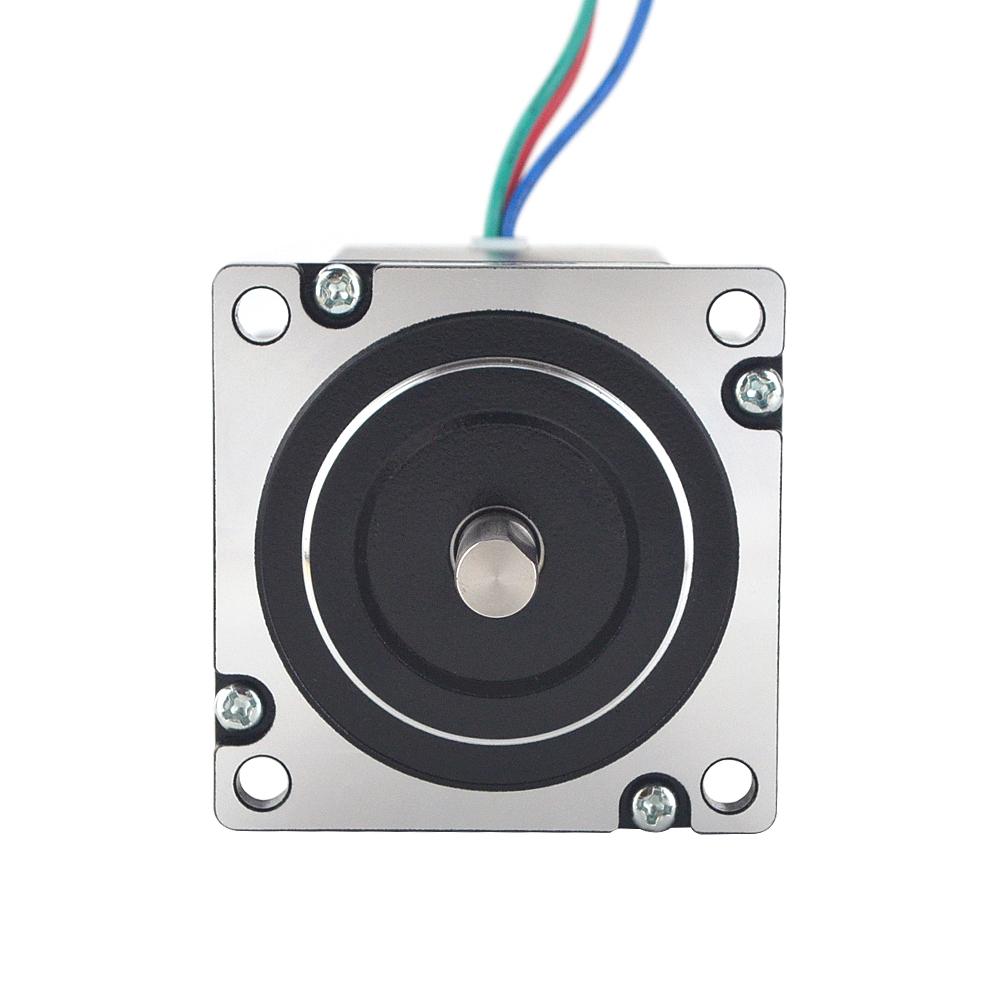

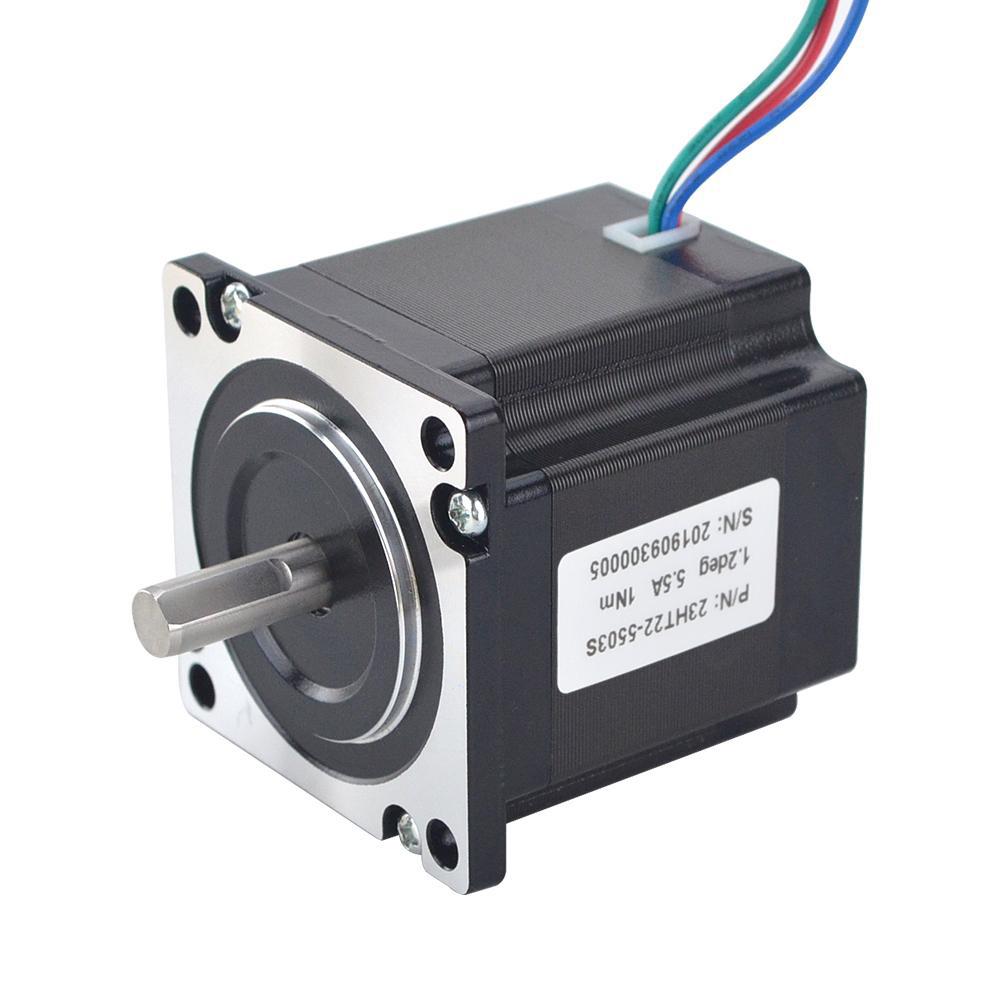

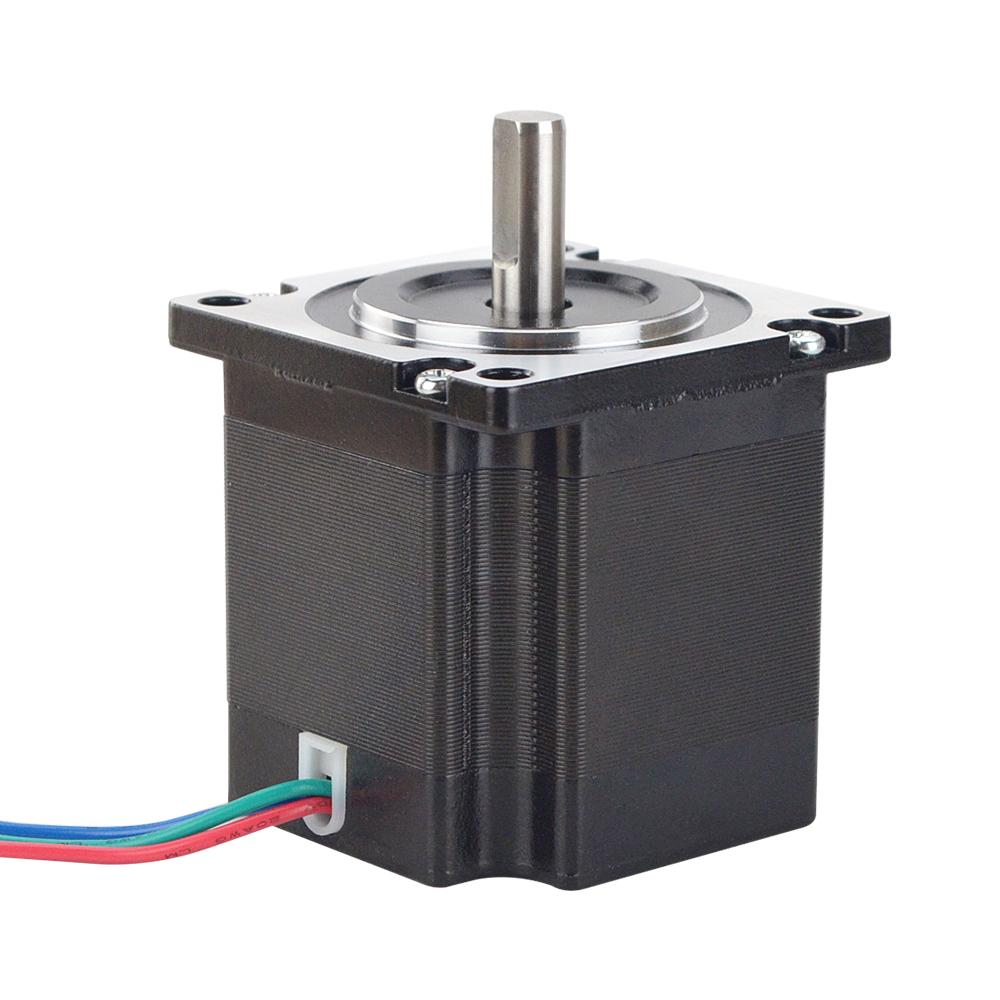

NEMA23 1.2° 3-Phase Hybrid Stepper Motor

Home > NEMA23 1.2° 3-Phase Hybrid Stepper Motor

NEMA23 1.2° 3-Phase Hybrid Stepper Motor

Take your engineering projects to the next level with this NEMA23 1.2° 3-Phase Hybrid Stepper Motor. It features a high torque to inertia ratio, low noise operation, and excellent low speed performance – all optimized for use in CNC machines and industrial automation projects.

Step Angle1.2°

Temperature Rise80℃ Max

Ambient Temperature-20℃Max~+50℃

Model No Step Angle Rated Voltage Rated Current Phase Resistance Phase Inductance Holding Torque Detent Torque Rotor Inertia Motor Length Leads Motor Weight
(°) (V) (A) (Ω) (mH) (Kg.cm) (g.cm Max) (g.cm²) (mm) No. (Kg)
86HC67-1756 1.2 7.4 1.75 4.25 12.3 22.6 1000 1100 67 6 1.9
86HC97-2006 1.2 10.8 2 5.4 23 43 2000 1400 97 6 3.1
86HC97-5806 1.2 5.2 5.8 0.9 3.2 46 2000 1400 97 6 3.1
86HC97-5206 1.2 6.2 5.2 1.2 5.2 45 2000 1400 97 6 3.1
86HC127-2256 1.2 20.3 2.25 9 41 65 3000 2700 127 6 4.3
86HC127-5206 1.2 14.3 5.2 2.75 13.7 67 3000 2700 127 6 4.3
86HC150-5006 1.2 7.5 5 1.5 3 70 3600 4700 150 6 4.6

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

STEPPERONLINE  provides different kinds of hybrid 3 phase stepper motor. Compared to 2-phase motors, 3 phase stepper motor can provide more torque and it has a better performance in over-loading. That is to say, when the load gains, no like other steppers, 3 phase stepper motor will not stall easily. And it has a good dynamic property at the same time.As 3-phase motor has a smaller step angle than 2-phase motors, it moves more smoothly. Under the condition of having the same rotor teeth, 3-phase motors has less vibration and higher precision than 2-phase motors.

This is the biggest cnc stepper motor we have, it with size 130*130mm. It has 4 wires, each phase draws 6A, allowing for a huge torque up to 37Nm (5239oz.in).

Electrical Specification:

  • Manufacturer Part Number: 57HC
  • Number of phase: 3
  • Step Angle: 1.2 deg
  • Holding Torque: 0.45-1.5Nm(63.72-212.4 oz.in)
  • Rated Current/phase: 5.2-5.8 A
  • Phase Resistance: 0.7-1.3
  • Inductance: 1.1-1.3mH ± 20%(1KHz)

Physical Specification:

  • Frame Size: 57 x 57 mm
  • Body Length: 80.5 mm
  • Shaft Diameter: Φ8 mm
  • Shaft Length: 21 mm
  • D-Cut Shaft Length: 15 mm
  • Lead Length: 500 mm
  • Weight: 0.48-1.1 kg
NEMA23 1.2° 3-Phase Hybrid Stepper Motor

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

1.5kw 130mm 3000rpm B1 Servo Motor And Servo Driver
1.5kw 130mm 3000rpm B1 Servo Motor And Servo Driver

$400 - $450

220V 3kw 1000rpm 180mm B1 Servo Motor And Servo Driver
220V 3kw 1000rpm 180mm B1 Servo Motor And Servo Driver

$636 - $716

380V 7.5KW 125mm ATC Water Cooling BT40 Spindle Motor
380V 7.5KW 125mm ATC Water Cooling BT40 Spindle Motor

$2,143 - $2,311
