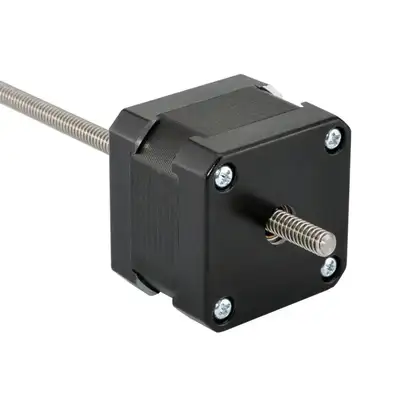

Nema17 42HSL Linear Stepper Motor

Name: Nema17 42HSL Linear Stepper Motor
Availability: InStock

The Nema17 42HSL Linear Stepper Motor offers reliable, accurate, and highly precise linear motion. The motor features a 42mm body length and 1.8°/step, ensuring smooth movement with a low noise output. With its sturdy, corrosion-resistant construction, you can trust the Nema17 42HSL for long-lasting performance.

Get a Quote Leave a Message

Step Angle()1.8°

Temperature Rise()80

Ambient Temperature()-20℃ Max~+50℃

SPECIFICATIONS

42HSL Linear Stepper Motor（Nema17 Linear Stepper Motor)
Diameter	Lead Distance(mm)	Start	Step Length(mm)	Aplicable Motor
M5	1.6	2	0.008	42HSL-E，42HSL-N
Tr5	2	2	0.01	42HSL-E，42HSL-N
Tr6.5	3	2	0.015	42HSL-E，42HSL-N
Tr8	1	1	0.005	42HSL-E，42HSL-N
Tr8	2	1	0.01	42HSL-E，42HSL-N
Tr8	4	2	0.02	42HSL-E，42HSL-N
Tr8	8	4	0.04	42HSL-E，42HSL-N
Tr10	2	1	0.01	42HSL-E
Tr10	4	2	0.02	42HSL-E

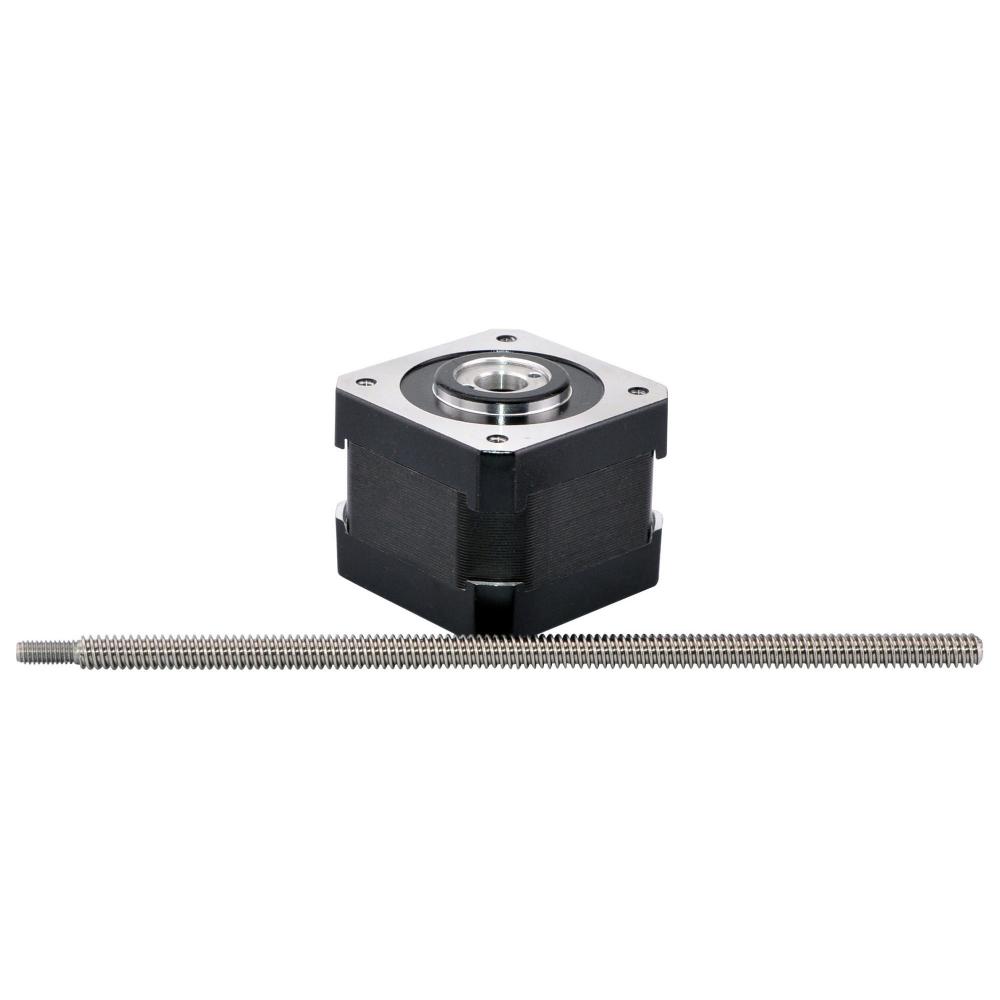

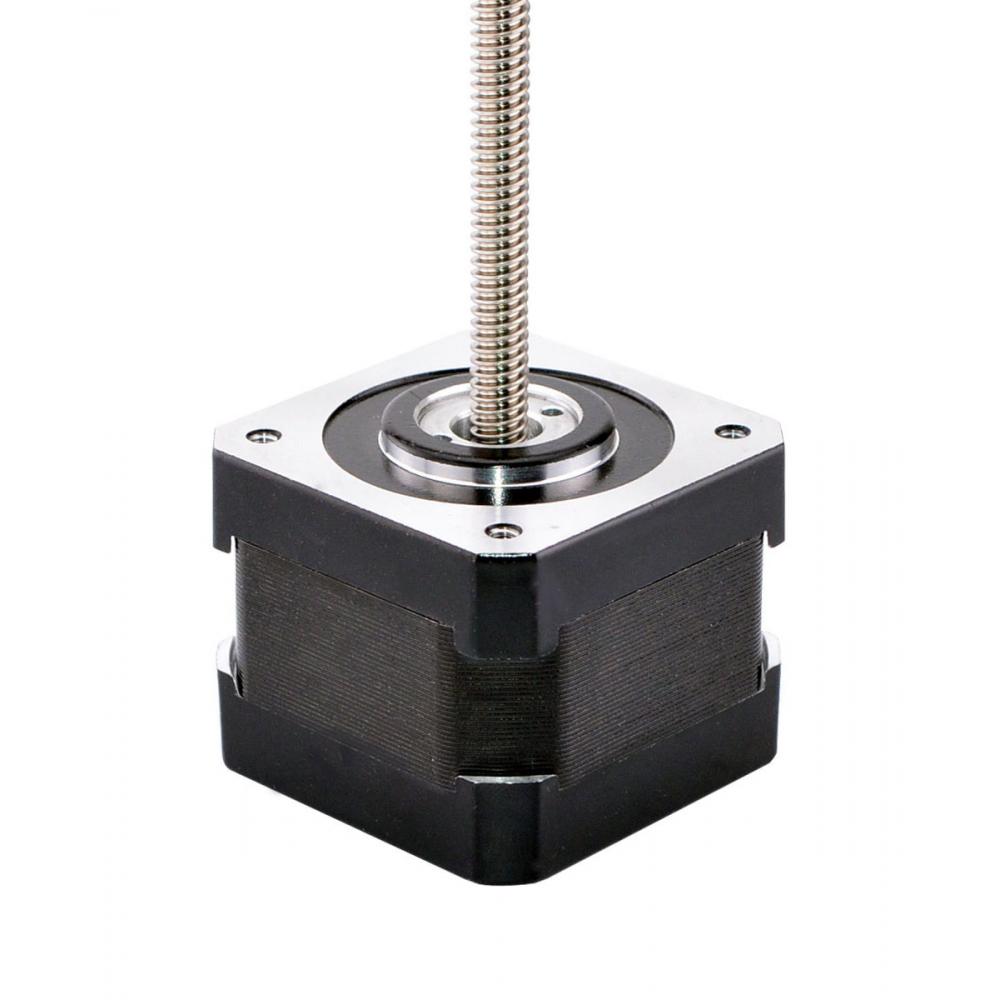

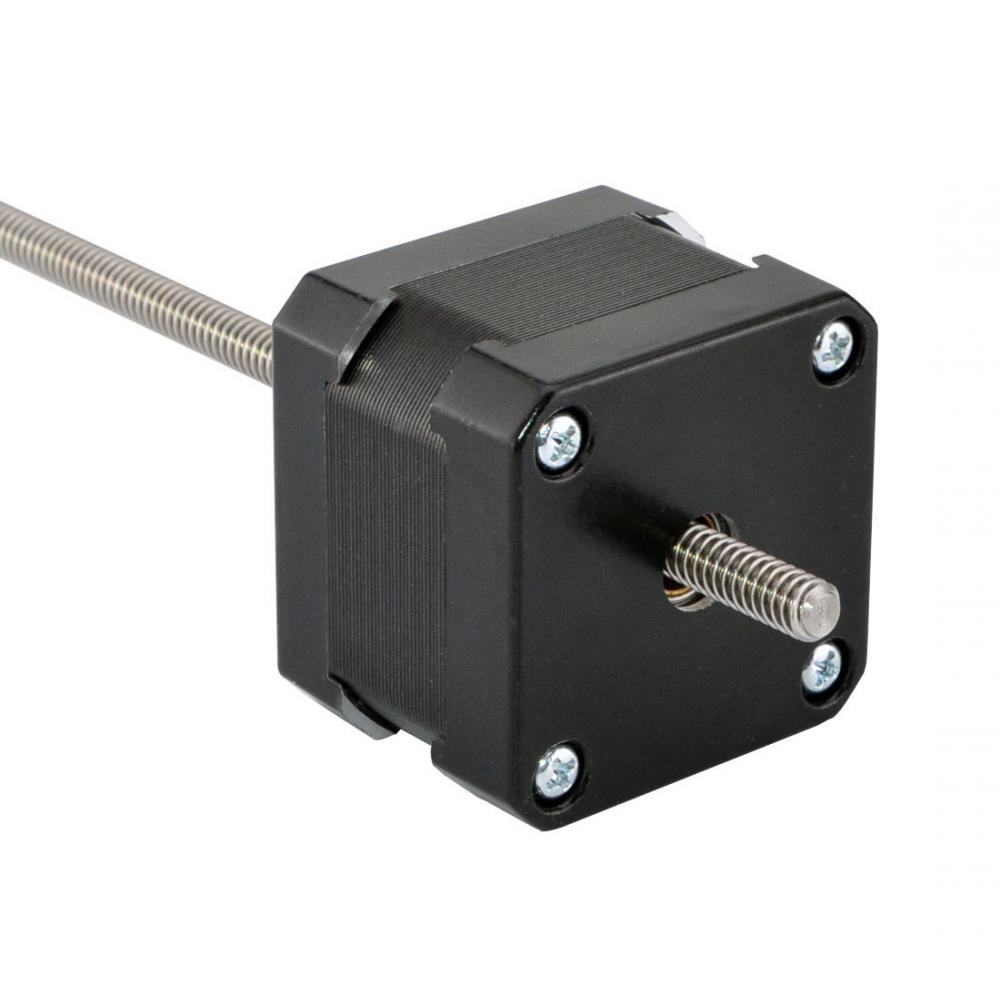

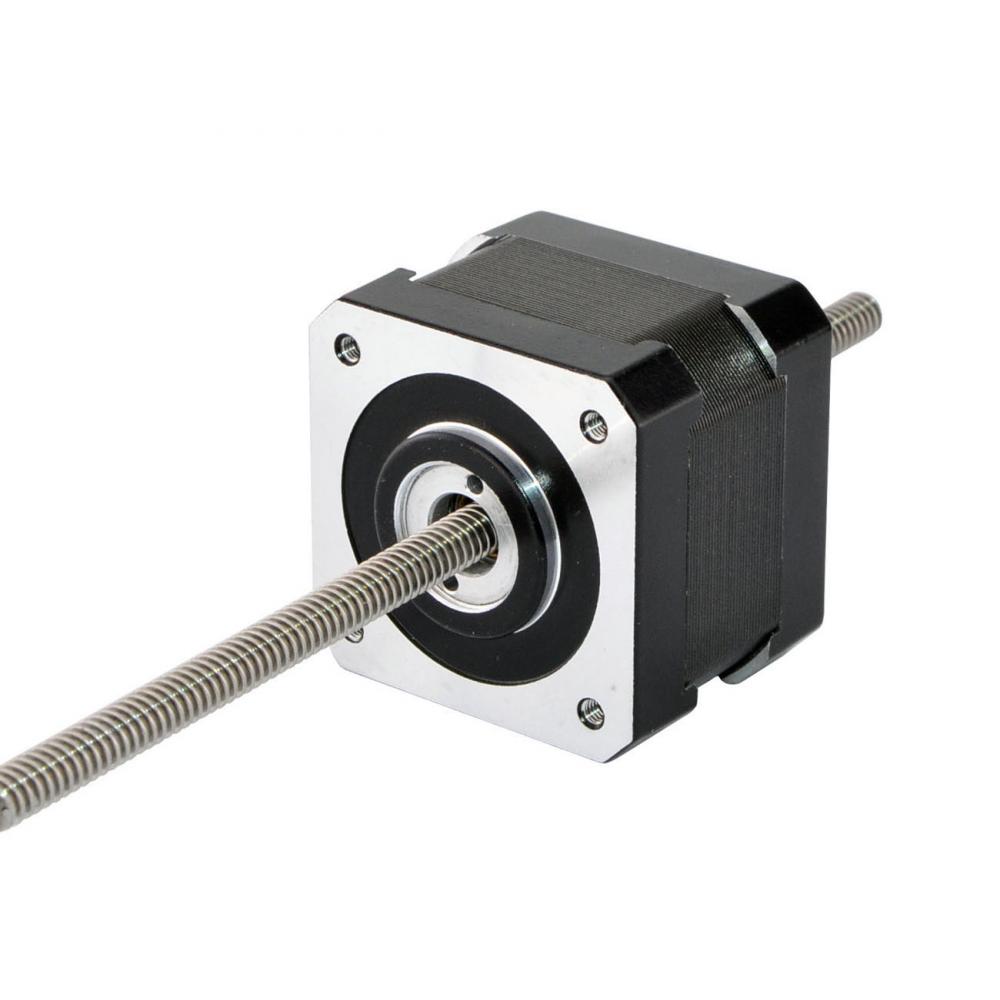

Product Display

Related Products

70MM 15W Micro AC Gear Motor

Model Type
Voltage(V)	110/220/380
Output(W)	15
Size(mm)	70
Speed(RPM)	1400/1680

$112-$127

Learn More

16Inch 42-55km/h Hub Motor Kit with Disc Brake

Model Type
Voltage(V)	48/60
Output(W)	500
Size(mm)	16
Speed(RPM)	42/50/55

$95.00-$193.00

Learn More

Videos

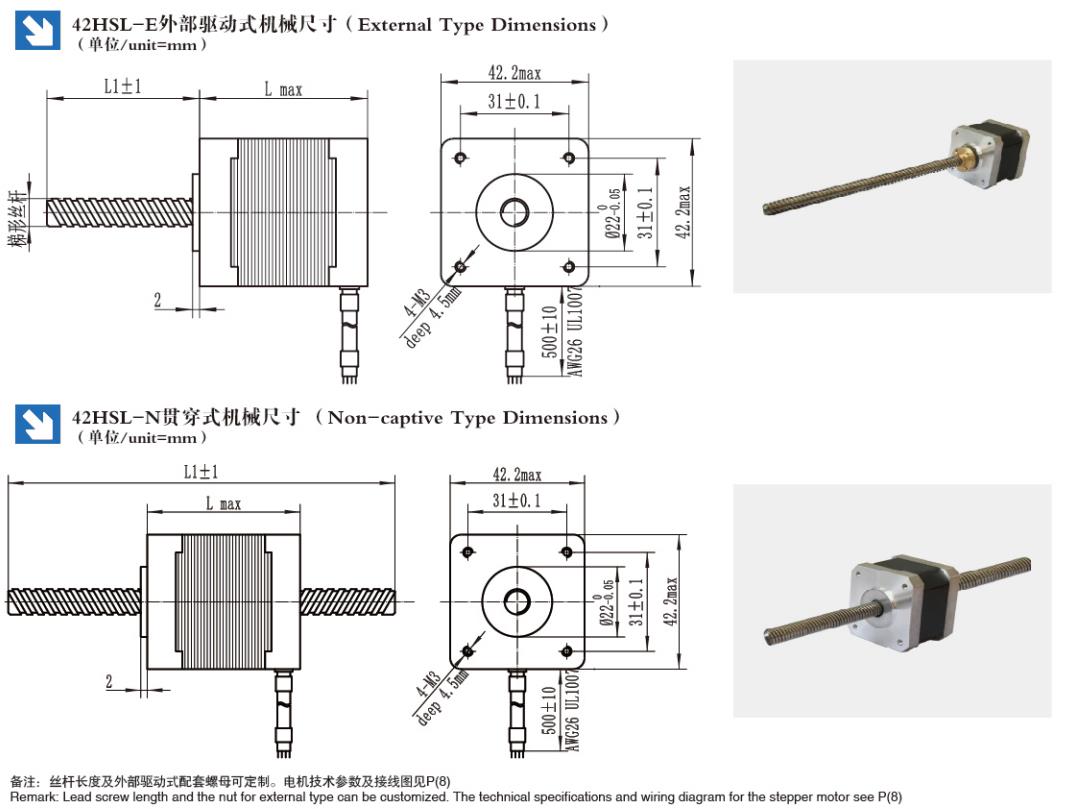

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
