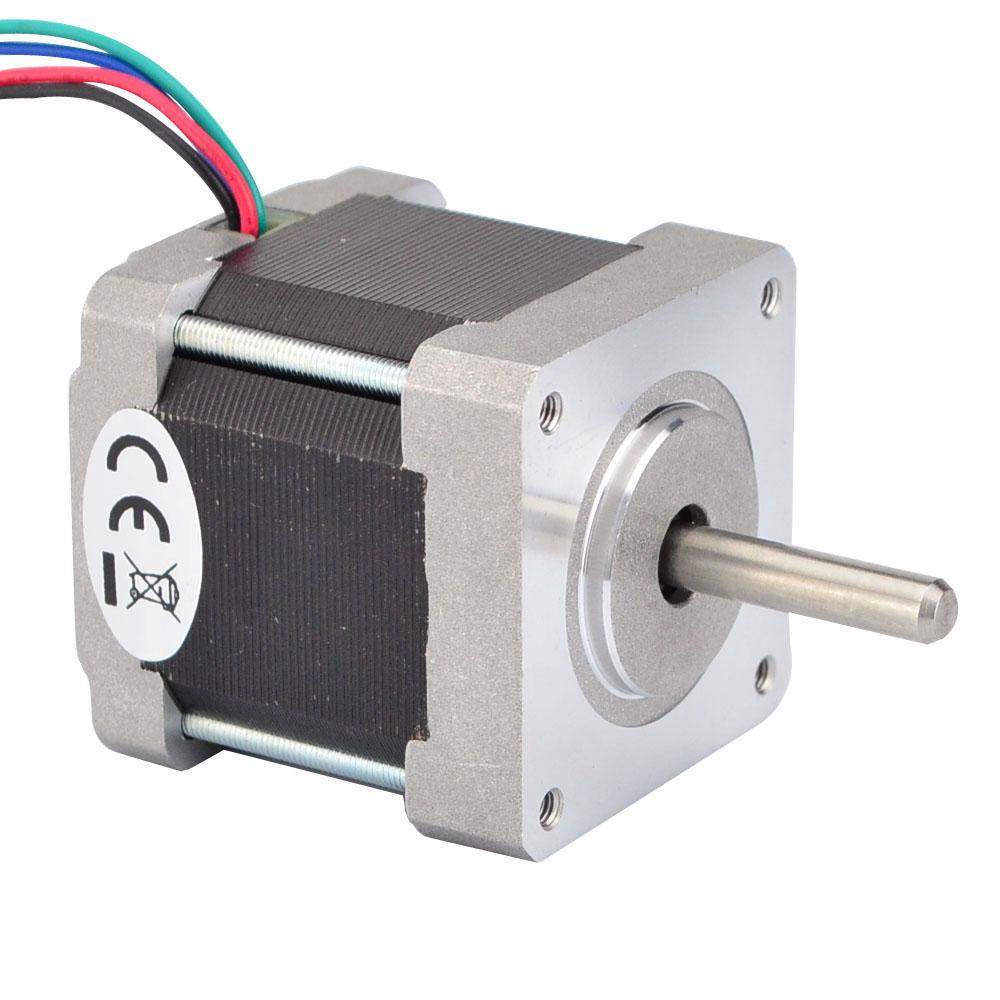

NEMA16 0.9° 2-Phase Hybrid Stepper Motor

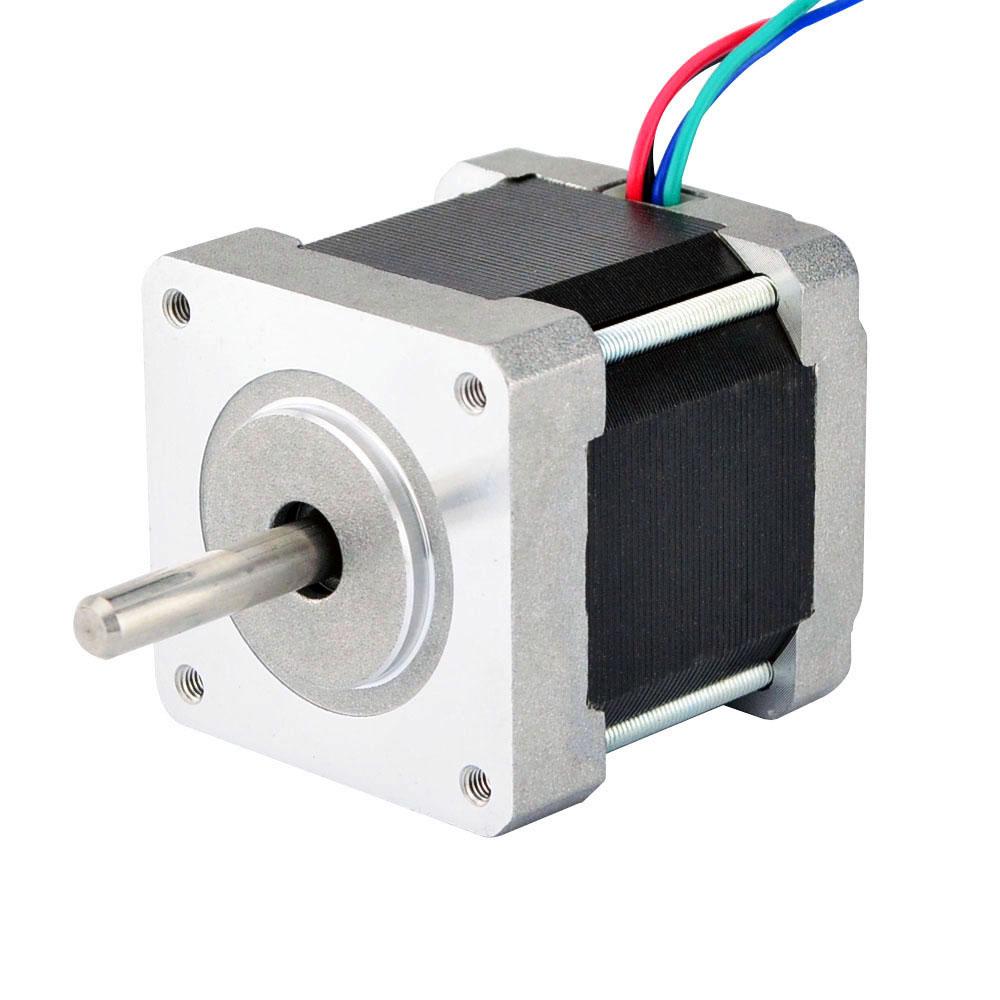

NEMA16 0.9° 2-Phase Hybrid Stepper Motor

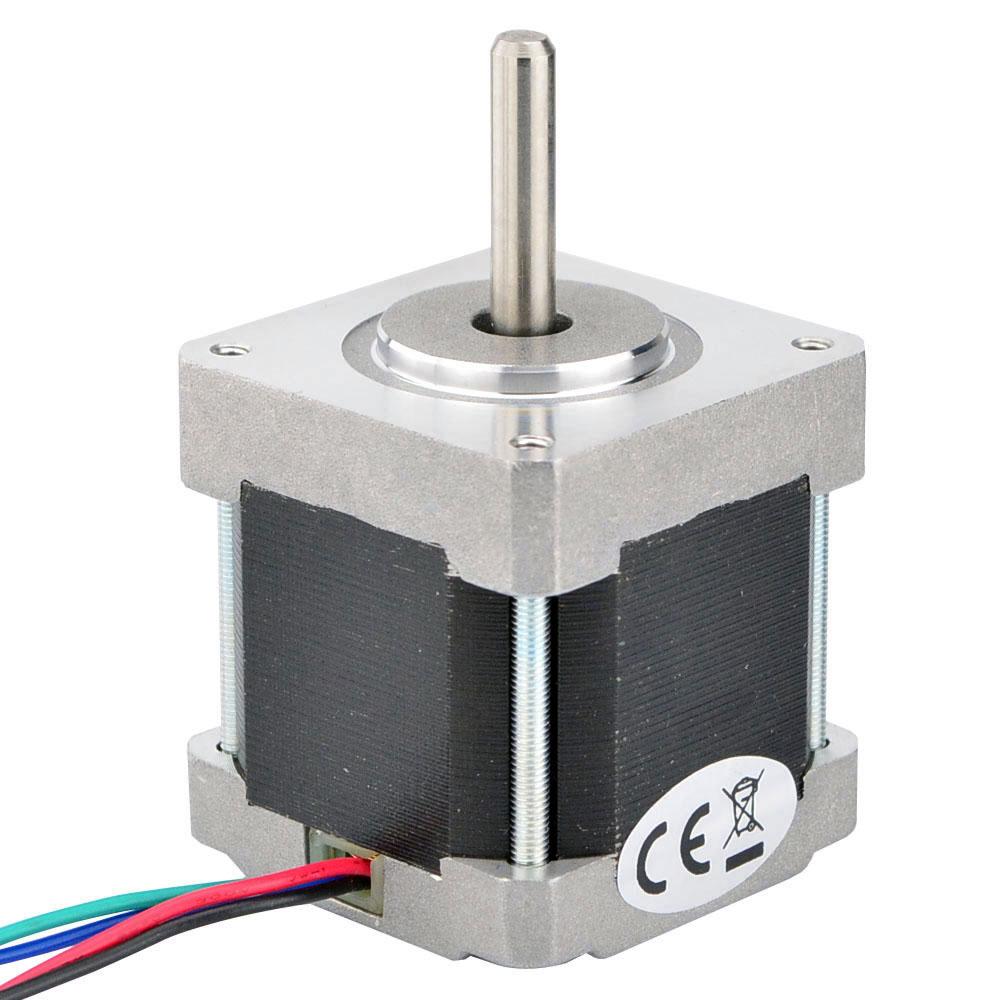

NEMA16 0.9° 2-Phase Hybrid Stepper Motor

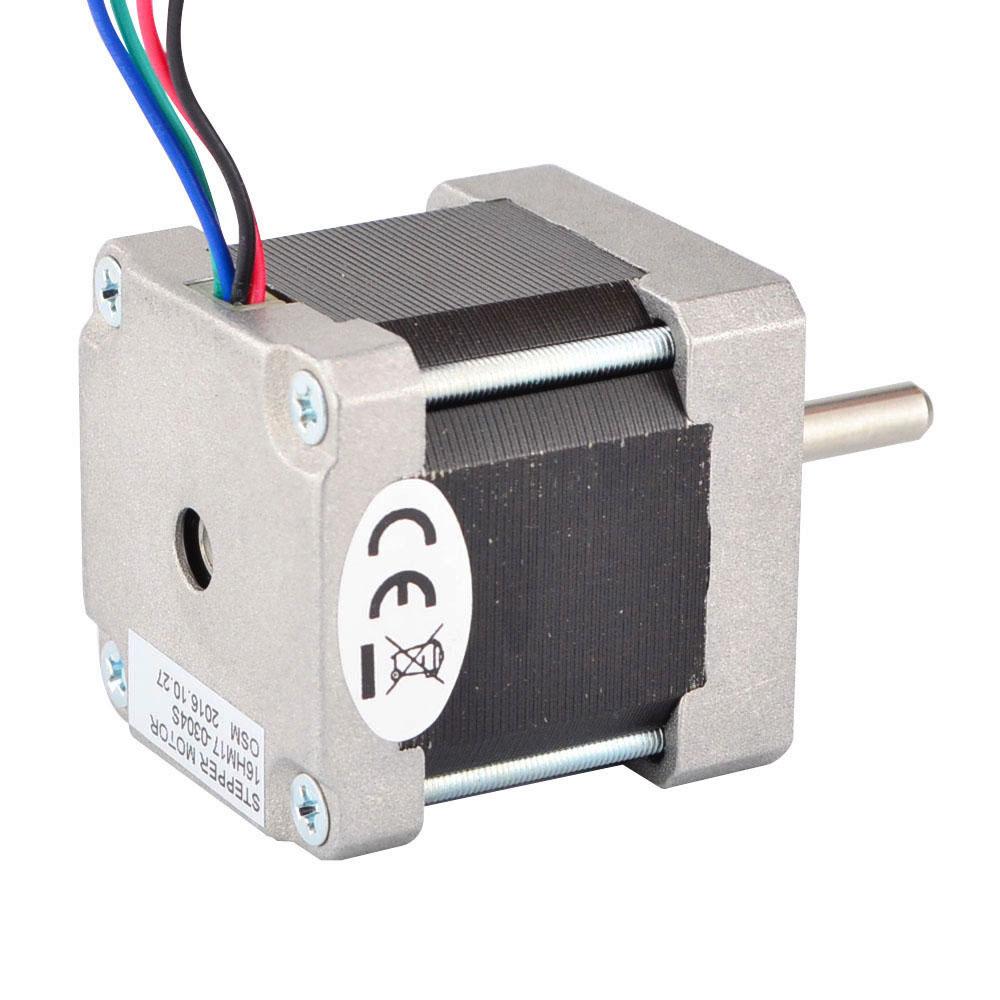

NEMA16 0.9° 2-Phase Hybrid Stepper Motor
right
left
  • NEMA16 0.9° 2-Phase Hybrid Stepper Motor

  • Step Angle:0.9°
    Temperature Rise:80℃ Max
    Ambient Temperature:-20℃Max~+50℃
    Insulation Resistacne:100M ΩMin.,500VDC
    Dielectric Strength:500VAC for 1 minute
    Shaft Radial Play:0.02Max(450g-load)
    Shaft Axial Play:0.08Max(450g-load)
    Max.Radial Force:21N(20mm from th flange)
    Max.Axial Force:10N
  • 1 piece

  • Online consultation

Parameters

Model No Step Angle Rated Voltage Rated Current (A) Phase Resistance Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight
(°) (V) (Ω) (g.cm Max) (g)
39HM20-0504 0.9 4 0.5 8 8.4 0.8 50 15 20 4 100
39HM26-0506 0.9 12 0.5 24 13 1 50 11 26 6 150
39HM26-0604 0.9 5.4 0.6 9 16 1.4 50 18 26 4 150
39HM33-0406 0.9 12 0.4 30 16 1.2 120 23 33 6 160
39HM33-0604 0.9 5.4 0.6 9 15 1.6 120 23 33 4 160
39HM33-1204 0.9 3 1.2 2.5 3.6 1.6 120 23 33 4 160
39HM40-0406 0.9 12 0.4 30 26 1.8 180 30 40 6 210
39HM40-0604 0.9 7.2 0.6 12 20 2.2 180 30 40 4 210
39HM40-1204 0.9 3.84 1.2 3.2 5.5 2.2 180 30 40 4 210

Introduction

A Nema 16 stepper motor is a stepper motor with a 1.6 x 1.6 inch (39 x 39 mm) faceplate. Nema 16 high torque stepper motors deliver great value with no quality sacrifice. These motors are engineered to provide the highest possible torque but minimize vibration and audible noise. A wide range of motor windings and stack lengths are readily available, or the motors can be customized to meet your machine requirements. The motors are wired as a standard configuration with 4-lead for the bipolar series. We can also customize the windings to perfectly match your voltage, current and maximum torque at operating speeds. Additional lead configurations can be offered upon request, along with cable and connector options. It is also possible to add encoders and brakes to suit your customized application.

NEMA stepper motor sizes depend on the frame size of the stepper motor. NEMA means the standards set by “National Electrical Manufacturers Association”, which is comprised of 560 major electrical manufacturers in the United States, primarily consisting of manufacturers of equipment and devices for power generation, transmission, distribution, and power applications. The purpose of standard setting is to eliminate misunderstandings between electrical product manufacturers and users and to specify the safety of these product applications.

This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x34mm. It has 4 wires, each phase draws 0.4-1.2A at 3.84-12V, with holding torque 8-22Ncm (11.3-31.1oz.in).

Electrical Specification:

  • Manufacturer Part Number: 39HM
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 8-22Ncm (11.3-31.1oz.in)
  • Rated Current/phase: 0.4-1.2A
  • Phase Resistance: 2.5-30Ω
  • Inductance: 5.5-26mH ± 20%

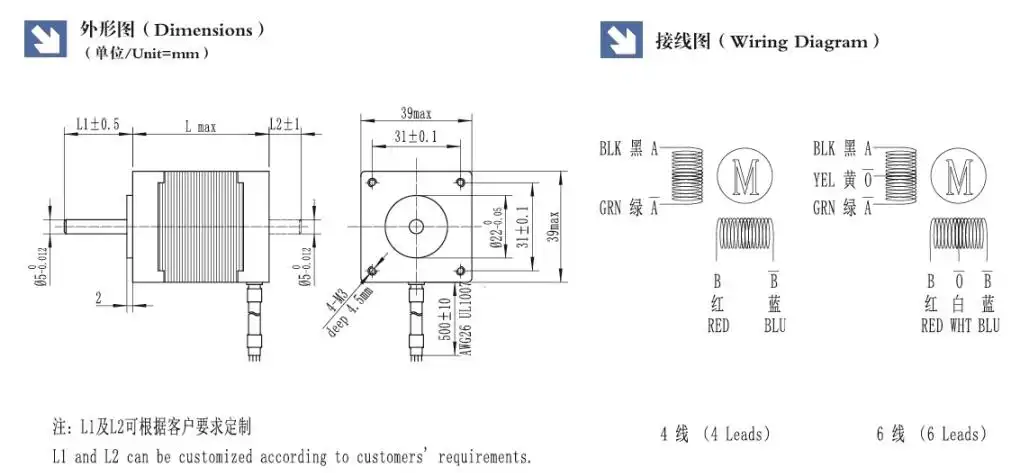

Physical Specification:

  • Frame Size: 39 x 39mm
  • Body Length: 44mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 100-210
