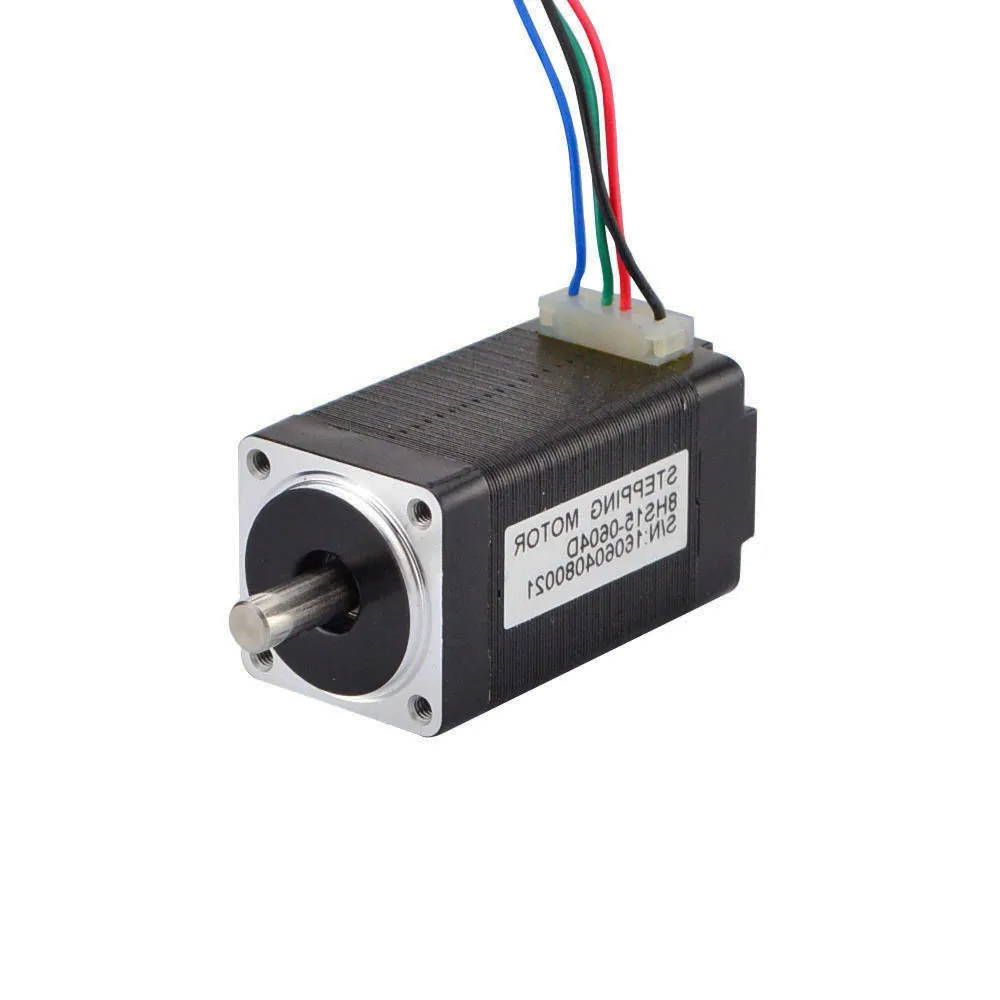

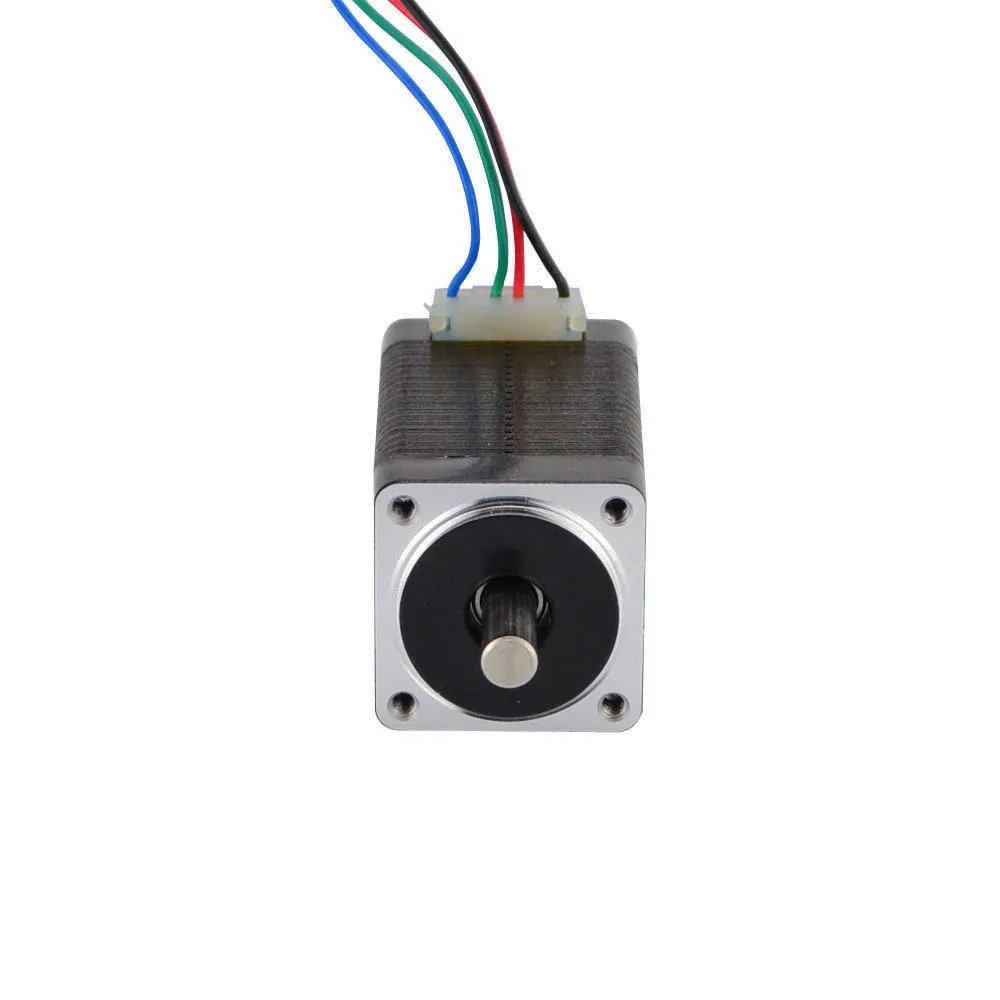

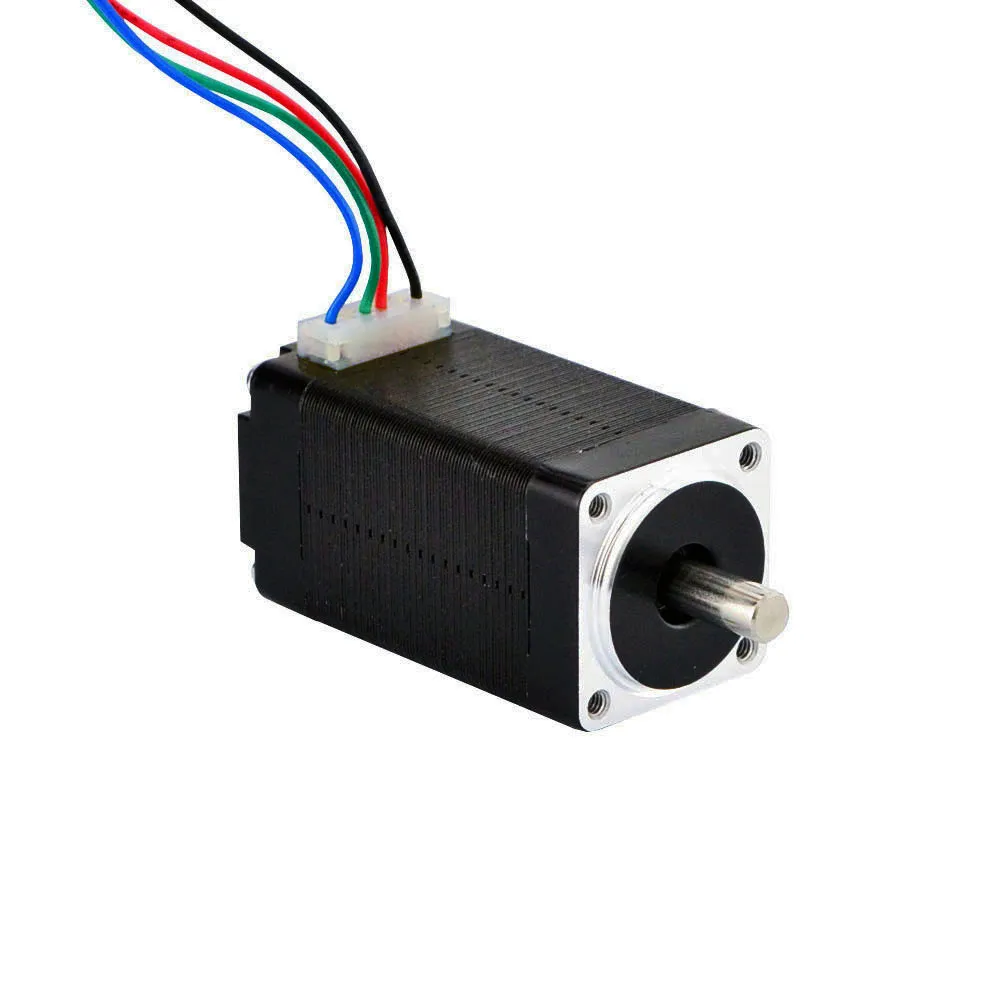

Nema 8 1.8deg 4Ncm 0.6A Bipolar Stepper Motor

Nema 8 1.8deg 4Ncm 0.6A Bipolar Stepper Motor

Name: Nema 8 1.8deg 4Ncm 0.6A Bipolar Stepper Motor
Price: 16.67 USD
Availability: InStock

$16.67

Enhance your automation projects with the Nema 8 1.8deg 4Ncm 0.6A Bipolar Stepper Motor, delivering precise and reliable motion control.

Get a Quote Leave a Message

Model Type

Degree()1.8

Rated Torque(Ncm)()4

Current(A)()0.6

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number	8HS15-0604D
Motor Type	Bipolar Stepper
Step Angle	1.8 deg
Holding Torque	4 Ncm (5.7 oz.in)
Rated Current/phase	0.6A
Phase Resistance	10 ohms
Inductance	5.5mH ± 20% (1KHz)

Physical Specification

Frame Size	20 x 20mm
Body Length	38mm
Shaft Shape	""O""
Shaft Diameter	Φ4mm
Front Shaft Length	10mm
Rear Shaft Length	6mm
Number of Leads	4
Lead Length	300mm

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
Stepper-Motor-Catalog.pdf	19.2MB	Download
