Home / Nema 8 1.8deg 1.8Ncm 0.6A Bipolar Stepper Motor

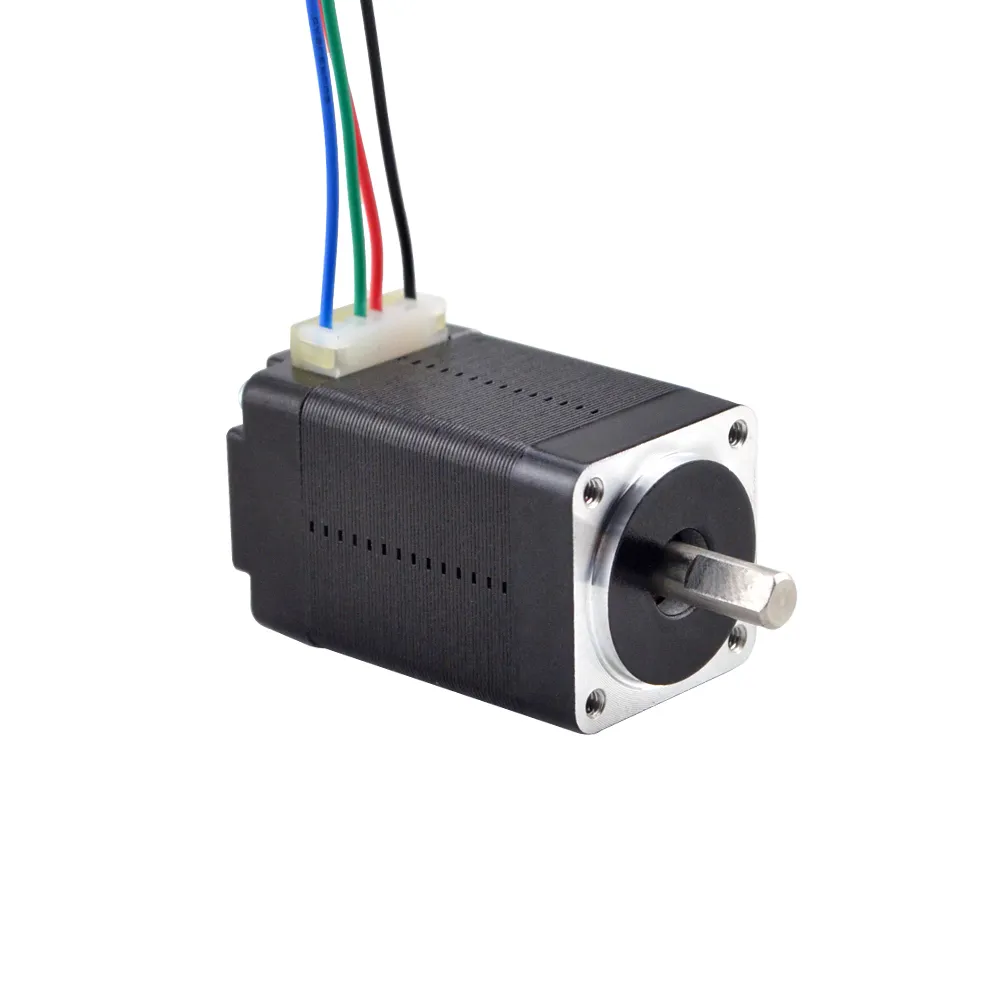

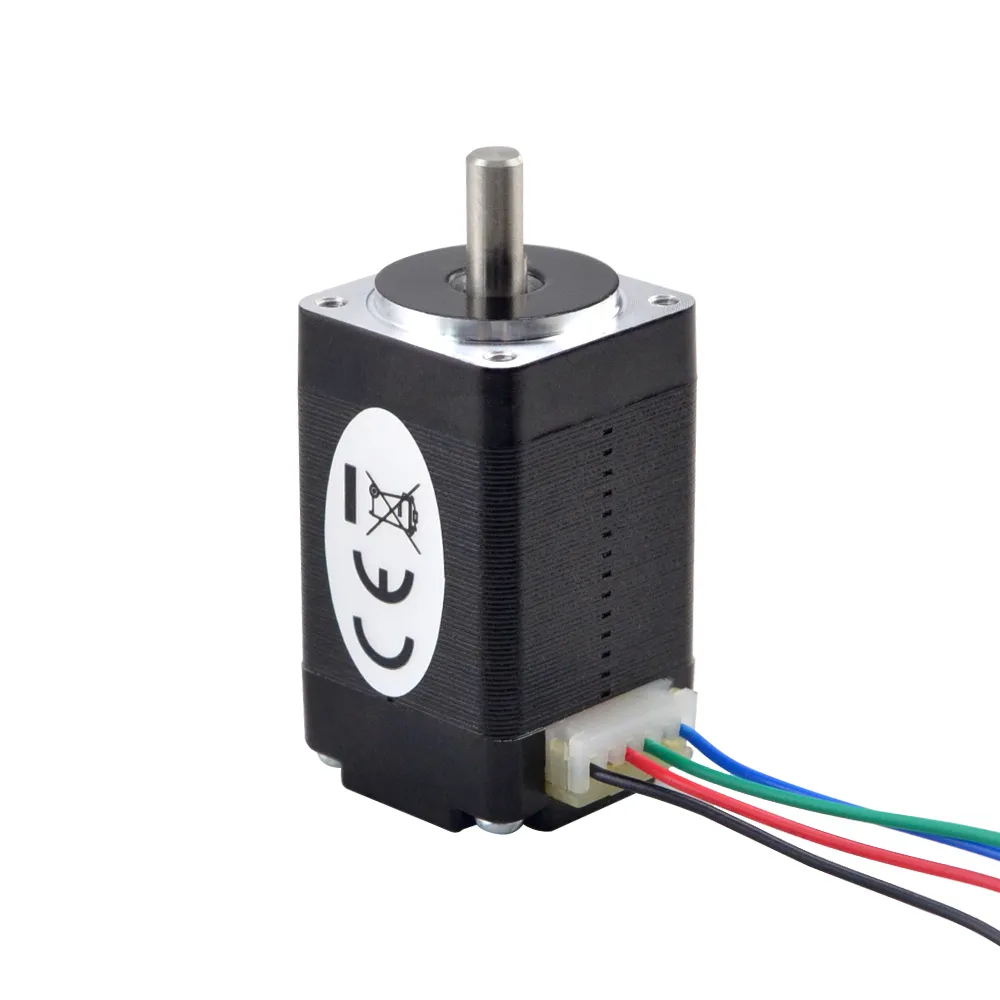

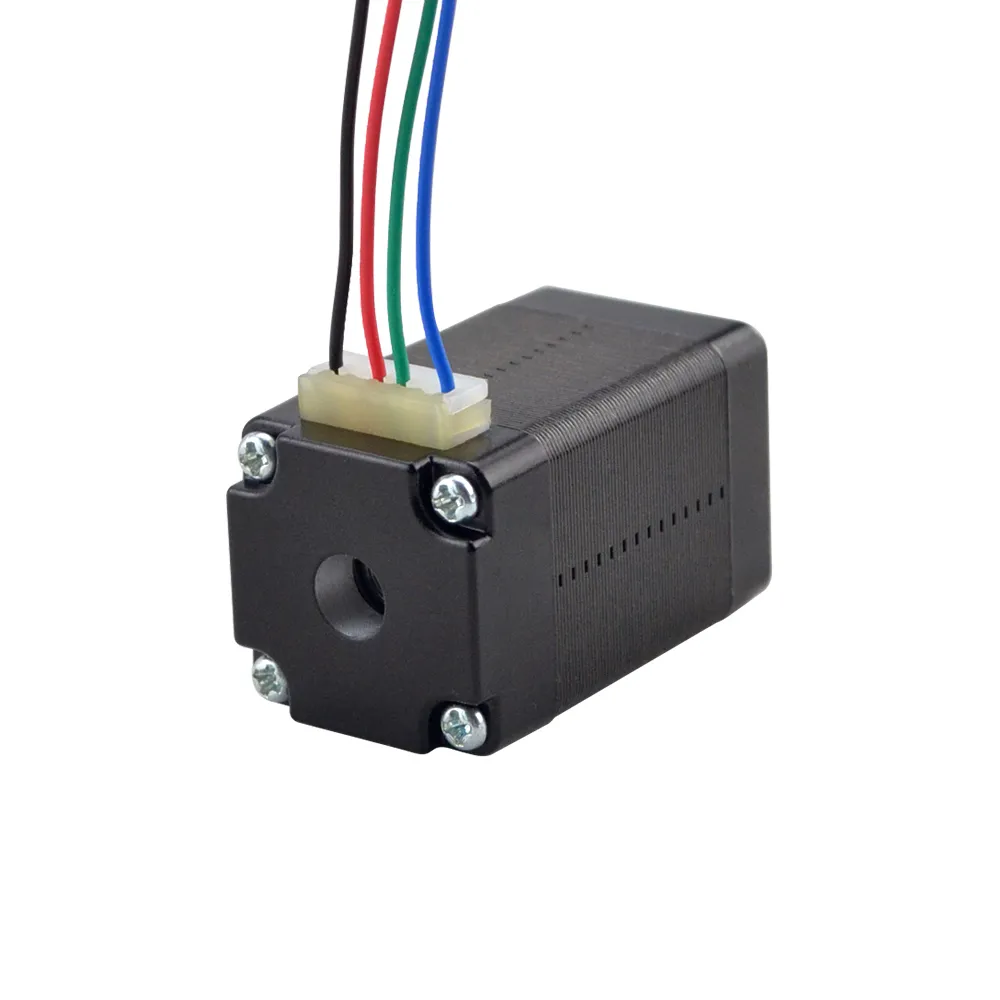

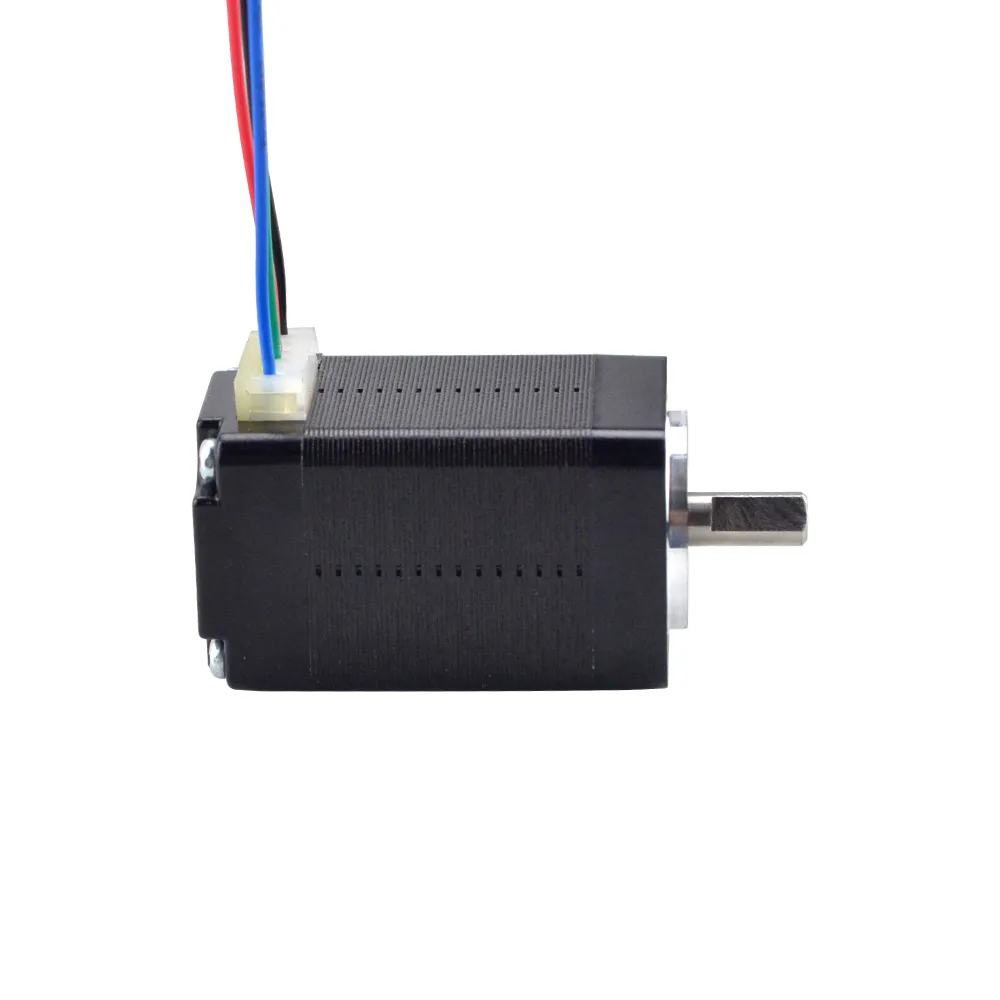

Nema 8 1.8deg 1.8Ncm 0.6A Bipolar Stepper Motor

$17.28

Experience exceptional precision and reliability with the Nema 8 1.8deg 1.8Ncm 0.6A Bipolar Stepper Motor. This compact motor is designed to deliver smooth and accurate motion control in a range of automation applications. With its high torque and bipolar configuration, it offers enhanced performance and efficiency. Upgrade your projects with this versatile stepper motor and unlock a new level of precision in your automation tasks.

Model Type

Degree()1.8

Rated Torque(Ncm)()1.8

Current(A)()0.6

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 8HS13-0604S
Motor Type Bipolar Stepper
Inductance (mH) 2.6
Phase Resistance (ohm) 5.6
Product Type Hybrid Stepper Motor
Rated Current (A) 0.6
Step Angle (deg.) 1.8
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 1.8
Holding Torque (oz.in) 2.55

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 40
Frame Size (mm) Nema 08 (20 x 20)
Product Series S
Body Length (mm) 34
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Shaft Diameter (mm) 4
Shaft Length (mm) 10
No. of Lead 4
D-cut Length 7mm
Lead Length 300mm
Weight 70g

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
