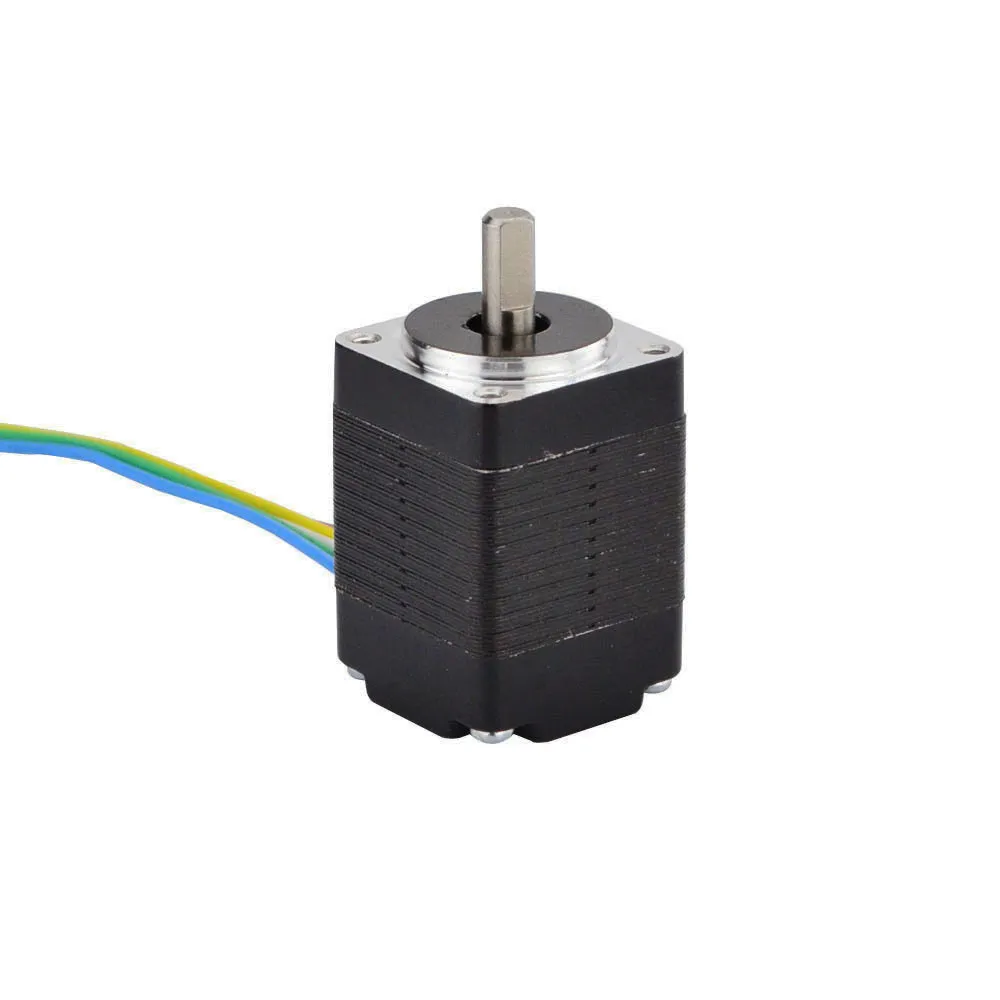

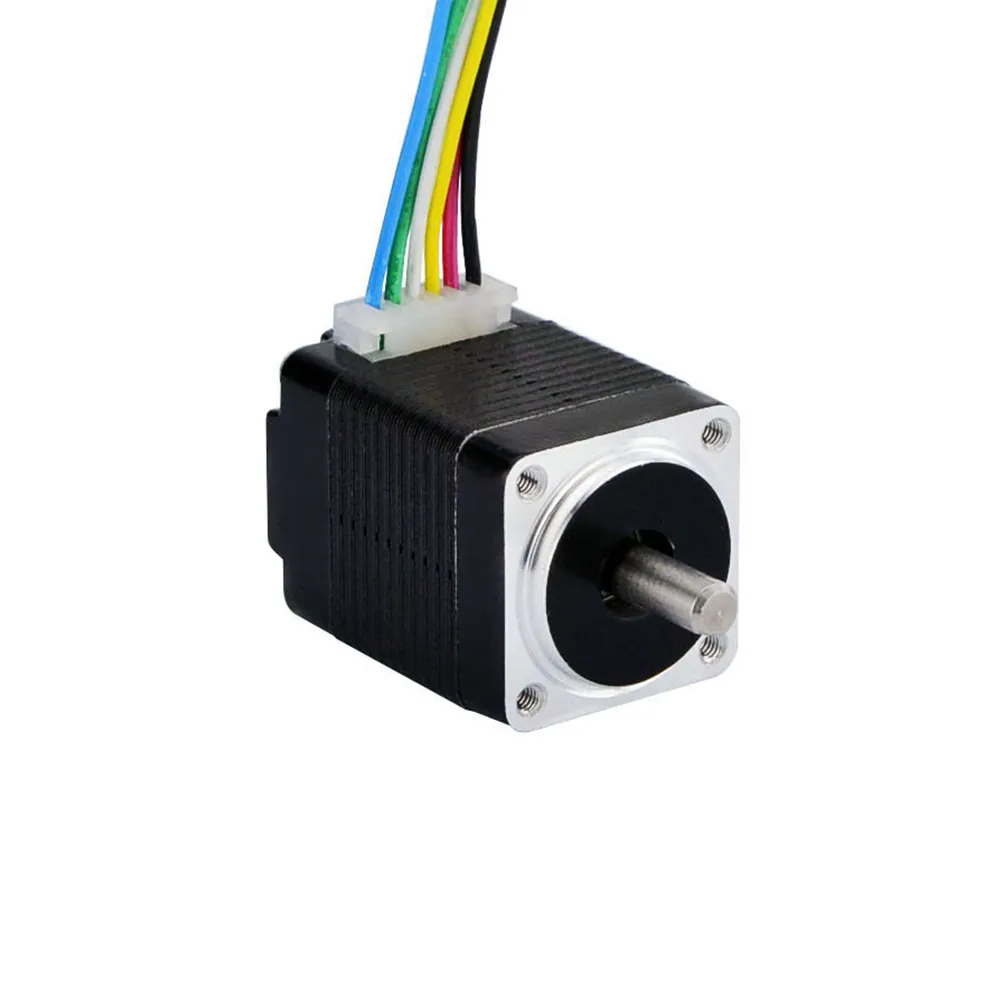

Nema 8 1.8deg 1.8Ncm 0.5A Stepper Motor


Nema 8 1.8deg 1.8Ncm 0.5A Stepper Motor, a compact powerhouse for accurate motion control. With its high torque and precision, this motor is perfect for applications requiring precise positioning and reliable performance. Upgrade your automation projects with this reliable stepper motor, designed to deliver efficiency and precision in a compact package.

Model TypeStepper Motor


Rated Torque(Ncm)1.8




Electrical Specification

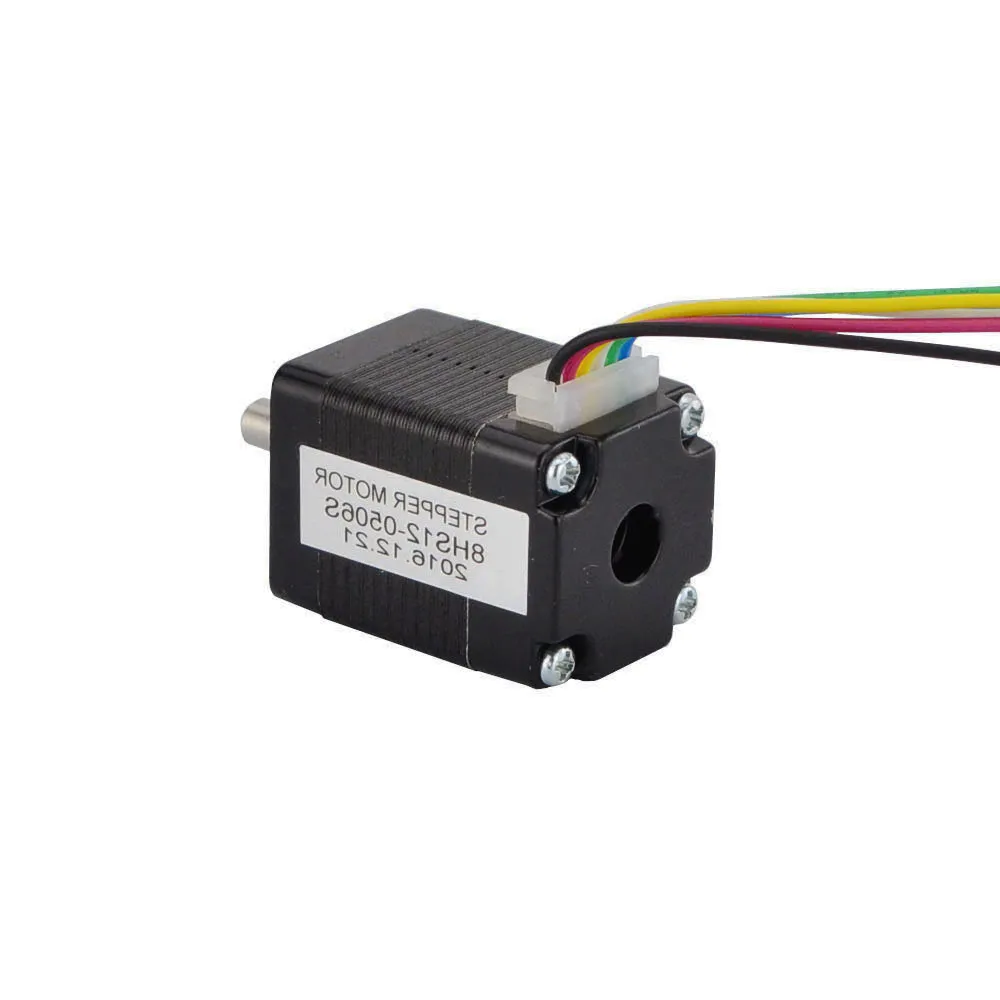

Manufacturer Part Number 8HS12-0506S
Motor Type Unipolar Stepper
Inductance (mH) 1.7
Phase Resistance (ohm) 11.5
Rated Current (A) 0.5
Step Angle (deg.) 1.8
Holding Torque (Ncm) 1.8
Holding Torque (oz.in) 2.55

Physical Specification

Frame Size (mm) Nema 08 (20 x 20)
Product Series S
Body Length (mm) 28
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Shaft Diameter (mm) 4
Shaft Length (mm) 10
Lead Length (mm) 300
Weight (g) 80
D-cut Length 7mm
Number of Leads 6
Lead Length 300mm
