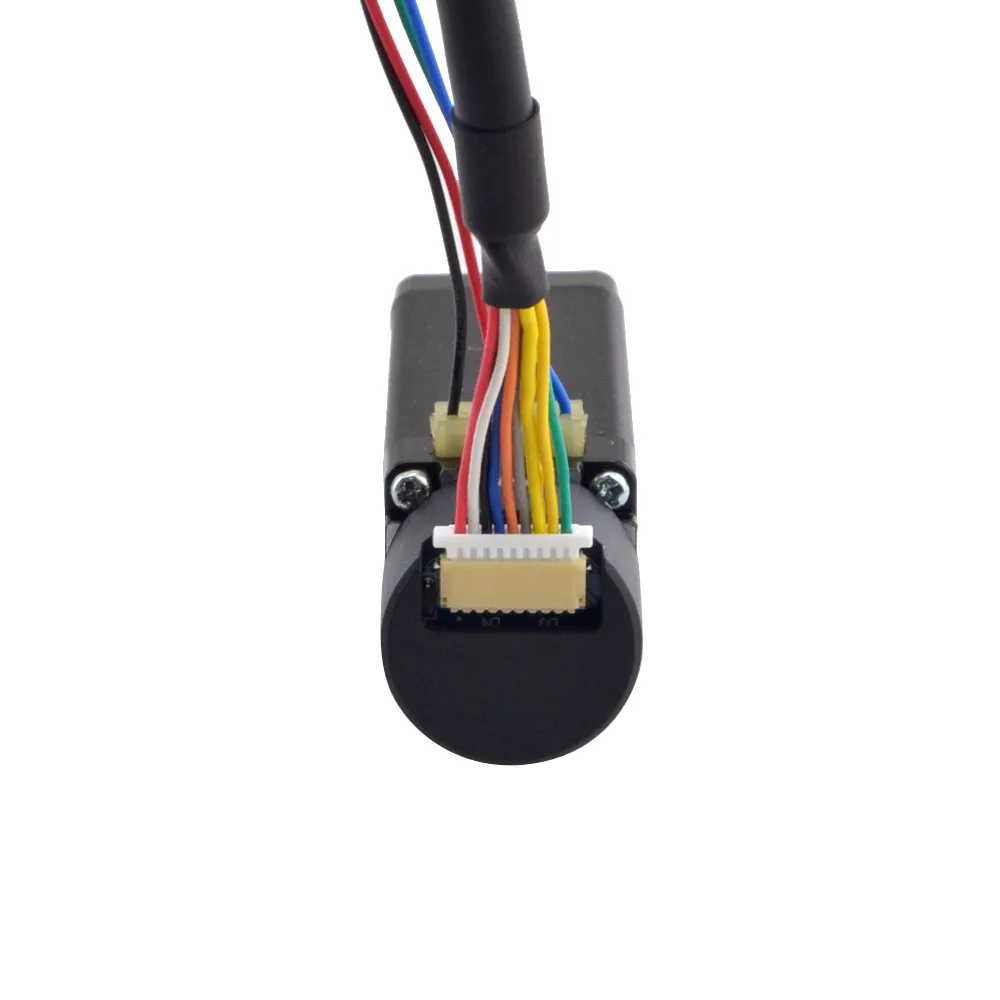

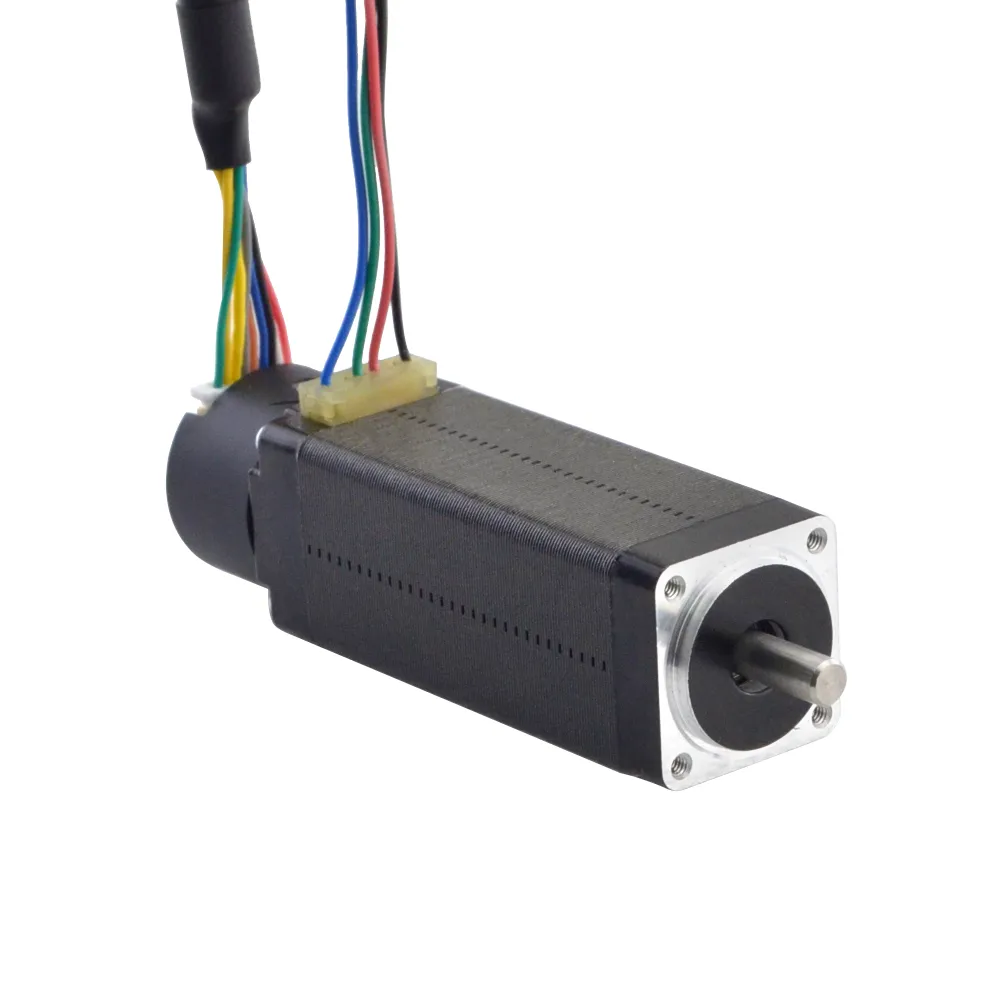

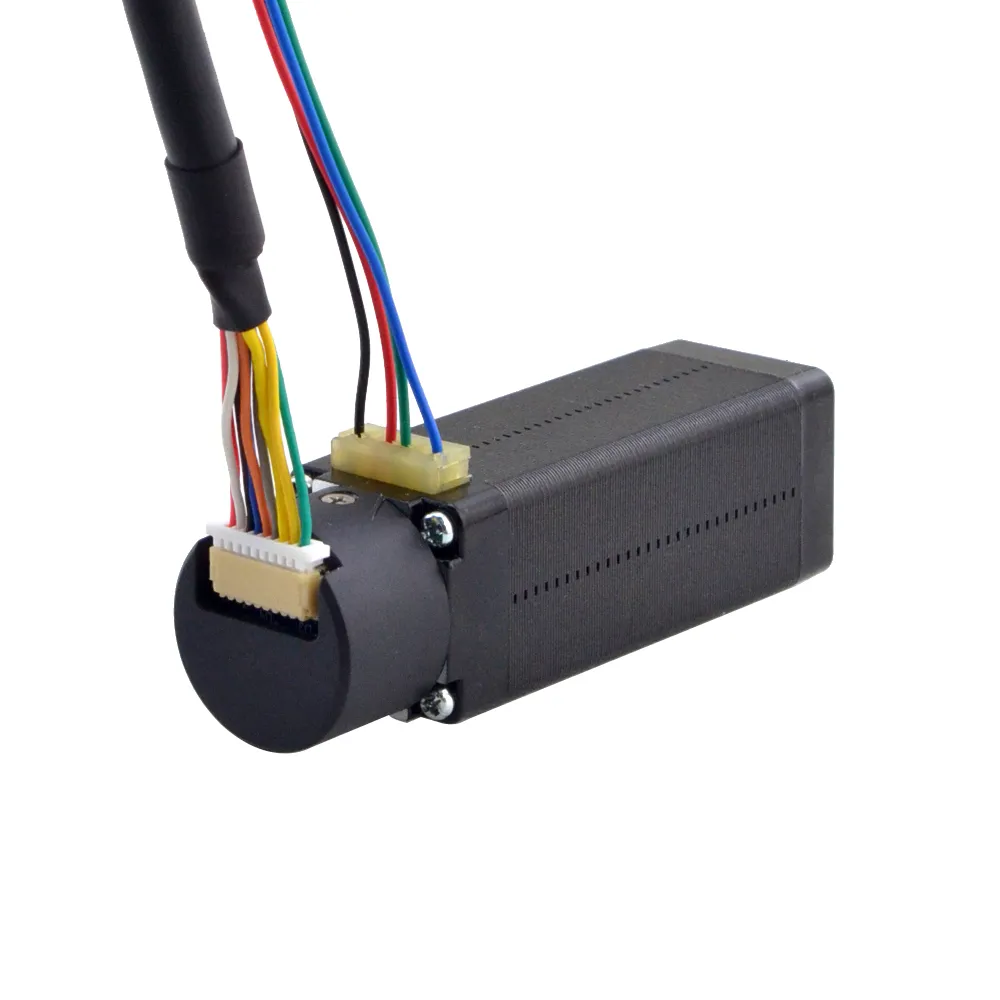

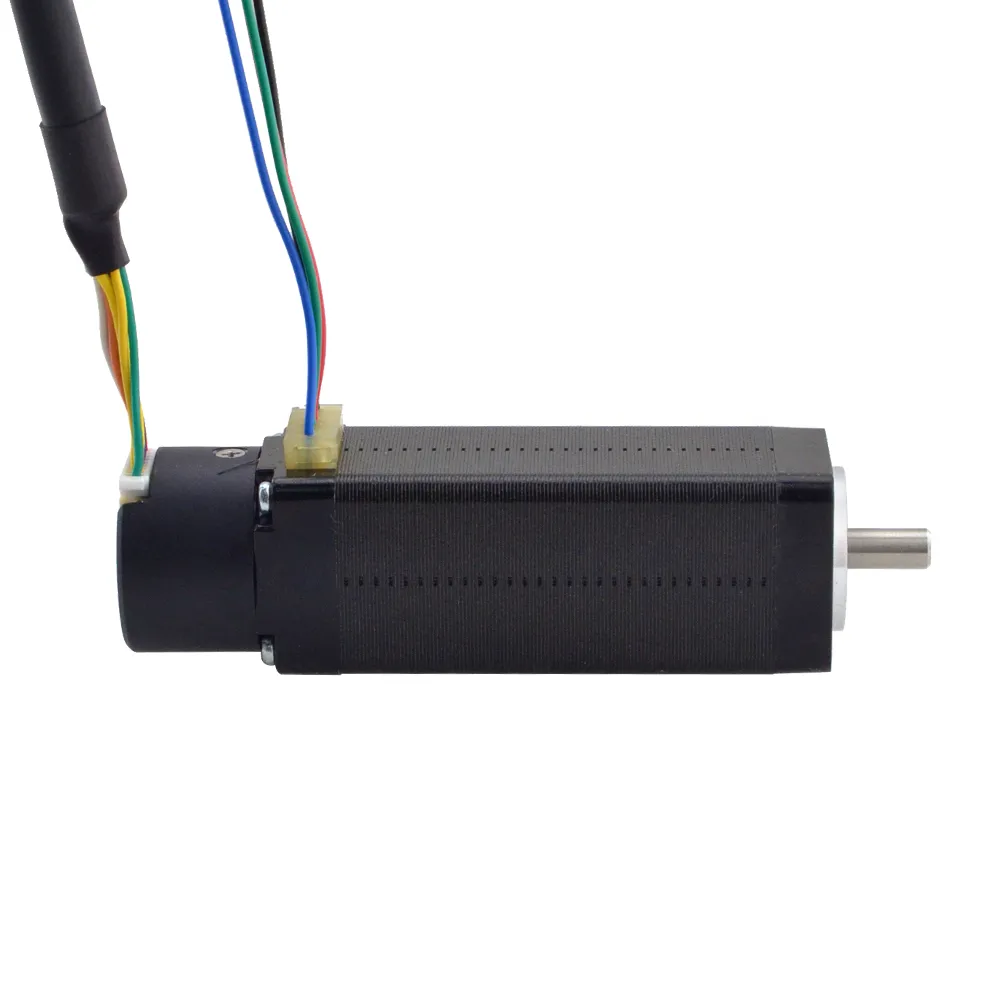

Nema 8 1.8deg 0.054Nm 0.8A Stepper Motor

$60.60

Nema 8 1.8deg 0.054Nm 0.8A Stepper Motor, a compact and precise solution for your automation needs. With its moderate torque output and accurate step resolution, this motor delivers reliable performance and smooth motion control.

Get a QuoteLeave a Message

Model Type

Degree()1.8

Rated Torque(Nm)()0.054

Current(A)()0.8

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 8HS22-0804D-E1000
Number of Phases 2
Step Angle 1.8 deg
Holding Torque 0.054 Nm (7.65 oz.in)
Rated Current/Phase 0.8A
Phase Resistance 8.5 ohms ± 10%
Inductance 5.6mH ± 20% (1KHz)

Physical Specifications

Frame Size 20 x 20mm
Body Length 68mm
Shaft Diameter Φ4mm
Shaft Length 10mm
Lead Length 300mm
Weight 123g

Encoder Specification

Output Circuit Type Differential type
Encoder Type Optical Incremental
Encoder Resolution 1000 PPR (4000 CPR)
Output Signal Channels 3 channels
Supply Voltage Min 4.5V
Supply Voltage Max 5.5V
Output Current 100mA MAX
Output High Voltage ≥Vcc-0.4V
Output Low Voltage ≤0.4V
Output Frequency Max 1.85Hz

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
