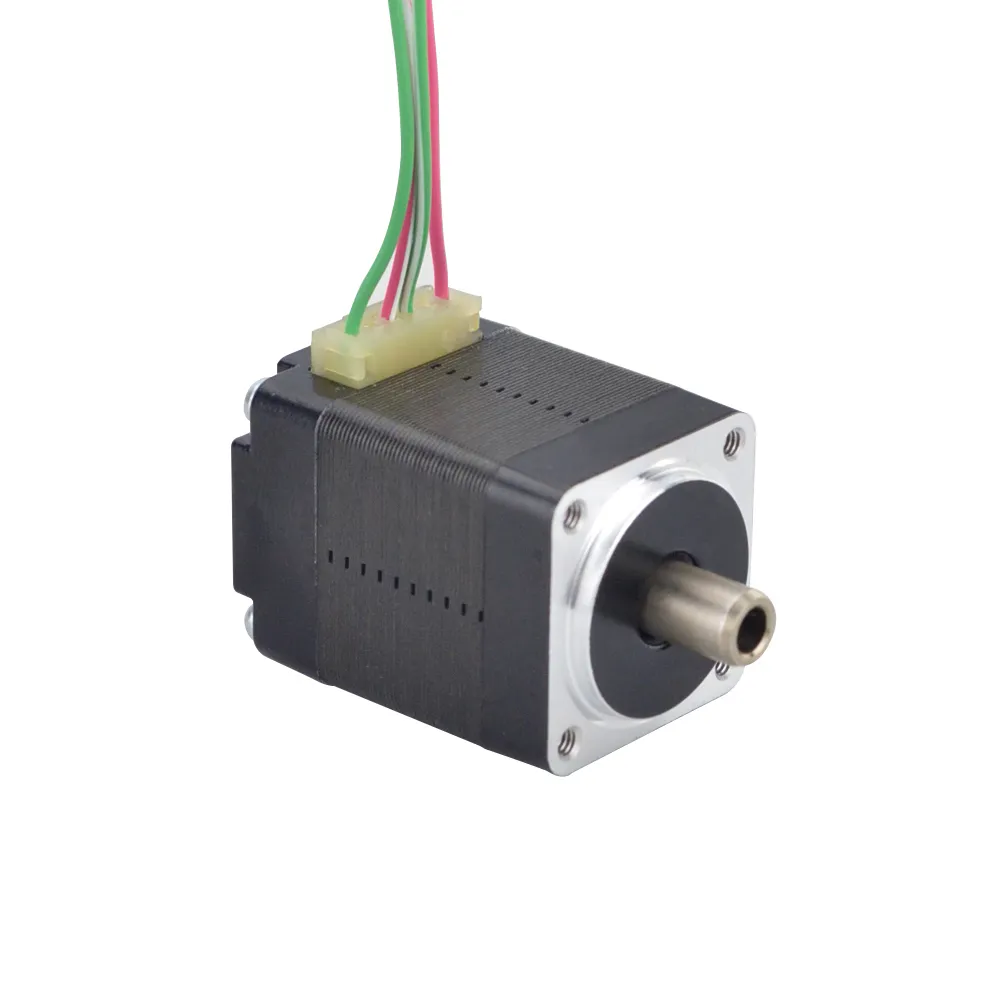

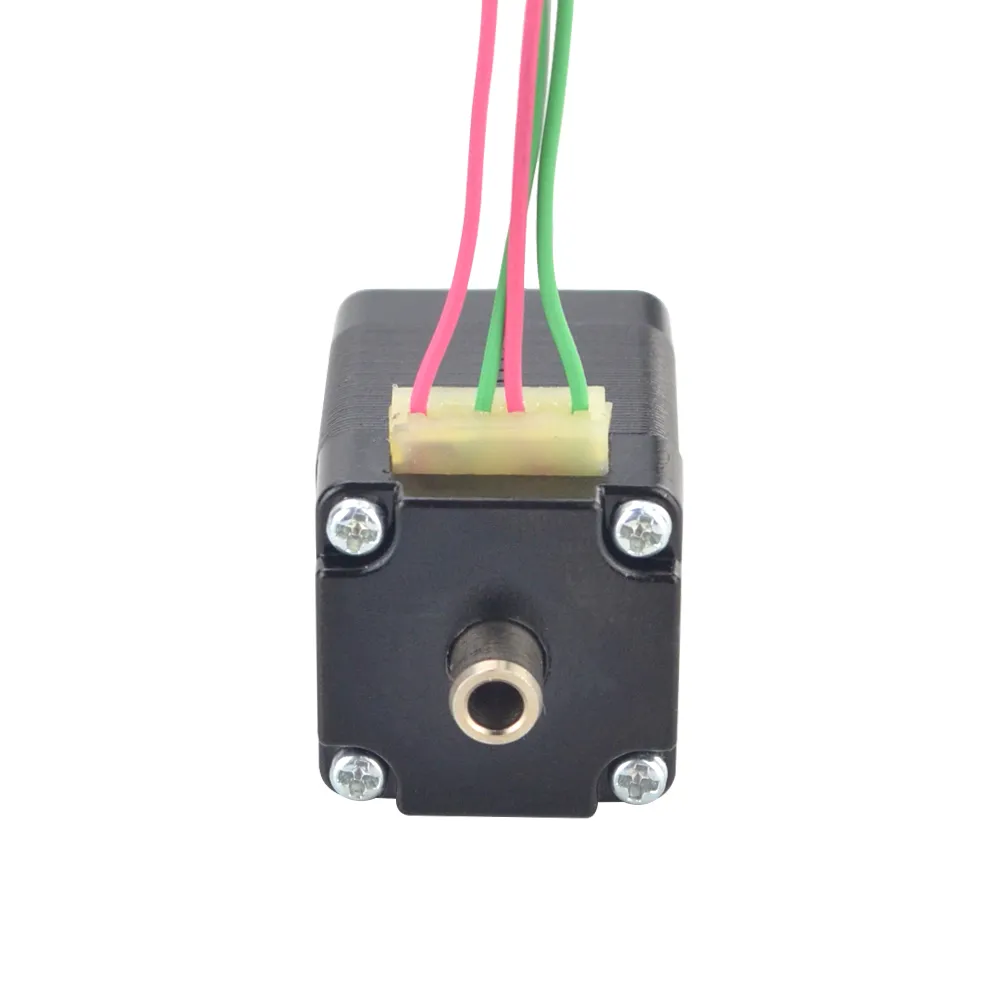

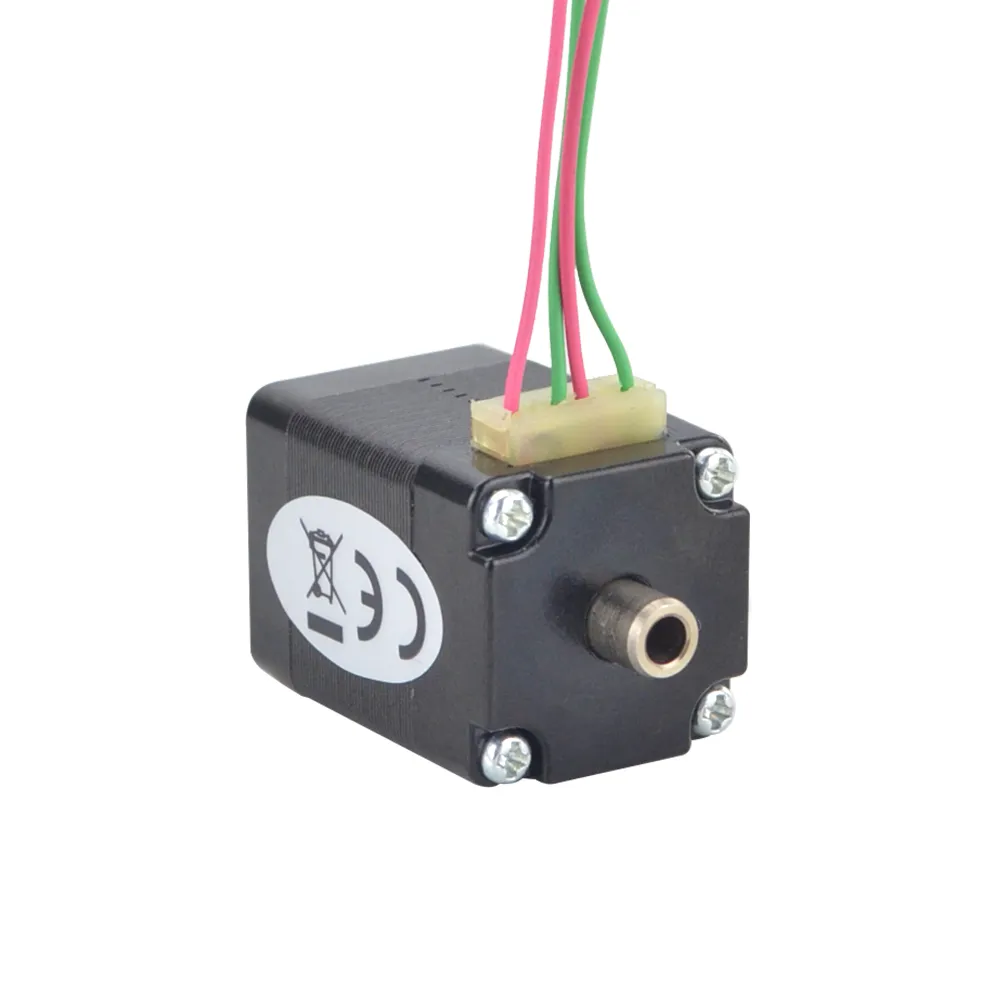

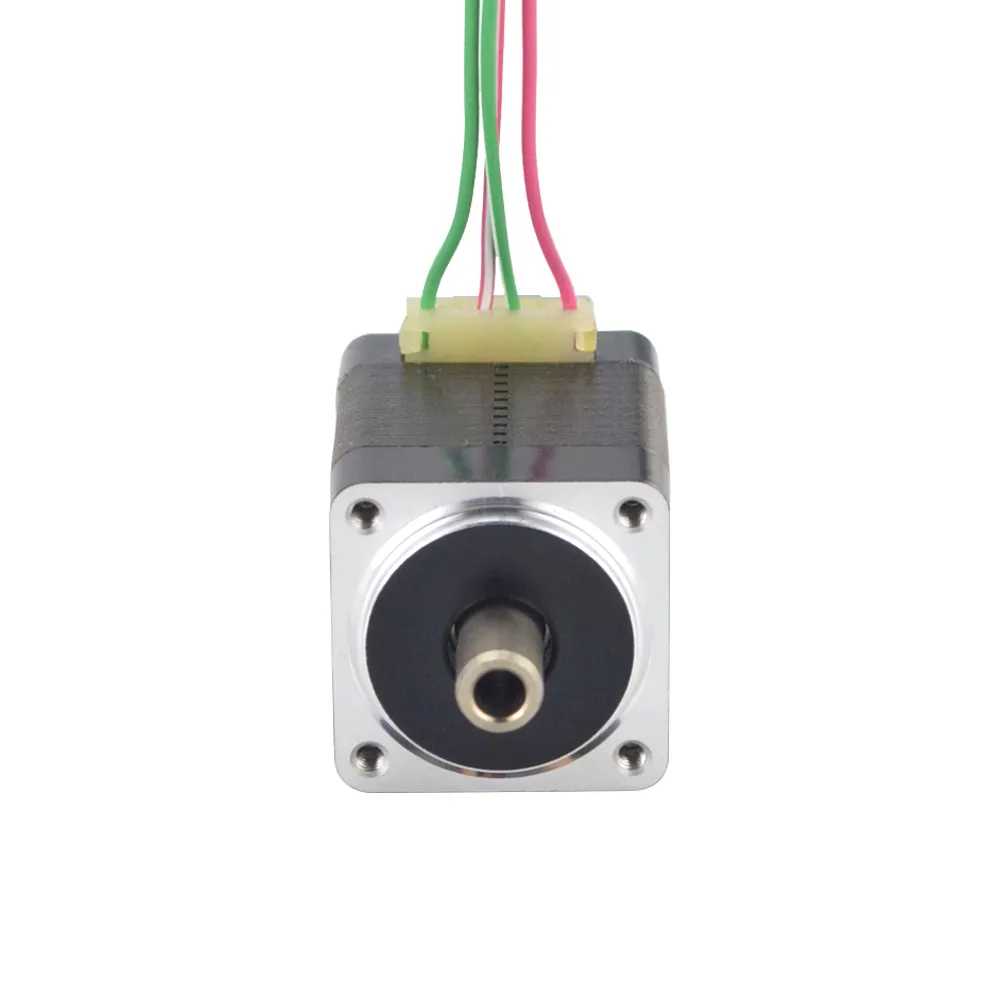

Nema 8 1.8deg 0.015Ncm 0.49A Stepper Motor


Nema 8 1.8deg 0.015Ncm 0.49A Stepper Motor, the perfect solution for ultra-precise and low-torque automation tasks. With its fine step resolution and compact size, this motor is ideal for applications requiring delicate and accurate motion control, such as precision optics, scientific instruments, and small-scale robotics. Experience enhanced precision and efficiency with this reliable stepper motor, designed to bring your automation projects to the next level.

Model TypeStepper Motor


Rated Torque(Ncm)0.015




Electrical Specification

Manufacturer Part Number 8HS12-0494H
Motor Type Bipolar Stepper
Step Angle 1.8 deg
Holding Torque 0.015 Nm (2.12 oz.in)
Rated Current/phase 0.49A
Phase Resistance 6.9 ohms ± 10%
Inductance 2.6mH ± 20% (1KHz)

Physical Specification

Frame Size 20 x 20mm
Body Length 27.3mm
Shaft Outer Diameter Φ5mm
Shaft Inner Diameter Φ3mm
Front Shaft Length 8mm
Rear Shaft Length 5mm
