SPECIFICATIONS
Electrical Specification

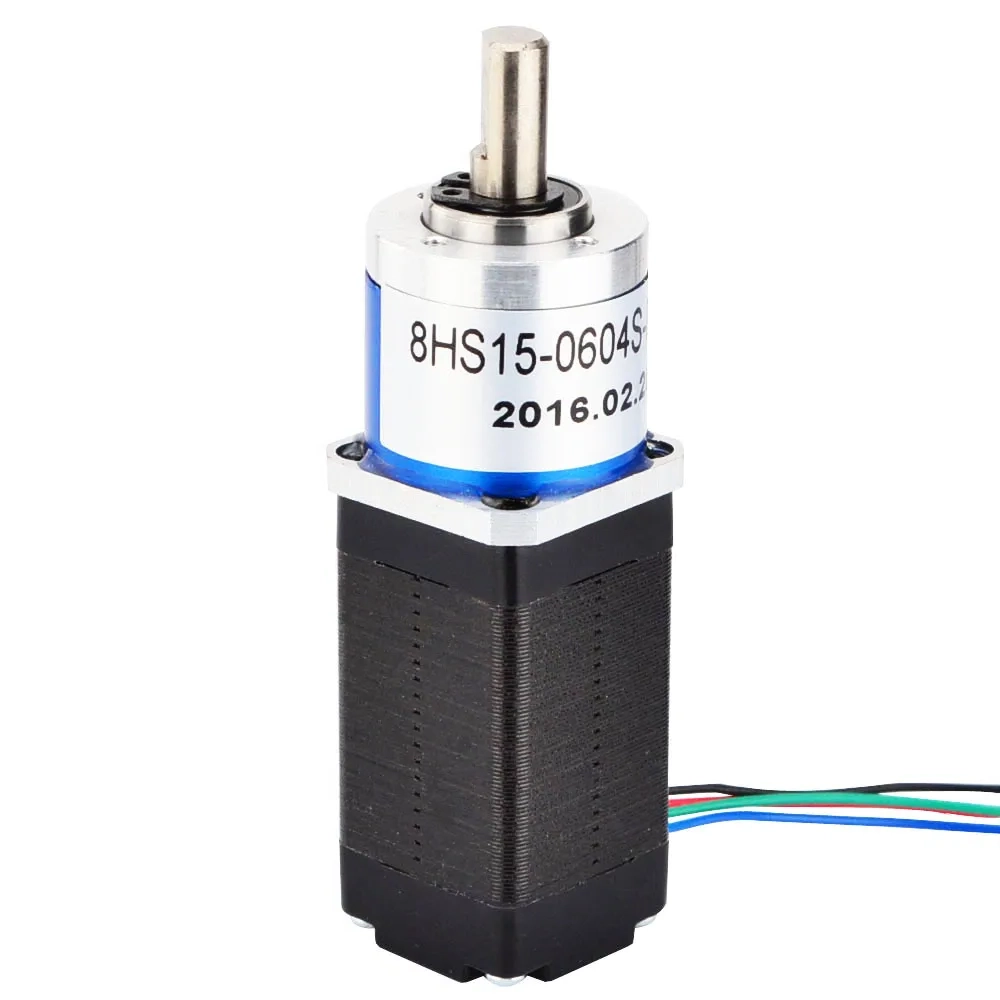

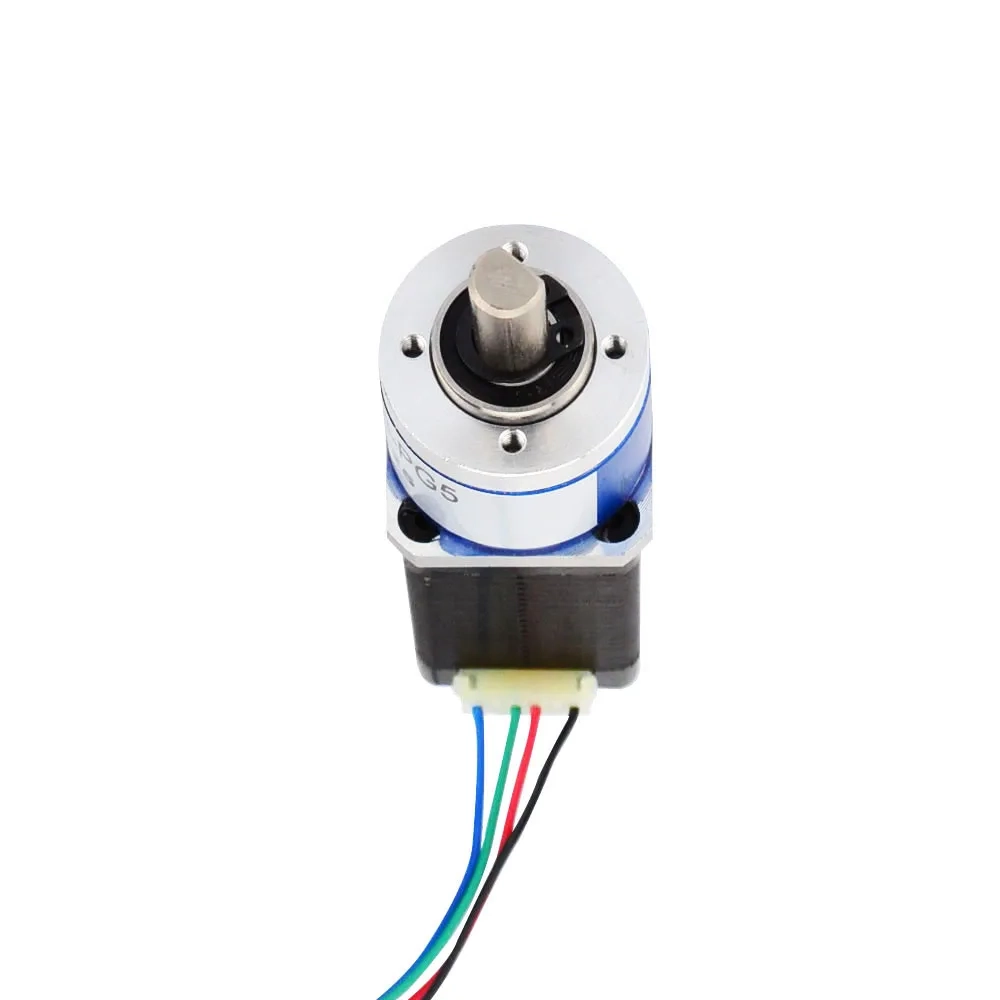

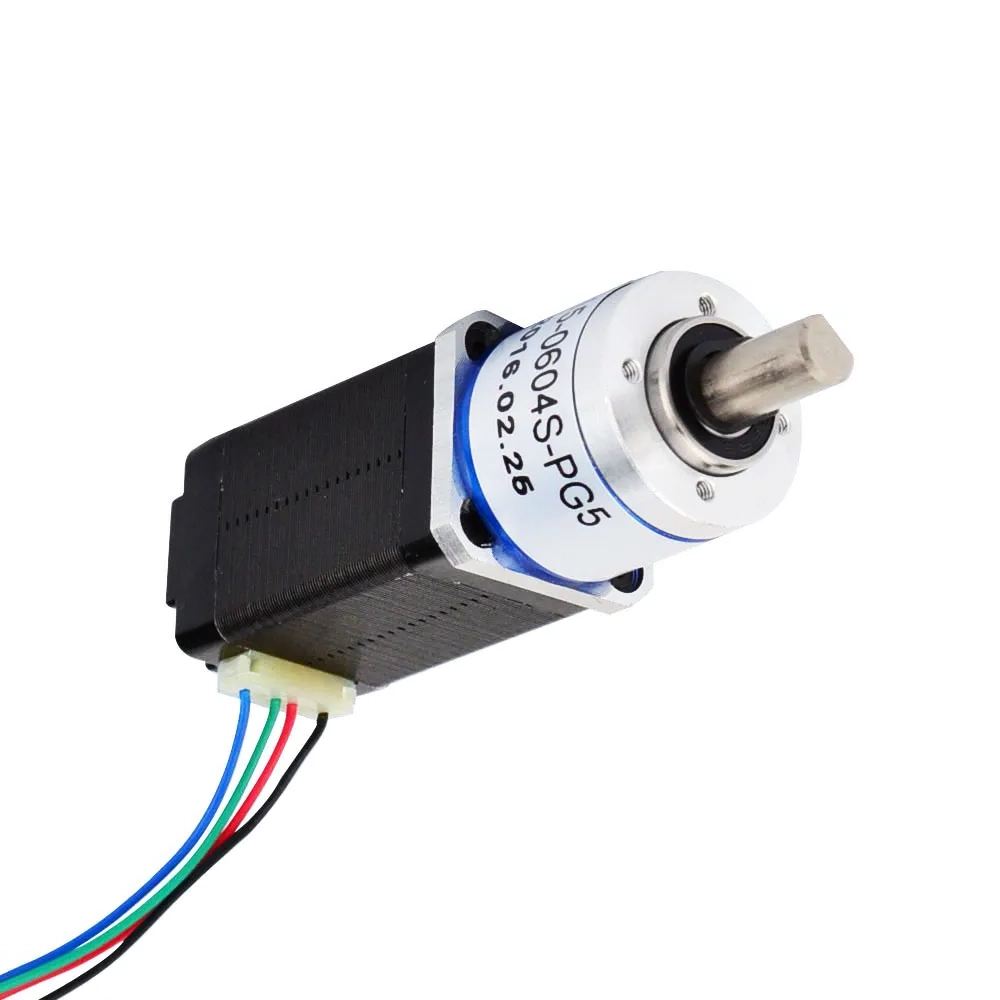

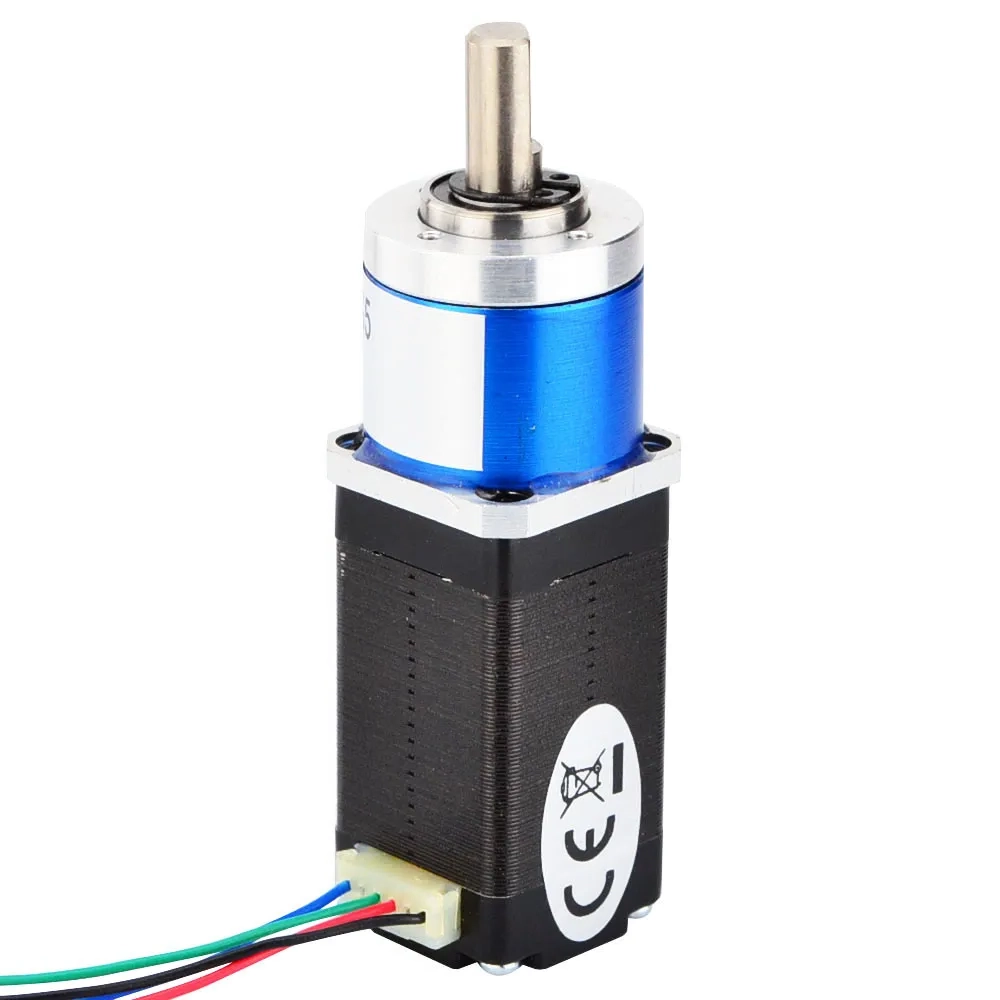

| Manufacturer Part Number | 8HS15-0604S-PG5 |
| Motor Type | Bipolar Stepper |
| Step Angle | 0.38 deg |
| Holding Torque without Gearbox | 4 Ncm (5.66 oz.in) |
| Rated Current/phase | 0.6A |
| Phase Resistance | 10 ohms |
| Inductance | 5.5mH ± 20% (1KHz) |
Gearbox Specifications
| Attribute | Value |
|---|---|
| Gearbox Type | Planetary |
| Gear Ratio | 4.75:1 |
| Efficiency | 90% |
| Backlash at No-load | <=3 deg |
| Max. Permissible Torque | 0.5 Nm (70.8 oz.in) |
| Moment Permissible Torque | 1 Nm (141.6 oz.in) |
| Shaft Maximum Axial Load | 5N |
| Shaft Maximum Radial Load | 25N |
Physical Specifications
| Frame Size | 20 x 20mm |
| Motor Length | 38mm |
| Gearbox Length | 20.5mm |
| Shaft Diameter | Φ6mm |
| Shaft Length | 15mm |
