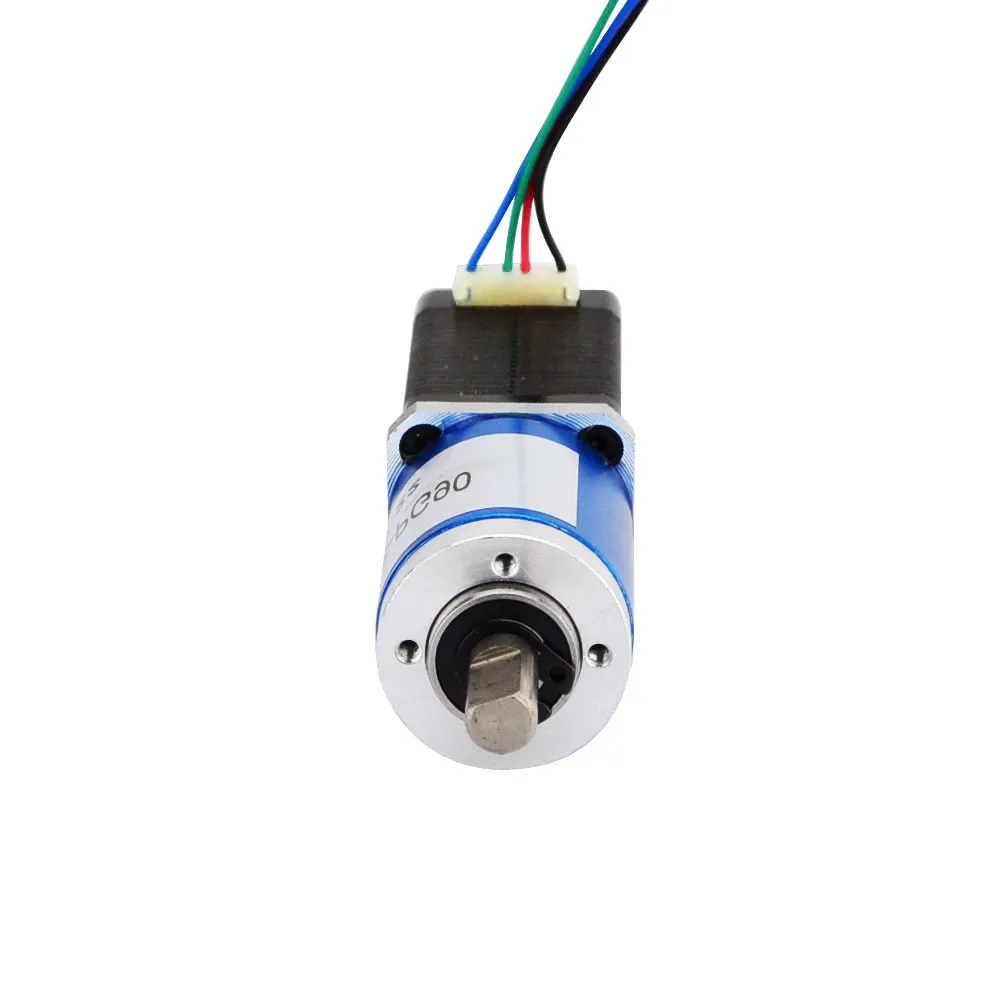

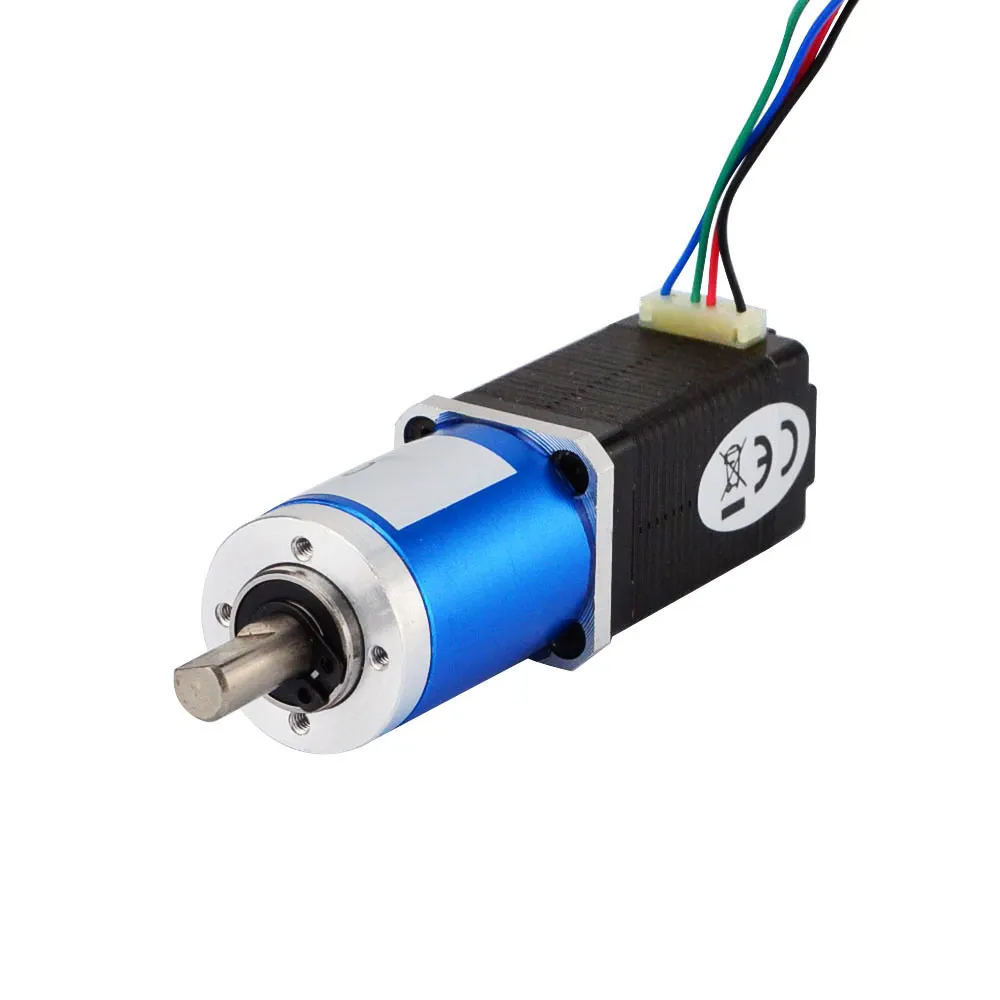

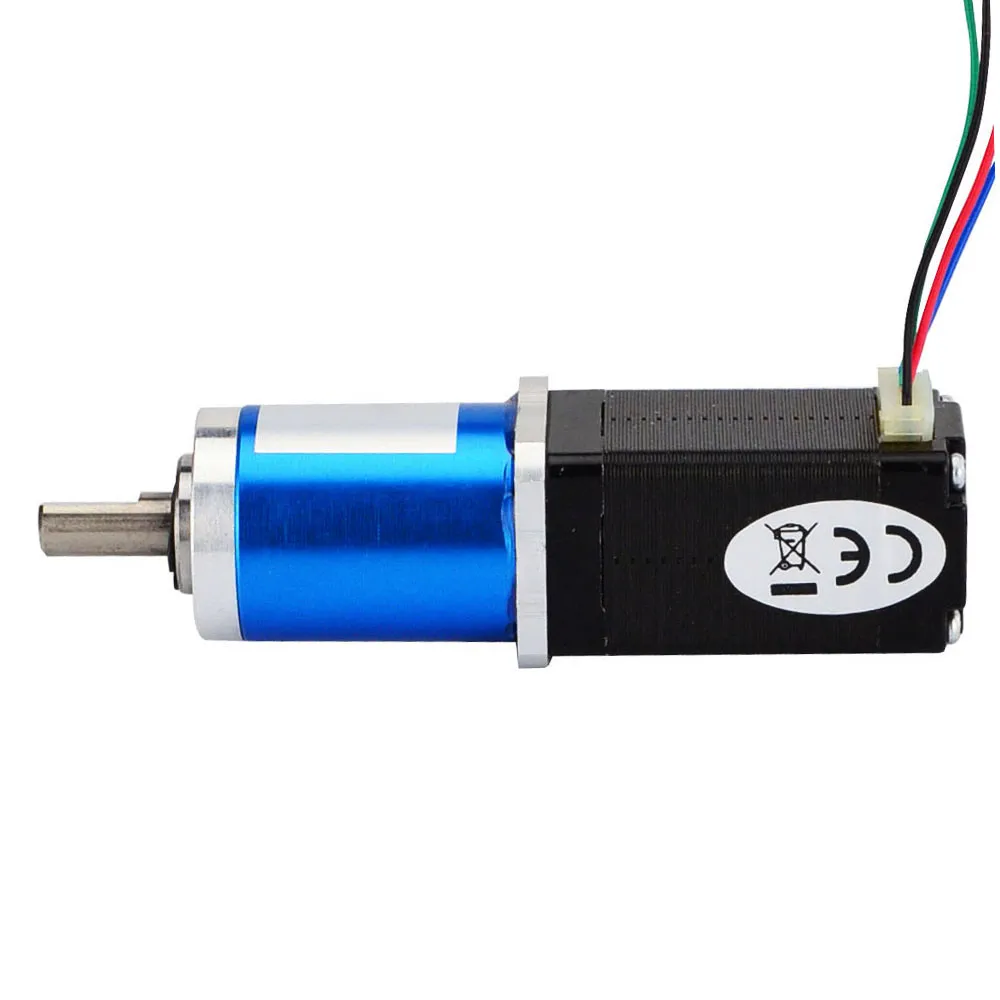

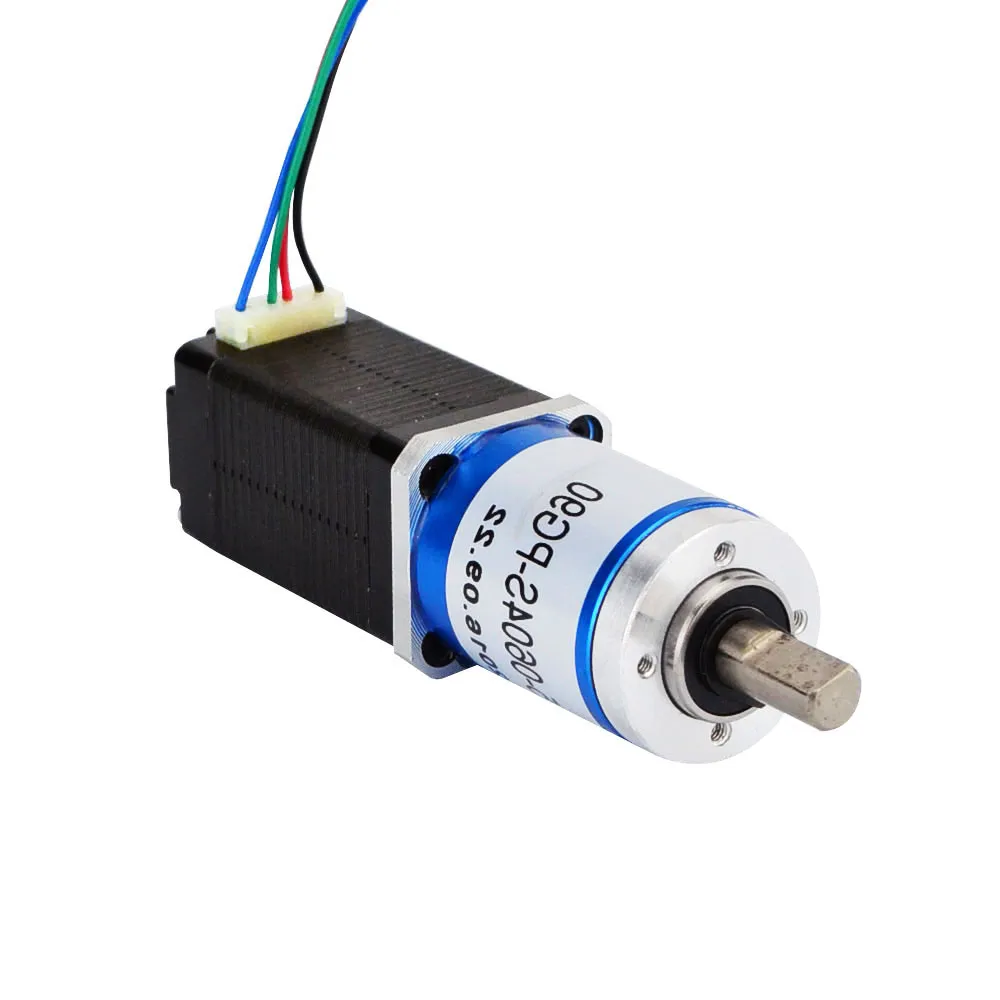

Nema 8 0.028deg 4Ncm 0.6A Bipolar Stepper Motor

$42.82

Unlock unparalleled precision and power with the Nema 8 0.028deg 4Ncm 0.6A Bipolar Stepper Motor. Engineered for demanding automation tasks, this motor combines ultra-fine step resolution with high torque capabilities, ensuring exceptional accuracy and control. Ideal for robotics, 3D printers, and intricate positioning systems, this stepper motor delivers reliable performance and enhanced precision, revolutionizing your automation projects with its robust and dependable operation.

Model Type

Degree()0.028

Rated Torque(Ncm)()4

Current(A)()0.6

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 8HS15-0604S-PG90
Motor Type Bipolar Stepper
Step Angle 0.02 deg
Holding Torque without Gearbox 4 Ncm (5.66 oz.in)
Rated Current/phase 0.6A
Phase Resistance 11 ohms
Inductance 5.5mH ± 20% (1KHz)

Gearbox Specifications

Gearbox Type Planetary
Gear Ratio 90.25:1
Efficiency 70%
Backlash at No-load <=3 deg
Max. Permissible Torque 0.5 Nm (127.5 oz.in)
Moment Permissible Torque 1 Nm (283 oz.in)
Shaft Maximum Axial Load 5 N
Shaft Maximum Radial Load 25 N

Physical Specifications

Frame Size 20 x 20mm
Motor Length 38mm
Gearbox Length 30.95mm
Shaft Diameter Φ6mm
Shaft Length 15mm
D-cut Length 9mm
Number of Leads 4
Lead Length 300mm
Weight 130g

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
