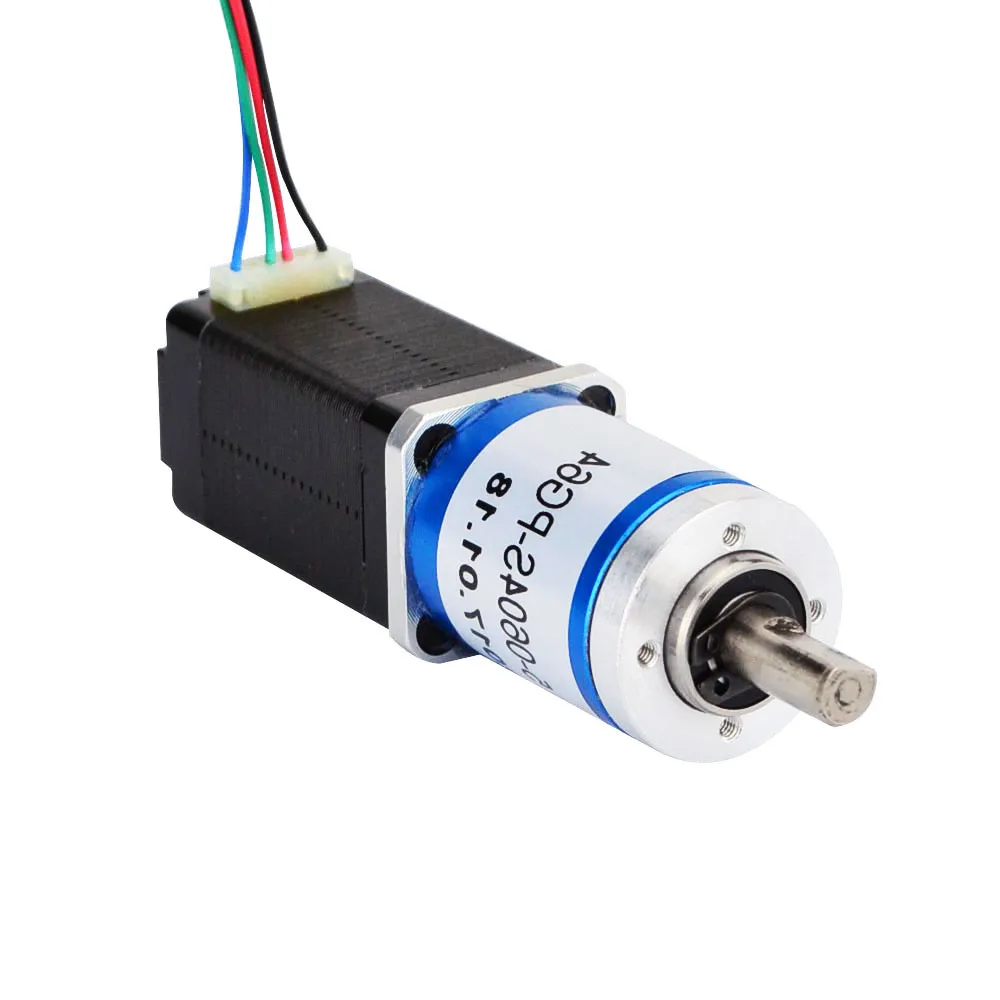

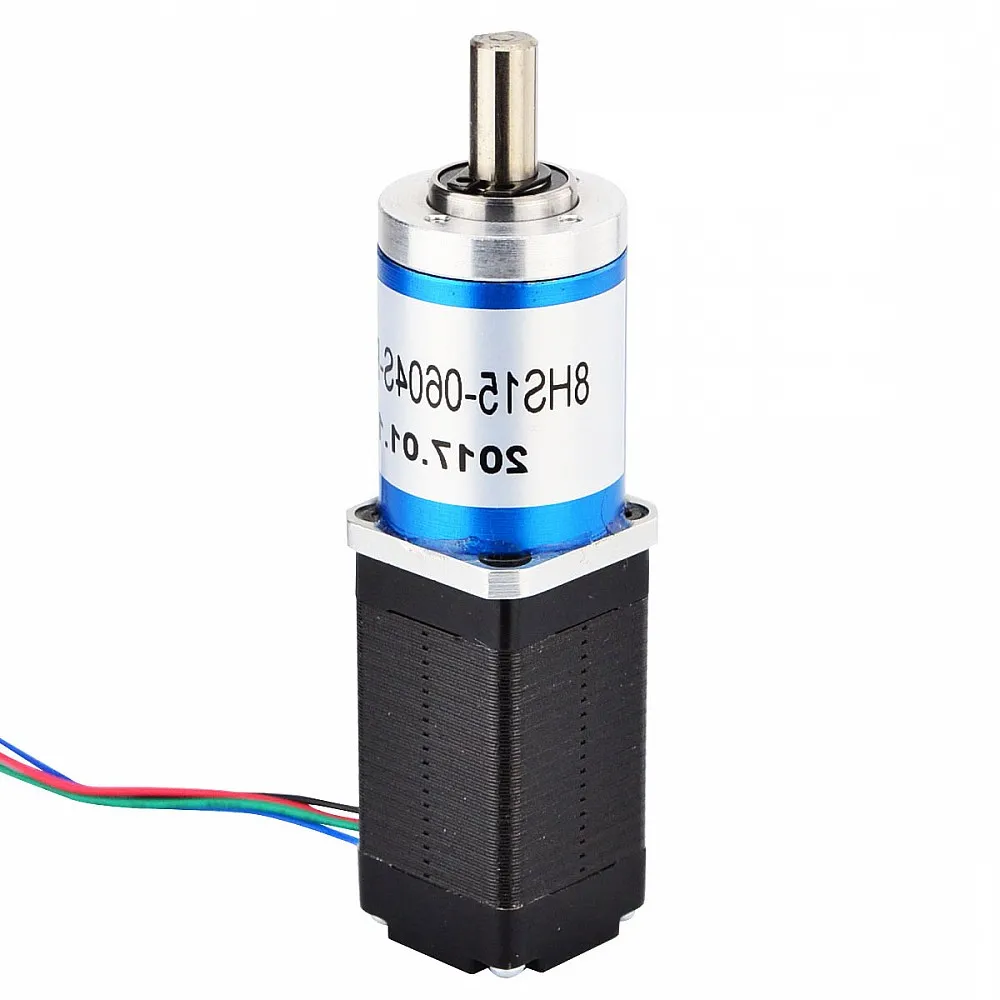

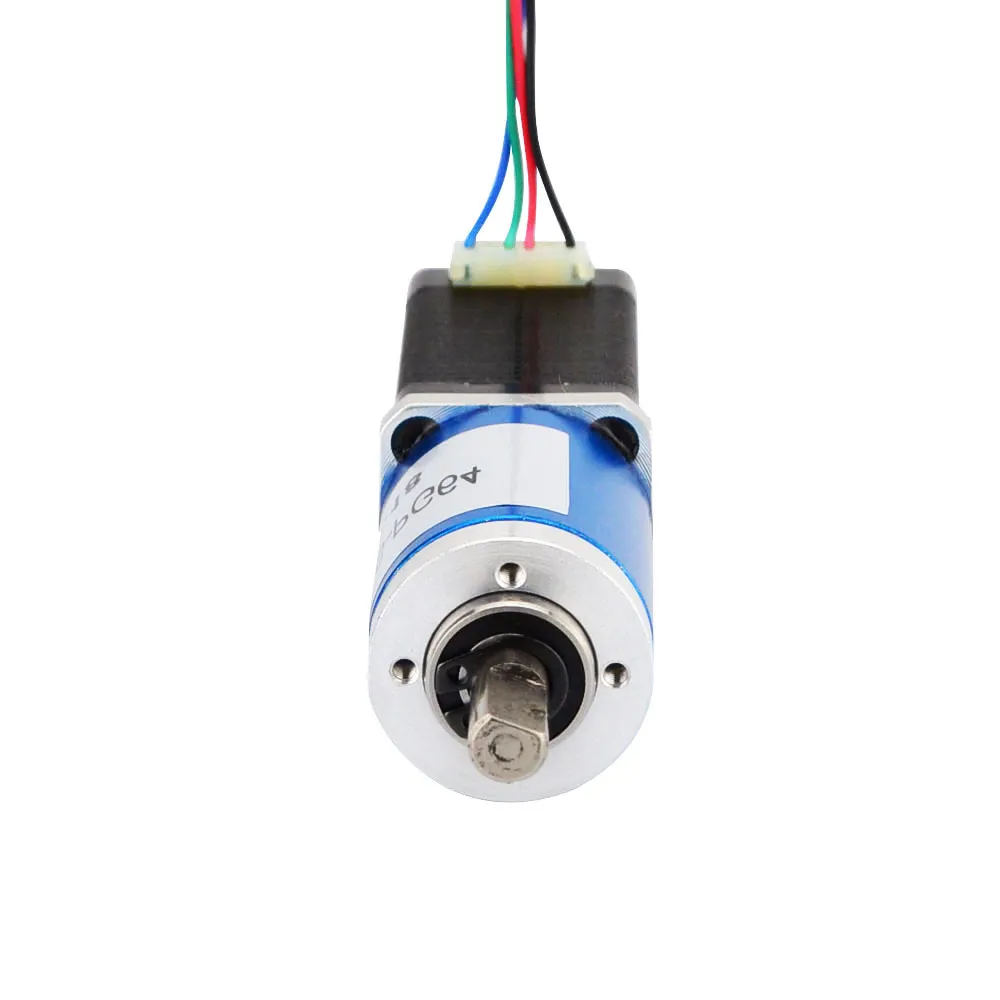

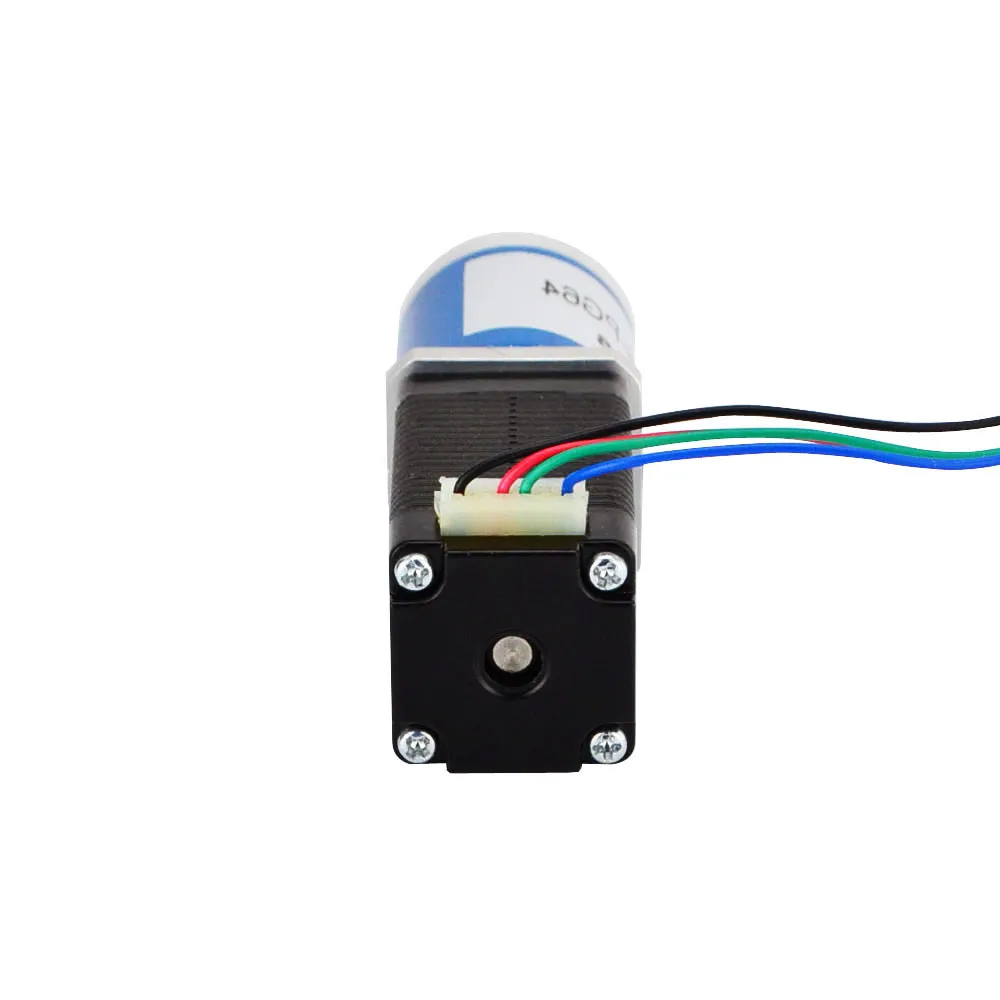

Nema 8 0.028deg 1Ncm 0.6A Bipolar Stepper Motor
$42.82
Nema 8 0.028deg 1Ncm 0.6A Bipolar Stepper Motor, the epitome of precision and control. With its ultra-fine step resolution and high torque, this motor excels in applications that demand exceptional accuracy and smooth motion. Whether you're working on robotics, automation equipment, or optical systems, this stepper motor provides the reliability and performance you need to achieve precise and reliable results. Upgrade your automation projects with this powerful and precise stepper motor.
SPECIFICATIONS
Electrical Specification
Manufacturer Part Number | 8HS15-0604S-PG64 |
Motor Type | Bipolar Stepper |
Step Angle | 0.028 deg |
Holding Torque without Gearbox | 4 Ncm (5.66 oz.in) |
Rated Current/phase | 0.6A |
Phase Resistance | 11 ohms |
Inductance | 5.5mH ± 20% (1KHz) |
Gearbox Specifications
Gearbox Type | Planetary |
Gear Ratio | 64:1 |
Inventory Method | Dedicated Inventory |
IP Rating | 40 |
Frame Size (mm) | Nema 08 (20 x 20) |
Body Length (mm) | 68.95 |
Gear Ratio (xx:1) | 64.00 |
Backlash at No-load | <=3deg |
Single Shaft/Dual Shaft | Single Shaft |
Output Shaft Type | D |
Physical Specifications
Frame Size | 20 x 20mm |
Motor Length | 38mm |
Gearbox Length | 30.95mm |
Shaft Diameter | Φ6mm |
Shaft Length | 15mm |
D-cut Length | 9mm |
Number of Leads | 4 |
Lead Length | 300mm |
Weight | 130g |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
File Name | Size | Download |
Stepper-Motor-Catalog.pdf | 19.2MB | Download |
