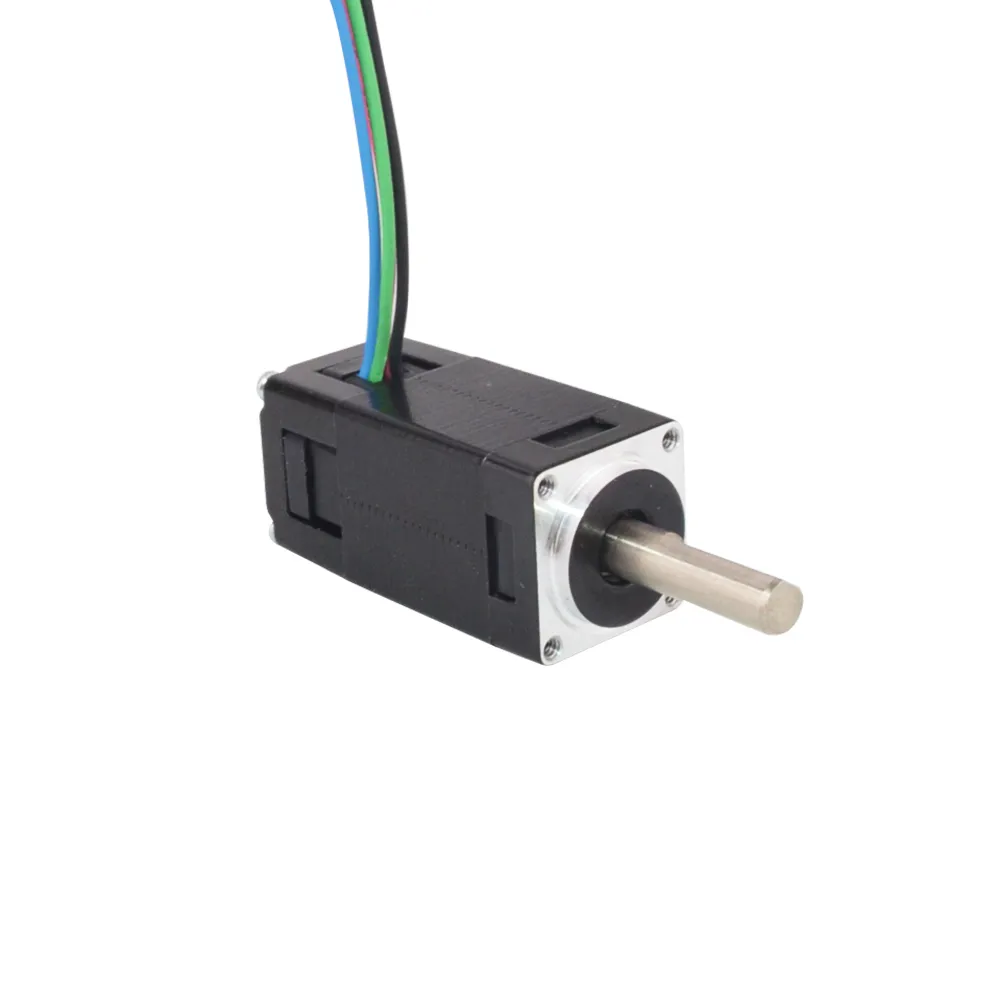

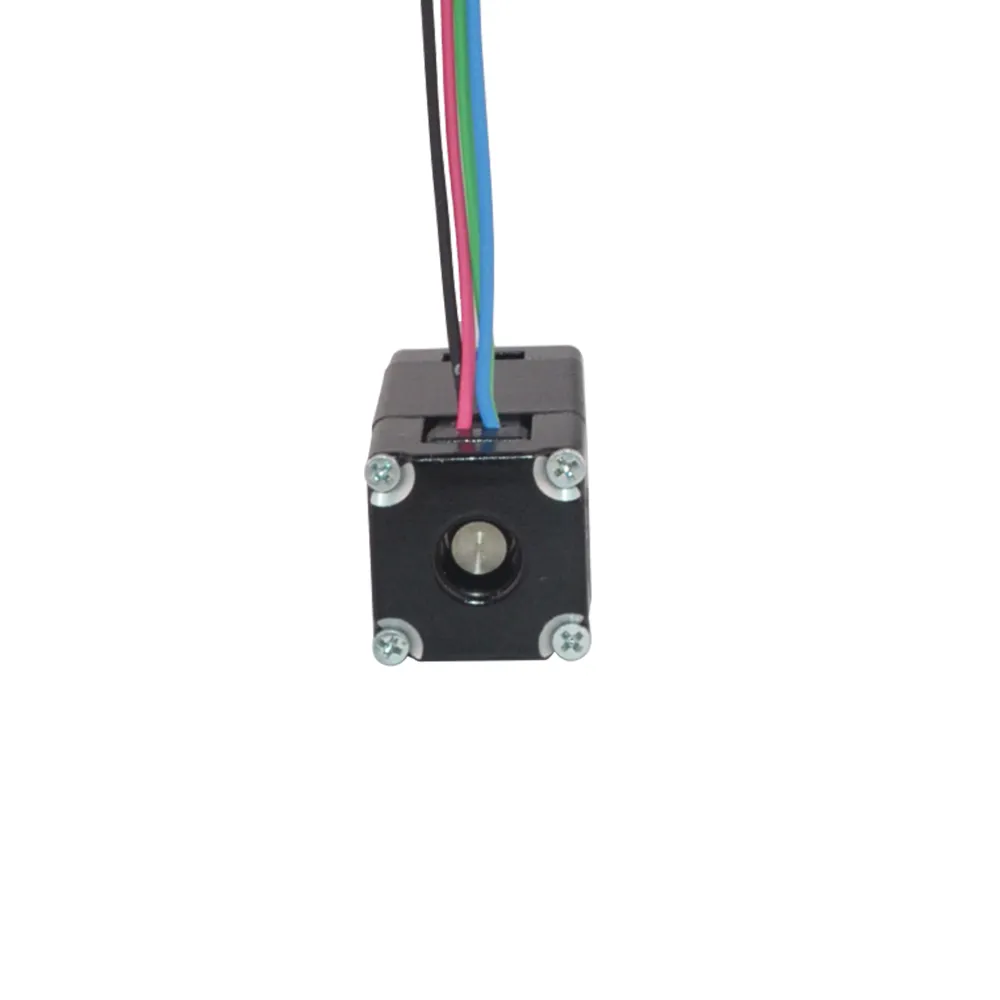

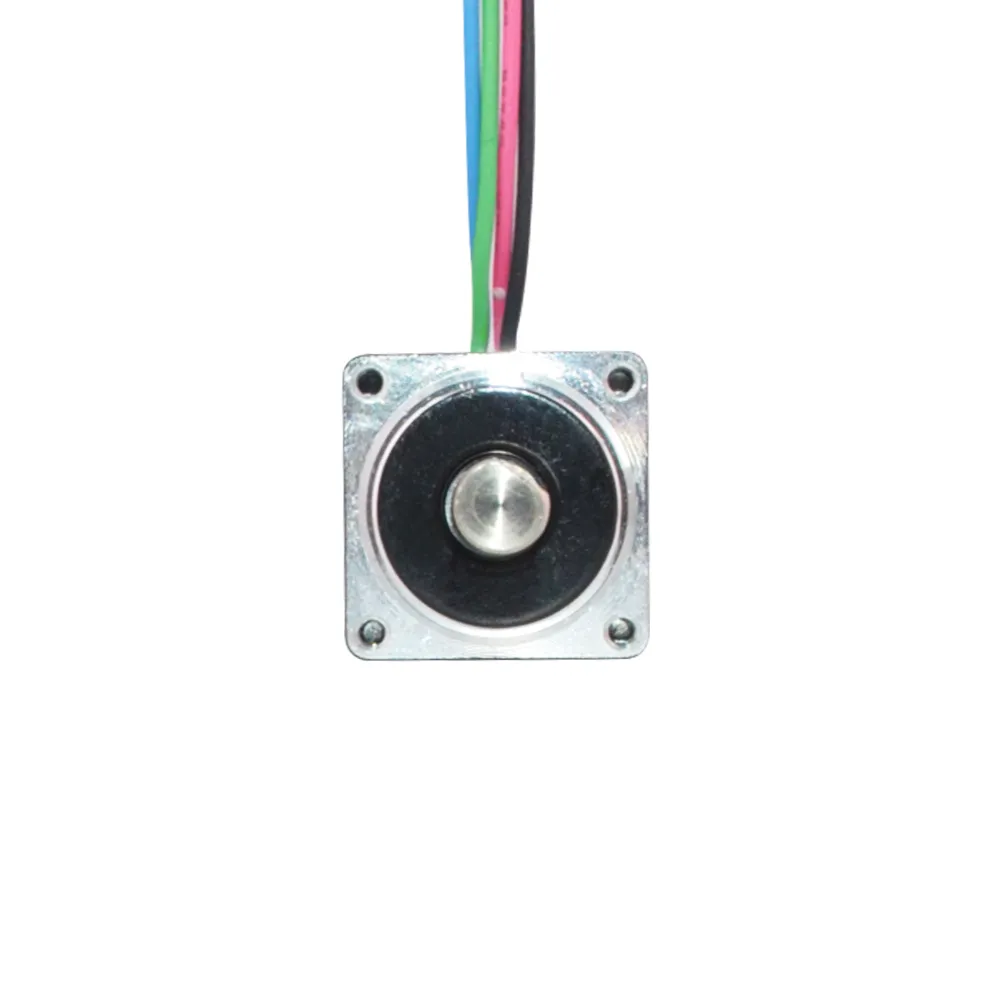

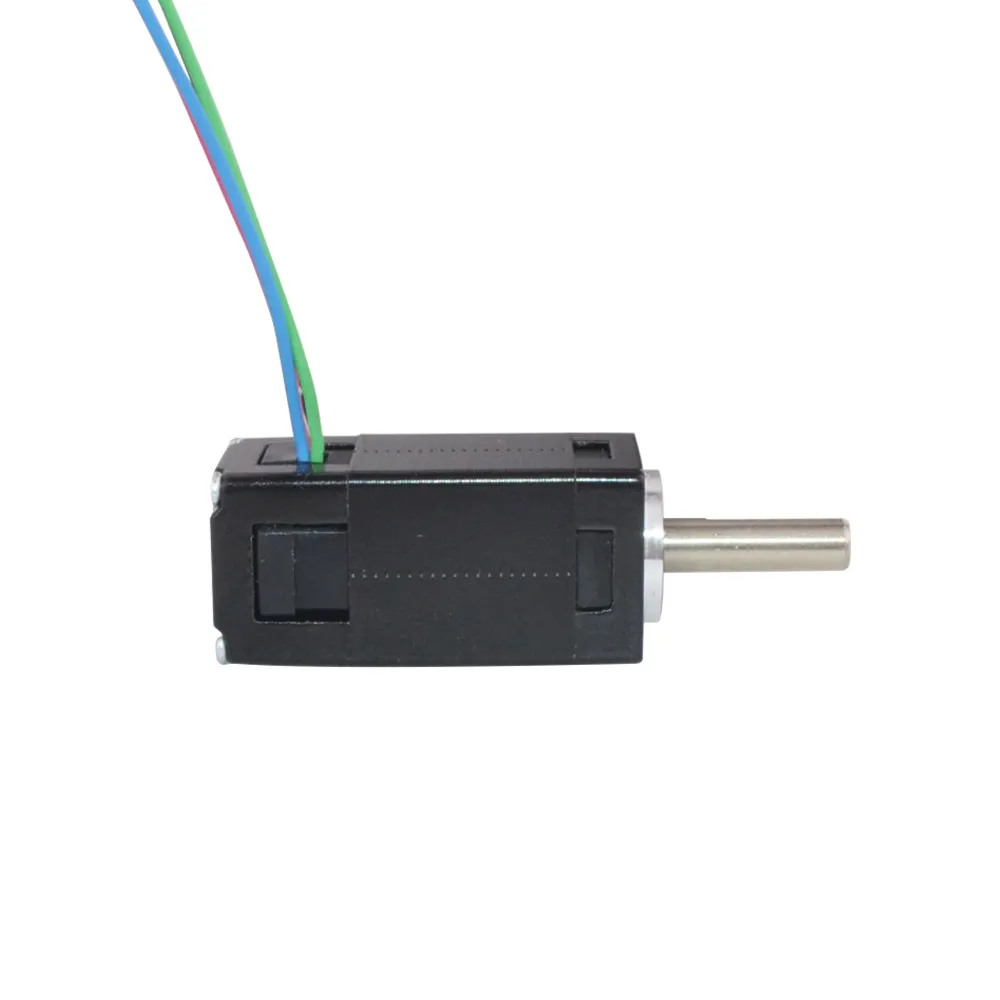

Nema 6 1.8deg 0.58Ncm 0.3A Stepper Motor

$65.14

Introducing the Nema 6 1.8deg 0.58Ncm 0.3A Stepper Motor, a compact yet powerful solution for precise motion control in your automation projects. With its high accuracy and torque, this stepper motor is perfect for applications where space is limited but precision is crucial. Whether you're working on robotics, 3D printers, or small-scale machinery, this motor will enhance your performance and simplify your automation tasks.

Model Type

Degree()1.8

Rated Torque(Ncm)()0.58

Current(A)()0.3

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 6HS12-0304S
Motor Type Bipolar Stepper
Inductance (mH) 3.4
Phase Resistance (ohm) 22
Rated Current (A) 0.3
Step Angle (deg.) 1.8
Holding Torque (Ncm) 0.58

Physical Specification

Inventory Method Dedicated Inventory
IP Rating 40
Frame Size (mm) Nema 06 (14 x 14)
Product Series S
Body Length (mm) 30
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Shaft Diameter (mm) 4

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
