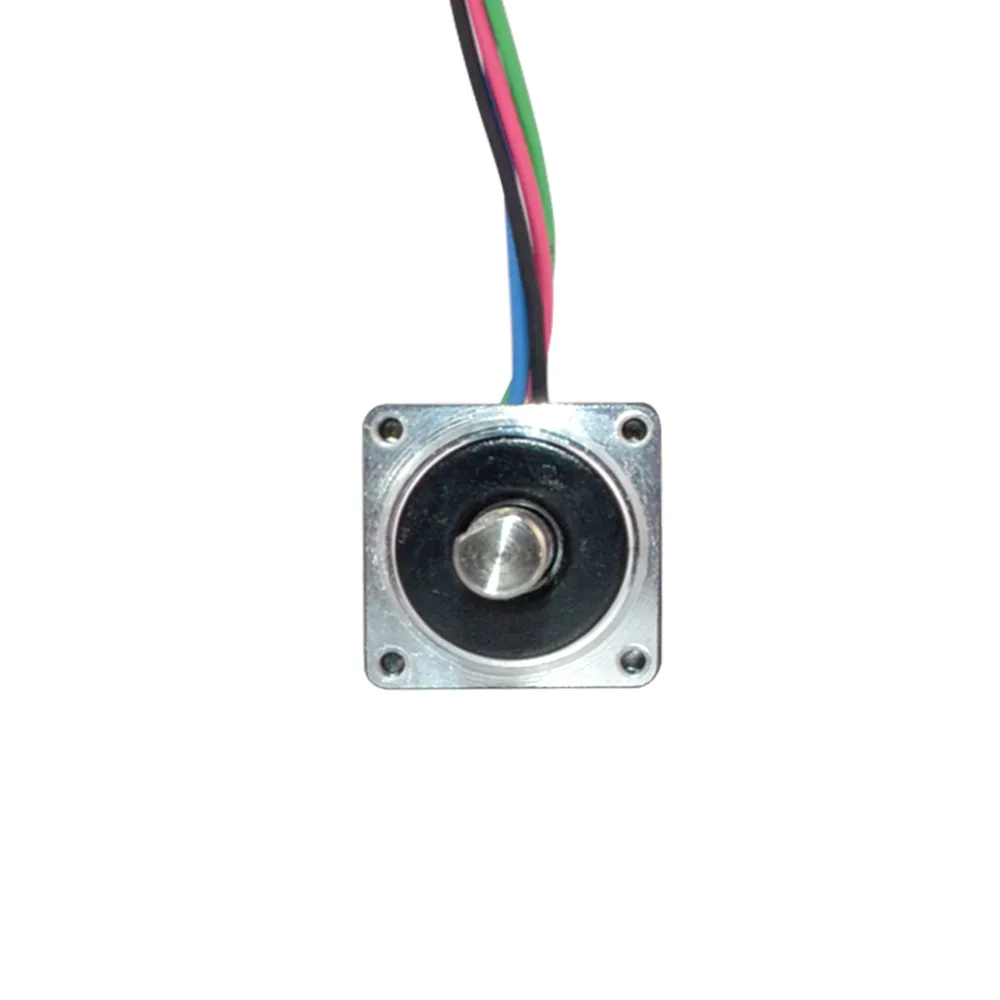

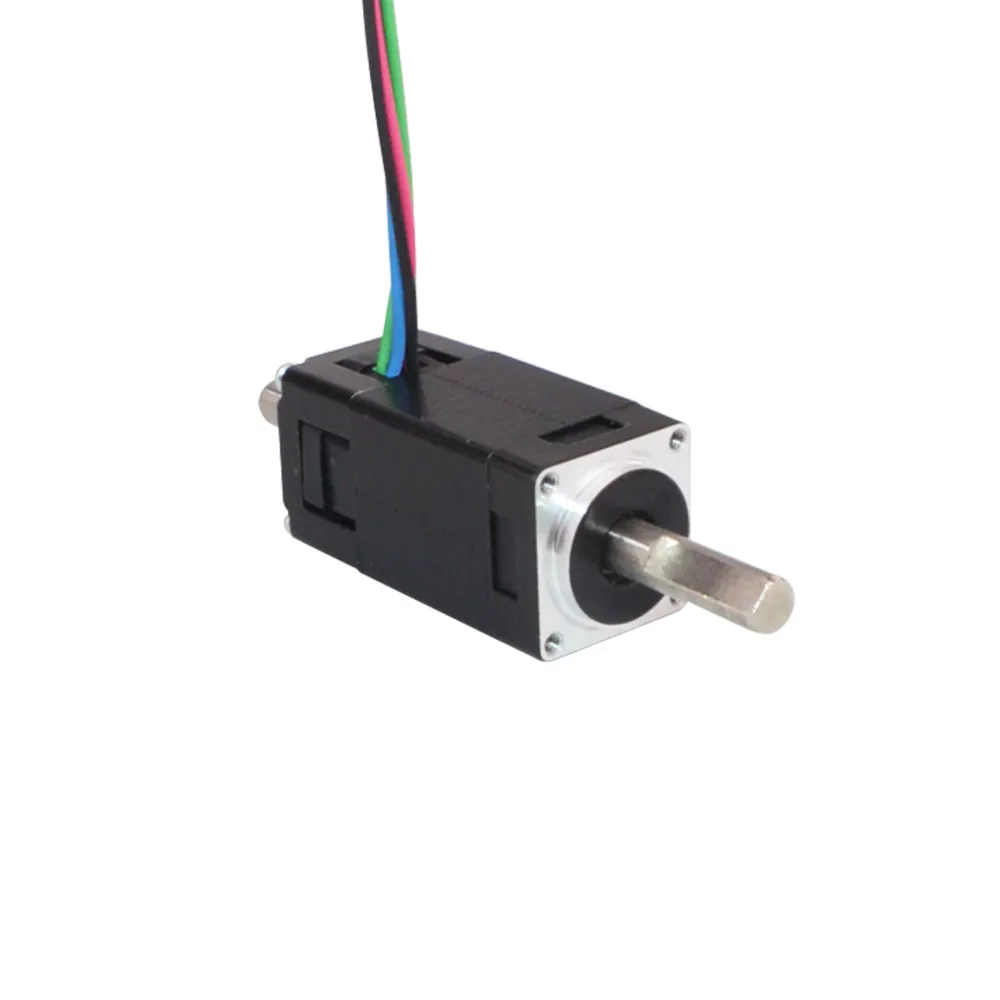

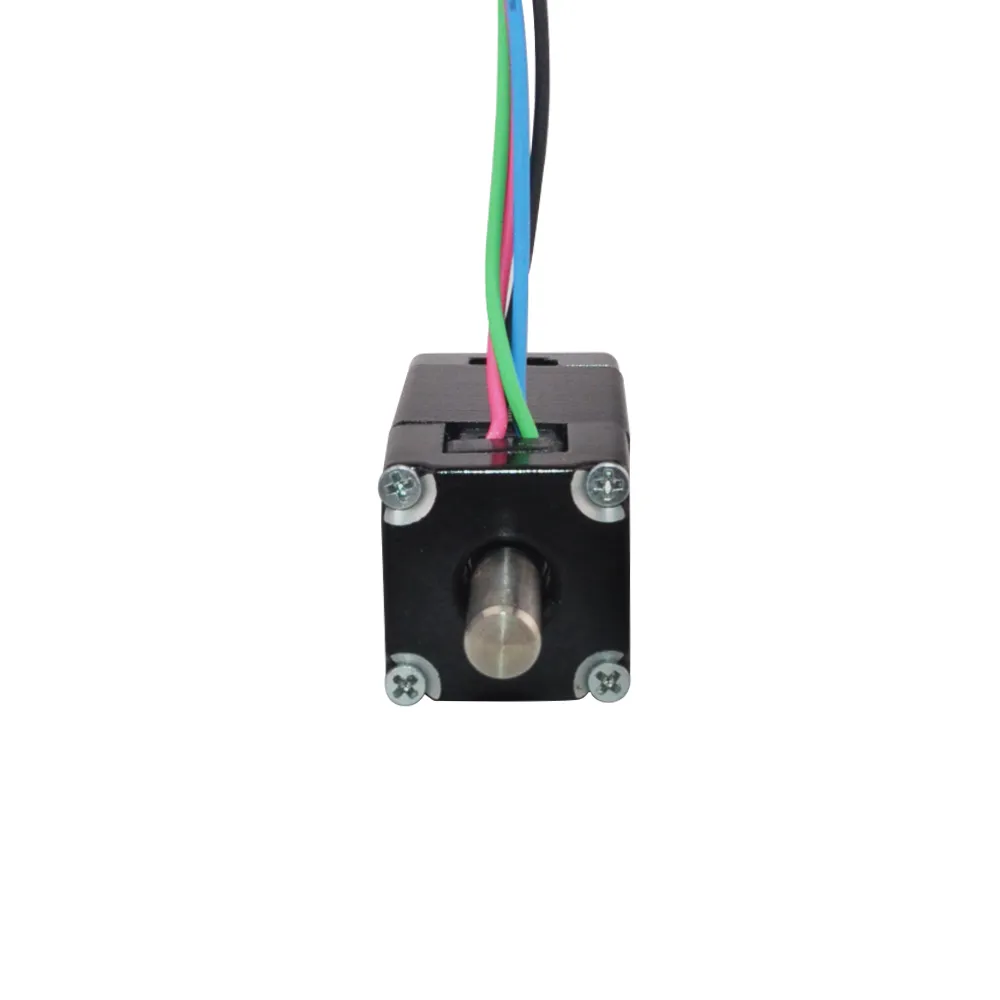

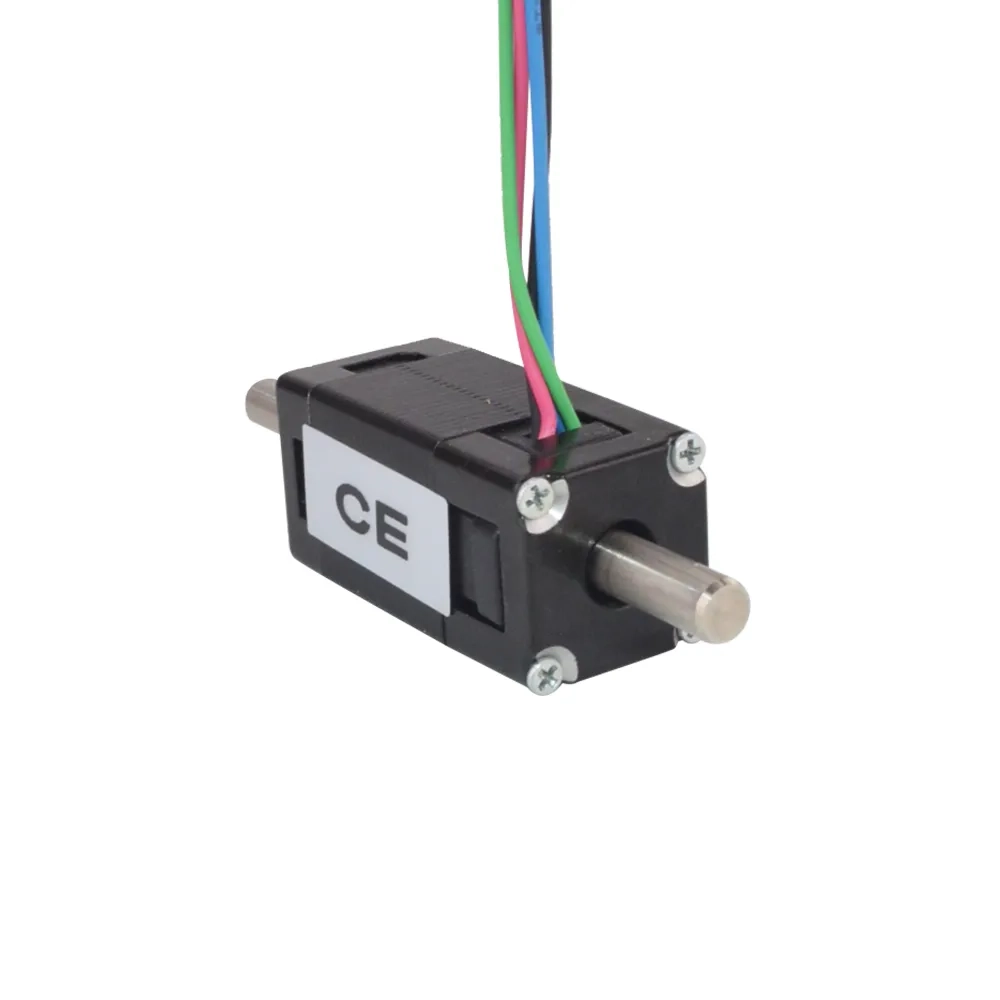

Nema 6 1.8deg 0.58Ncm 0.3A Dual Shaft Stepper Motor

Home > Nema 6 1.8deg 0.58Ncm 0.3A Dual Shaft Stepper Motor

Nema 6 1.8deg 0.58Ncm 0.3A Dual Shaft Stepper Motor

$65.14

Introducing the Nema 6 1.8deg 0.58Ncm 0.3A Dual Shaft Stepper Motor, the perfect solution for precise motion control and enhanced automation, providing unparalleled accuracy and torque for demanding tasks in robotics, CNC machines, and 3D printers.

Motor TypeStepper Motor

Degree1.6

Rated Torque0.58

Current0.3

Electrical Specification

Manufacturer Part Number 6HS12-0304D
Has Torque/Thrust Curve? No
Inductance(mH) 3.4
Phase Resistance(ohm) 22
Product Type Hybrid Stepper Motor
Rated Current(A) 0.3
Step Angle(deg.) 1.8
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 0.58
Holding Torque(oz.in) 0.82

Physical Specification

Frame Size 14 x 14mm
Body Length 30mm
Shaft Diameter Φ4mm
Front Shaft Length 15mm
D-cut Shaft Length 10mm
Rear Shaft Length 15mm
Number of Leads 4
Lead Length 300mm
Weight 30g
