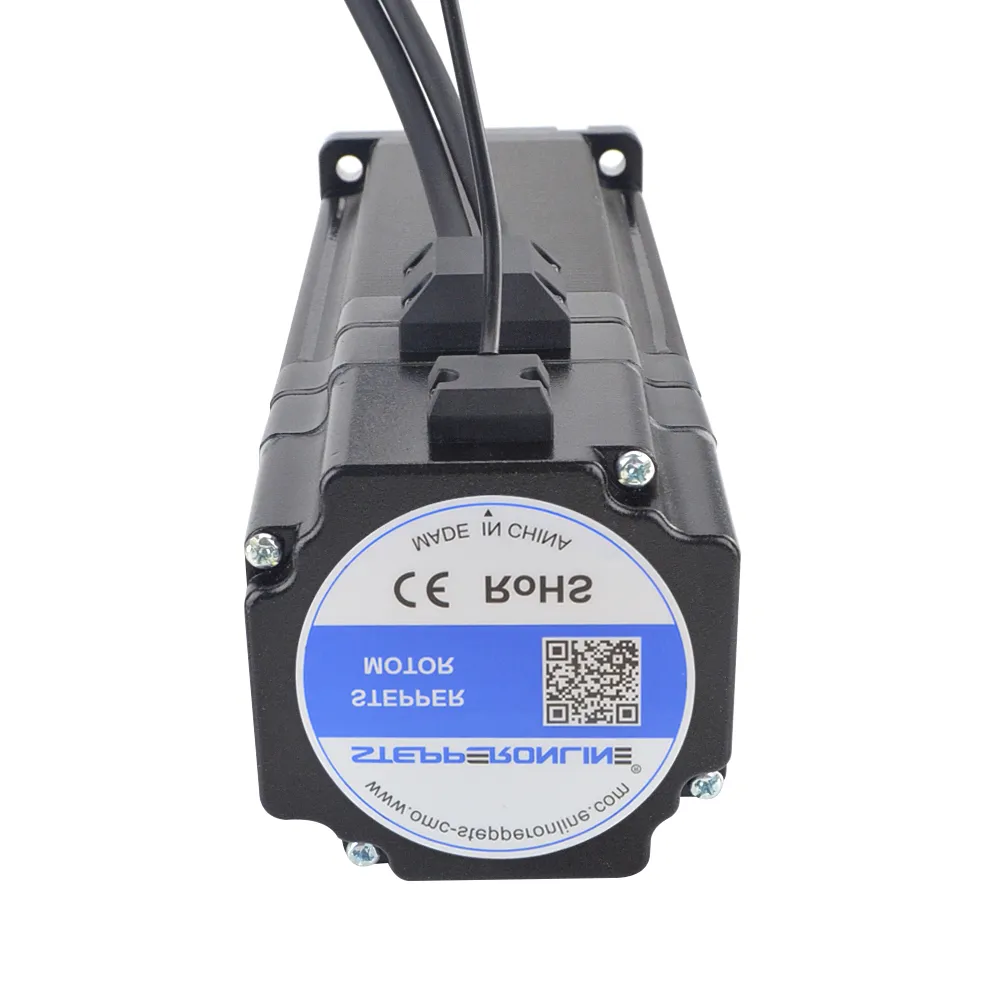

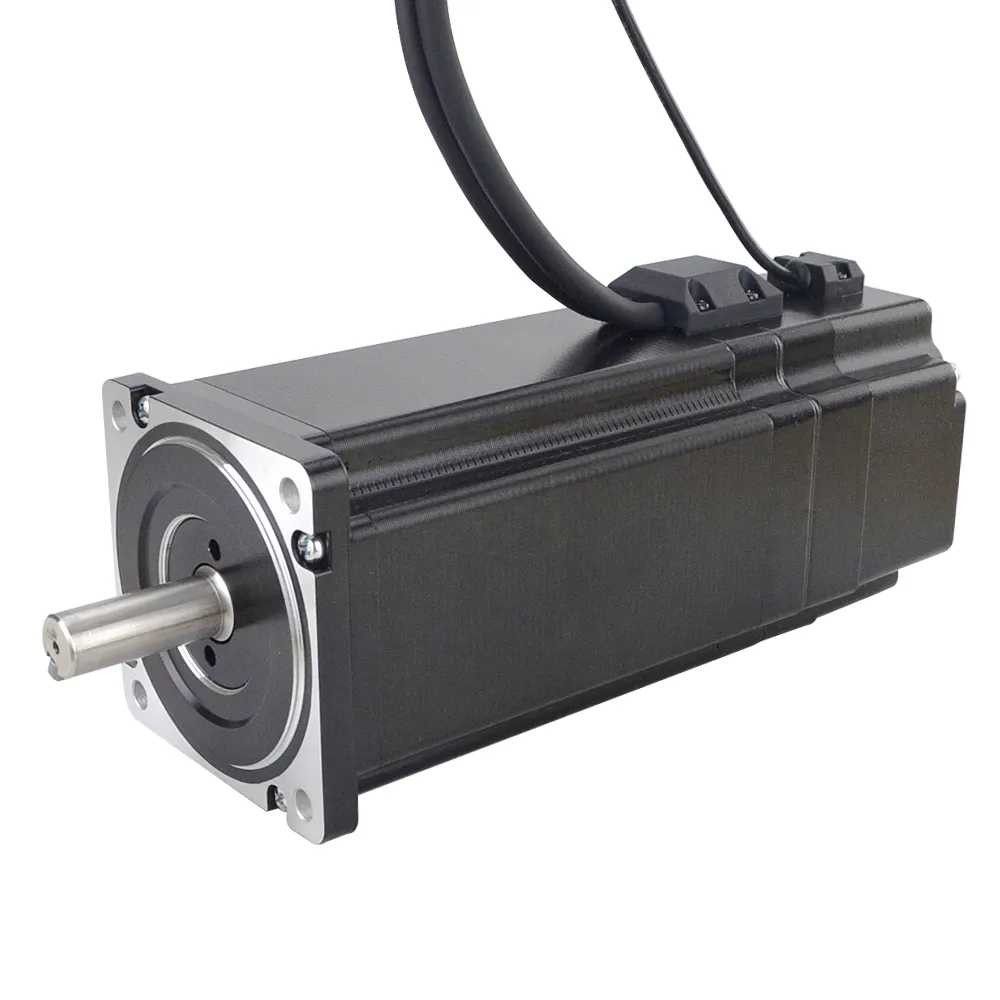

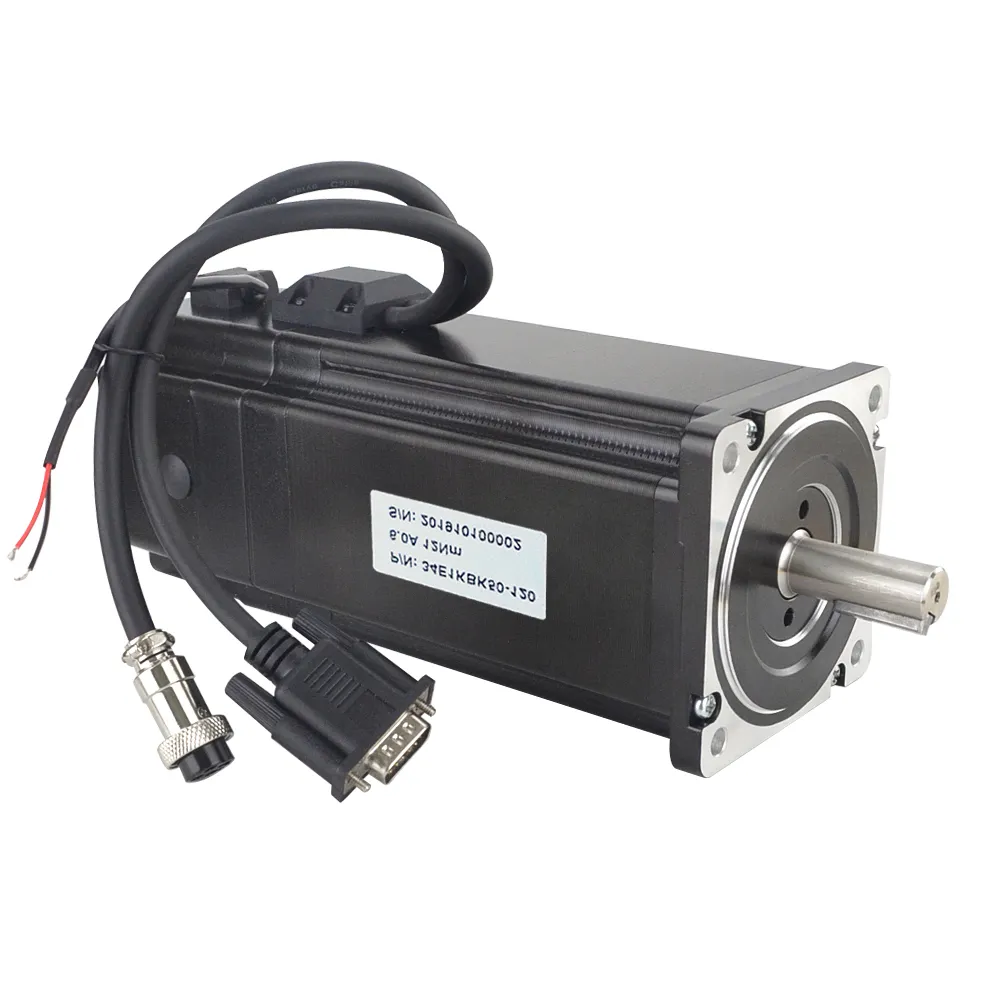

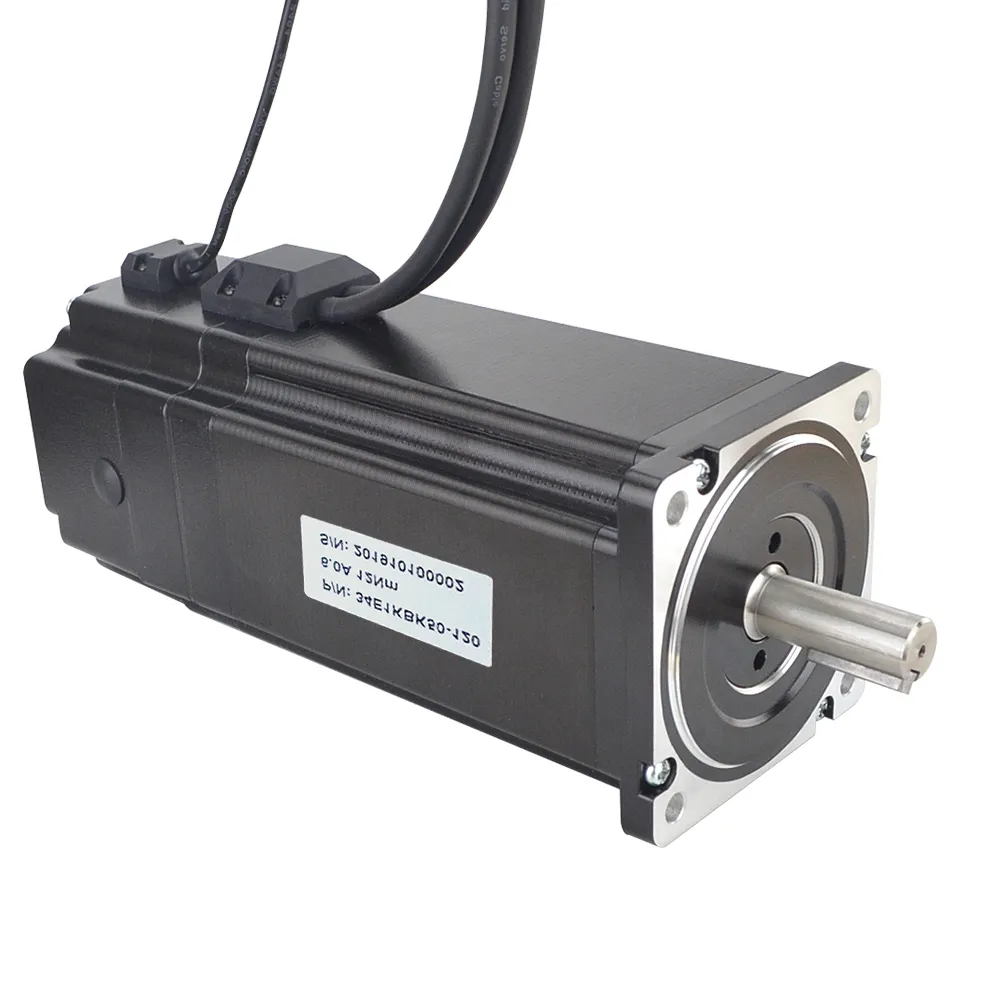

SPECIFICATIONS
Electrical Specification:
| Manufacturer Part Number | 34E1KBK50-120 |
| Number of Phases | 2 |
| Step Angle | 1.8 deg |
| Holding Torque | 12 Nm (1700 oz.in) |
| Rated Current/Phase | 6.0 A |
| Phase Resistance | 0.72 ohms |
| Inductance | 7.3 mH ± 20% (1 KHz) |
Physical Specification:
| Frame Size | 86 x 86 mm |
| Body Length | 150.6 mm |
| Shaft Diameter | Φ14 mm |
| Shaft Length | 37 mm |
| Keyway Length | 25 mm |
| Number of Leads | 4 |
| Lead Length | 500 mm |
| Weight | 5.0 kg |
Encoder Specification:
| Output Circuit Type | Differential type |
| Encoder Type | Incremental |
| Output Signal Channels | 2 channels |
| Supply Voltage Min | 5V |
| Supply Voltage Max | 5V |
| Output High Voltage | <4V |
| Output Low Voltage | <1V |
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| Stepper-Motor-Catalog.pdf | 19.2MB | Download |
