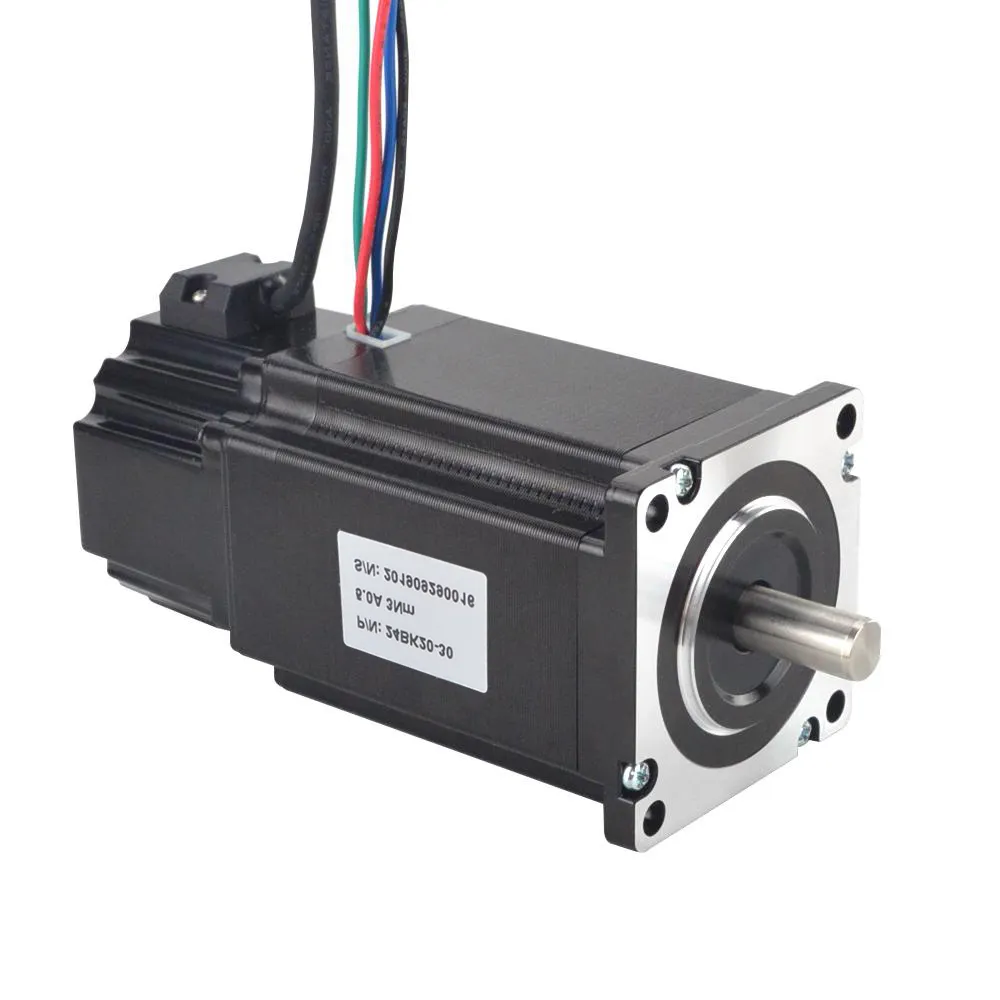

Nema 24 1.8deg 3Nm 5A Stepper Motor

$78.27

The Nema 24 1.8deg 3Nm 5A Stepper Motor is a compact yet powerful motor that enhances the efficiency and precision of various automation tasks, delivering reliable torque and precise control for applications requiring a balance of strength and size.

Get a QuoteLeave a Message

Model TypeStepper Motor

Degree1.8

Rated Torque(Nm)3

Current(A)5

Videos

SPECIFICATIONS

Electrical Specification:

Manufacturer Part Number 24BK20-30
Number of Phases 2
Step Angle 1.8 deg
Holding Torque 3 Nm (424.92 oz.in)
Rated Current/Phase 5.0 A
Phase Resistance 0.43 ohms
Inductance 1.8 mH ± 20% (1 KHz)

Physical Specification:

Frame Size 60 x 60 mm
Body Length 85 mm
Shaft Diameter Φ10 mm
Shaft Length 21 mm
D-Cut Shaft Length 15 mm
Number of Leads 4
Lead Length 500 mm
Weight 1.3 kg

Brake Connections:

Red 24V+
Red 24V-
Brake Holding Torque 2.0 Nm

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
