Nema 23 1.8deg 1.85Ncm 2.81A Stepper Motor

Home > Nema 23 1.8deg 1.85Ncm 2.81A Stepper Motor

Nema 23 1.8deg 1.85Ncm 2.81A Stepper Motor

$31.39

Introducing the Nema 23 1.8deg 1.85Ncm 2.81A Stepper Motor, a powerhouse designed to handle your demanding automation tasks with ease. With its high torque and precision, this motor is perfect for applications requiring robust and accurate motion control, such as CNC machines, 3D printers, and industrial automation systems. Experience exceptional performance and reliability with this stepper motor, allowing you to tackle challenging projects with confidence and efficiency.

Motor TypeStepper Motor

Degree1.8

Rated Torque(Ncm)1.85

Current(A)2.81

Electrical Specification

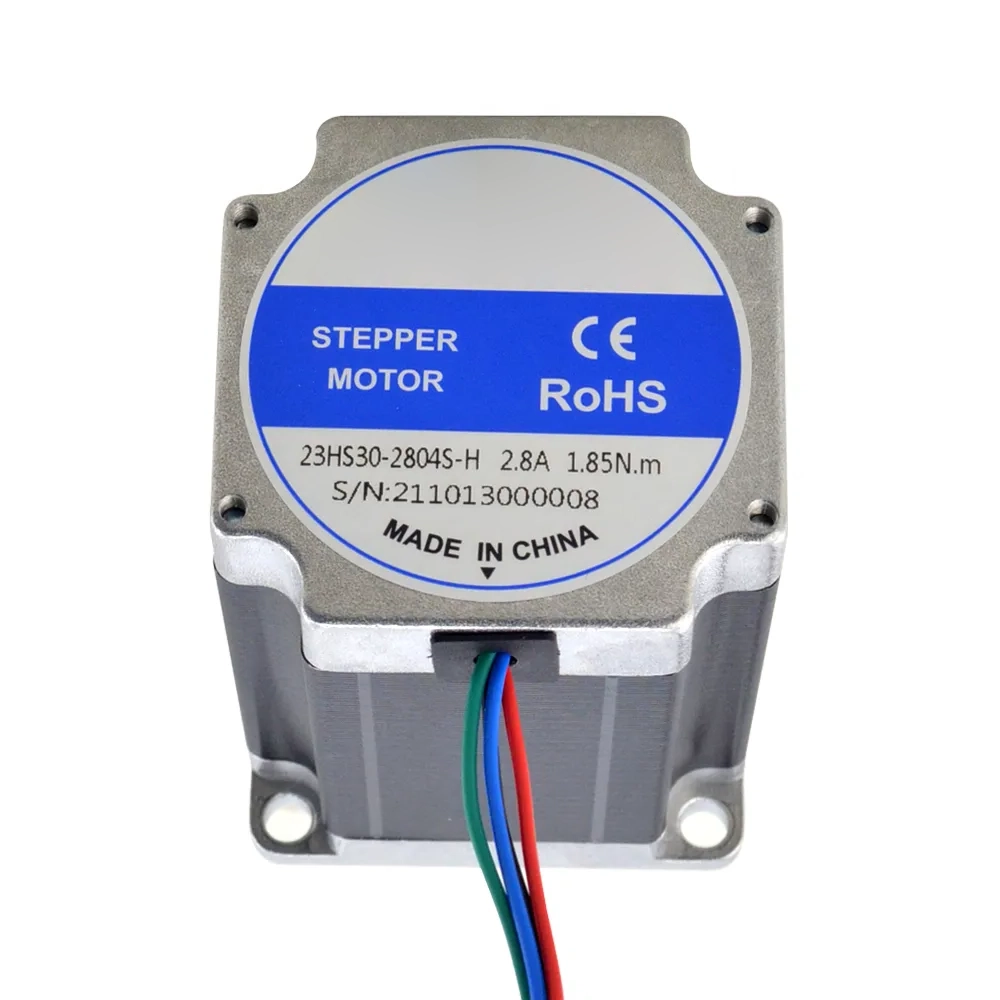

Manufacturer Part Number 23HS30-2804S-H
Motor Type Bipolar Stepper
Step Angle 1.8 deg
Holding Torque 1.85 Nm (261.98 oz.in)
Rated Current/phase 2.81A
Phase Resistance 1.13 ohms
Inductance 4.8mH ± 20% (1KHz)
Insulation Class H 180C (356F)

Physical Specification

Frame Size 57 x 57mm
Body Length 76.5mm
Shaft Diameter Φ6.35mm
Shaft Length 21mm
D-cut Length 15mm
Number of Leads 4
Lead Length 500mm
Weight 1000g

Product Display   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Feature   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Applications   / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
