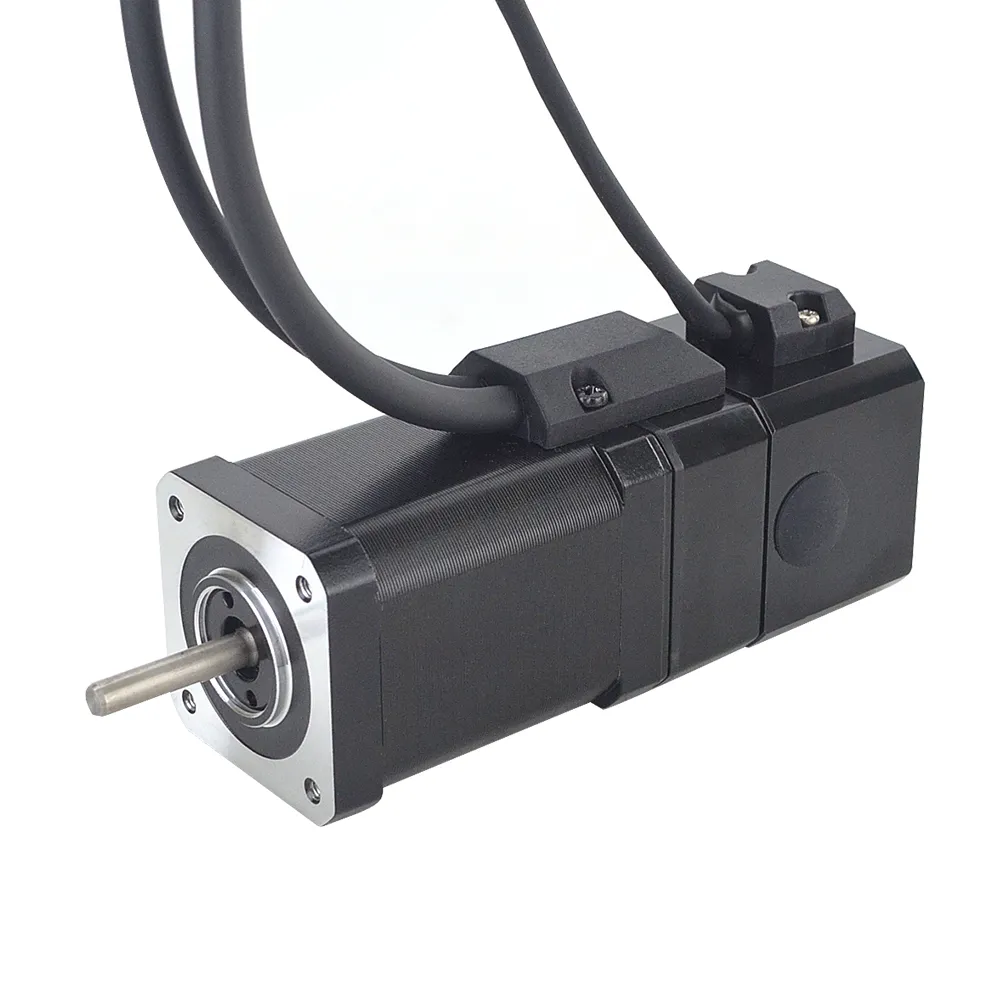

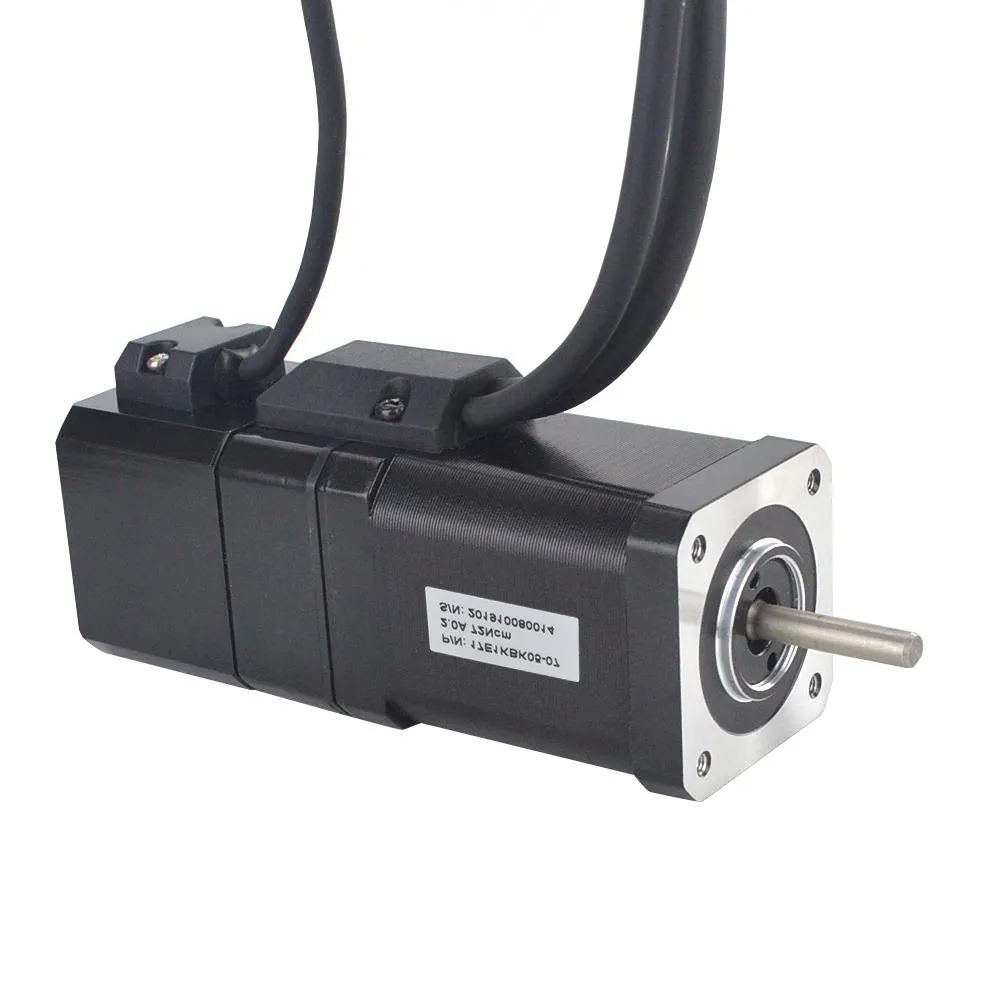

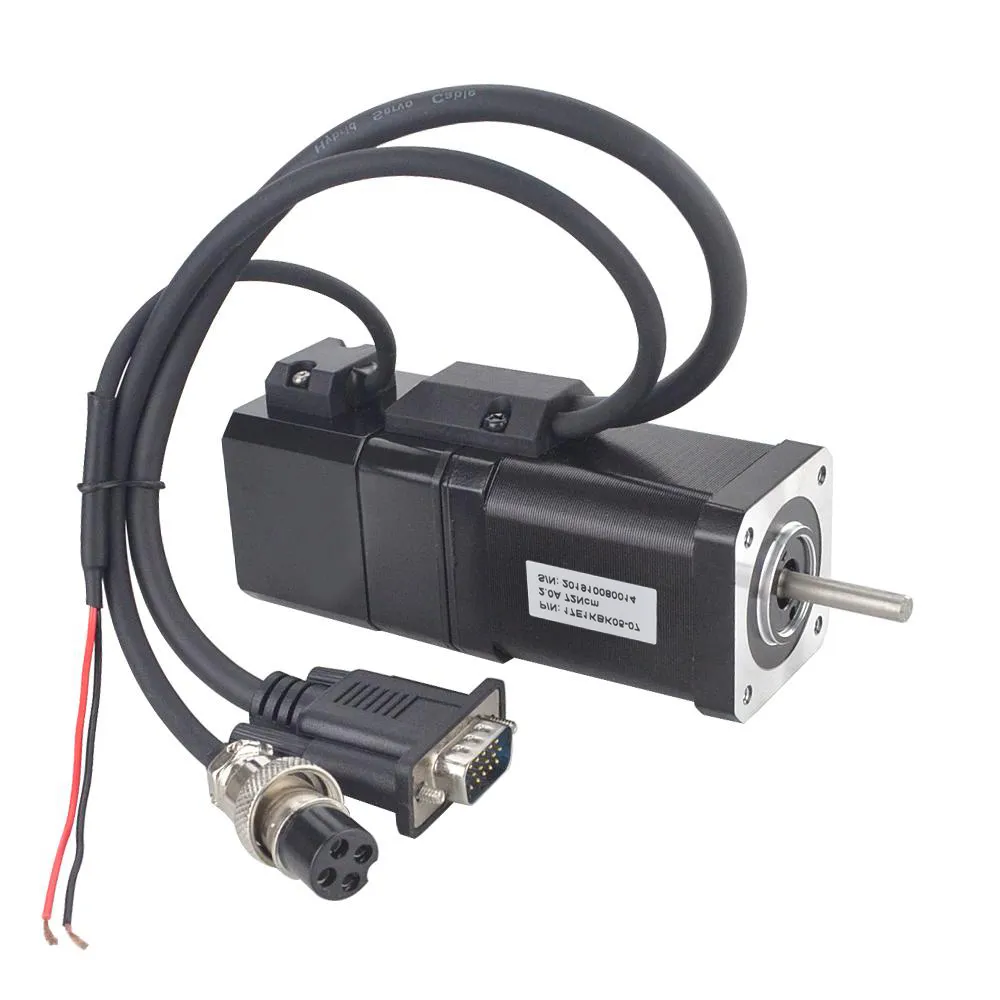

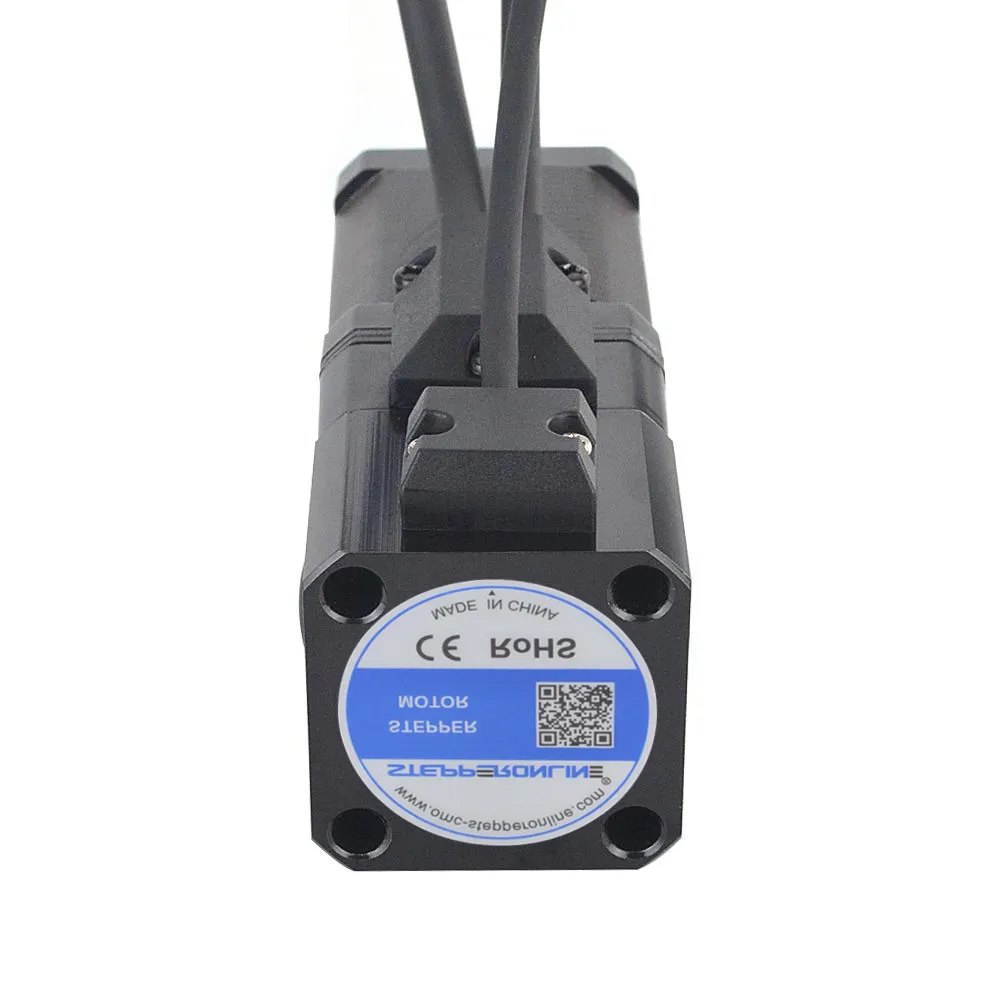

Nema 17 1.8deg 72Ncm 2.0A Stepper Motor

$83.65

Nema 17 1.8deg 72Ncm 2.0A Stepper Motor, a robust and powerful solution for your automation projects. With its high torque output and accurate step resolution, this motor delivers exceptional performance and precise motion control

Get a QuoteLeave a Message

Model Type

Degree()1.8

Rated Torque(Ncm)()72

Current(A)()2

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 17E1KBK05-07
Number of Phases 2
Step Angle 1.8 deg
Holding Torque 72 Ncm (101.98 oz.in)
Rated Current/Phase 2.0A
Phase Resistance 1.75 ohms
Inductance 4.0mH ± 20% (1KHz)

Physical Specifications

Frame Size 42 x 42mm
Body Length 60mm
Shaft Diameter Φ5mm
Shaft Length 24mm
D-Cut Shaft Length 15mm
Lead Length 270mm
Weight 0.5kg

Encoder Specification

Output Circuit Type Differential type
Encoder Type Incremental
Output Signal Channels 2 channels
Supply Voltage Min 5V
Supply Voltage Max 5V
Output High Voltage <4V
Output Low Voltage <1V

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
