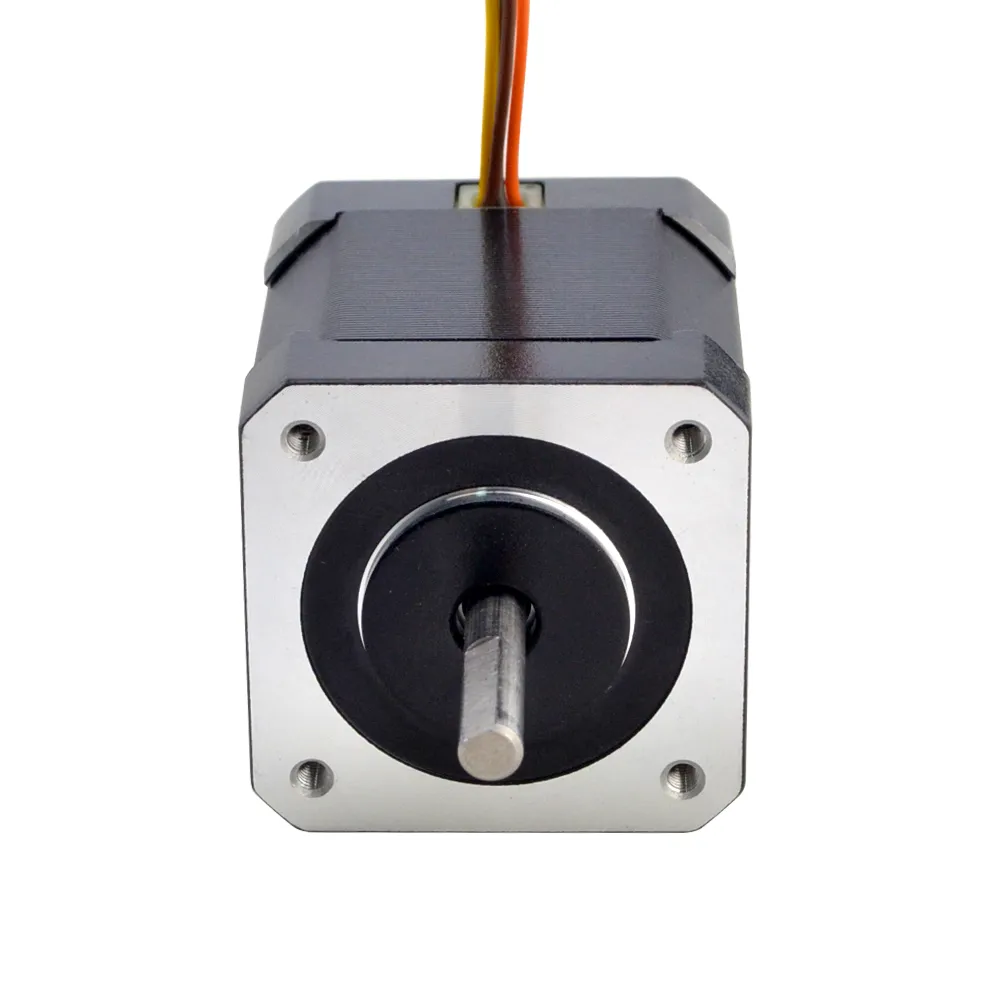

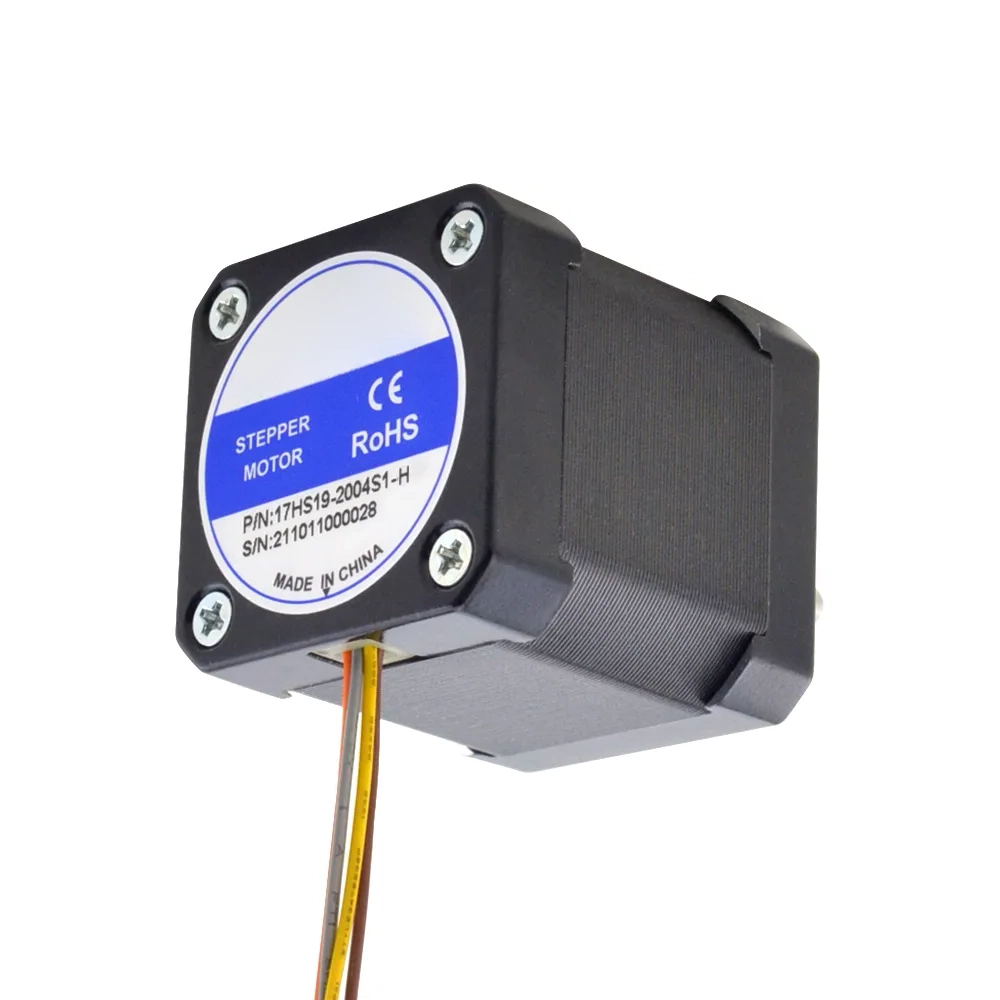

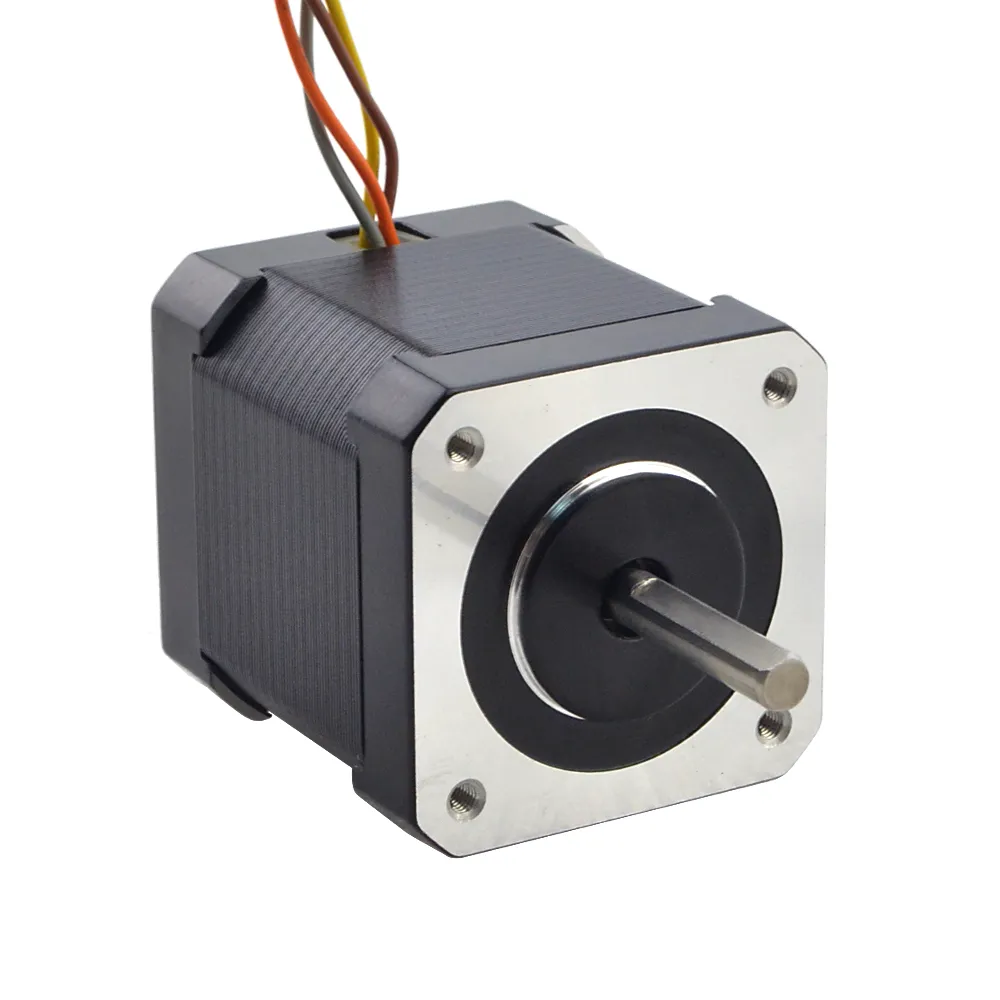

Nema 17 1.8deg 55Ncm 2.5A Stepper Motor
$17.99
Experience unmatched power and precision with the Nema 17 1.8deg 55Ncm 2.5A Stepper Motor. This high-torque motor is designed to handle demanding automation tasks with ease, providing exceptional performance and accuracy. Whether you're building a CNC machine, robotic arm, or any other application requiring precise motion control, this stepper motor is your reliable solution for enhanced productivity and efficiency.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 17HS19-2504S-H |
| Motor Type | Bipolar Stepper |
| Inductance (mH) | 1.6 |
| Open-loop/Closed-loop | Open-loop |
| Phase Resistance (ohm) | 1.1 |
| Rated Current (A) | 2.5 |
| Step Angle (deg.) | 1.8 |
| Holding Torque (Ncm) | 55 |
| Holding Torque (oz.in) | 77.93 |
| Insulation Class | H 180C (356F) |
Physical Specification
| Frame Size | 42 x 42mm |
| Inventory Method | Dedicated Inventory |
| Frame Size (mm) | Nema 17 (42 x 42) |
| Body Length (mm) | 48 |
| Single Shaft/Dual Shaft | Single Shaft |
| Output Shaft Type | D |
| Shaft Diameter (mm) | 5 |
| Shaft Length (mm) | 24 |
| No. of Lead | 4 |
| Lead Length (mm) | 1000 |
