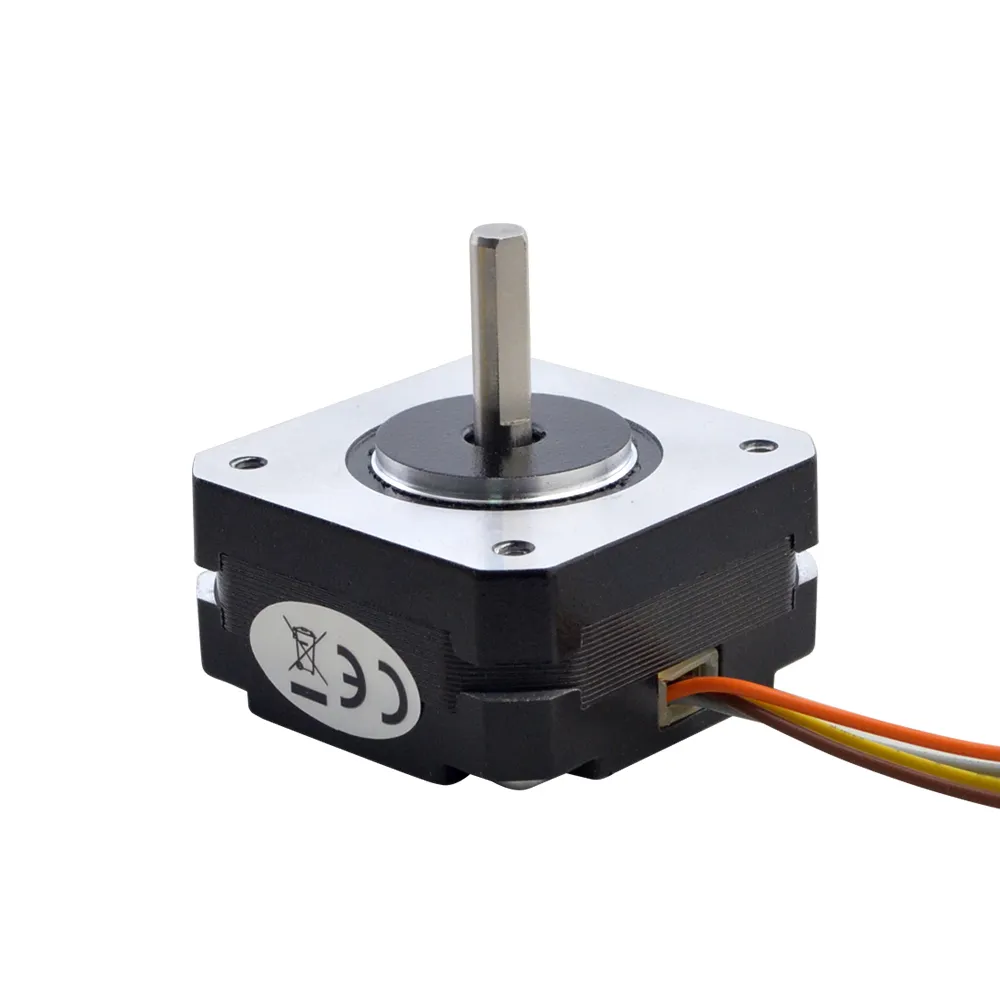

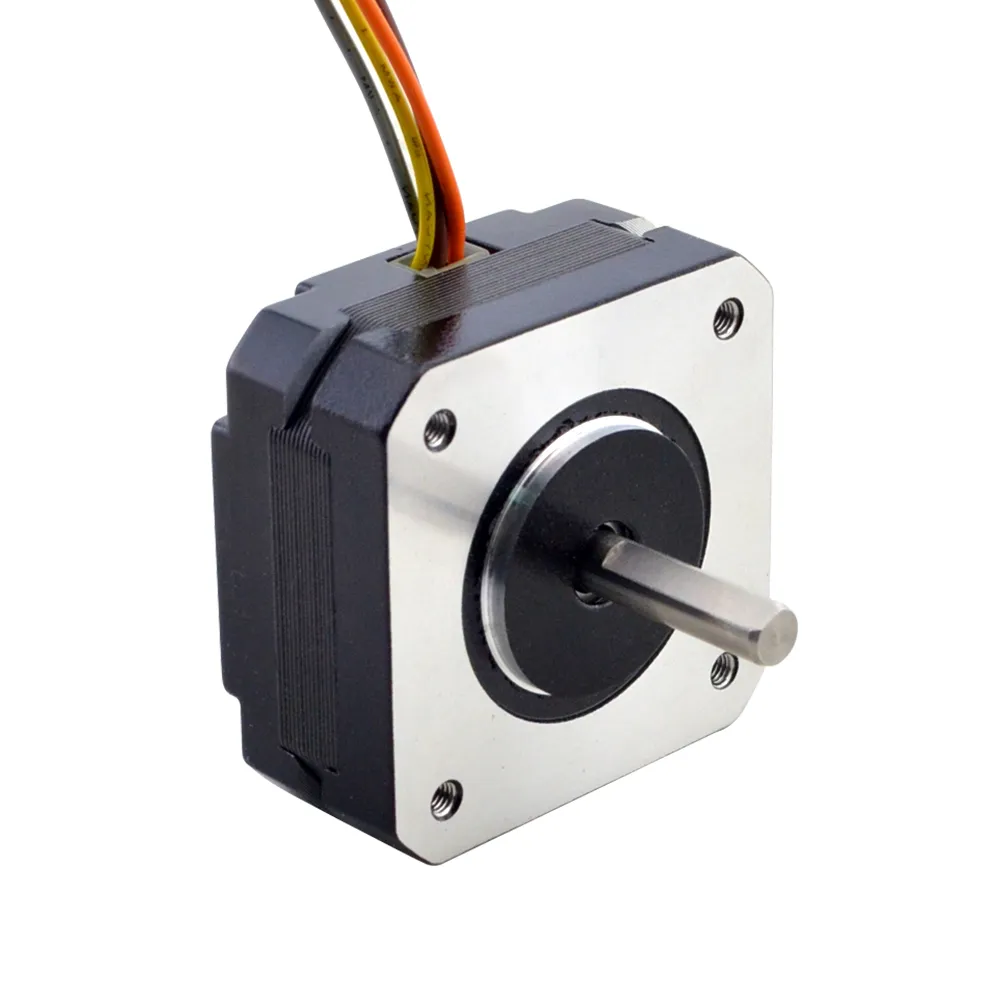

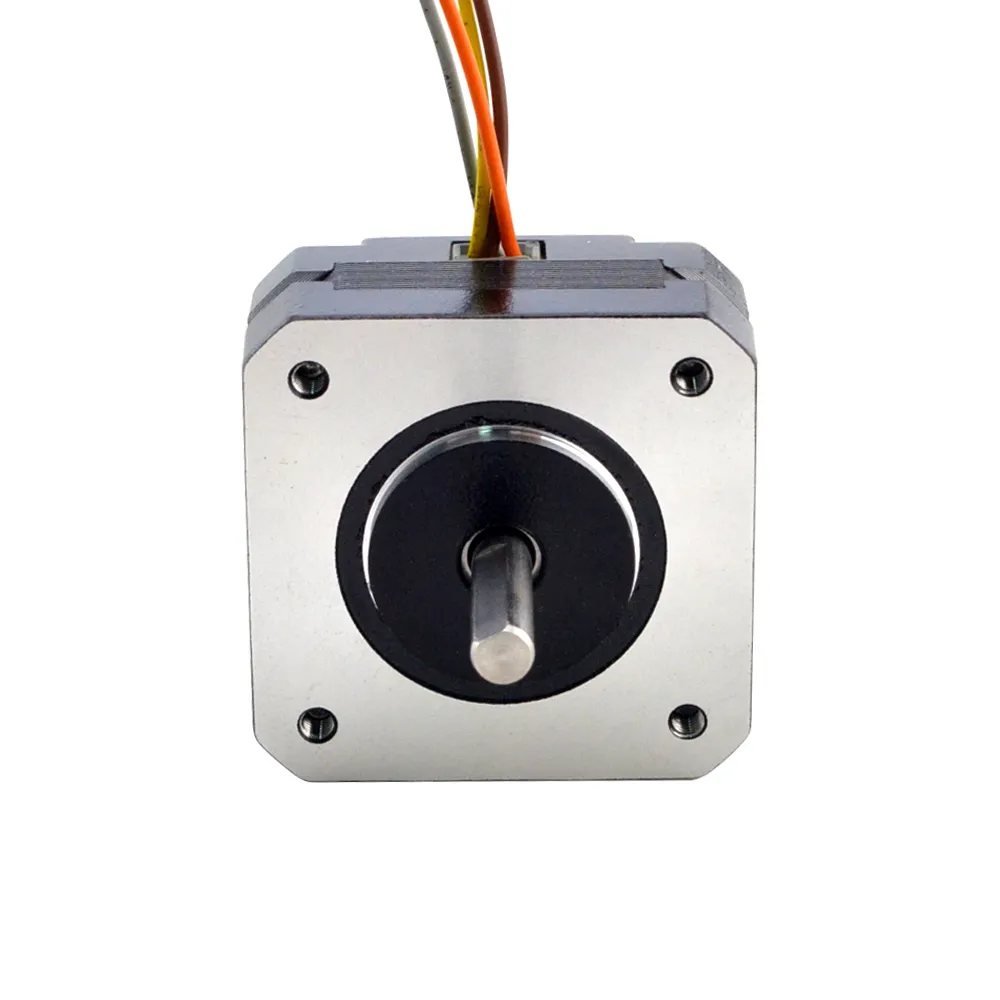

Nema 17 1.8deg 16Ncm 1.0A Stepper Motor


The Nema 17 1.8deg 16Ncm 1.0A Stepper Motor revolutionizes your automation projects by delivering high torque and exceptional precision, ensuring smooth and efficient motion control for robotics, 3D printers, and other applications, simplifying complex tasks with ease.

Model TypeStepper Motor


Rated Torque16Ncm




Electrical Specification

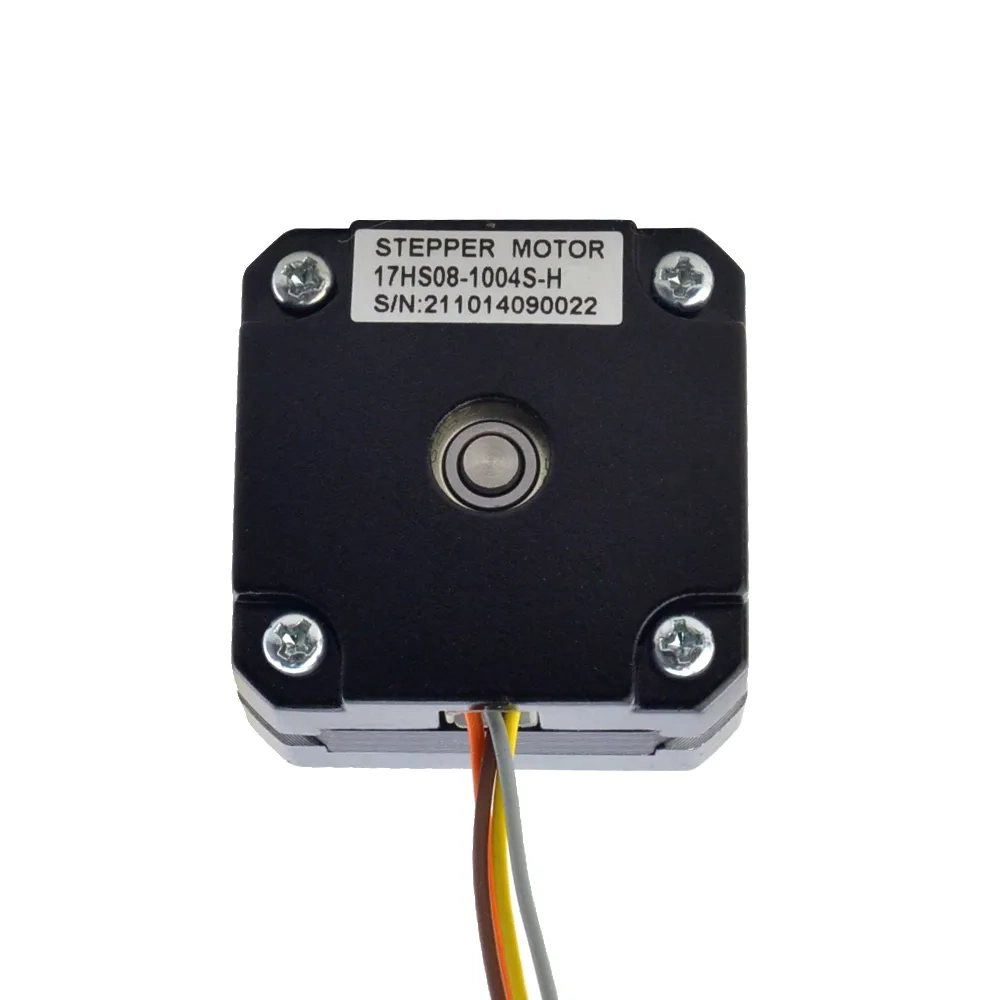

Manufacturer Part Number 17HS08-1004S-H
Inductance(mH) 4.5
Open-loop/Closed-loop Open-loop
Phase Resistance(ohm) 3.7
Product Type High Temp Stepper Motor
Rated Current(A) 1.0
Step Angle(deg.) 1.8
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 16
Holding Torque(oz.in) 22.7
Insulation Class H 180C(356F)

Physical Specification

Manufacturer Part Number 17HS08-1004S-H
Motor Type Bipolar Stepper
Step Angle 1.8deg
Holding Torque 16Ncm (22.7oz.in)
Rated Current/phase 1.0A
Phase Resistance 3.7ohms
Inductance 4.5mH ±20% (1KHz)
Insulation Class H 180C (356F)
