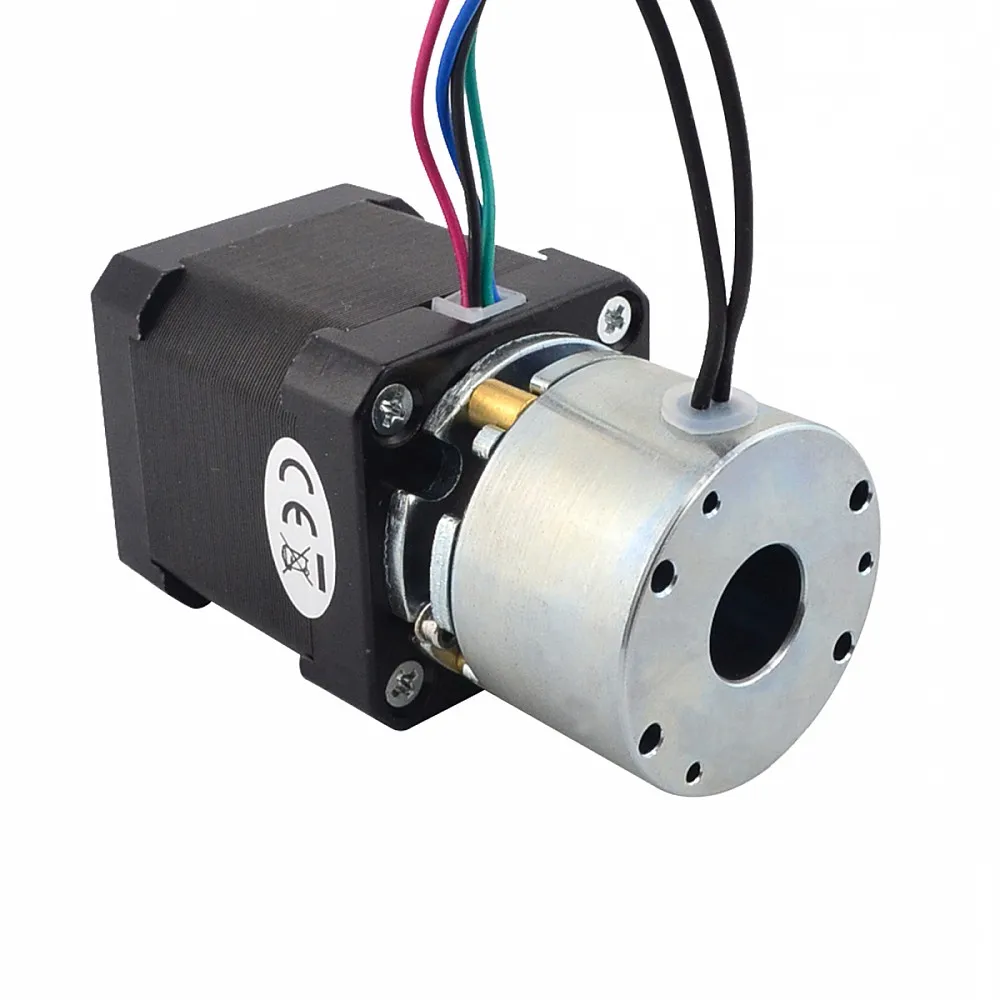

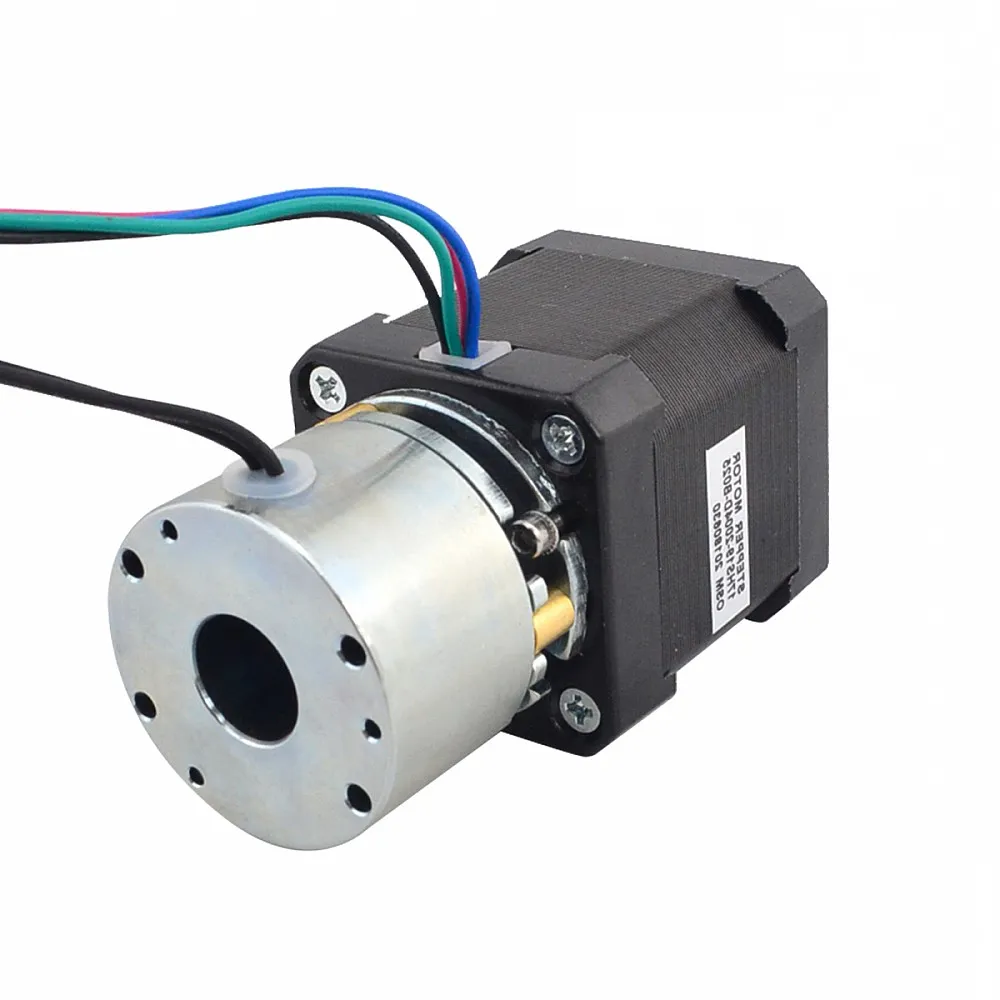

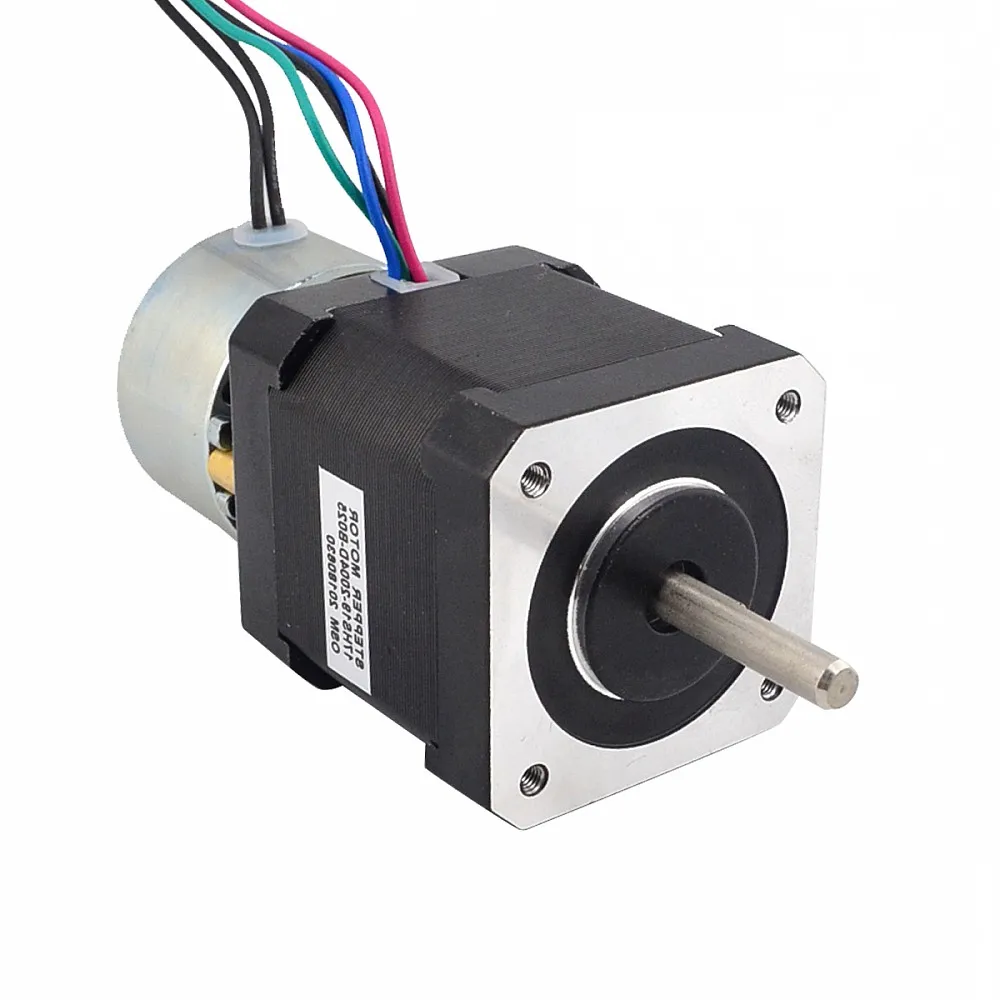

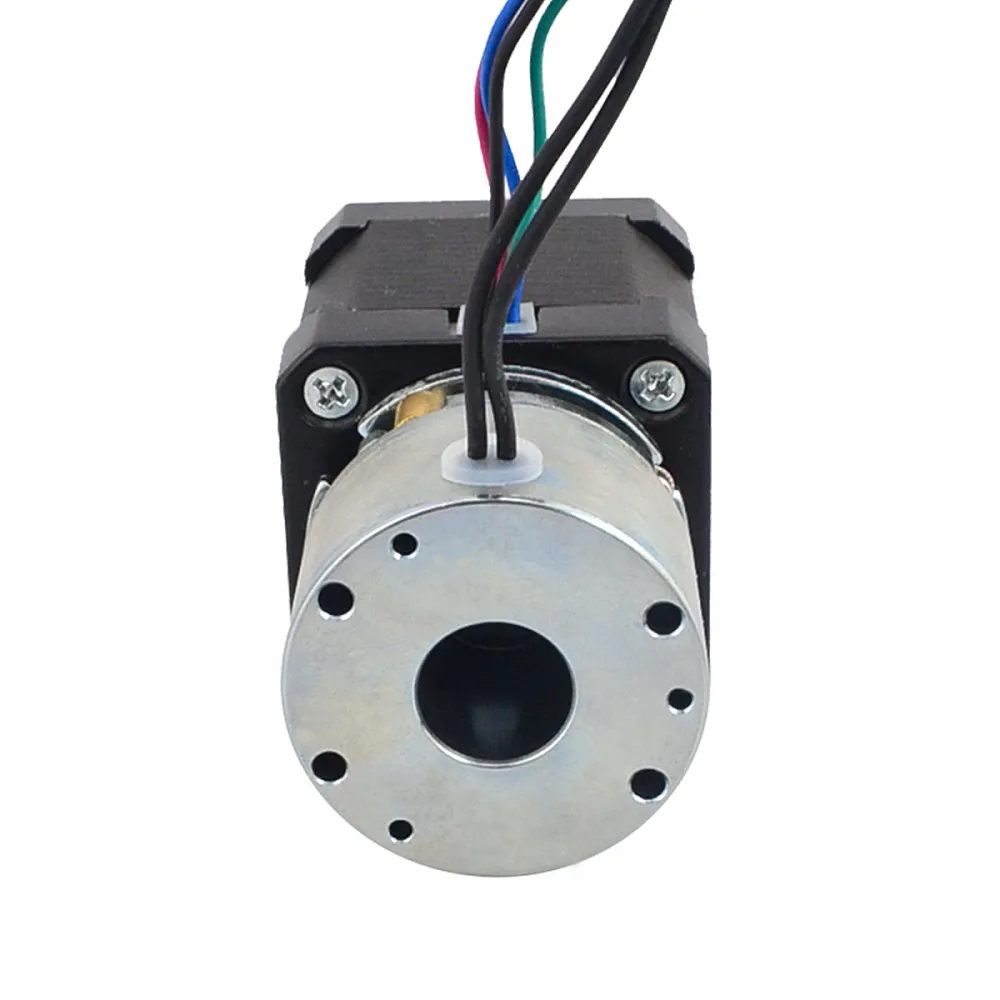

Nema 17 1.8deg 0.59Nm 2A Bipolar Stepper Motor
$47.44
Nema 17 1.8deg 0.59Nm 2A Bipolar Stepper Motor is a popular choice for various automation applications. With its 1.8-degree step angle, it provides precise and controlled motion. The motor offers a torque output of 0.59Nm, which allows it to handle tasks requiring moderate torque.
SPECIFICATIONS
Motor Specification:
| Manufacturer Part Number | 17HS19-2004D-B025 |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8 deg |
| Holding Torque | 0.59 Nm (83.57 oz.in) |
| Rated Current/Phase | 2.00 A |
| Voltage | 2.80 V |
| Phase Resistance | 1.4 ohms |
| Inductance | 3.00 mH ± 20% (1 KHz) |
| Frame Size | 42 x 42 mm |
| Motor Length | 48 mm |
| Shaft Diameter | Φ5 mm |
| Shaft Length | 24 mm |
| D-Cut Length | 15 mm |
| Number of Leads | 4 |
| Lead Length | 500 mm |
Brake Specification:
| Brake Type | Non-excited |
| Static Friction Torque | 0.25 Nm (35.4 oz.in) |
| Moment of Inertia | 0.6x10^-6 kg.cm^2 |
| Voltage | 24V |
| Power | 5W |
| Heat-resistance Class | F |
| Max. Speed | 5000 rpm |
| Weight | 0.2 kg |
