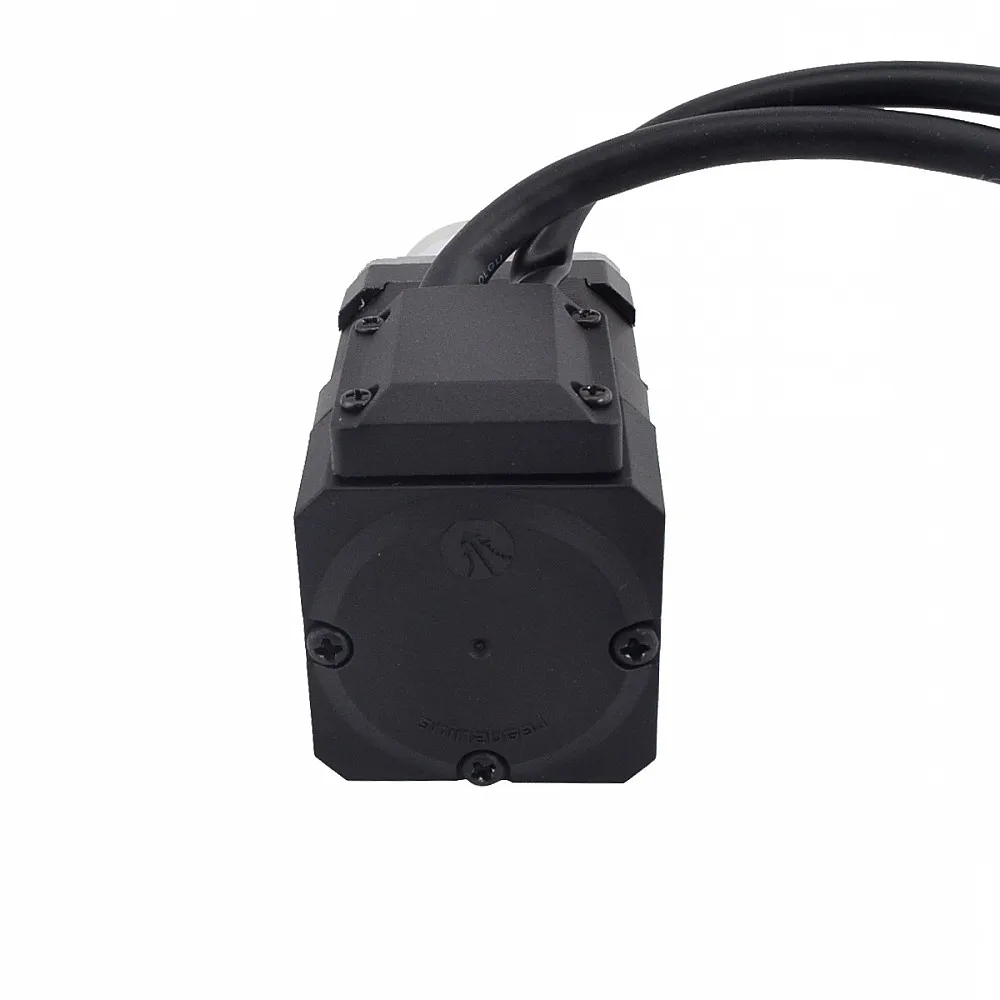

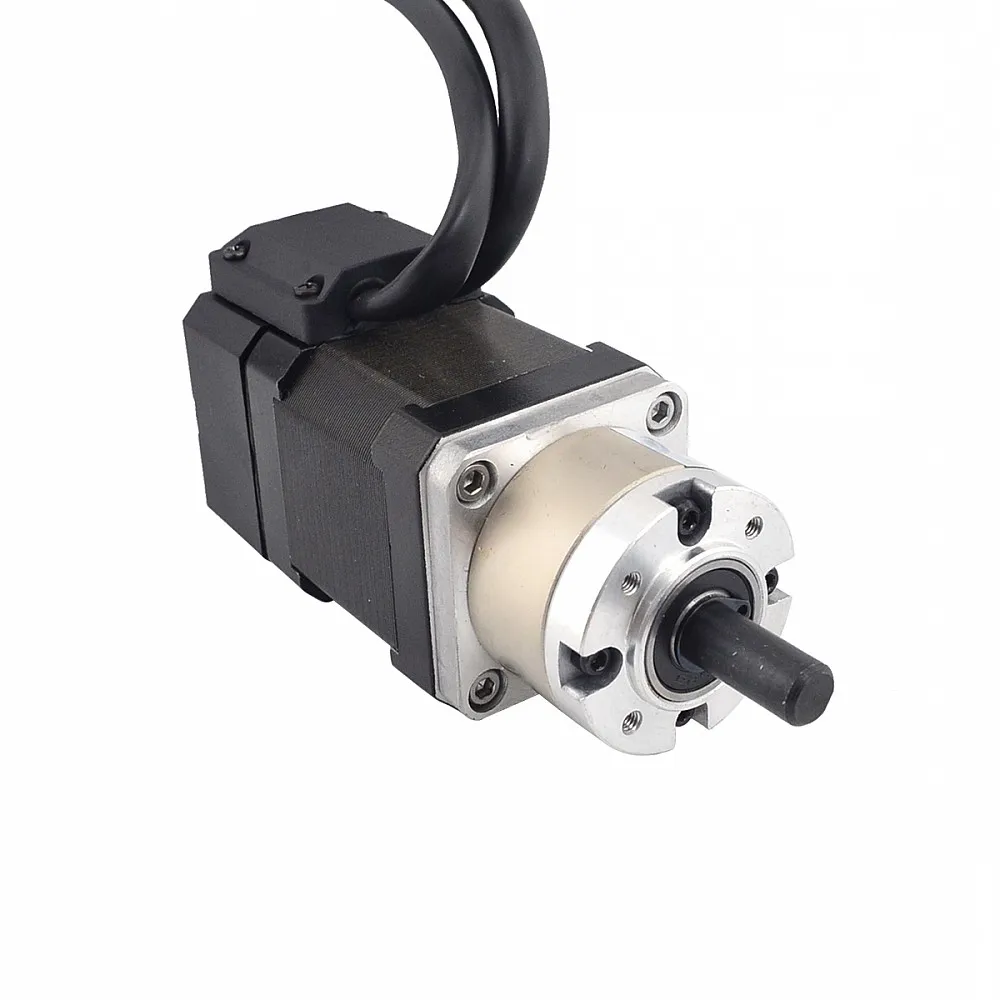

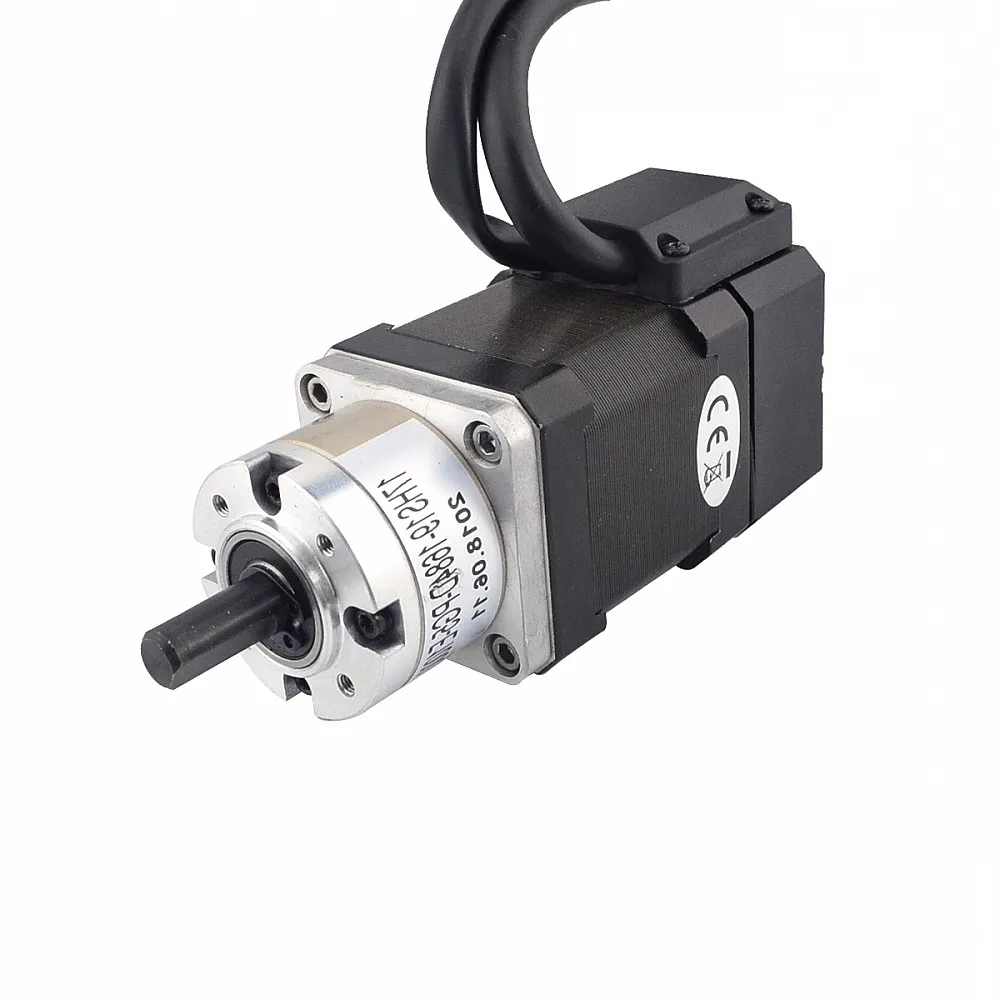

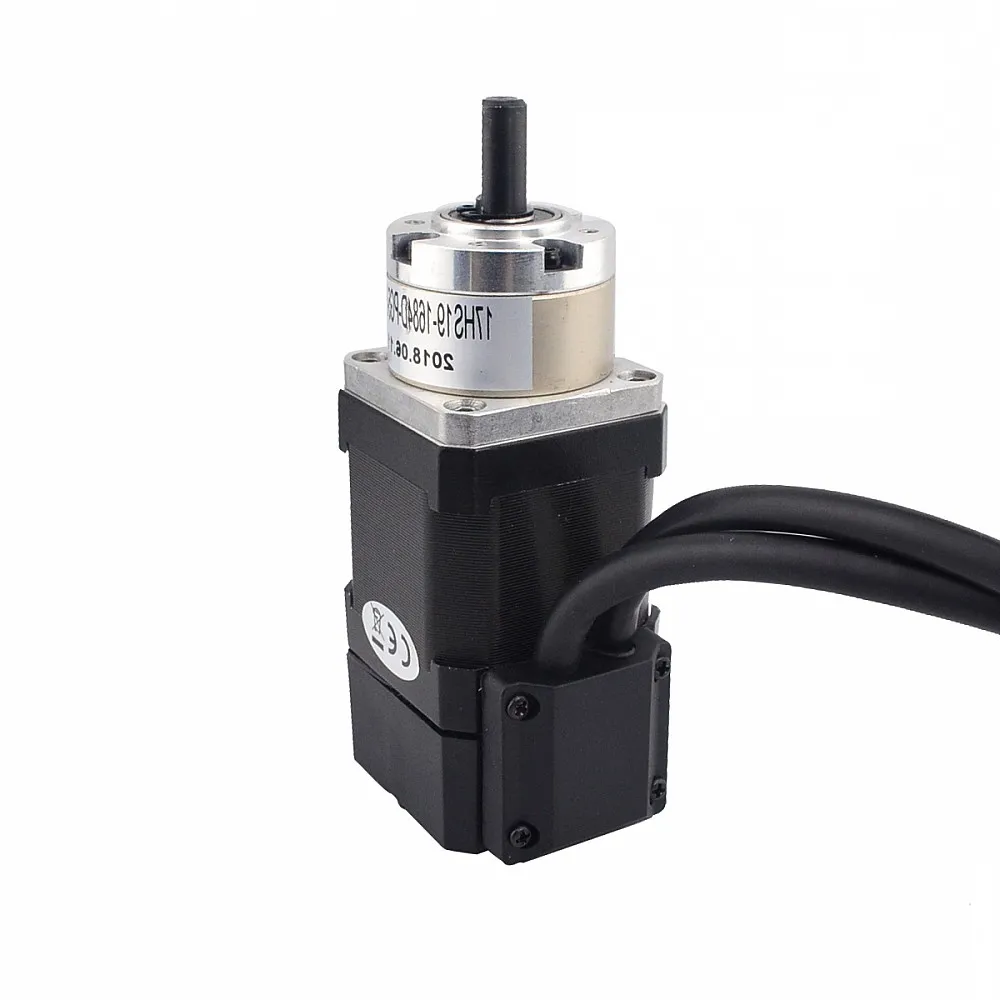

Nema 17 1.8deg 0.52Nm 1.68A Stepper Motor

$34.46

Nema 17 1.8deg 0.52Nm 1.68A Stepper Motor, a versatile and powerful solution for your automation needs. With its high torque output and accurate step resolution, this motor delivers exceptional performance and precise motion control.

Get a QuoteLeave a Message

Model Type

Degree()1.8

Rated Torque(Nm)()0.52

Current(A)()1.68

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 23HS22-HG50-E1000
Number of Phases 2
Step Angle 1.8 deg
Holding Torque 1.2 Nm (169.97 oz.in)
Rated Current/Phase 4.0A
Phase Resistance 0.45 ohms
Inductance 1.3mH ± 20% (1KHz)

Physical Specifications

Frame Size 57 x 57mm
Body Length 56mm
Shaft Diameter Φ14mm
Shaft Length 34mm
Keyway Shaft Length 25mm
Lead Length 300mm
Weight 1.65kg

Gearbox Specifications

Gearbox Type Planetary
Gear Ratio 50:1
Efficiency 75%
Backlash at No-load <= 1.6 deg
Max. Permissible Torque 20 Nm (2832.8 oz.in)
Moment Permissible Torque 40 Nm (5664 oz.in)
Max. Radial Load 250N
Insulation Class B
Noise <= 50dB
Ambient Temperature 0 - 50℃

Encoder Specification

Output Circuit Type Differential type
Encoder Type Optical Incremental
Encoder Resolution 1000
Output Signal Channels 2 channels
Supply Voltage Min 4V

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
