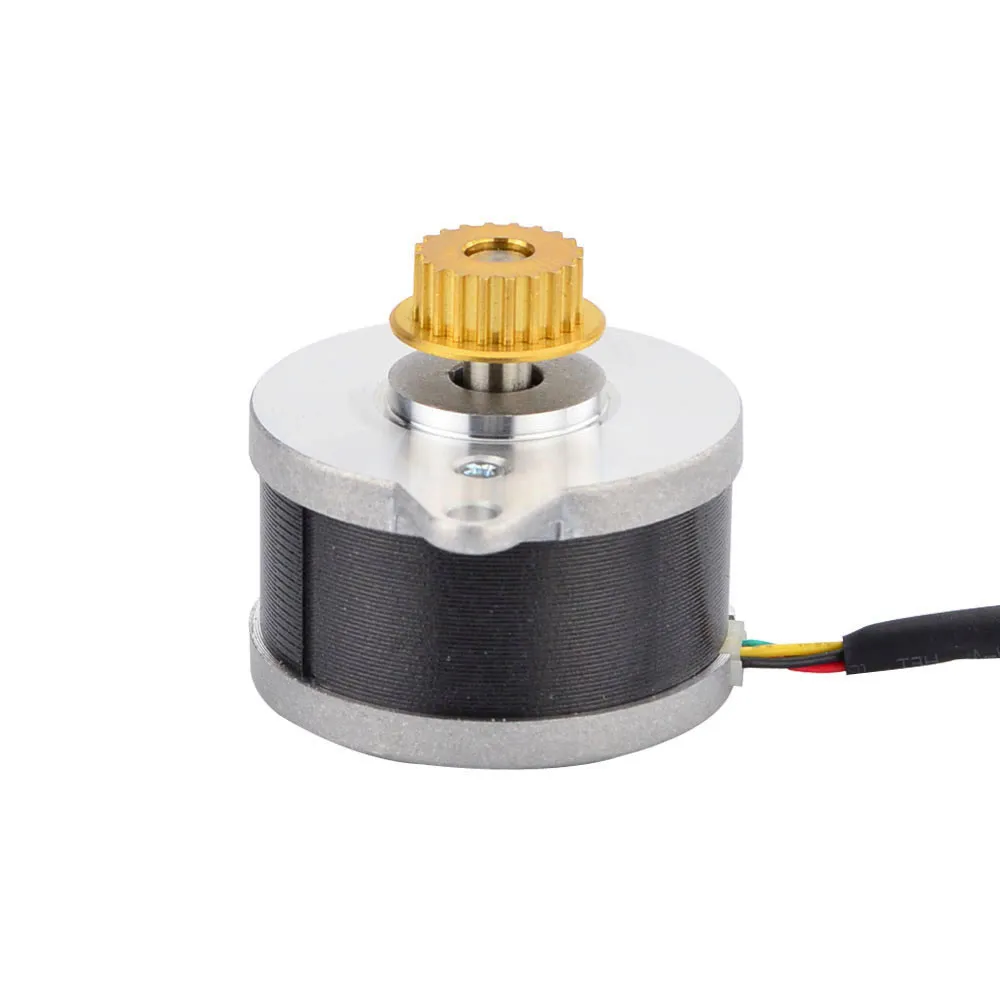

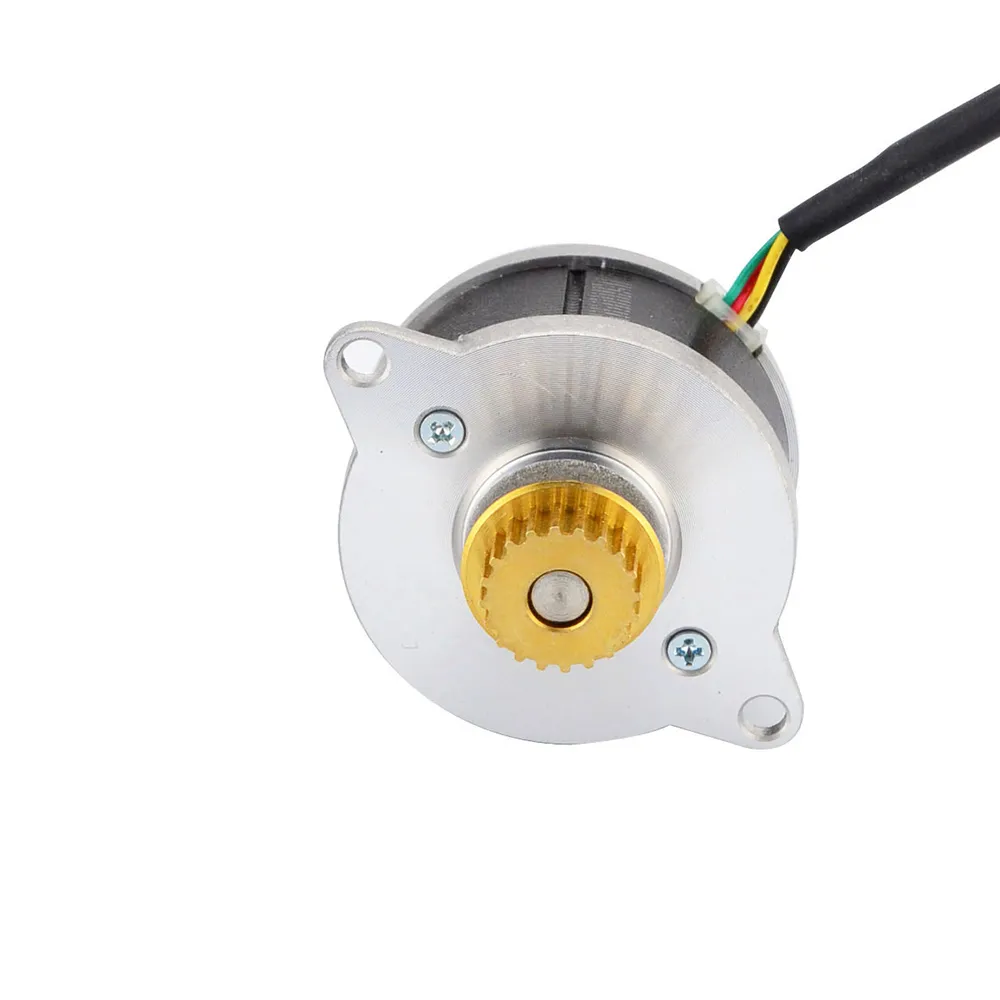

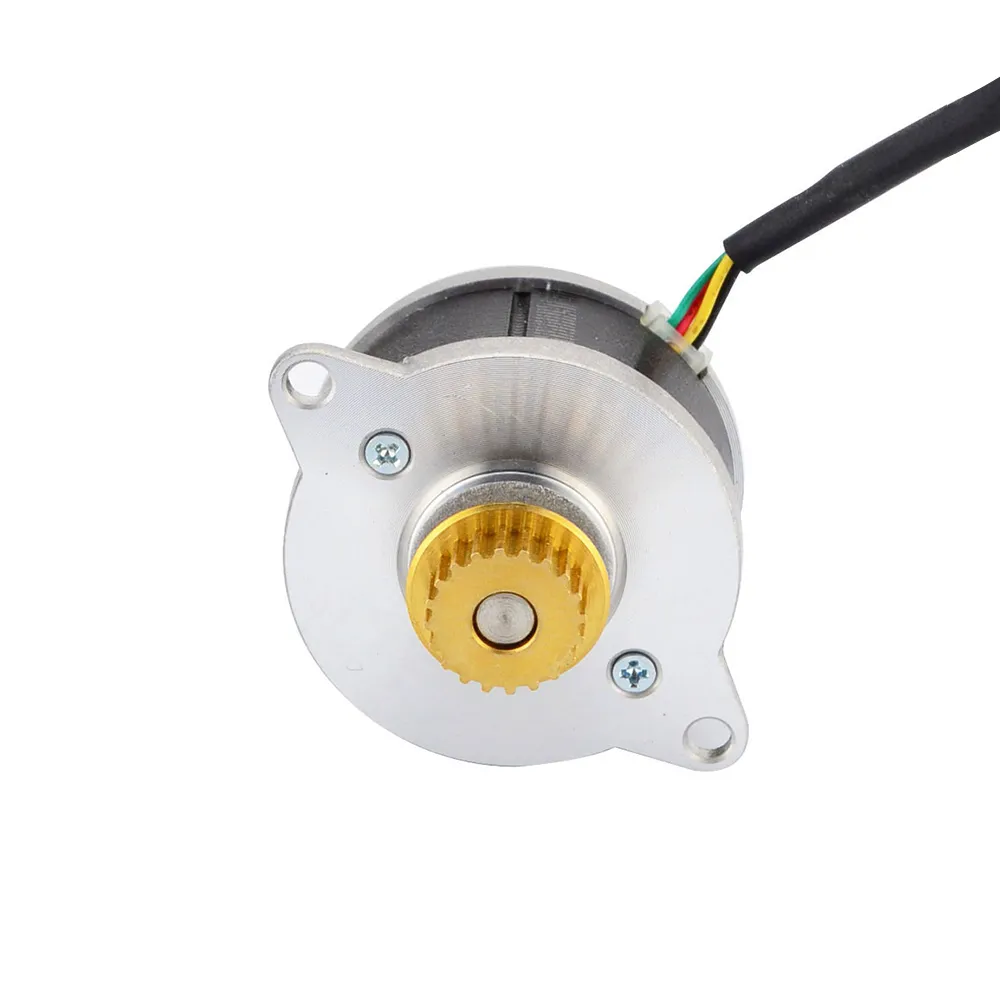

Nema 14 0.9deg 9.5Ncm 0.43A Stepper Motor

$14.02

Nema 14 0.9deg 9.5Ncm 0.43A Stepper Motor, a versatile and precise solution for your automation projects. With its high torque output and accurate step resolution, this motor delivers exceptional performance and control.

Get a QuoteLeave a Message

Model Type

Degree()0.9

Rated Torque(Ncm)()9.5

Current(A)()0.43

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 14HR09-0434S-C1
Motor Type Bipolar Stepper
Step Angle 0.9 deg
Holding Torque 9.5 Ncm (13.5 oz.in)
Rated Current/phase 0.425A
Phase Resistance 9.0 ohms
Inductance 5.0mH ± 20% (1KHz)

Physical Specifications

Frame Size Φ36.5mm
Body Length 21.5mm
Shaft Diameter Φ5mm
Shaft Length 11.7mm
Pulley Profile MXL
Number of Teeth 20
Pulley Pitch 2.032mm
Pitch Diameter Φ12.94
Addendum Circle Diameter Φ12.43
Pulley Material H59 Brass
Number of Leads 4 with connector PH-4
Lead Length 120mm
Weight 130g

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
