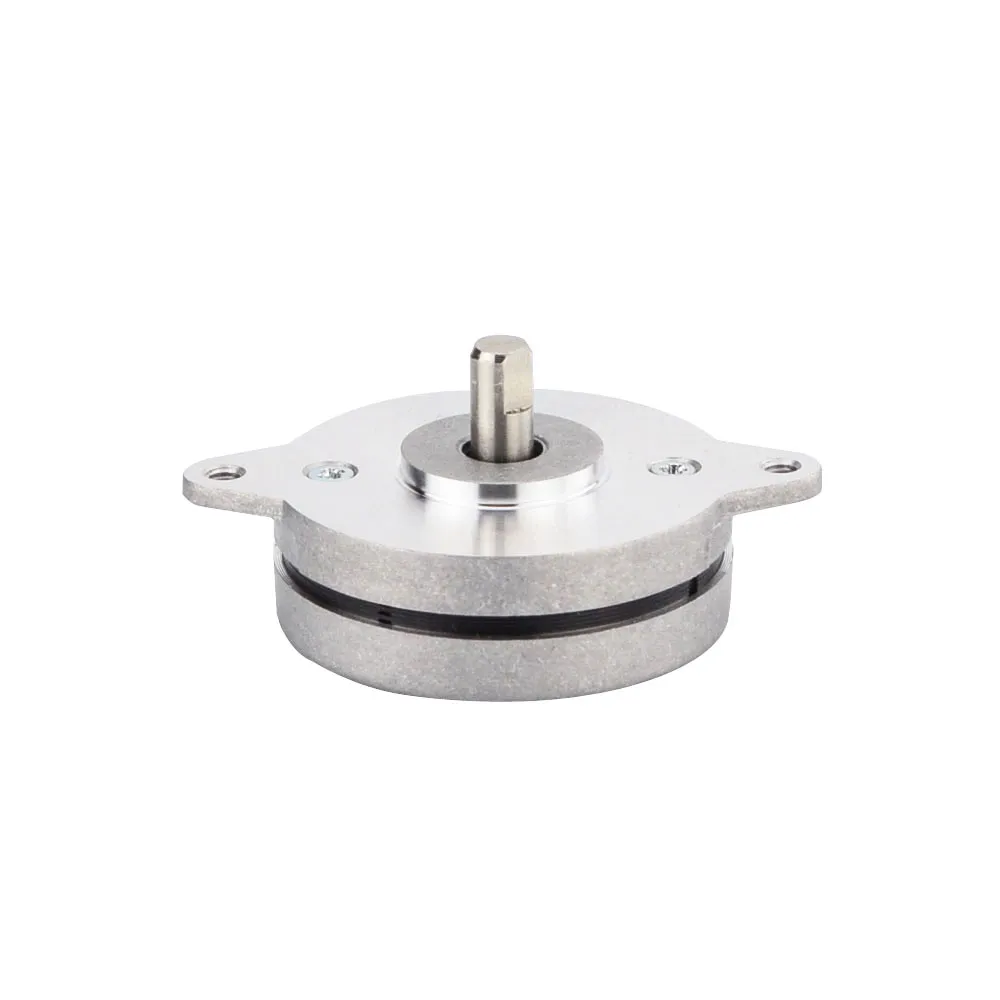

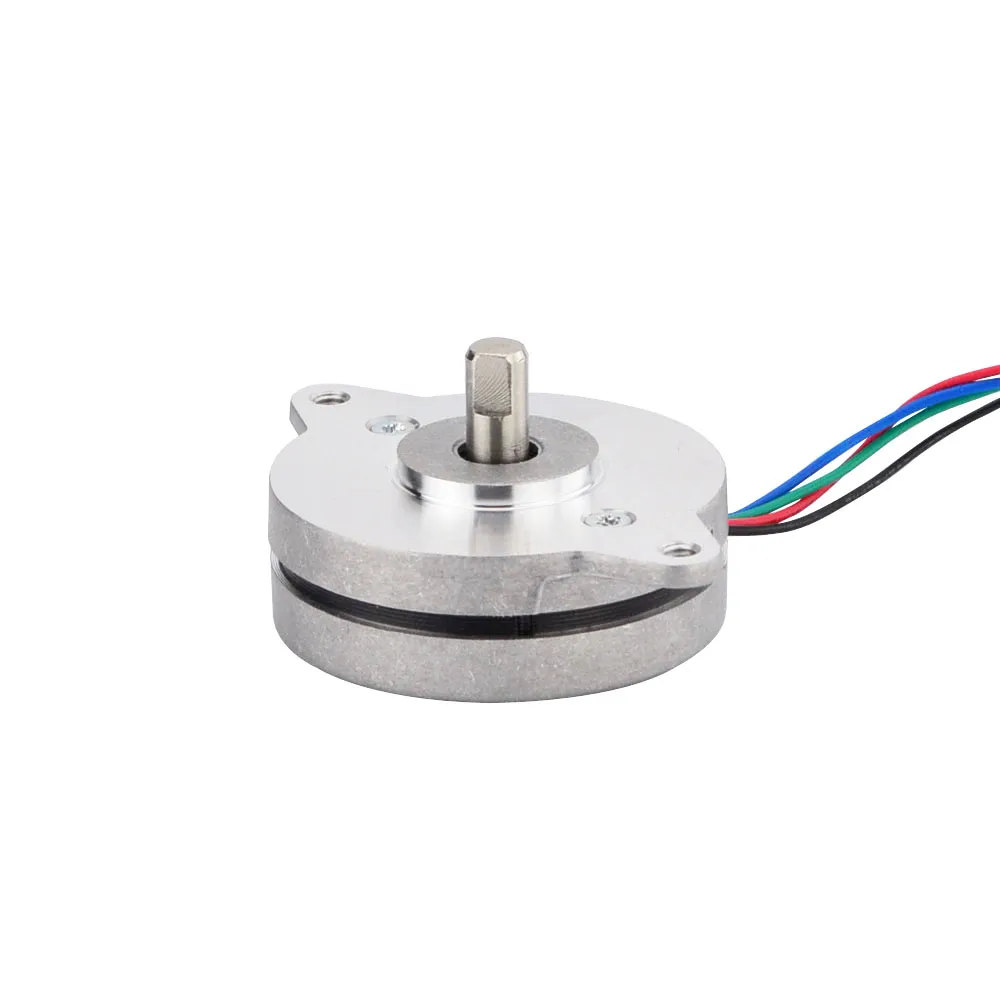

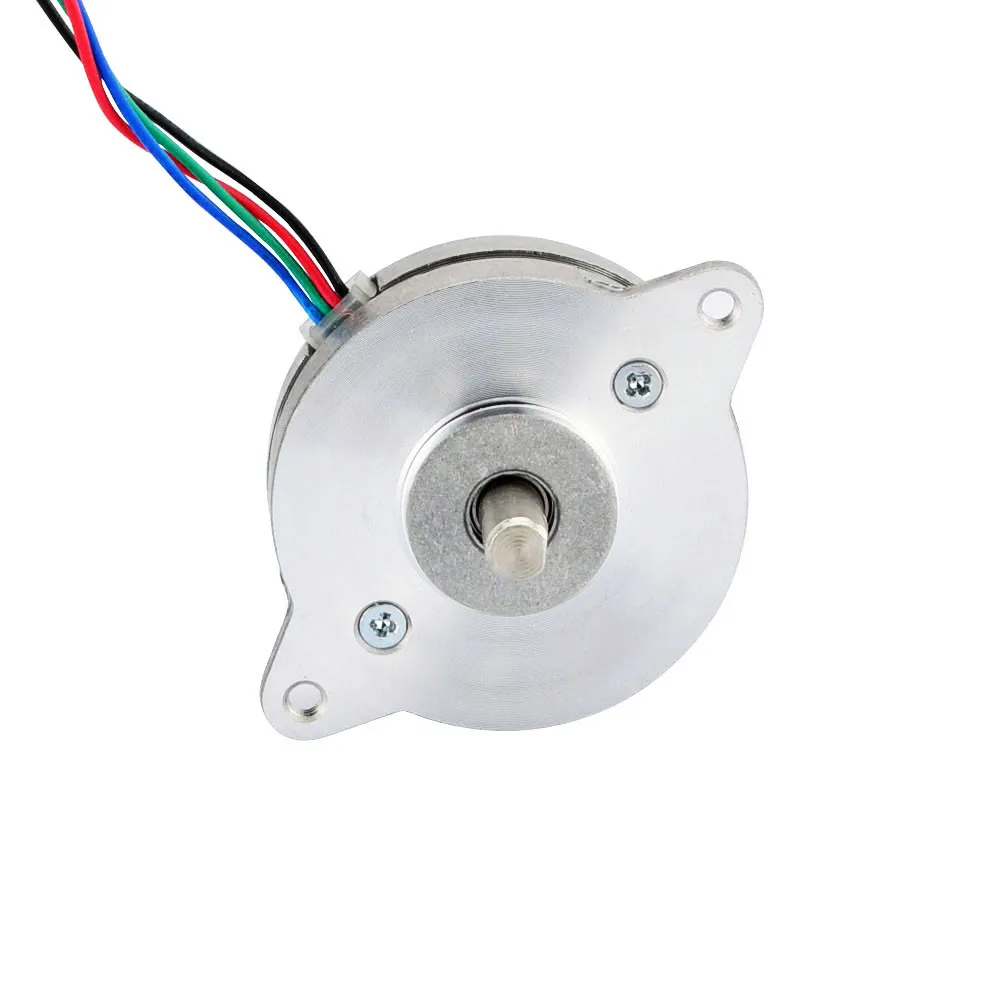

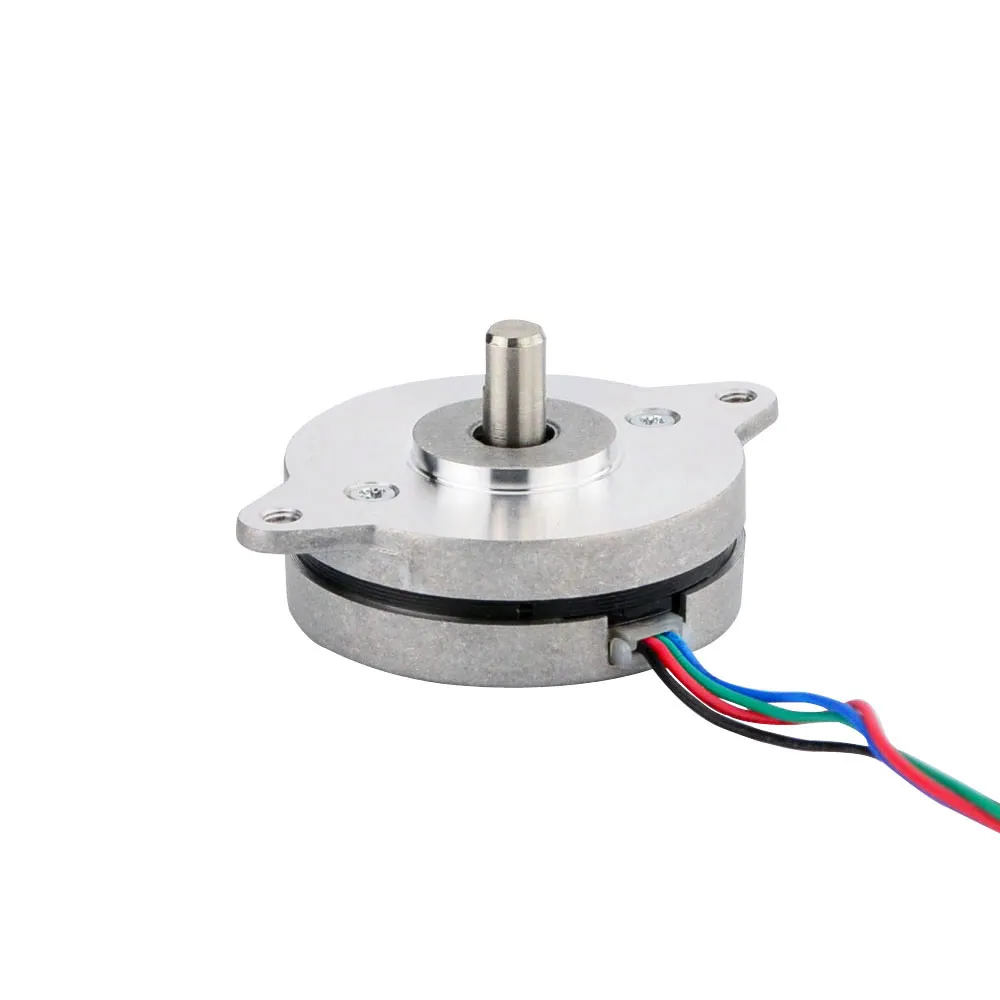

Nema 14 0.9deg 7Ncm 0.5A Stepper Motor

$14.41

Nema 14 0.9deg 7Ncm 0.5A Stepper Motor, a compact and versatile solution for precise motion control in your automation projects. With its moderate torque and accurate step resolution, this motor offers reliable performance and smooth operation.

Model TypeStepper Motor

Degree0.9

Rated Torque(Ncm)7

Current(A)0.5

Videos

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 14HR05-0504S
Motor Type Bipolar Stepper
Step Angle 0.9 deg
Holding Torque 5 Ncm (9.91 oz.in)
Rated Current/phase 0.5A
Phase Resistance 17 ohms
Inductance 6.5mH ± 20% (1KHz)

Physical Specifications

Frame Size Φ36.5mm
Body Length 12.5mm
Shaft Diameter Φ5mm
Shaft Length 10.5mm
D-cut Length 5mm
Number of Leads 4
Lead Length 300mm
Weight 60g

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
