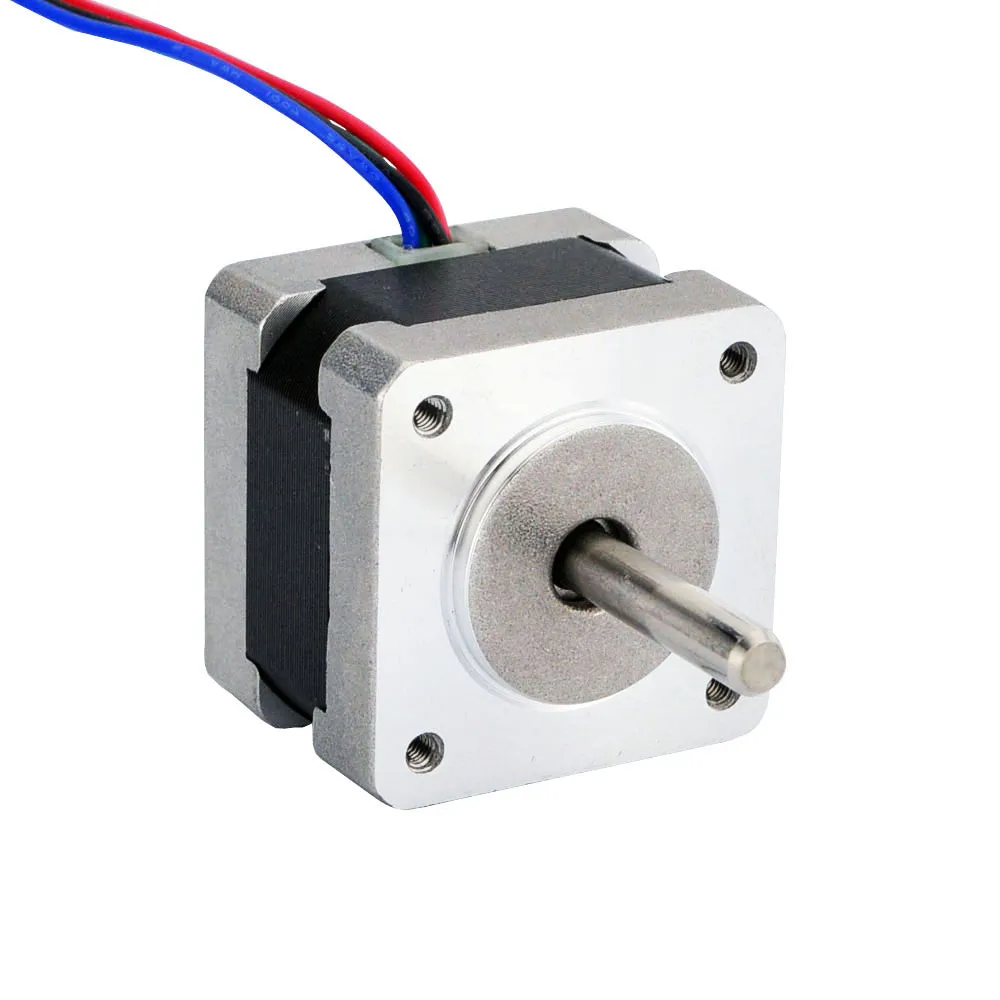

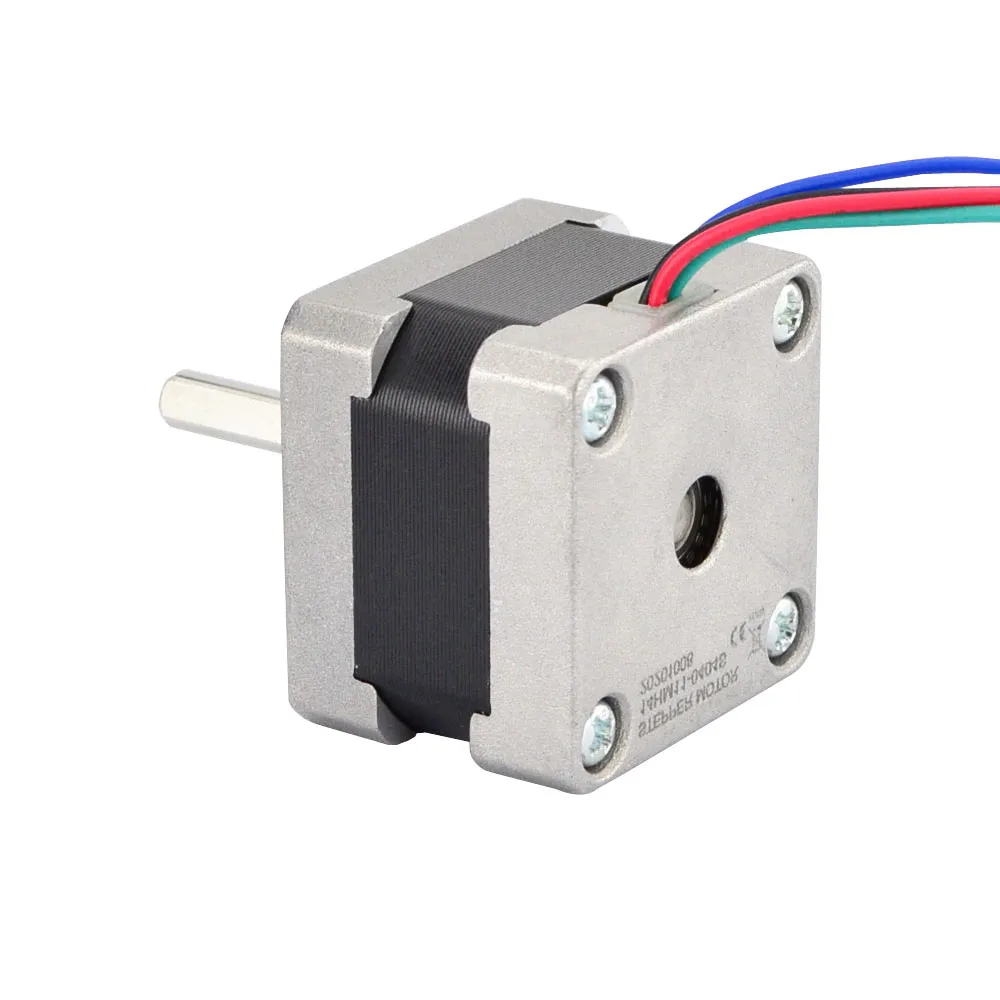

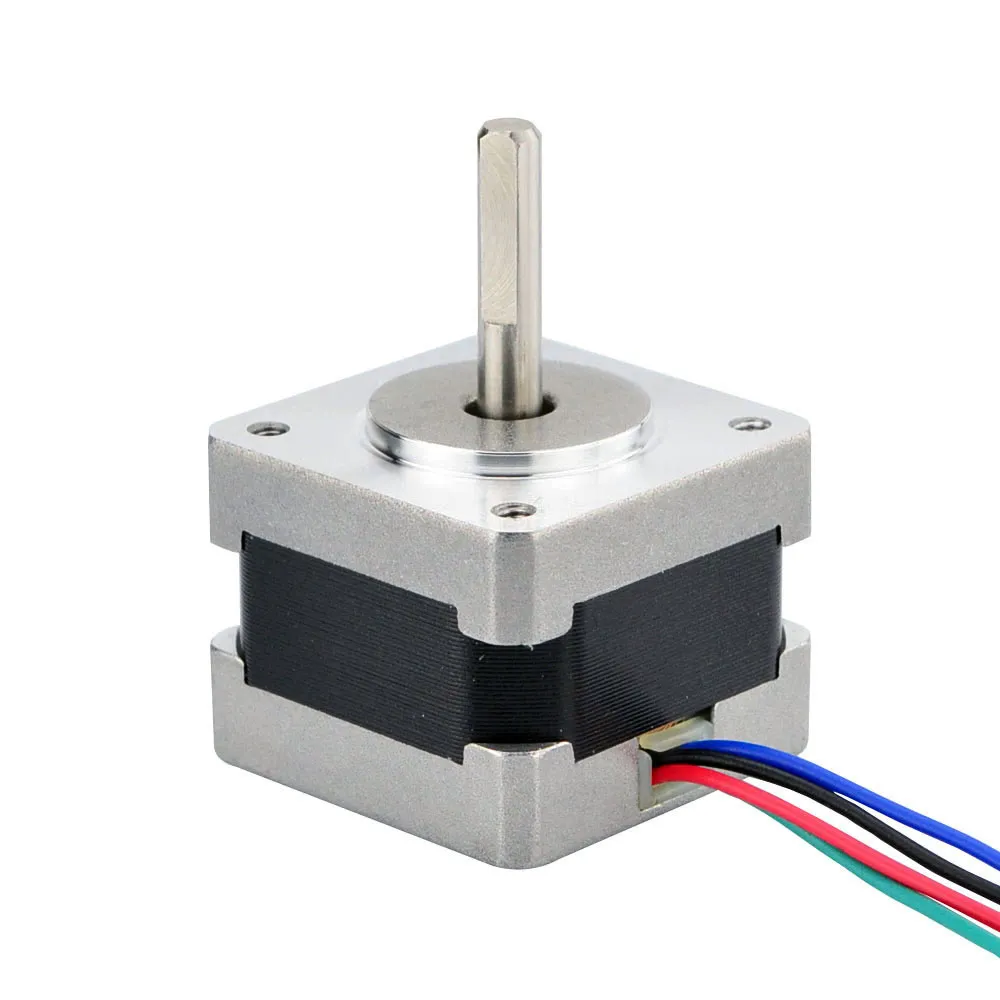

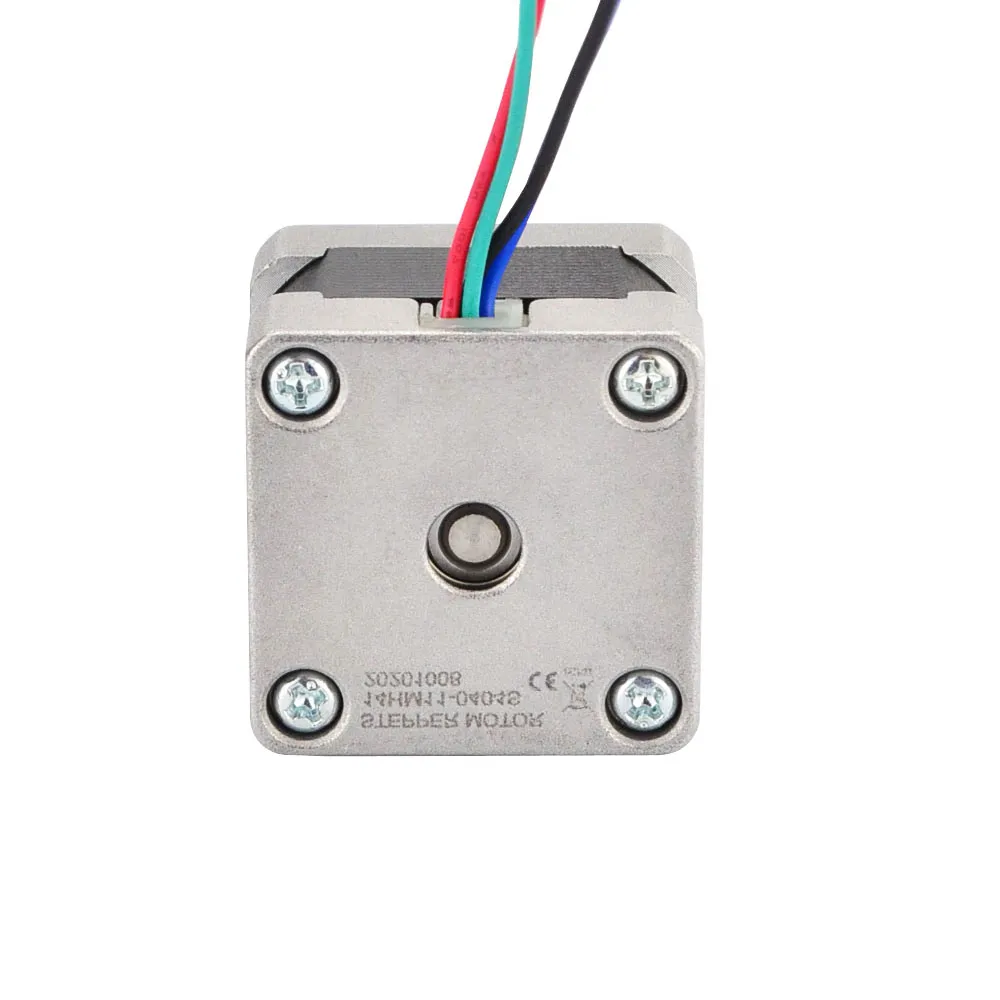

Nema 14 0.9deg 11Ncm 0.4A Stepper Motor

Name: Nema 14 0.9deg 11Ncm 0.4A Stepper Motor
Price: 11.22 USD
Availability: InStock

$11.22

Nema 14 0.9deg 11Ncm 0.4A Stepper Motor, a powerful and precise solution for your automation needs. With its high torque output and accurate step resolution, this motor delivers exceptional performance and control.

Get a Quote Leave a Message

Model Type

Degree()0.9

Rated Torque(Ncm)()11

Current(A)()0.4

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number	14HM11-0404S
Motor Type	Bipolar Stepper
Step Angle	0.9 deg
Holding Torque	11 Ncm (15.58 oz.in)
Rated Current/phase	0.4A
Phase Resistance	25 ohms
Inductance	24mH ± 20% (1KHz)

Physical Specifications

Frame Size	35 x 35mm
Body Length	28mm
Shaft Diameter	Φ5mm
Shaft Length	24mm
D-cut Length	15mm
Number of Leads	4
Lead Length	300mm
Weight	120g

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
Stepper-Motor-Catalog.pdf	19.2MB	Download
