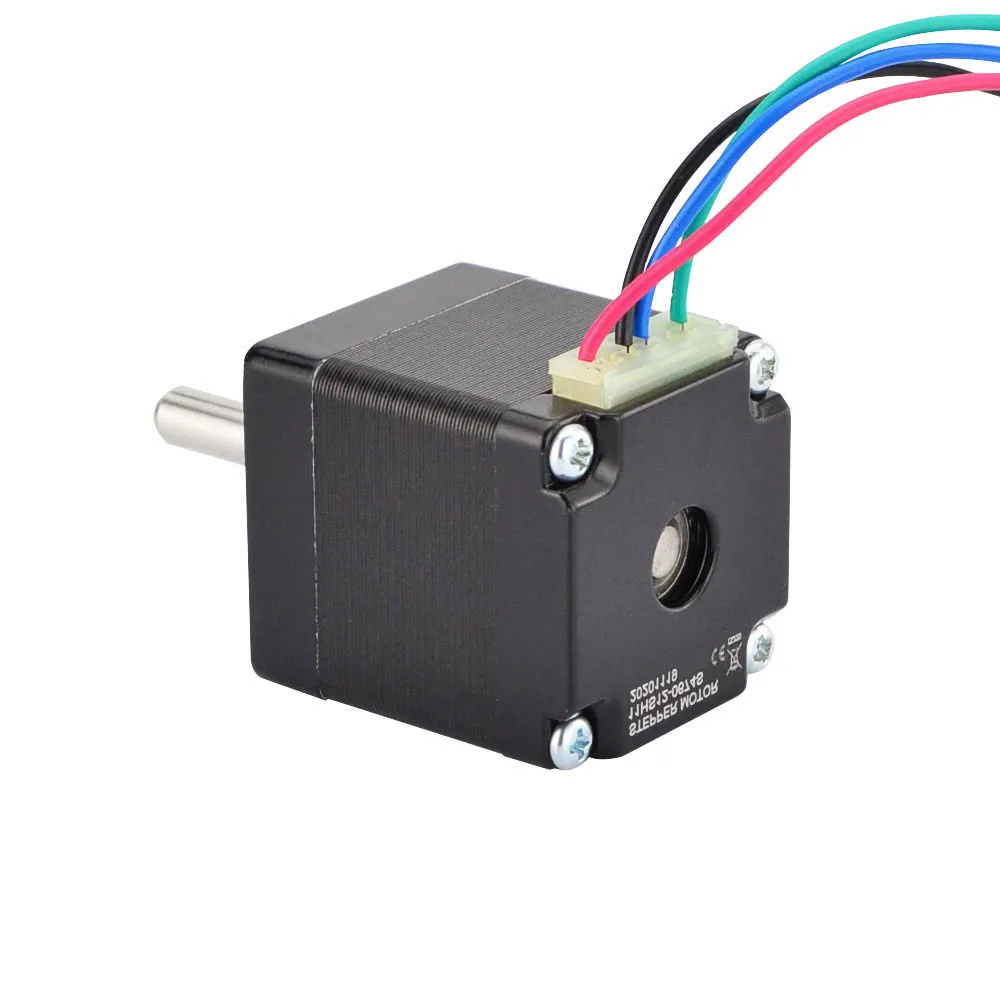

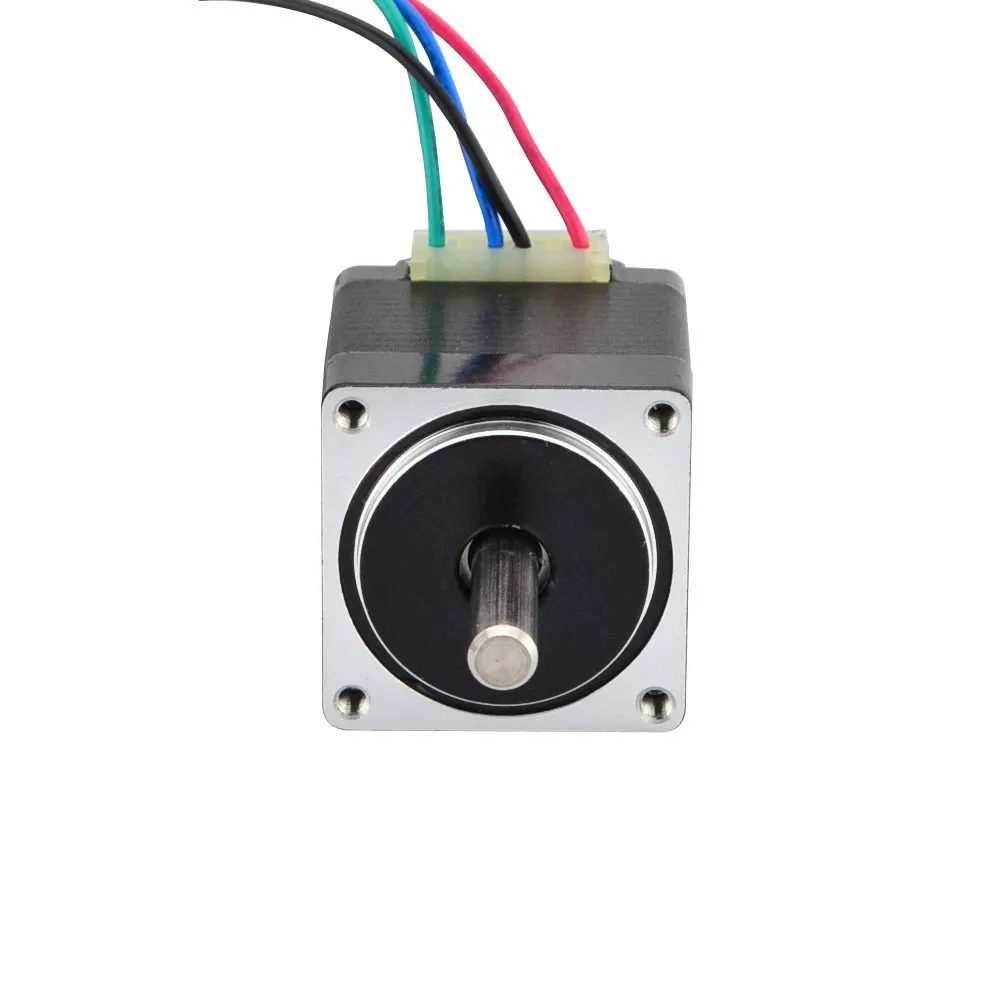

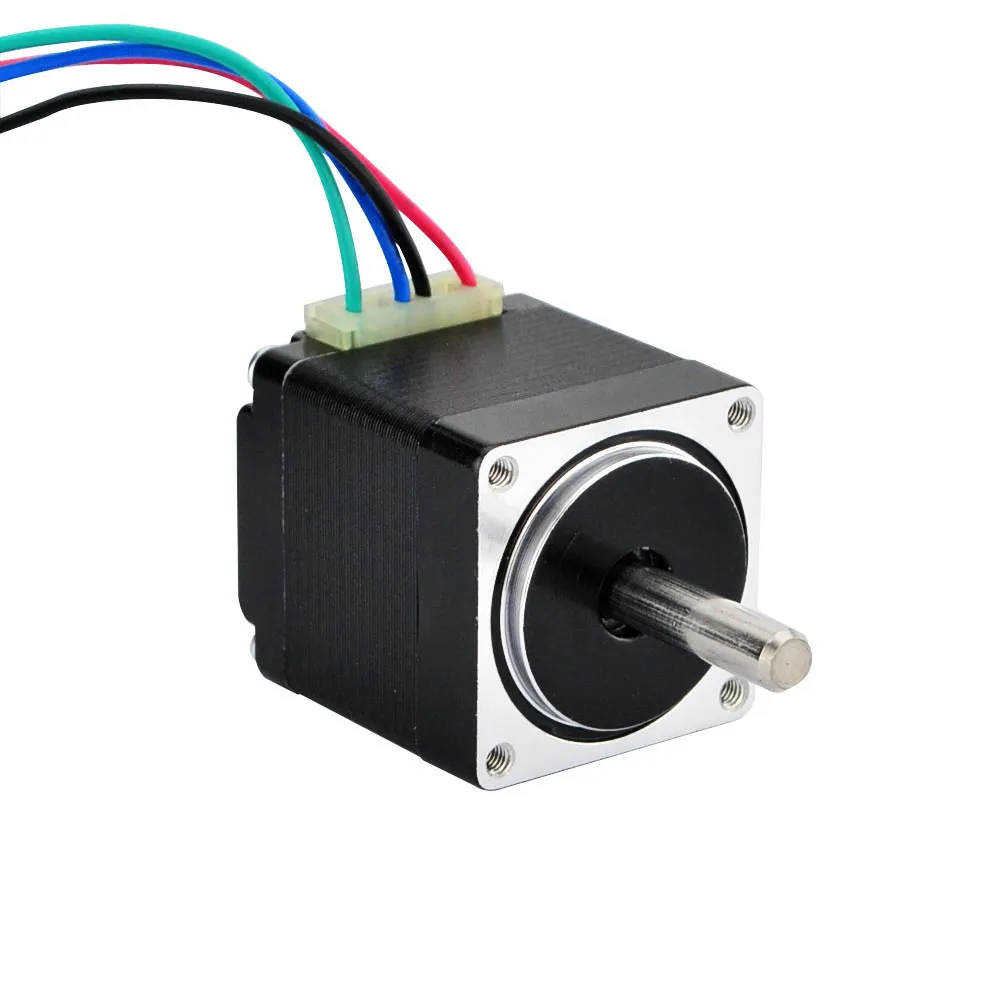

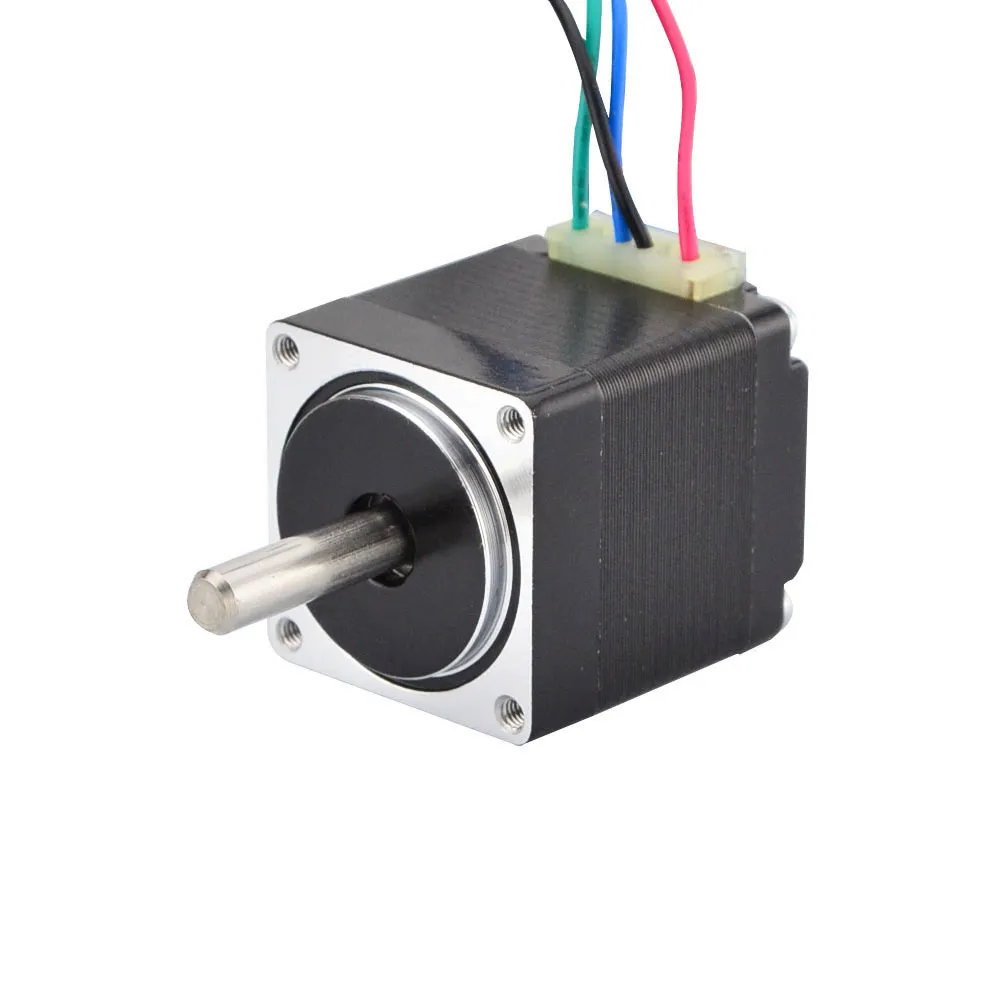

Nema 11 1.8deg 7Ncm 0.68A Stepper Motor
$9.78
Nema 11 1.8deg 7Ncm 0.68A Stepper Motor, a high-performance and precise solution for your automation needs. With its strong torque and accurate step resolution, this motor delivers exceptional control and reliability. Whether you're working on robotics, CNC machines, or other applications requiring precise motion control, this stepper motor is designed to meet your requirements. Upgrade your automation projects with this reliable and efficient stepper motor to achieve optimal results.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 11HS12-0674S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8 deg |
| Holding Torque | 7 Ncm (9.91 oz.in) |
| Rated Current/phase | 0.67A |
| Phase Resistance | 5.6 ohms |
| Inductance | 4.2mH ± 20% (1KHz) |
Physical Specifications
| Frame Size | 28 x 28mm |
| Body Length | 33mm |
| Shaft Diameter | Φ5mm |
| Shaft Length | 20mm |
| Number of Leads | 4 |
| Lead Length | 300mm |
| Weight | 110g |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| Stepper-Motor-Catalog.pdf | 19.2MB | Download |
