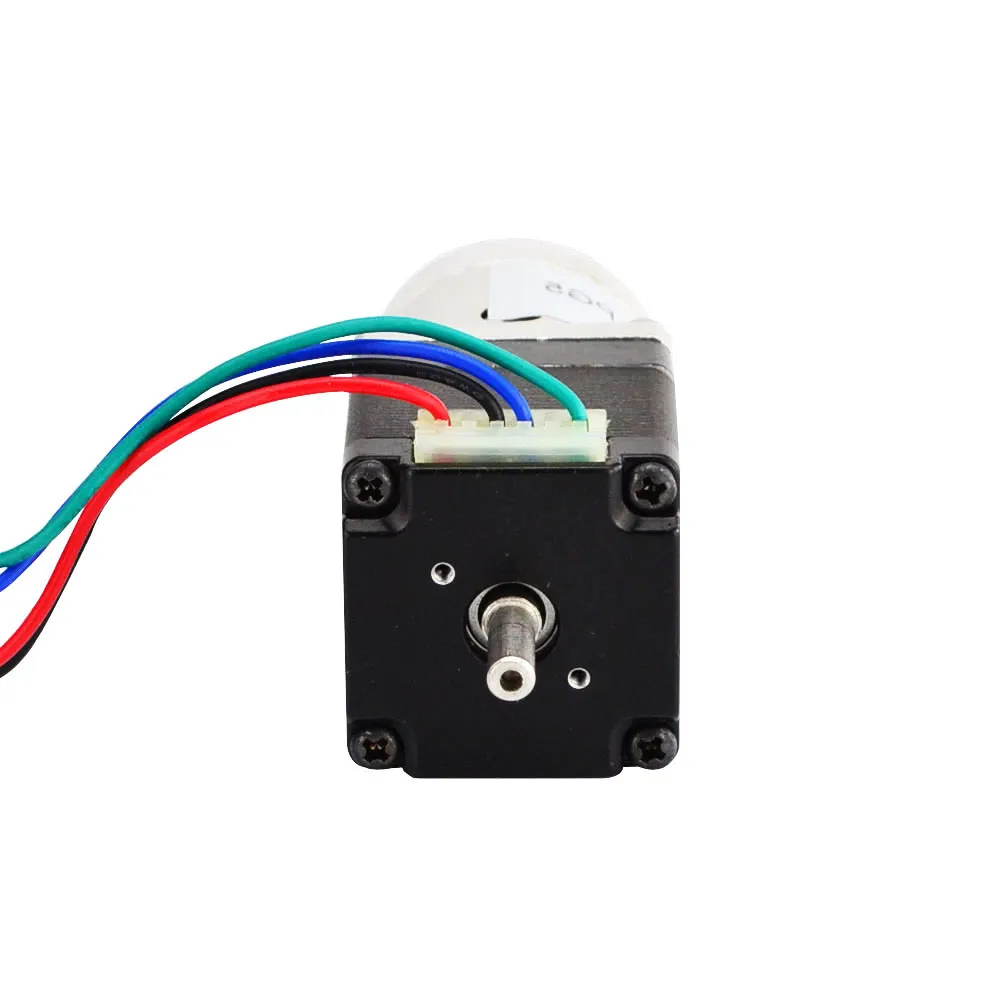

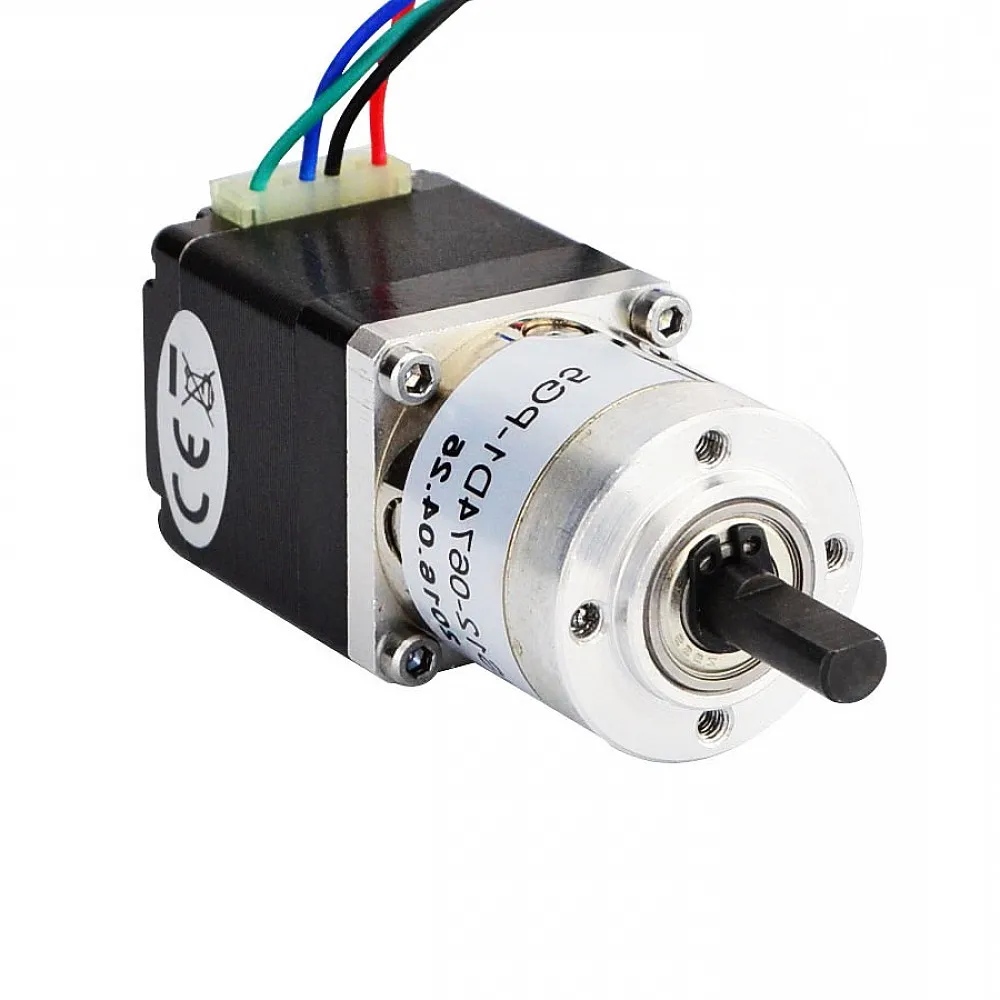

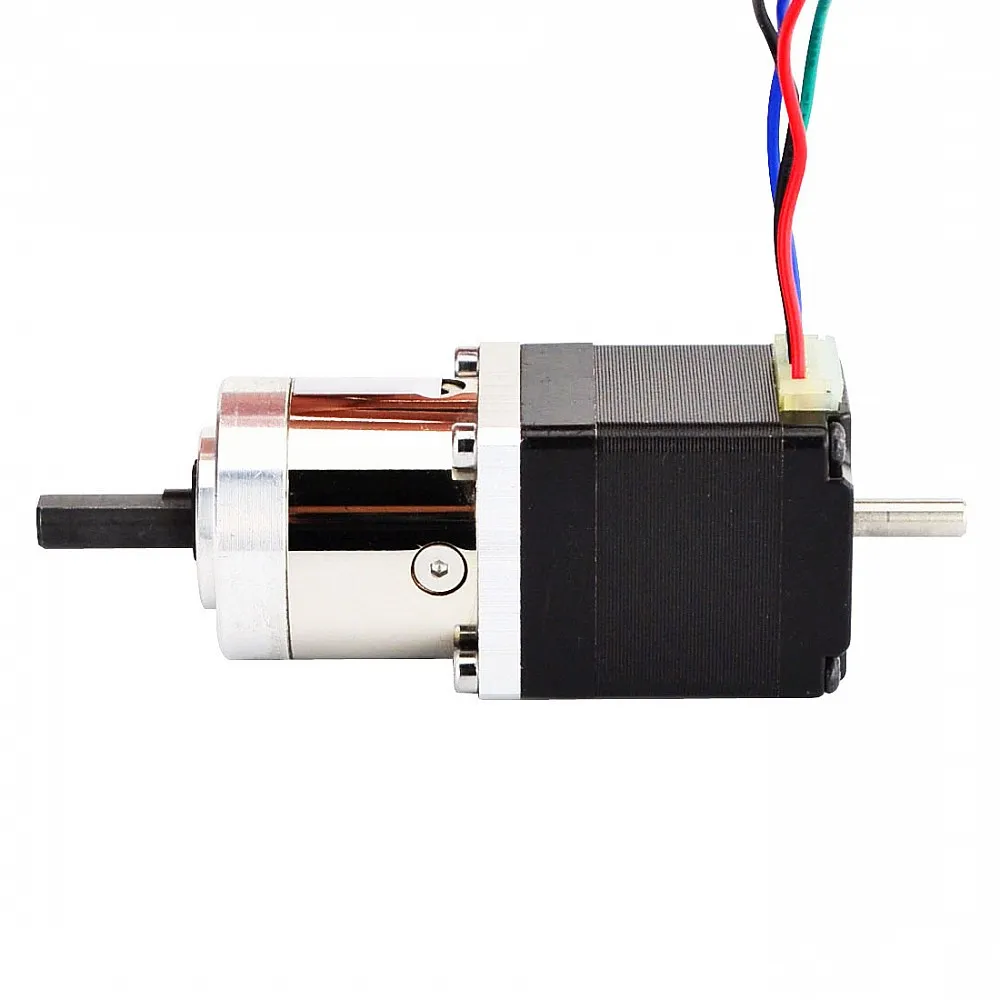

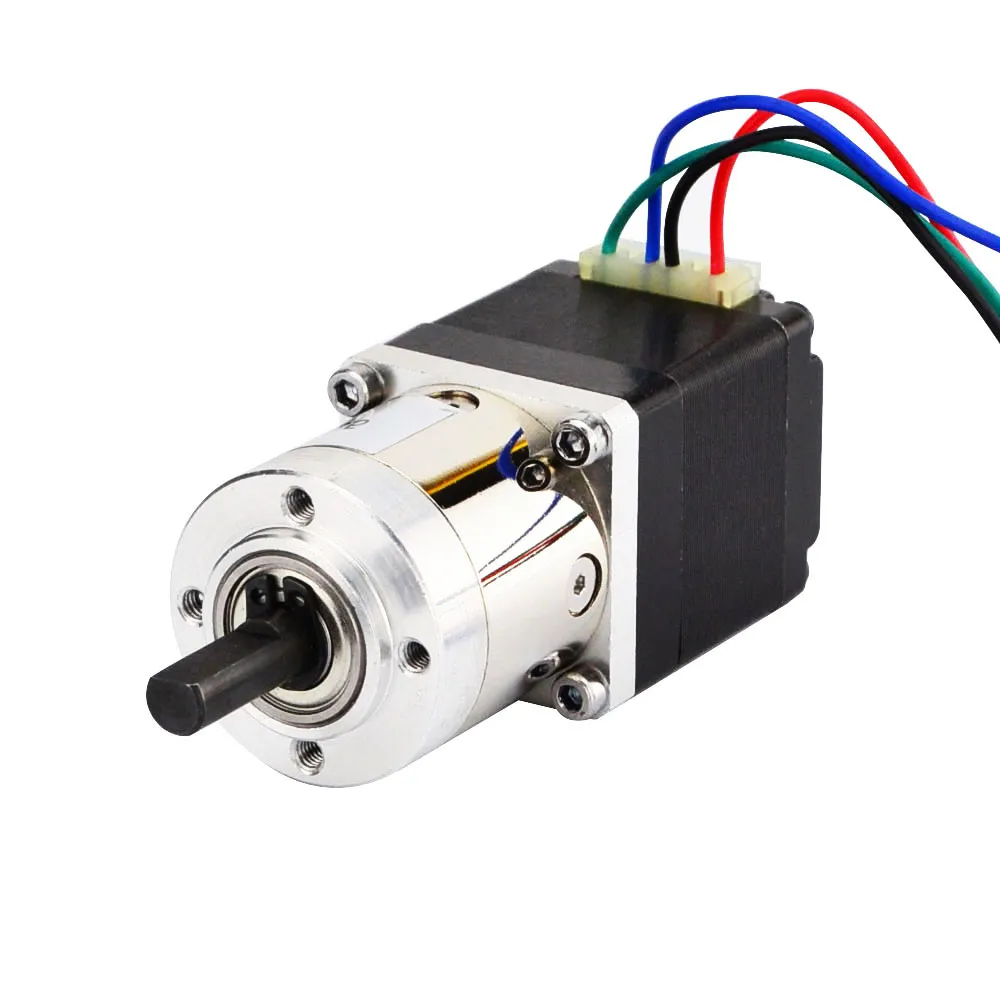

Nema 11 1.8deg 6Ncm 0.67A Stepper Motor

Home > Nema 11 1.8deg 6Ncm 0.67A Stepper Motor

Nema 11 1.8deg 6Ncm 0.67A Stepper Motor

$34.48

Upgrade your automation projects with the Nema 11 1.8deg 6Ncm 0.67A Stepper Motor, delivering power and precision in a compact package.

Motor TypeStepper Motor

Degree1.8

Rated Torque(Ncm)6

Current(A)0.67

Electrical Specification

Manufacturer Part Number 11HS12-0674D1-PG5
Motor Type Bipolar Stepper
Holding Torque without Gearbox 6 Ncm (8.50 oz.in)
Rated Current/phase 0.67A
Phase Resistance 5.6 ohms
Inductance 4.2mH ± 20% (1KHz)

Gearbox Specifications

Gearbox Type Planetary
Gear Ratio 5.18:1
Efficiency 90%
Backlash at No-load <=3 deg
Max. Permissible Torque 3 Nm (425 oz.in)
Moment Permissible Torque 5 Nm (708 oz.in)
Shaft Maximum Axial Load 5N
Shaft Maximum Radial Load 25N

Physical Specifications

Frame Size 28 x 28mm
Motor Length 31.5mm
Gearbox Length 29.2mm
Front Shaft Diameter Φ6mm
Front Shaft Length 18mm
Front D-cut Length 12mm
Rear Shaft Diameter 3.9mm
Rear Shaft Length 12mm
Number of Leads 4
Lead Length 300mm
IP Rating 40
Weight 120g
